Model # BDP-BX110 Official Sony dvd player

Here are the diagrams and repair parts for Official Sony BDP-BX110 dvd player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |

Power Pcb 149186411
#103

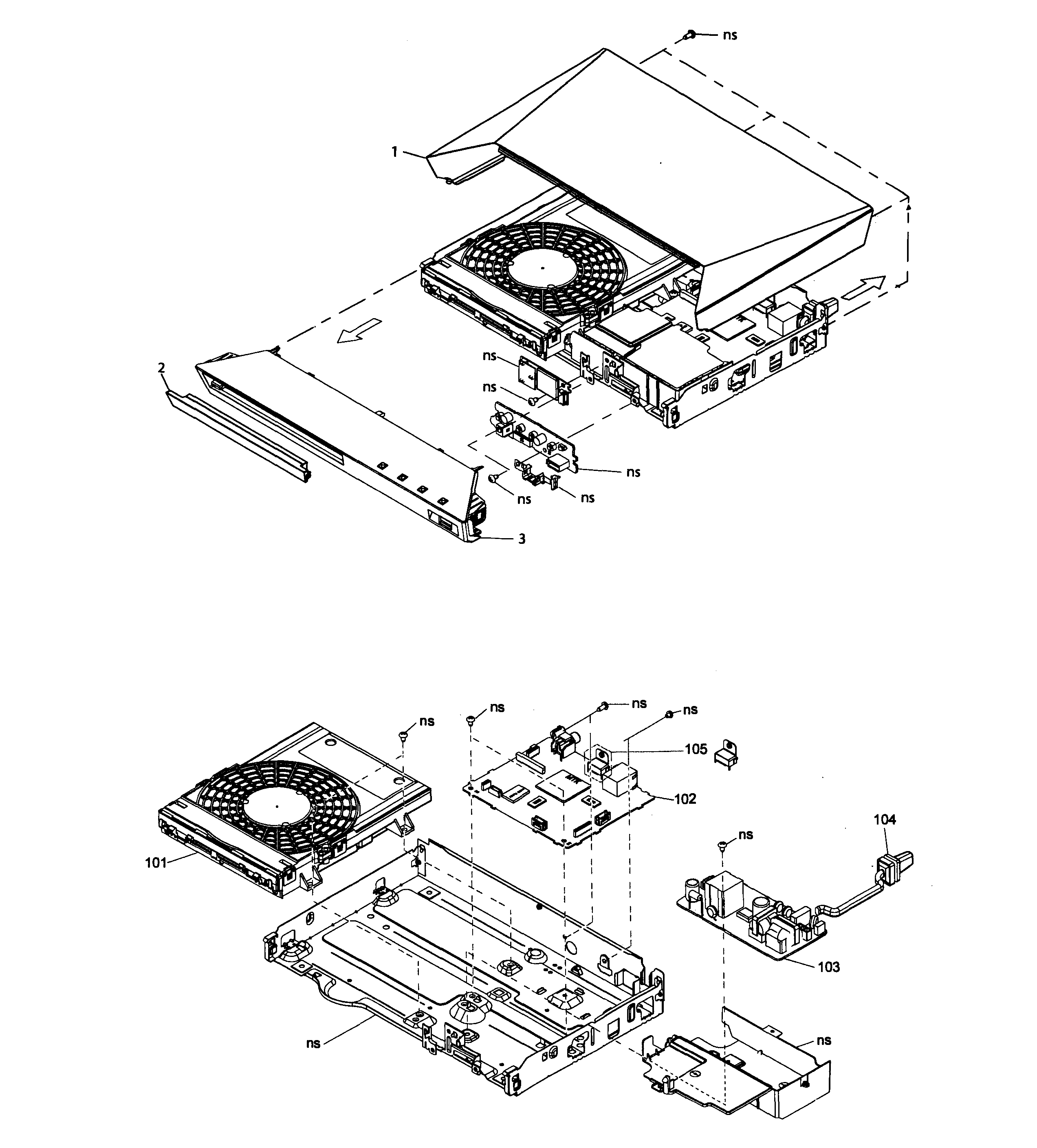

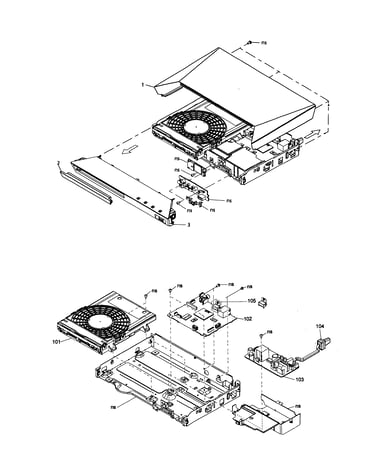

Case & chassis diagram

Power pcb

Part #149186411

The manufacturer no longer makes this part, and there's no substitute part

Main Pcb A1905690A
#102

Case & chassis diagram

Main pcb

Part #A1905690A

The manufacturer no longer makes this part, and there's no substitute part

Flat Cable 184638911
#152

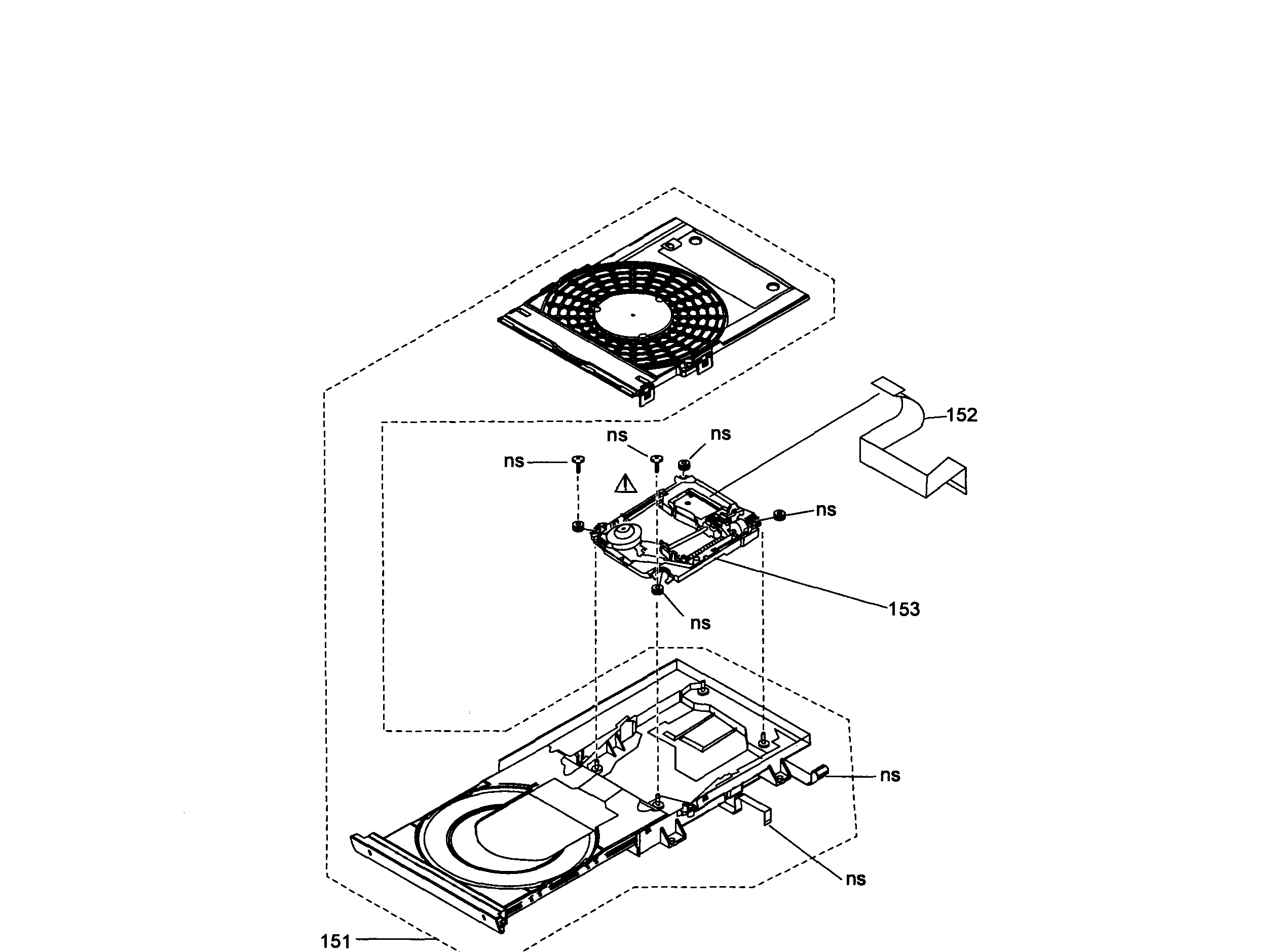

Bd section diagram

Flat cable

Part #184638911

The manufacturer no longer makes this part, and there's no substitute part

Loading Fo A1850153C
Loading fo

Part #A1850153C

The manufacturer no longer makes this part, and there's no substitute part

Opt Device 882045207
#153

Bd section diagram

Opt device

Part #882045207

The manufacturer no longer makes this part, and there's no substitute part

Tray Cover X25854191
#2

Case & chassis diagram

Tray cover

Part #X25854191

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 183944511
#104

Case & chassis diagram

Power cord

Part #183944511

The manufacturer no longer makes this part, and there's no substitute part

Remote Control 149002712
#NI

Case & chassis diagram

Remote control

Part #149002712

The manufacturer no longer makes this part, and there's no substitute part

Hdmi Conne 184348611
#105

Case & chassis diagram

Hdmi conne

Part #184348611

The manufacturer no longer makes this part, and there's no substitute part

Top Panel A1905689A
#1

Case & chassis diagram

Top panel

Part #A1905689A

The manufacturer no longer makes this part, and there's no substitute part
