Angle Grinder

Model # 1375-01 Official Bosch angle grinder

Here are the diagrams and repair parts for Official Bosch 1375-01 angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Seal Disk 3600150021
#80

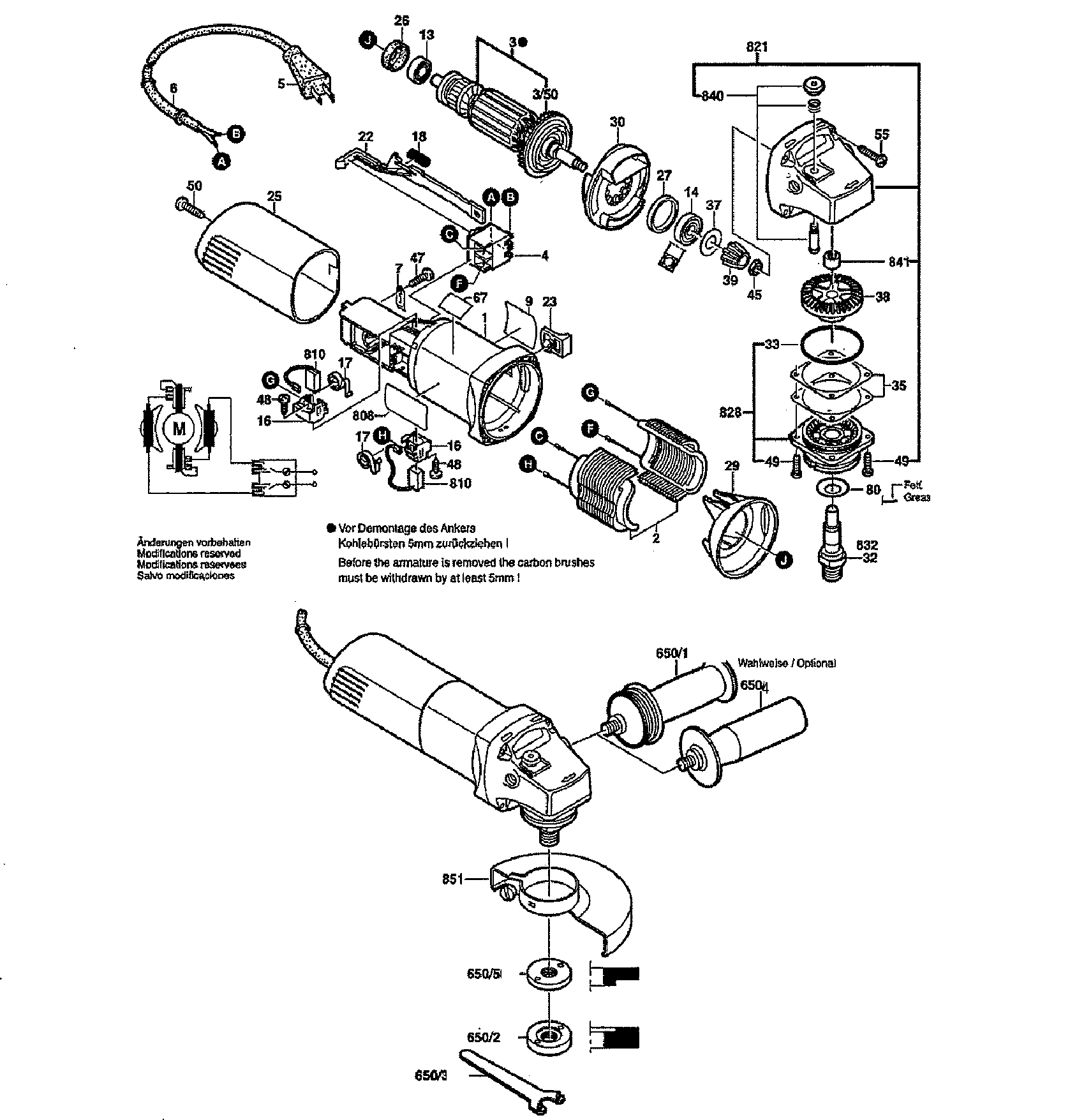

Main asy diagram

Seal disk

Part #3600150021

The manufacturer no longer makes this part, and there's no substitute part

Bearing Fl 1605805090
#828

Main asy diagram

Bearing fl

Part #1605805090

The manufacturer no longer makes this part, and there's no substitute part

Deflector 1600591023
#29

Main asy diagram

Deflector

Part #1600591023

The manufacturer no longer makes this part, and there's no substitute part

O-ring 1600210041
#33

Main asy diagram

O-ring

Part #1600210041

The manufacturer no longer makes this part, and there's no substitute part

Torx Screw 1619P00220
#48

Main asy diagram

Torx screw

Part #1619P00220

The manufacturer no longer makes this part, and there's no substitute part

Ring 1600591024
#30

Main asy diagram

Ring

Part #1600591024

The manufacturer no longer makes this part, and there's no substitute part

Handle 1602025027
#6504

Main asy diagram

Handle

Part #1602025027

The manufacturer no longer makes this part, and there's no substitute part

Crown Gear 2609110150
#38

Main asy diagram

Crown gear

Part #2609110150

The manufacturer no longer makes this part, and there's no substitute part

Gear Housing 1605806466
#821

Main asy diagram

Gear housing

Part #1605806466

The manufacturer no longer makes this part, and there's no substitute part

Bearing 1619P11239
#13

Main asy diagram

Bearing

Part #1619P11239

The manufacturer no longer makes this part, and there's no substitute part
