Kenmore
Microwave/Hood Combo

Model # 72180499000 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72180499000 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

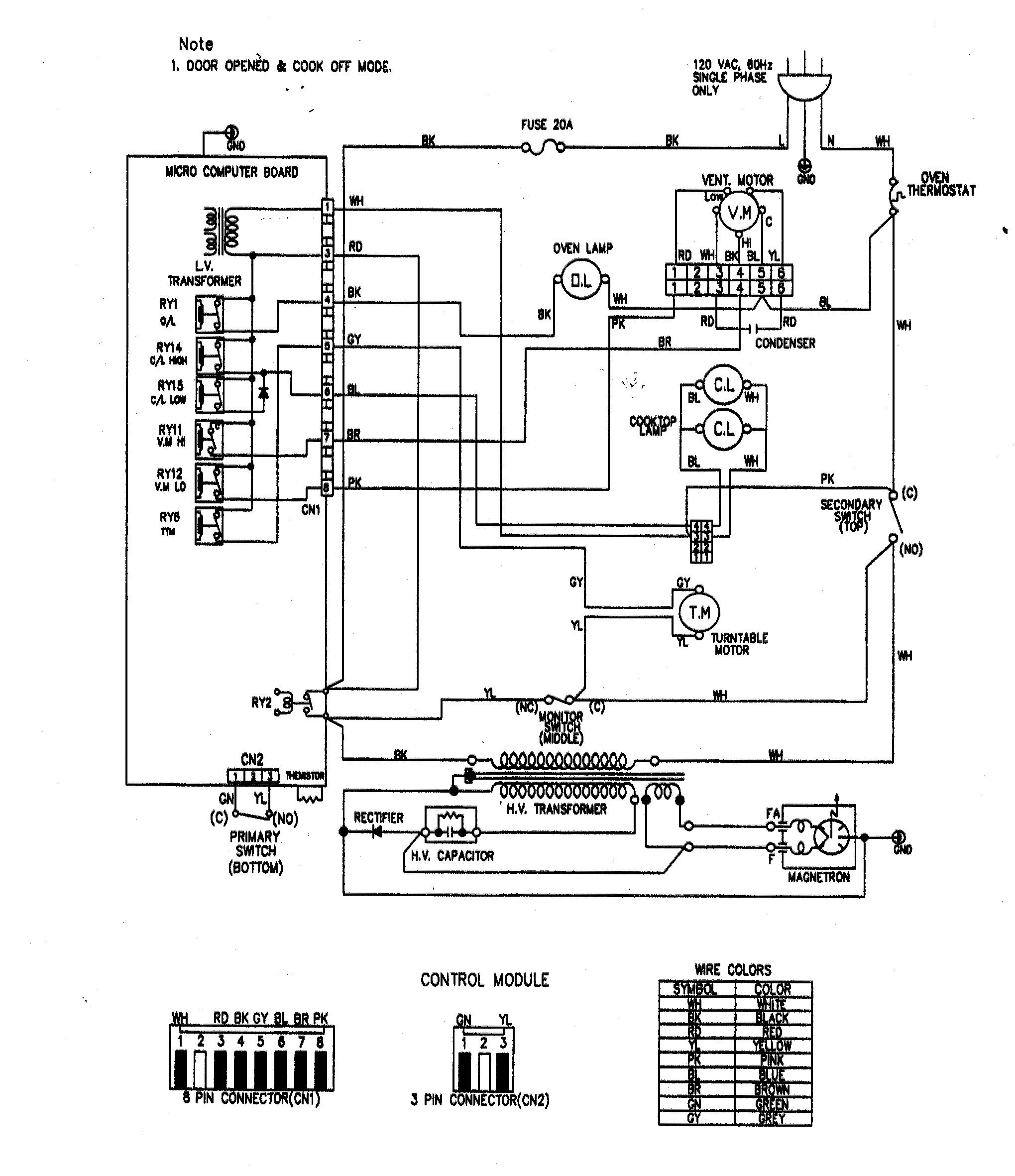

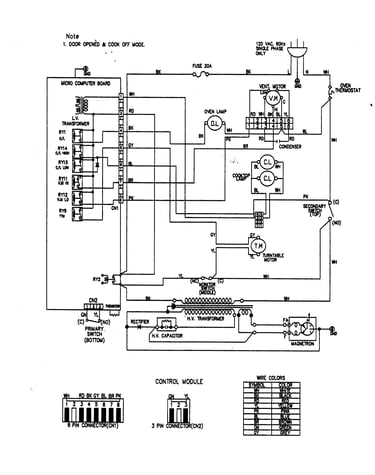

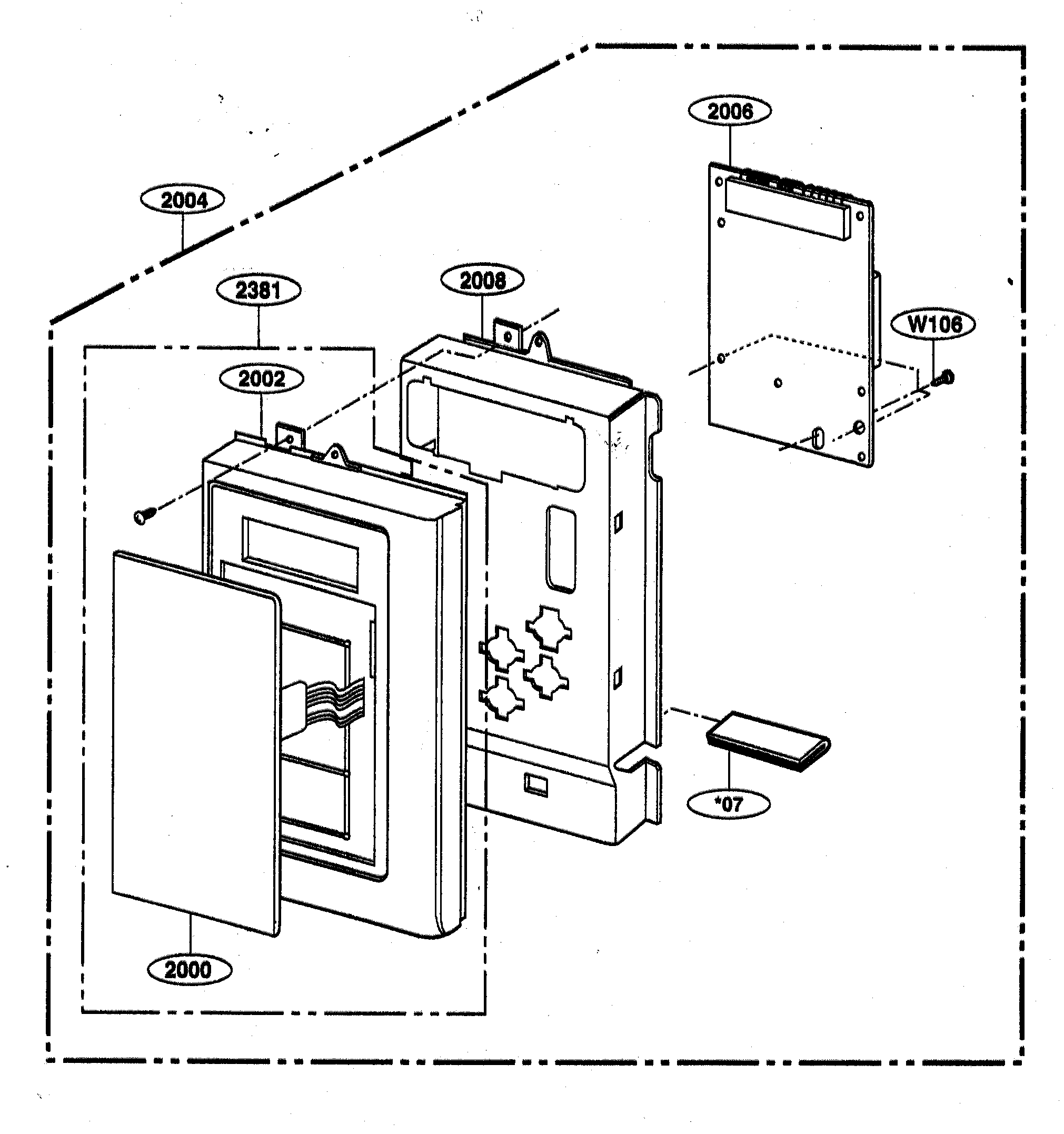

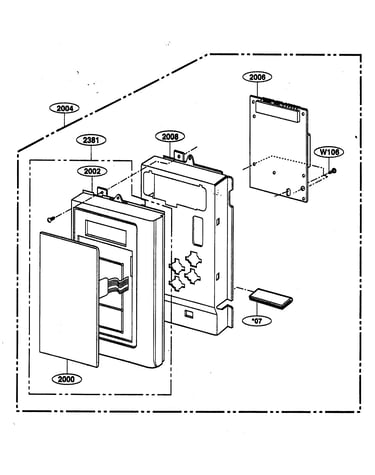

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Magnetron 2B71165P
#5009

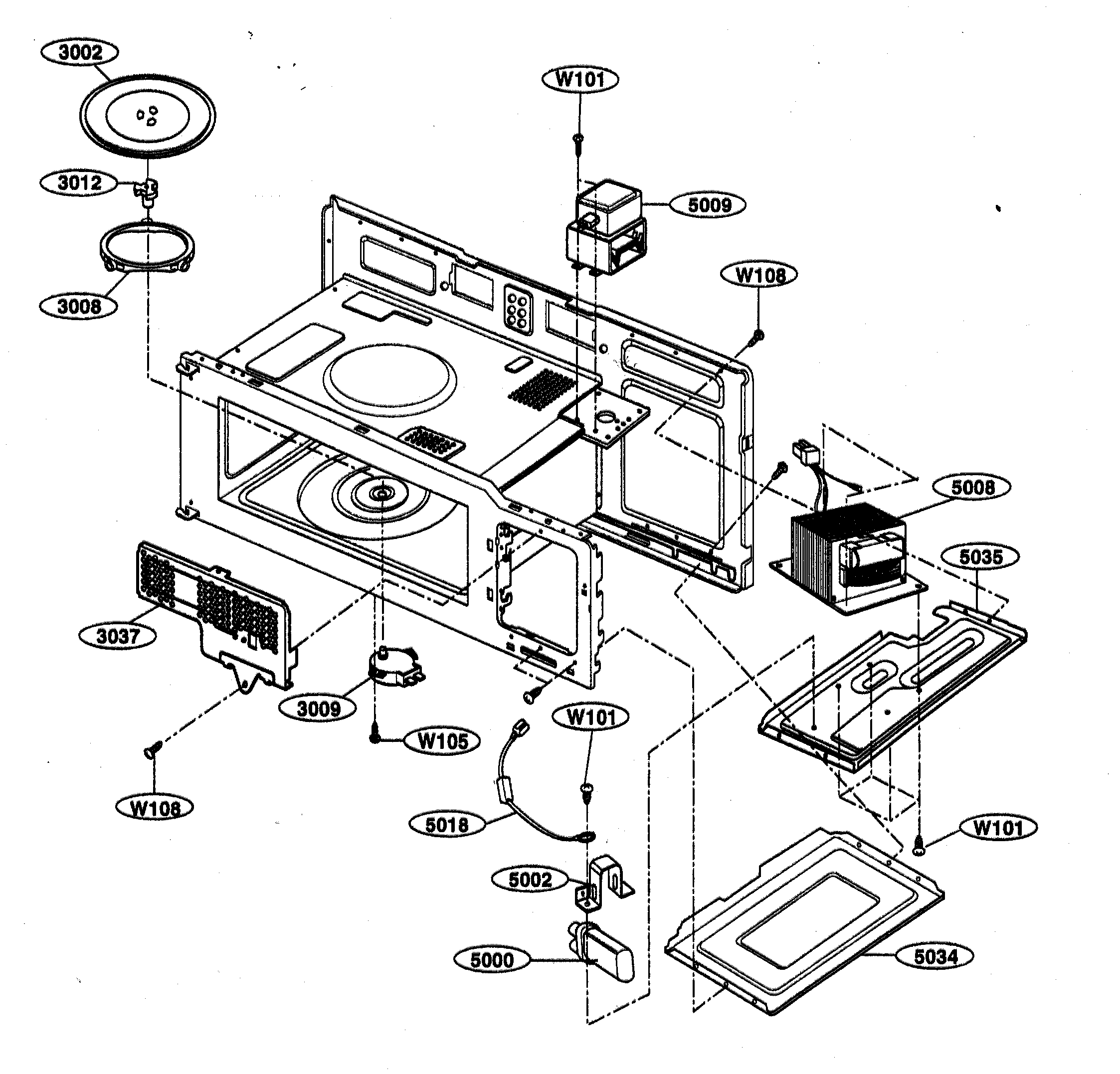

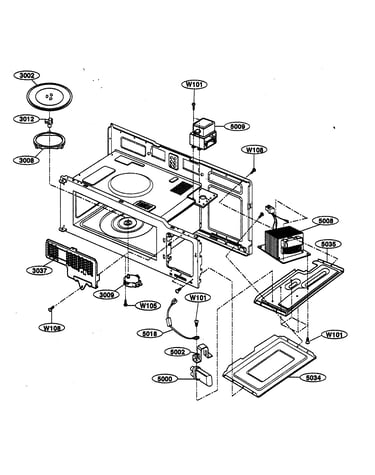

Interior parts 1 diagram

Magnetron

Part #2B71165P

The manufacturer no longer makes this part, and there's no substitute part

High-voltage Diode 6021W3B001A
#5018

Interior parts 1 diagram

High-voltage diode

Part #6021W3B001A

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6021W3B001A. Substitute parts can look different from the original.
BEST SELLER
$8.73 |
10% OFF Phone Price : $9.73
In Stock
Microwave Glass Turntable Tray 1B71961E
#3002

Interior parts 1 diagram

Microwave glass turntable tray

Part #1B71961E

Replaced by #1B71961H

?
Manufacturer substitution
This part replaces 1B71961E. Substitute parts can look different from the original.
BEST SELLER
$32.53 |
13% OFF Phone Price : $37.53
In Stock
Microwave High-voltage Capacitor (replaces 0czzw1h004g, 0czzw1h004p, 6120w3h003h, Eae61082101) 0CZZW1H004B
#5000

Interior parts 1 diagram

Microwave high-voltage capacitor (replaces 0czzw1h004g, 0czzw1h004p, 6120w3h003h, eae61082101)

Part #0CZZW1H004B

BEST SELLER
$28.54 |
15% OFF Phone Price : $33.54
In Stock
Oven Switch 503387
#4002

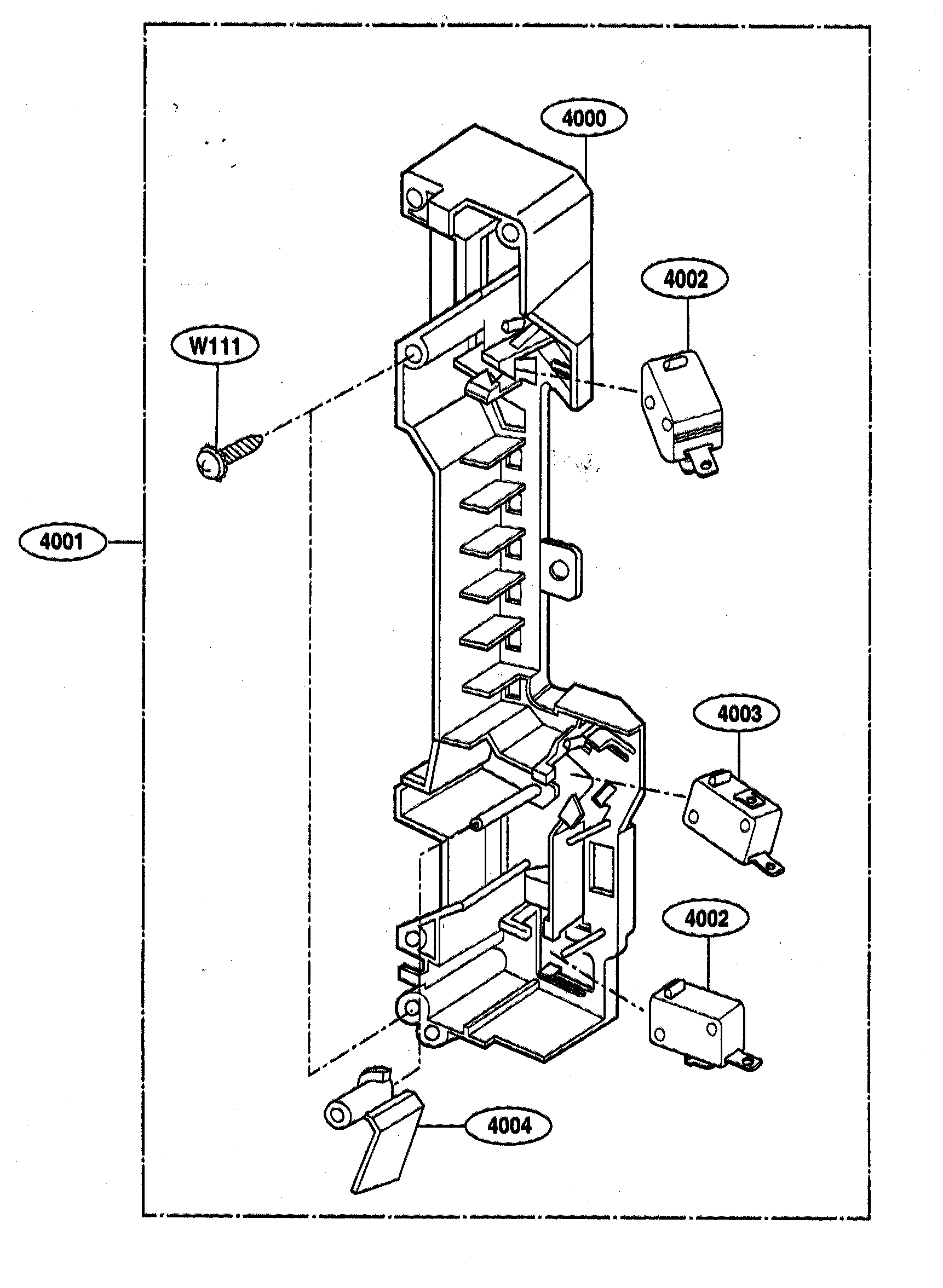

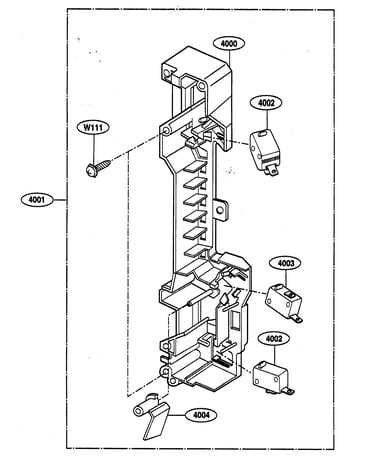

Latch board parts diagram

Oven switch

Part #503387

Replaced by #3B73362F

?
Manufacturer substitution
This part replaces 503387. Substitute parts can look different from the original.
BEST SELLER
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Microwave Turntable Motor Coupler 3B72373A
#3012

Interior parts 1 diagram

Microwave turntable motor coupler

Part #3B72373A

Replaced by #4370W1A006B

?
Manufacturer substitution
This part replaces 3B72373A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.57 |
9% OFF Phone Price : $10.57
In Stock
Microwave Waveguide Cover Rivet 4051W3A001A
#3004

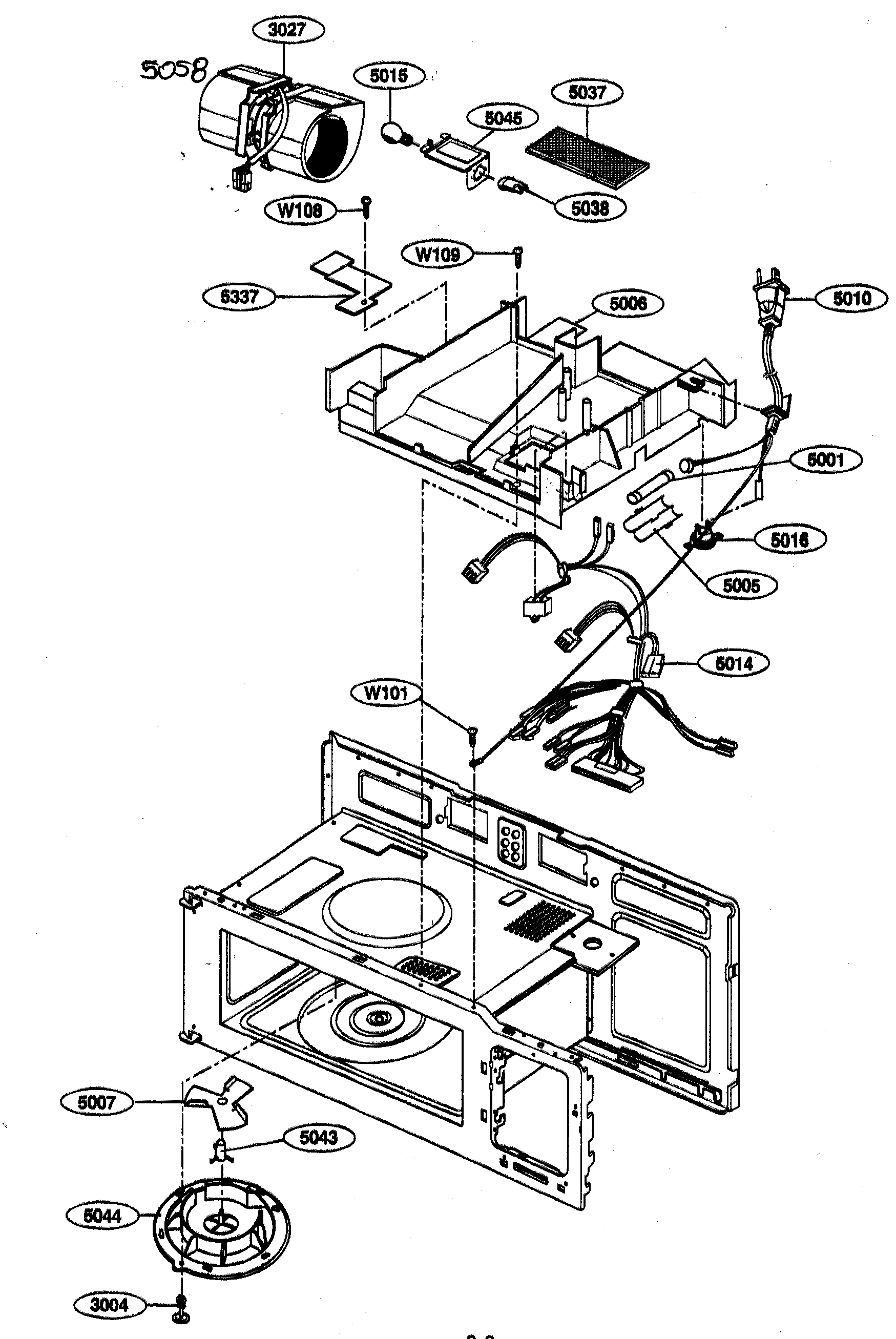

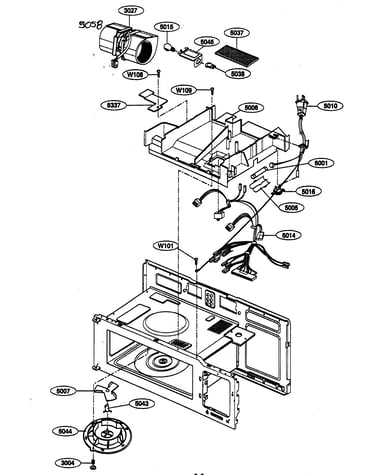

Interior parts 2 diagram

Microwave waveguide cover rivet

Part #4051W3A001A

BEST SELLER
This item is not returnable
$2.75 |
27% OFF Phone Price : $3.75
In Stock
Installation Kit 2B72771G
#6009

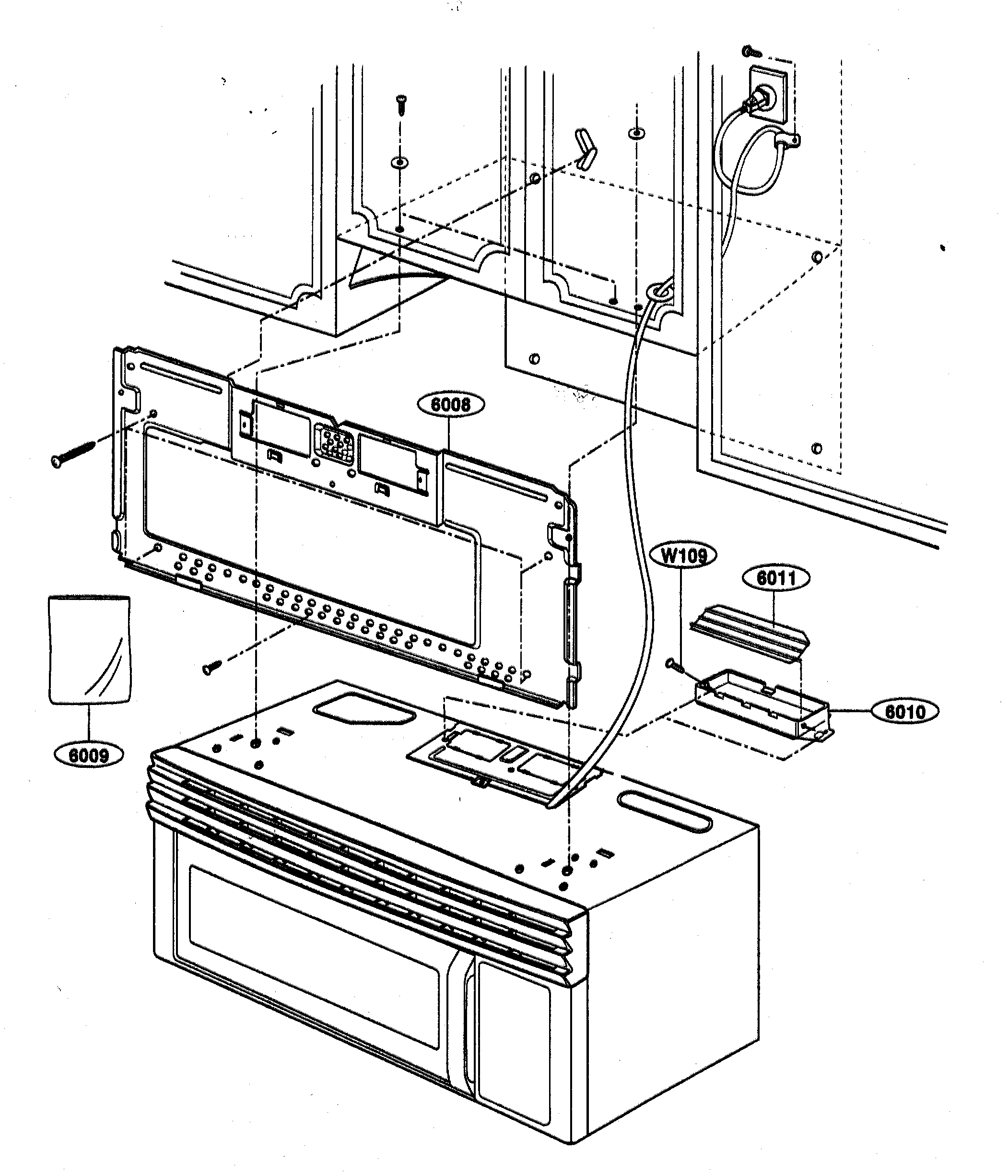

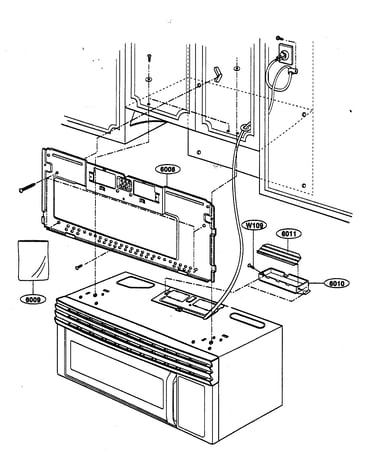

Installation parts diagram

Installation kit

Part #2B72771G

Replaced by #3861W1A043C

?
Manufacturer substitution
This part replaces 2B72771G. Substitute parts can look different from the original.
This item is not returnable
$23.98 |
17% OFF Phone Price : $28.98
In Stock
Canopy 3052WRA002A
#3034

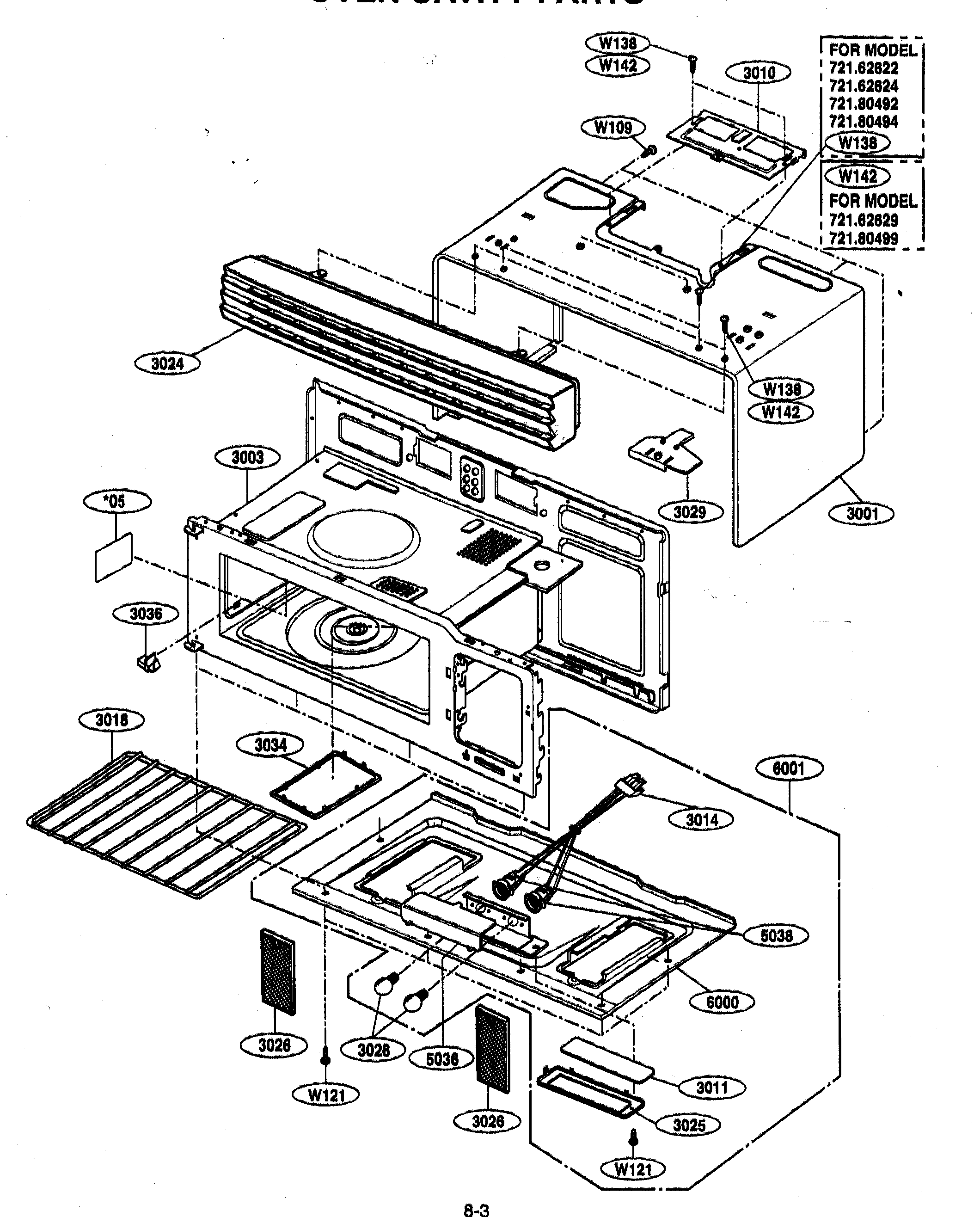

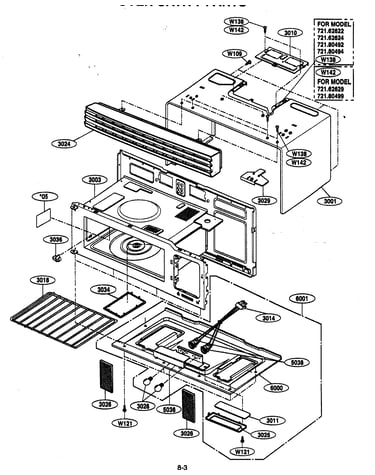

Oven cavity parts diagram

Canopy

Part #3052WRA002A

Replaced by #3052W1A002A

?
Manufacturer substitution
This part replaces 3052WRA002A. Substitute parts can look different from the original.
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Seal Tape 3536WRA001R
#1002

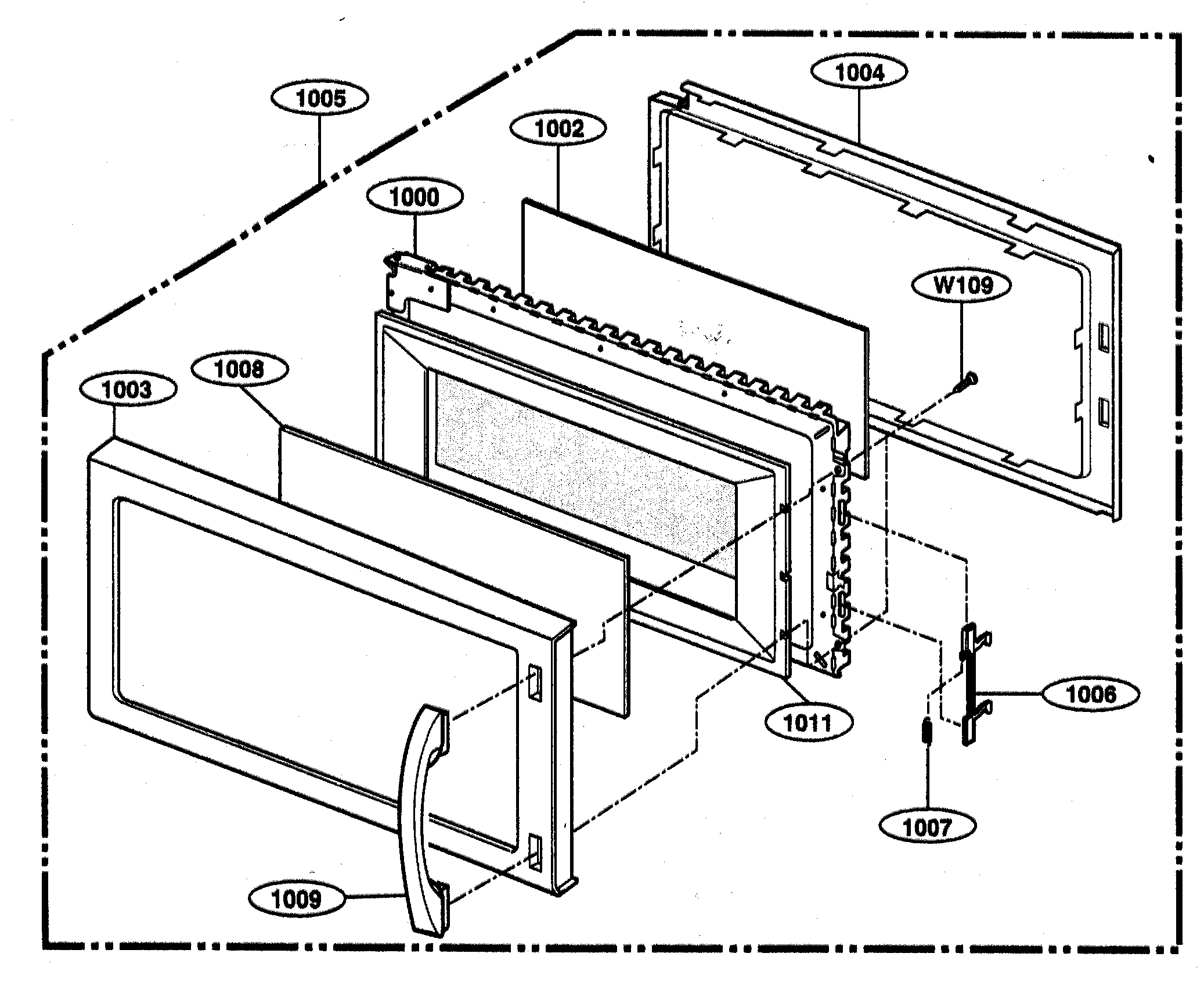

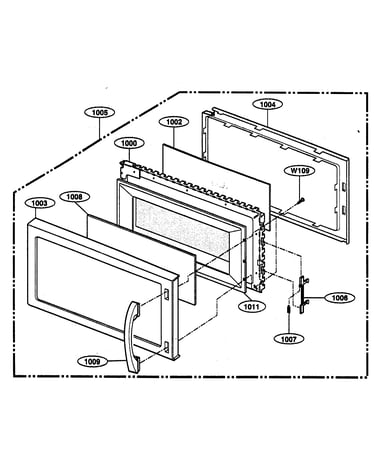

Door parts diagram

Seal tape

Part #3536WRA001R

Replaced by #3536W1A012B

?
Manufacturer substitution
This part replaces 3536WRA001R. Substitute parts can look different from the original.
This item is not returnable
$5.56 |
15% OFF Phone Price : $6.56
In Stock
