Model # DWE4887 TYPE 1 Official DeWalt die grinder

Here are the diagrams and repair parts for Official DeWalt DWE4887-TYPE-1 die grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |
Grinder Collet, 1/4-in N383609
#39

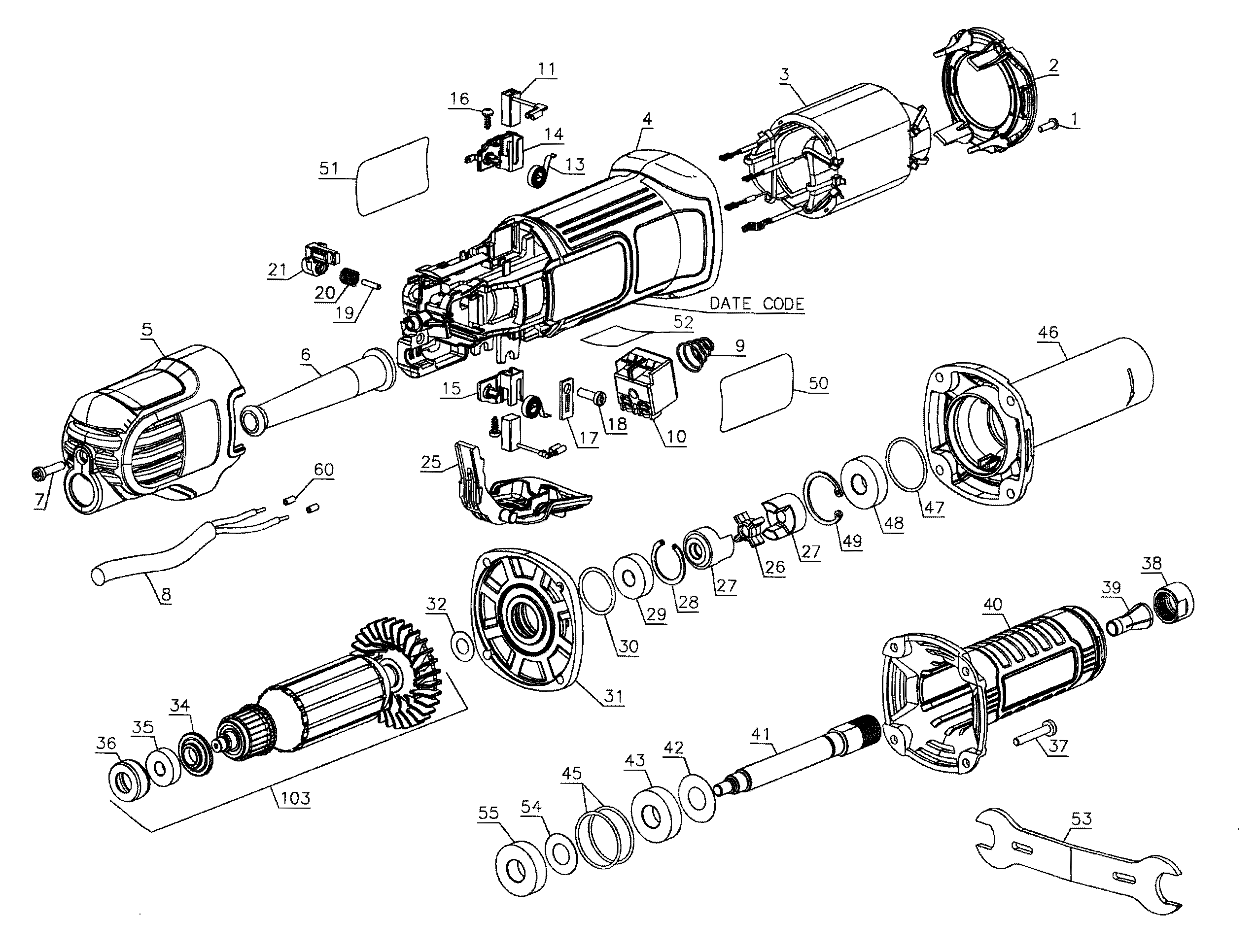

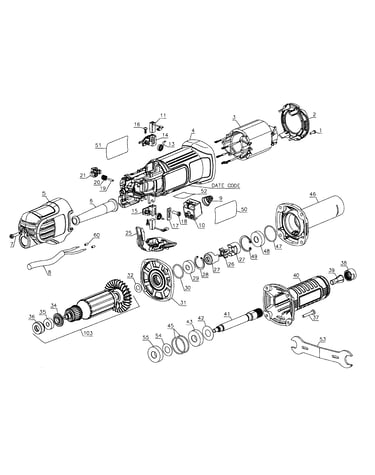

Grinder ass diagram

Grinder collet, 1/4-in

Part #N383609

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing N175104
#29

Grinder ass diagram

Ball bearing

Part #N175104

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Screw 562097-00
#18

Grinder ass diagram

Angle grinder screw

Part #562097-00

The manufacturer no longer makes this part, and there's no substitute part

Field N232485
#3

Grinder ass diagram

Field

Part #N232485

The manufacturer no longer makes this part, and there's no substitute part

Driver N275347
#26

Grinder ass diagram

Driver

Part #N275347

The manufacturer no longer makes this part, and there's no substitute part

Coupling N275349
#27

Grinder ass diagram

Coupling

Part #N275349

The manufacturer no longer makes this part, and there's no substitute part

Bearing Cup 641823-00
#36

Grinder ass diagram

Bearing cup

Part #641823-00

The manufacturer no longer makes this part, and there's no substitute part

Slide 638229-00
#42

Grinder ass diagram

Slide

Part #638229-00

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin N221693
#19

Grinder ass diagram

Roll pin

Part #N221693

The manufacturer no longer makes this part, and there's no substitute part

Bearing 878190
#55

Grinder ass diagram

Bearing

Part #878190

The manufacturer no longer makes this part, and there's no substitute part
