Model # MVH140W-P1319502M Official Amana microwave/hood combo

Here are the diagrams and repair parts for Official Amana MVH140W-P1319502M microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 93 parts |

#141

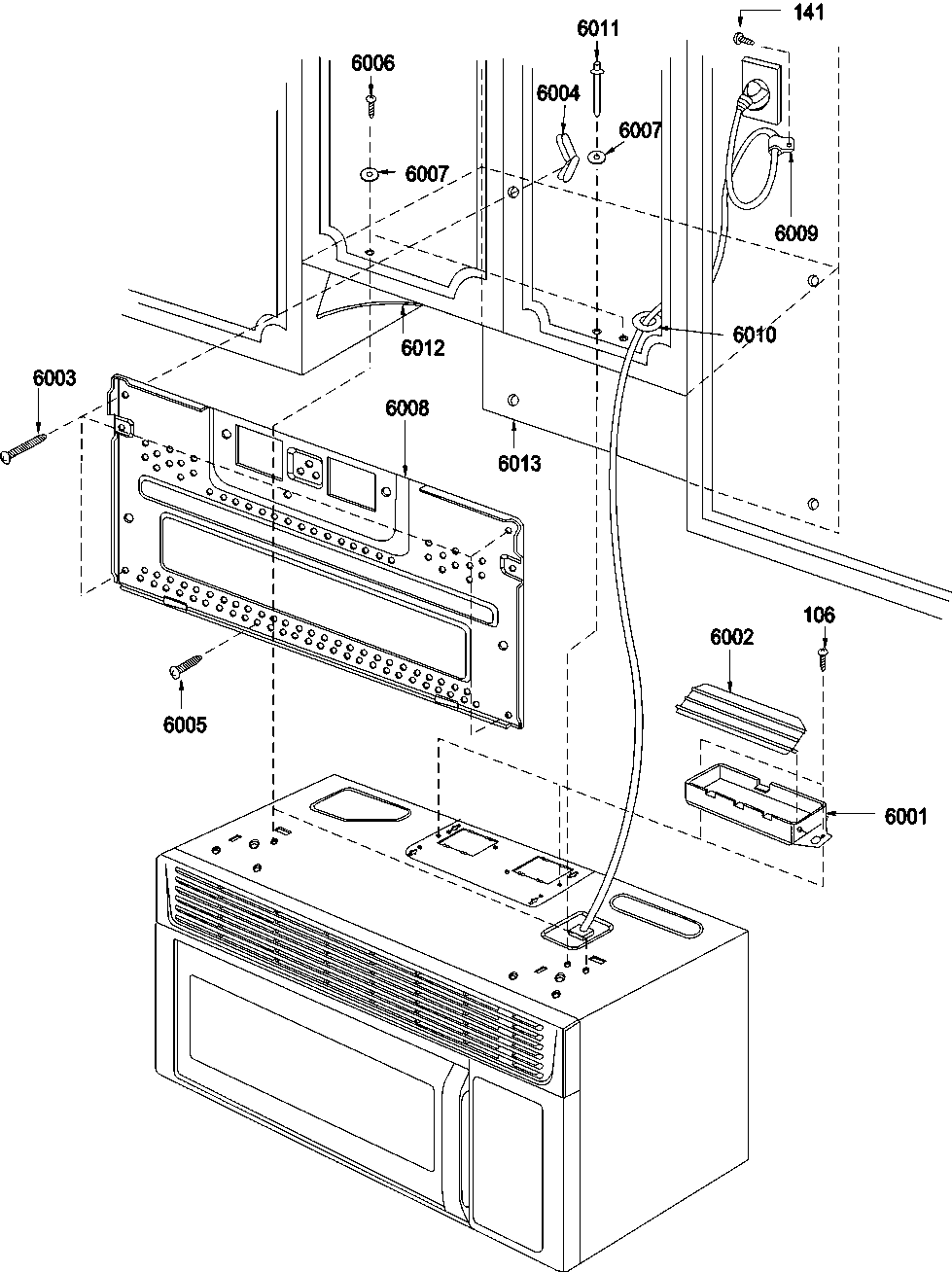

Installation parts diagram

Screw

Part #R9800501

Replaced by #WPY706189

This item is not returnable

$4.39 |

19% OFF Phone Price : $5.39

In Stock

Qty

Screw

Part #R0654038

Replaced by #W11380570

This item is not returnable

$18.19 |

10% OFF Phone Price : $20.19

In Stock

Qty

#501C

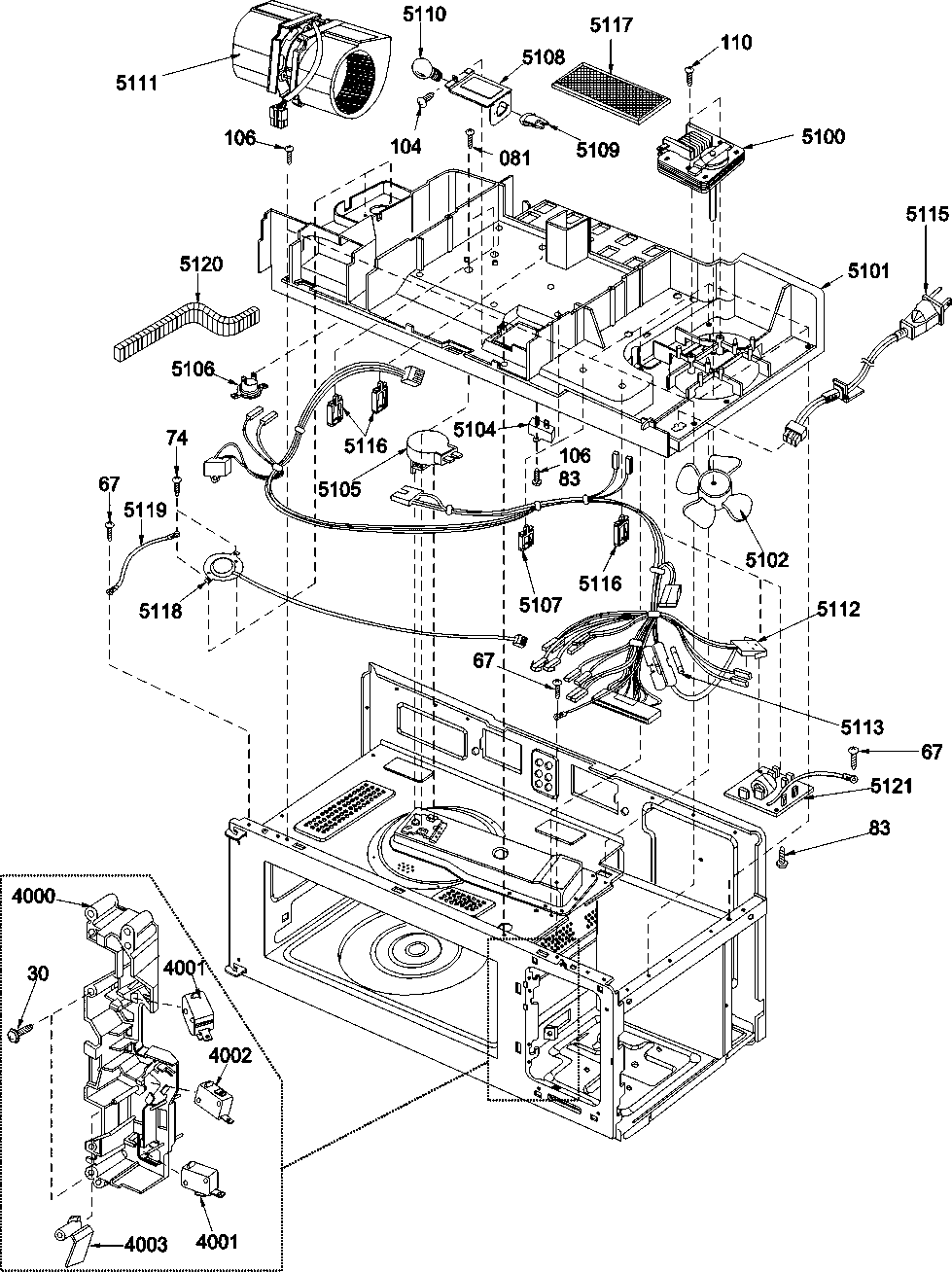

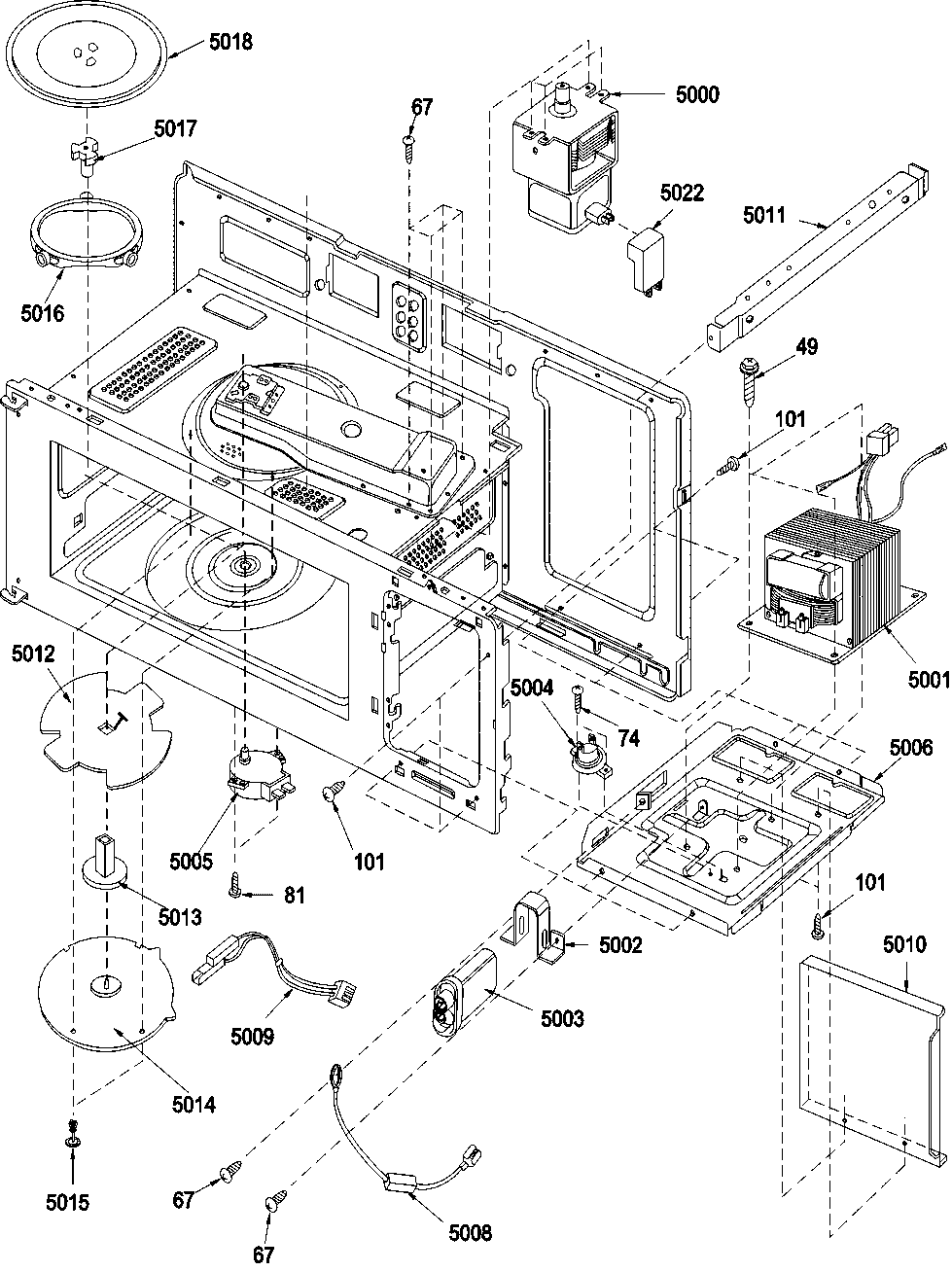

Interior components diagram

Rivet

Part #R9800452

Replaced by #WP4359508

This item is not returnable

$6.02 |

14% OFF Phone Price : $7.02

In Stock

Qty

#502

Interior components diagram

Filter

Part #R9800442

Replaced by #4359624

$17.87

In Stock

Qty

#500H

Interior components diagram

Diode

Part #R9800486

Replaced by #WPR9800486

$20.69 |

19% OFF Phone Price : $25.69

In Stock

Qty

#301E

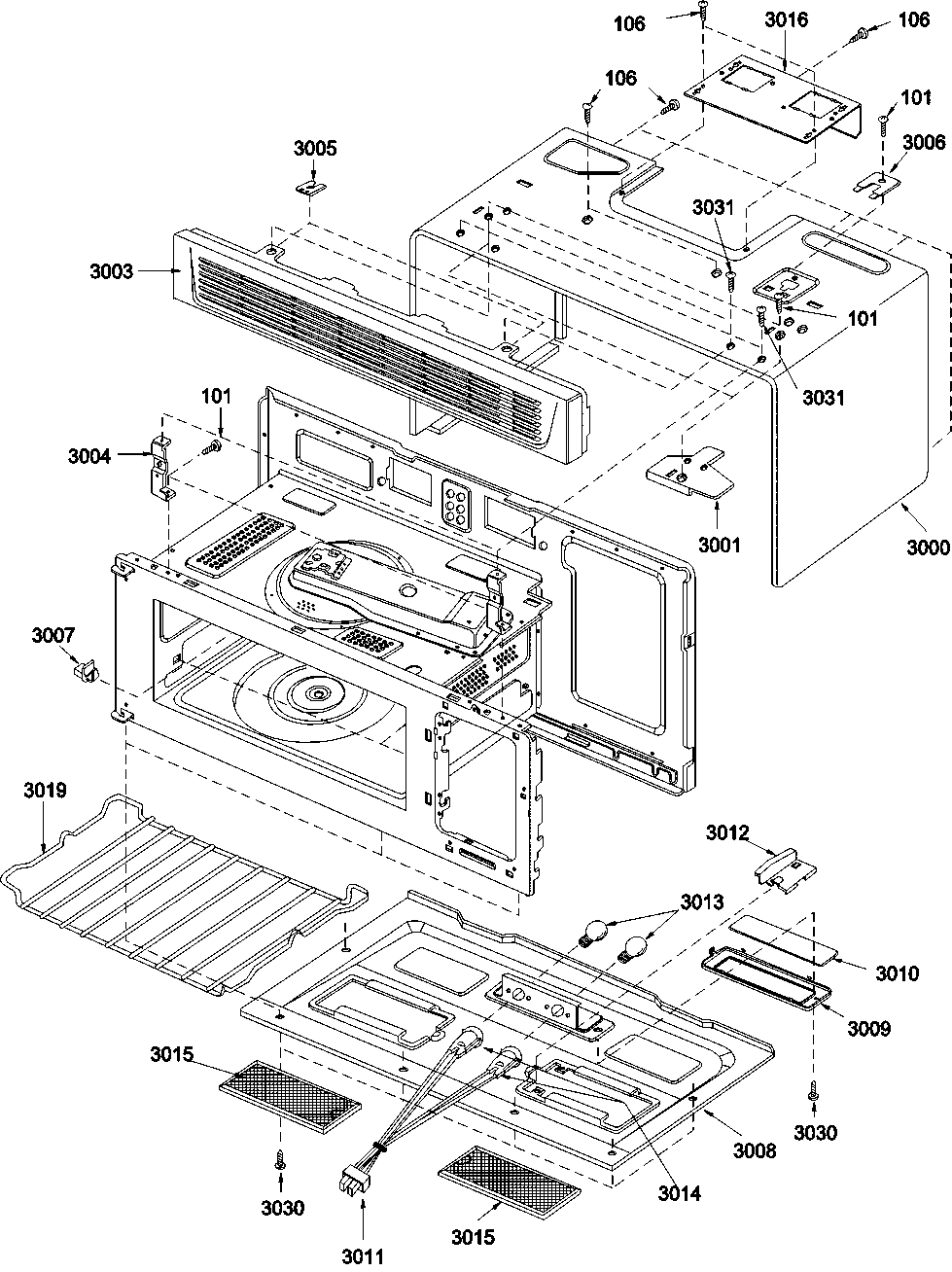

Oven cavity diagram

Filter

Part #R9800408

Replaced by #WP56001069

This item is not returnable

$15.99 |

11% OFF Phone Price : $17.99

In Stock

Qty

#501E

Interior components diagram

Shaft

Part #R9800454

Replaced by #WPW10143947

This item is not returnable

$11.78 |

15% OFF Phone Price : $13.78

In Stock

Qty

#501B

Interior components diagram

Stirrer cover

Part #R9800448

Replaced by #WP4359963

$80.19 |

6% OFF Phone Price : $85.19

In Stock

Qty

#400A

Interior components diagram

Switch

Part #R0654175

Replaced by #4392027

$69.11 |

20% OFF MSRP : $86.00

In Stock

Qty

#100A

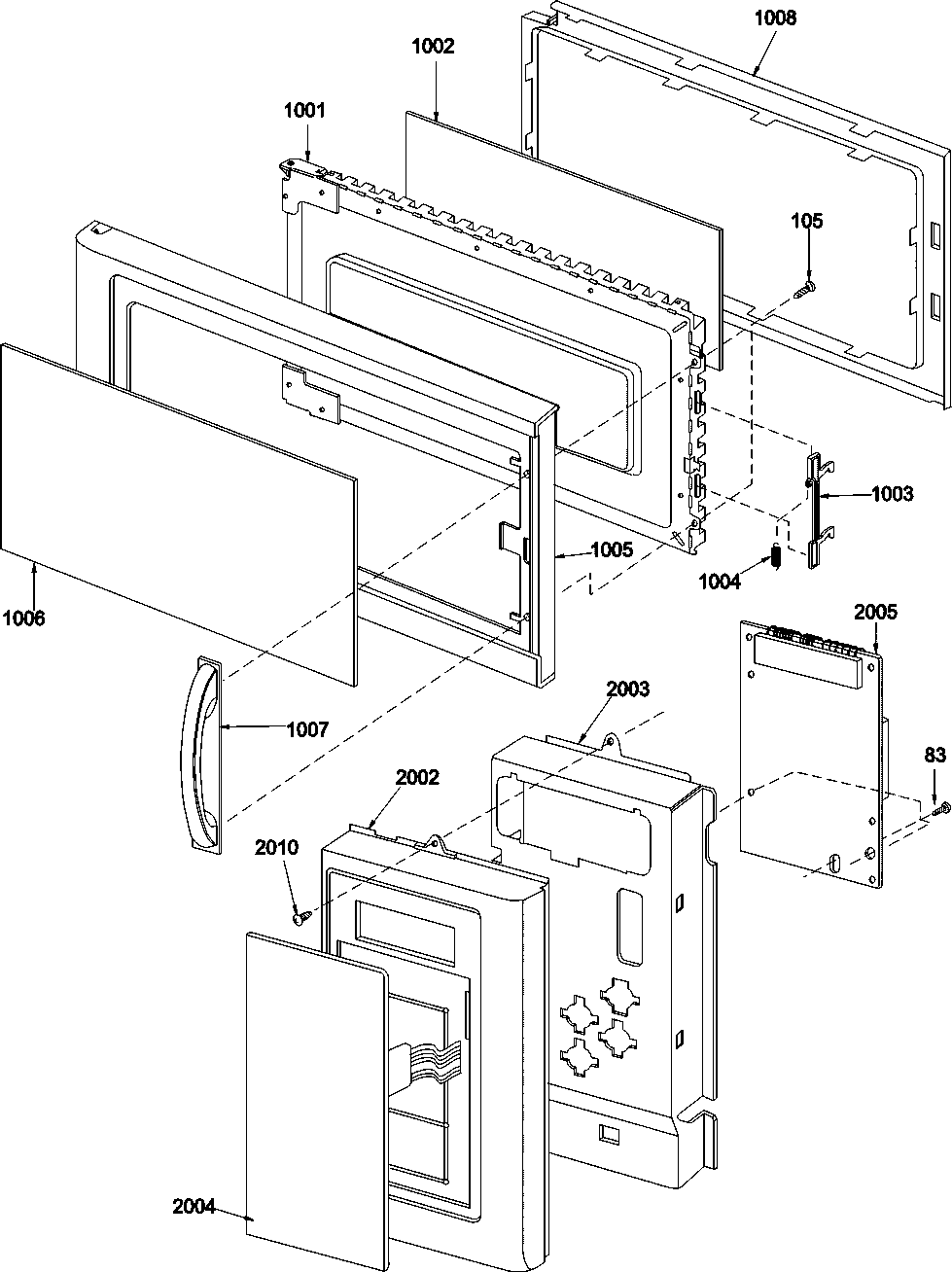

Door & control panel diagram

Tape

Part #R9800272

Replaced by #WPW10146437

$30.69 |

14% OFF Phone Price : $35.69

In Stock

Qty
