Model # 42PG20-UAAUSALJR Official LG plasma television

Here are the diagrams and repair parts for Official LG 42PG20-UAAUSALJR plasma television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |

Television Power Cord EAD36401701
#NI

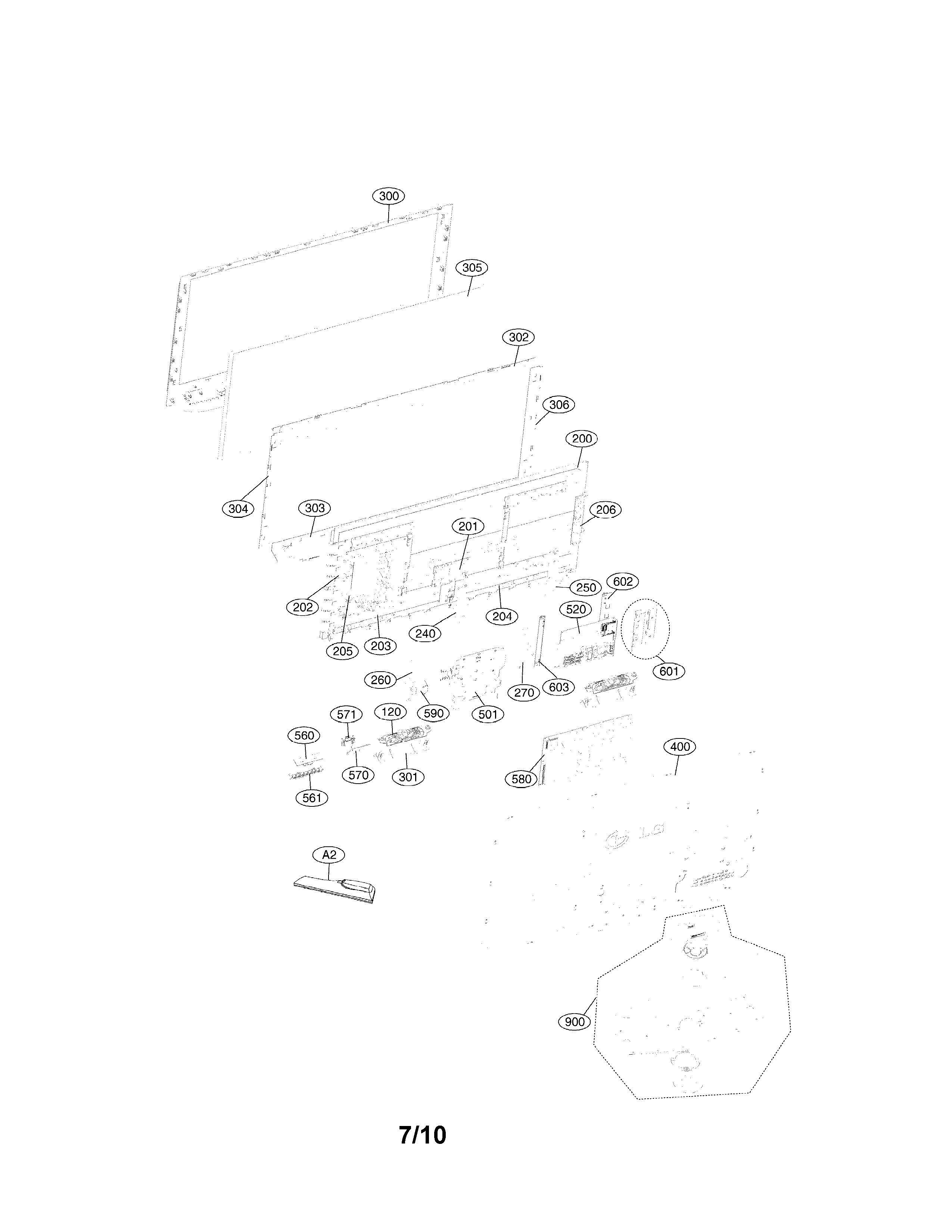

Tv lcd 42 diagram

Television power cord

Part #EAD36401701

In Stock
Hand Insert EBR50217701
#206

Tv lcd 42 diagram

Hand insert

Part #EBR50217701

In Stock
Shield Plate MGJ40268206
#603

Tv lcd 42 diagram

Shield plate

Part #MGJ40268206

This item is not returnable
In Stock
Plate MGJ41163807
#601A

Tv lcd 42 diagram

Plate

Part #MGJ41163807

In Stock
Hand Insert EBR50222701
#204

Tv lcd 42 diagram

Hand insert

Part #EBR50222701

In Stock
Button MBG41119902
#561

Tv lcd 42 diagram

Button

Part #MBG41119902

This item is not returnable
In Stock
Filter EAM35012711
#590

Tv lcd 42 diagram

Filter

Part #EAM35012711

In Stock
Pdp Module EAJ41970782
#200

Tv lcd 42 diagram

Pdp module

Part #EAJ41970782

In Stock
Remote MKJ42519603
#A2

Tv lcd 42 diagram

Remote

Part #MKJ42519603

In Stock
Hand Insert EBR50219801
#201

Tv lcd 42 diagram

Hand insert

Part #EBR50219801

In Stock
