Frigidaire
Room Air Conditioner

Model # FRS124YW10 Official Frigidaire room air conditioner

Here are the diagrams and repair parts for Official Frigidaire FRS124YW10 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

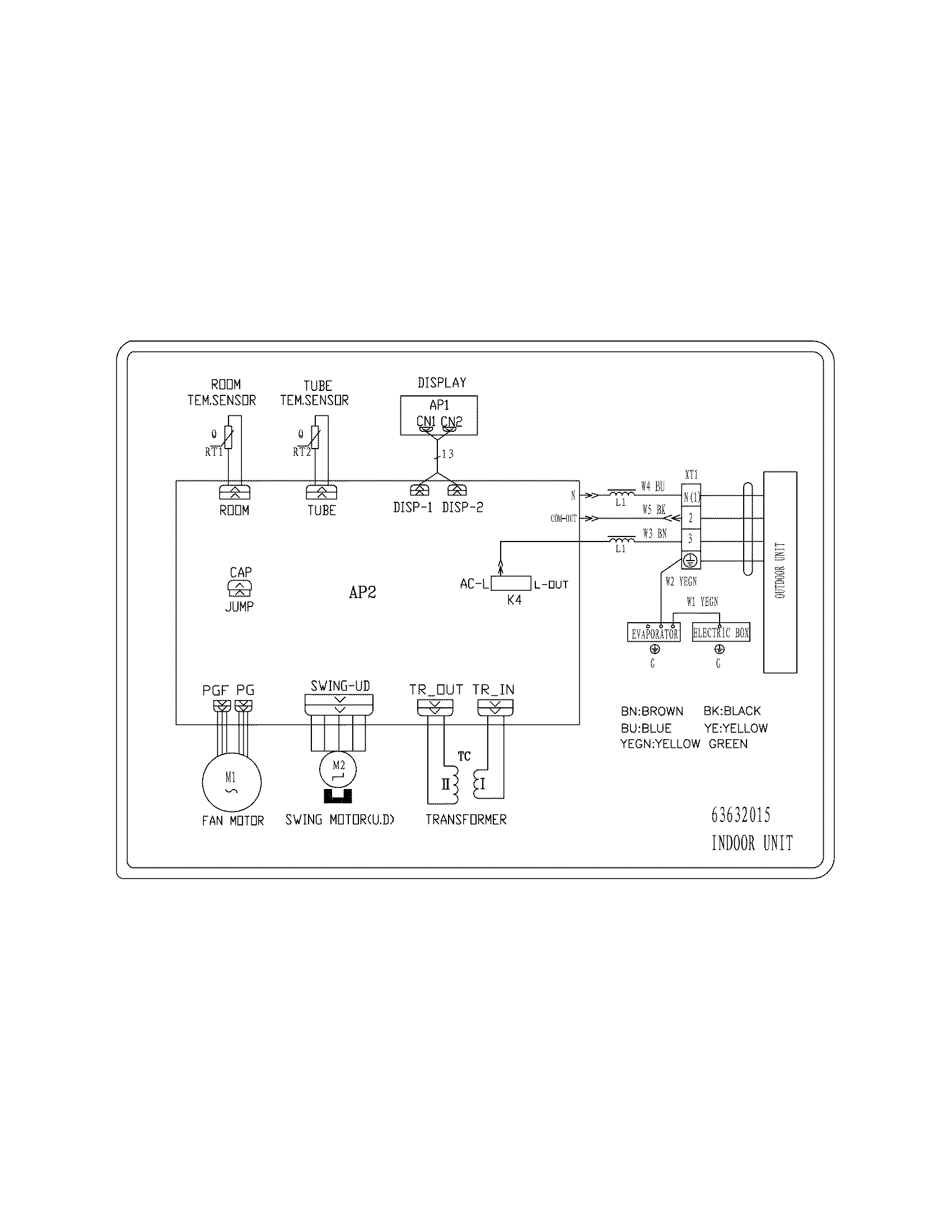

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
O-ring 5304482778
#14

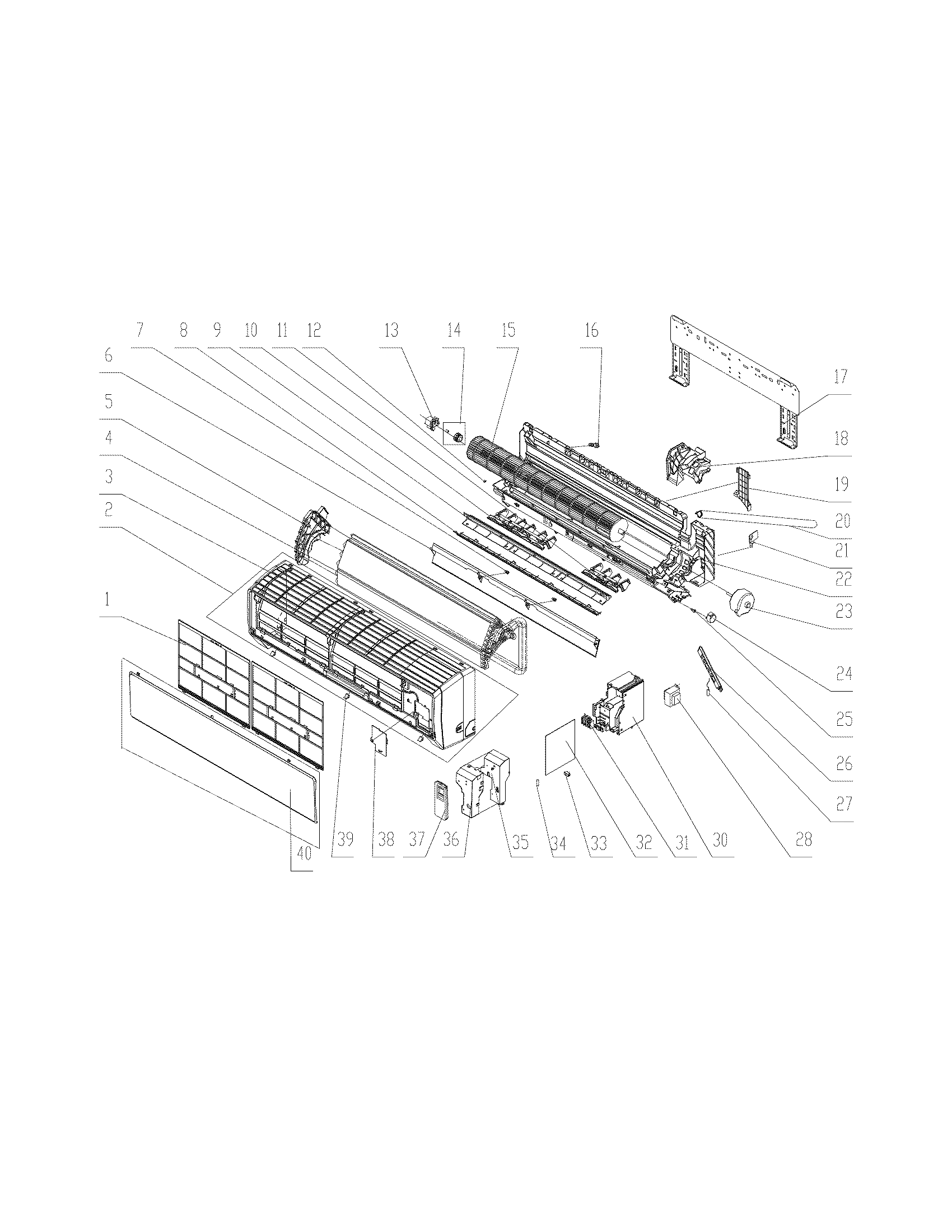

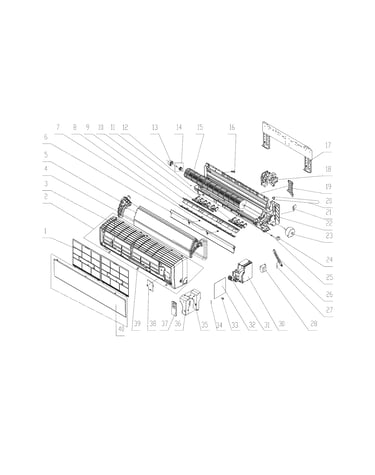

Recommended spare parts diagram

O-ring

Part #5304482778

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Evaporator Defrost Thermistor 5304460537
#34

Recommended spare parts diagram

Room air conditioner evaporator defrost thermistor

Part #5304460537

The manufacturer no longer makes this part, and there's no substitute part

Grille 5304482783
#8

Recommended spare parts diagram

Grille

Part #5304482783

The manufacturer no longer makes this part, and there's no substitute part

Board Switch 5304482804
#31

Recommended spare parts diagram

Board switch

Part #5304482804

The manufacturer no longer makes this part, and there's no substitute part

Bracket 5304483235
#17

Recommended spare parts diagram

Bracket

Part #5304483235

The manufacturer no longer makes this part, and there's no substitute part

Shield 5304482796
#36

Recommended spare parts diagram

Shield

Part #5304482796

The manufacturer no longer makes this part, and there's no substitute part

Transformer 5304482800
#28

Recommended spare parts diagram

Transformer

Part #5304482800

The manufacturer no longer makes this part, and there's no substitute part

Evaporator 5304483234
#4

Recommended spare parts diagram

Evaporator

Part #5304483234

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Electronic Control Board Assembly 5304483383
#32

Recommended spare parts diagram

Room air conditioner electronic control board assembly

Part #5304483383

The manufacturer no longer makes this part, and there's no substitute part

Louver 5304482782
#10

Recommended spare parts diagram

Louver

Part #5304482782

The manufacturer no longer makes this part, and there's no substitute part
