GE JKP90CM4CC built-in oven with microwave

GE JKP90CM4CC built-in oven with microwave Parts

Here are the diagrams and repair parts for GE JKP90CM4CC built-in oven with microwave, as well as links to manuals and error code tables, if available.

By Schematic
By Part

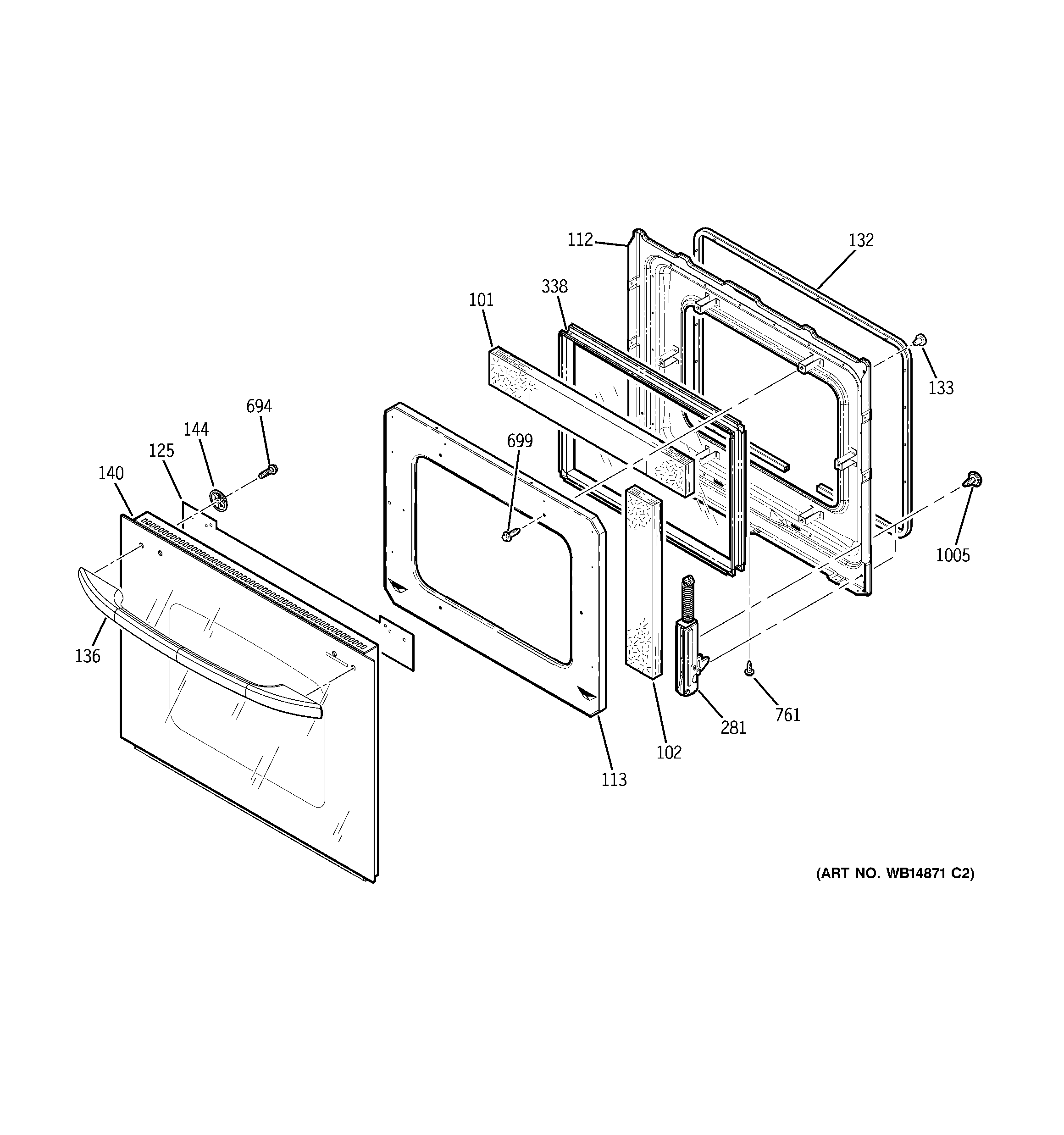

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JKP90CM4CC Built-In Oven with Microwave

  • Microwave Micro-switch for GE JKP90CM4CC - Part WB24X829

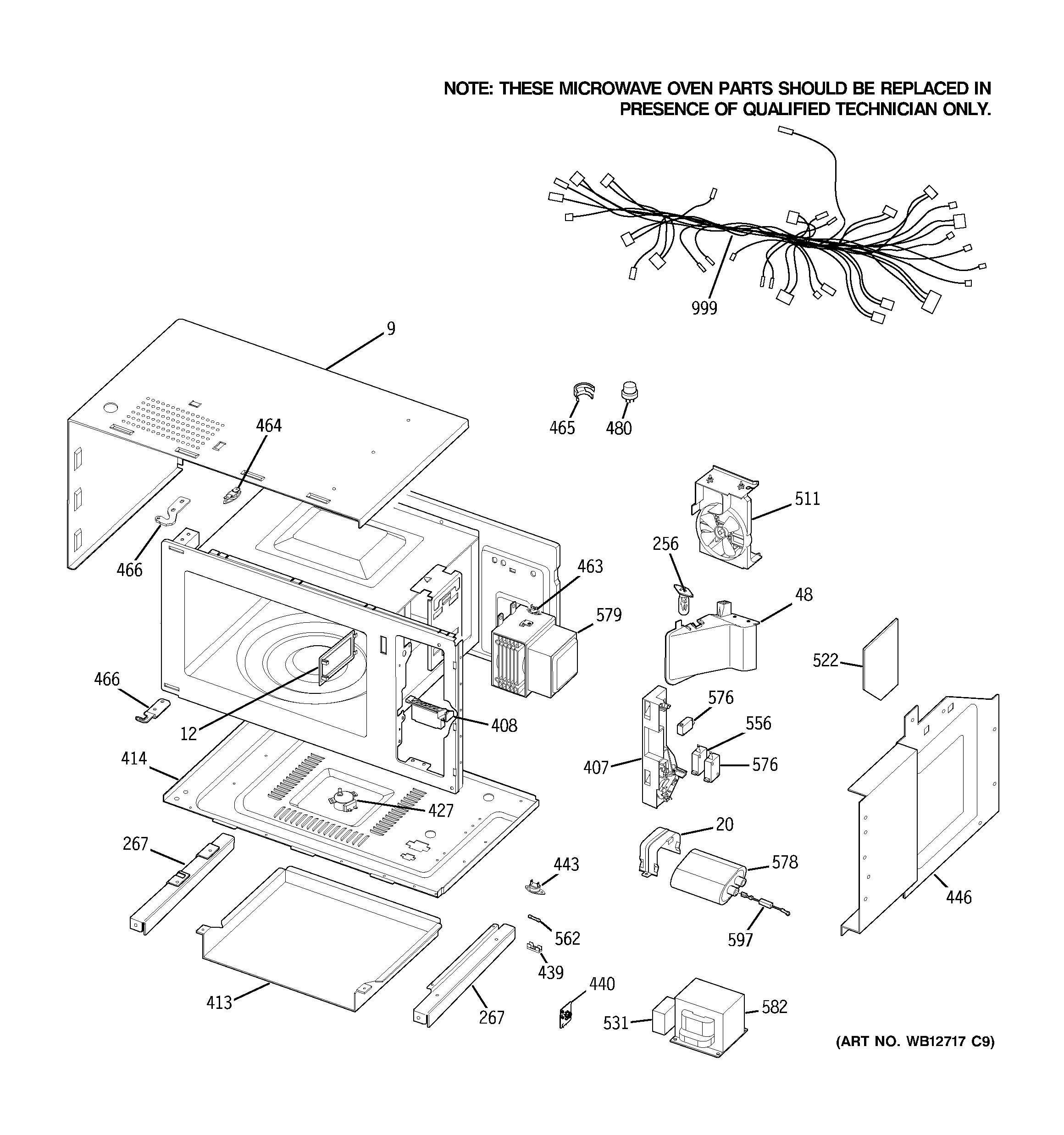

    Microwave body parts diagram

    Switch-micro

    Part #WB24X0829

    Replaced by #WB24X829

    Info Icon
    Manufacturer substitution
    This part replaces WB24X0829. Substitute parts can look different from the original.
    In Stock
    $31.22
    16% OFF Phone Price : $37.22Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Fuse for GE JKP90CM4CC - Part WB27X10928

    Microwave body parts diagram

    Fuse Cartridge

    Part #WB27X10474

    Replaced by #WB27X10928

    Info Icon
    Manufacturer substitution
    This part replaces WB27X10474. Substitute parts can look different from the original.
    In Stock
    $13.32
    13% OFF Phone Price : $15.32Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Switch for GE JKP90CM4CC - Part WB24X830

    Microwave body parts diagram

    Monitor Switch

    Part #WB24X0830

    Replaced by #WB24X830

    Info Icon
    Manufacturer substitution
    This part replaces WB24X0830. Substitute parts can look different from the original.
    In Stock
    $37.17
    14% OFF Phone Price : $43.17Info Icon
    Minus Item
    Qty
    Plus Item
  • Kenmore Range Oven Temperature Sensor for GE JKP90CM4CC - Part WB21X22134

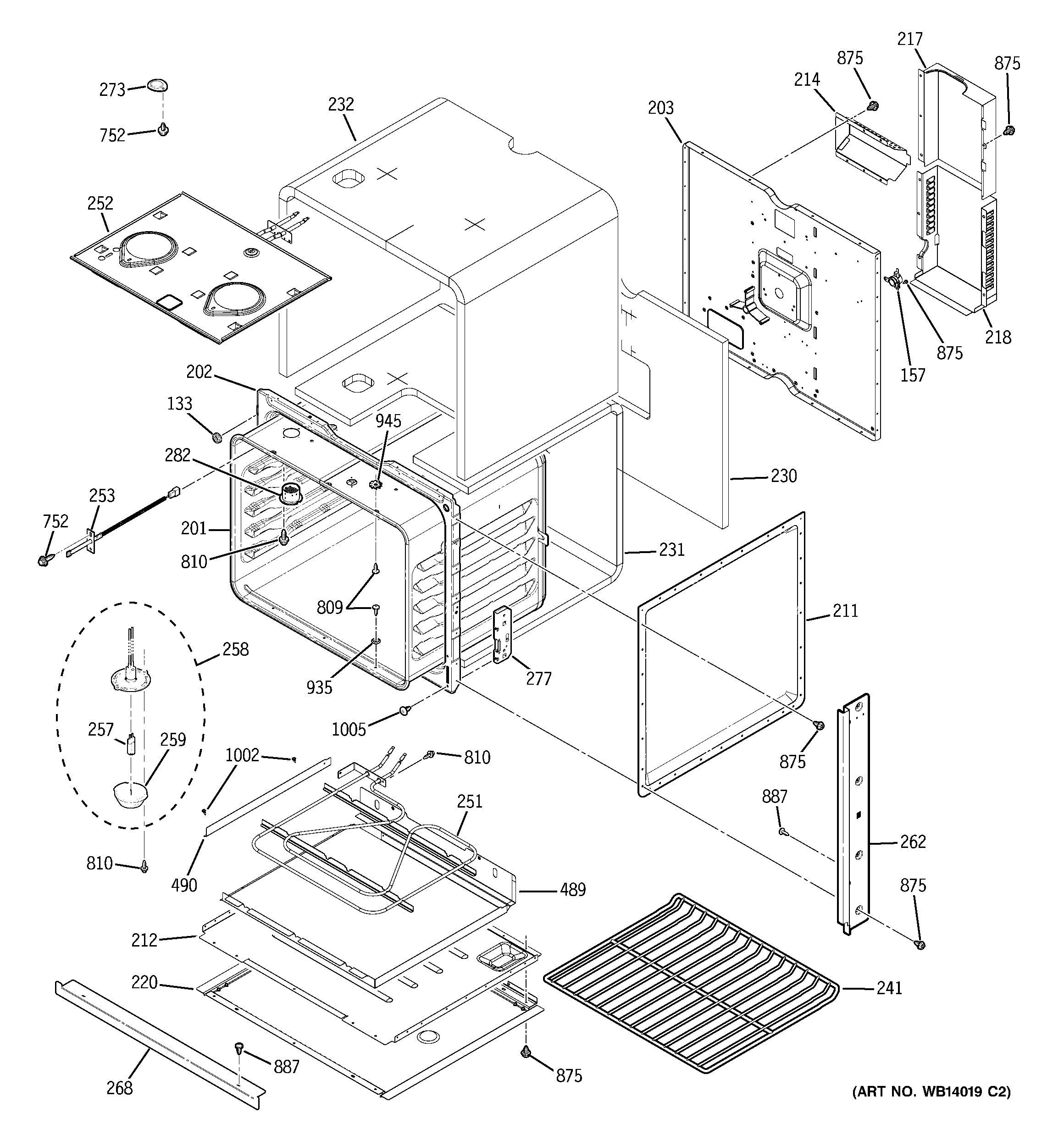

    Body with microwave support diagram

    Sensor

    Part #WB21T10017

    Replaced by #WB21X22134

    Info Icon
    Manufacturer substitution
    This part replaces WB21T10017. Substitute parts can look different from the original.
    In Stock
    $24.74
    20% OFF Phone Price : $30.74Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Safety Thermostat for GE JKP90CM4CC - Part WB24T10060

    Pedestal diagram

    Wall Oven Safety Thermostat

    Part #WB24T10060
    This item is not returnable
    In Stock
    $14.61
    12% OFF Phone Price : $16.61Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Magnetron for GE JKP90CM4CC - Part WB27X10516

    Microwave body parts diagram

    Microwave Magnetron

    Part #WB27X10516
    In Stock
    $327.07
    $12.00 OFF Phone Price : $339.07Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Element for GE JKP90CM4CC - Part WB44T10099

    Body with microwave support diagram

    Range Broil Element

    Part #WB44T10080

    Replaced by #WB44T10099

    Info Icon
    Manufacturer substitution
    This part replaces WB44T10080. Substitute parts can look different from the original.
    In Stock
    $107.61
    10% OFF Phone Price : $119.61Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven High-limit Thermostat for GE JKP90CM4CC - Part WB24T10127

    Pedestal diagram

    Wall Oven High-limit Thermostat

    Part #WB24T10127
    In Stock
    $12.46
    14% OFF Phone Price : $14.46Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave High-voltage Capacitor for GE JKP90CM4CC - Part WB27X10073

    Microwave body parts diagram

    Microwave High-voltage Capacitor

    Part #WB27X10073
    In Stock
    $91.89
    6% OFF Phone Price : $97.89Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Halogen Light Bulb for GE JKP90CM4CC - Part WB49X29679

    Body with microwave support diagram

    Range Halogen Light Bulb

    Part #WB08T10021

    Replaced by #WB49X29679

    Info Icon
    Manufacturer substitution
    This part replaces WB08T10021. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $43.16
    12% OFF Phone Price : $49.16Info Icon
    Minus Item
    Qty
    Plus Item
