Craftsman
Rolling Tool Cart

Model # 706461810 Official Craftsman tool chest

Here are the diagrams and repair parts for Official Craftsman 706461810 tool chest, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 10 parts  |

Tool Chest Nameplate (replaces 27194) 1004305
#1

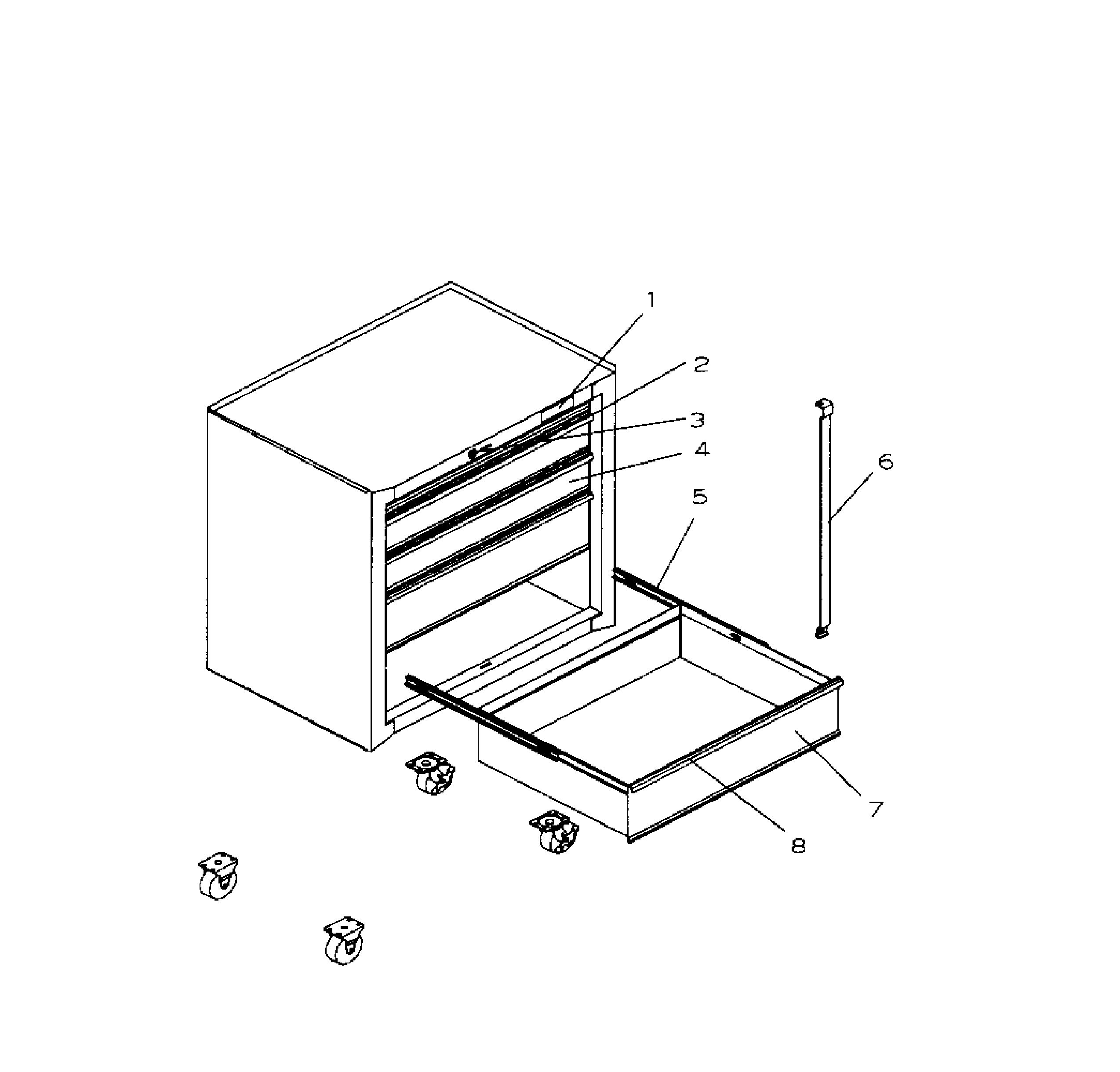

Tool chest diagram

Tool chest nameplate (replaces 27194)

Part #1004305

The manufacturer no longer makes this part, and there's no substitute part

Drawer 9066A6-EGE
#7

Tool chest diagram

Drawer

Part #9066A6-EGE

The manufacturer no longer makes this part, and there's no substitute part

Workbench Drawer Trim 18914A3
#8

Tool chest diagram

Workbench drawer trim

Part #18914A3

The manufacturer no longer makes this part, and there's no substitute part

Lock Bar 14933-EBK
#6

Tool chest diagram

Lock bar

Part #14933-EBK

The manufacturer no longer makes this part, and there's no substitute part

Lock Assembly 12918A3-SS
#3

Tool chest diagram

Lock assembly

Part #12918A3-SS

The manufacturer no longer makes this part, and there's no substitute part

Caster Pack W27819
#NI

Tool chest diagram

Caster pack

Part #W27819

The manufacturer no longer makes this part, and there's no substitute part

4in Drawer 9066A19-EGE
#4

Tool chest diagram

4in drawer

Part #9066A19-EGE

The manufacturer no longer makes this part, and there's no substitute part

2in Drawer 9066A15-EGE
#2

Tool chest diagram

2in drawer

Part #9066A15-EGE

The manufacturer no longer makes this part, and there's no substitute part

Instructions F1977
#NI

Tool chest diagram

Instructions

Part #F1977

The manufacturer no longer makes this part, and there's no substitute part

Tool Cabinet Drawer Slide 14153A5
#5

Tool chest diagram

Tool cabinet drawer slide

Part #14153A5

The manufacturer no longer makes this part, and there's no substitute part
