KitchenAid
Gas Grill

Model # KFGR292LSS0 Official KitchenAid 39" carted grill with side burner

Here are the diagrams and repair parts for Official KitchenAid KFGR292LSS0 39" carted grill with side burner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Screw 8190526
#NI

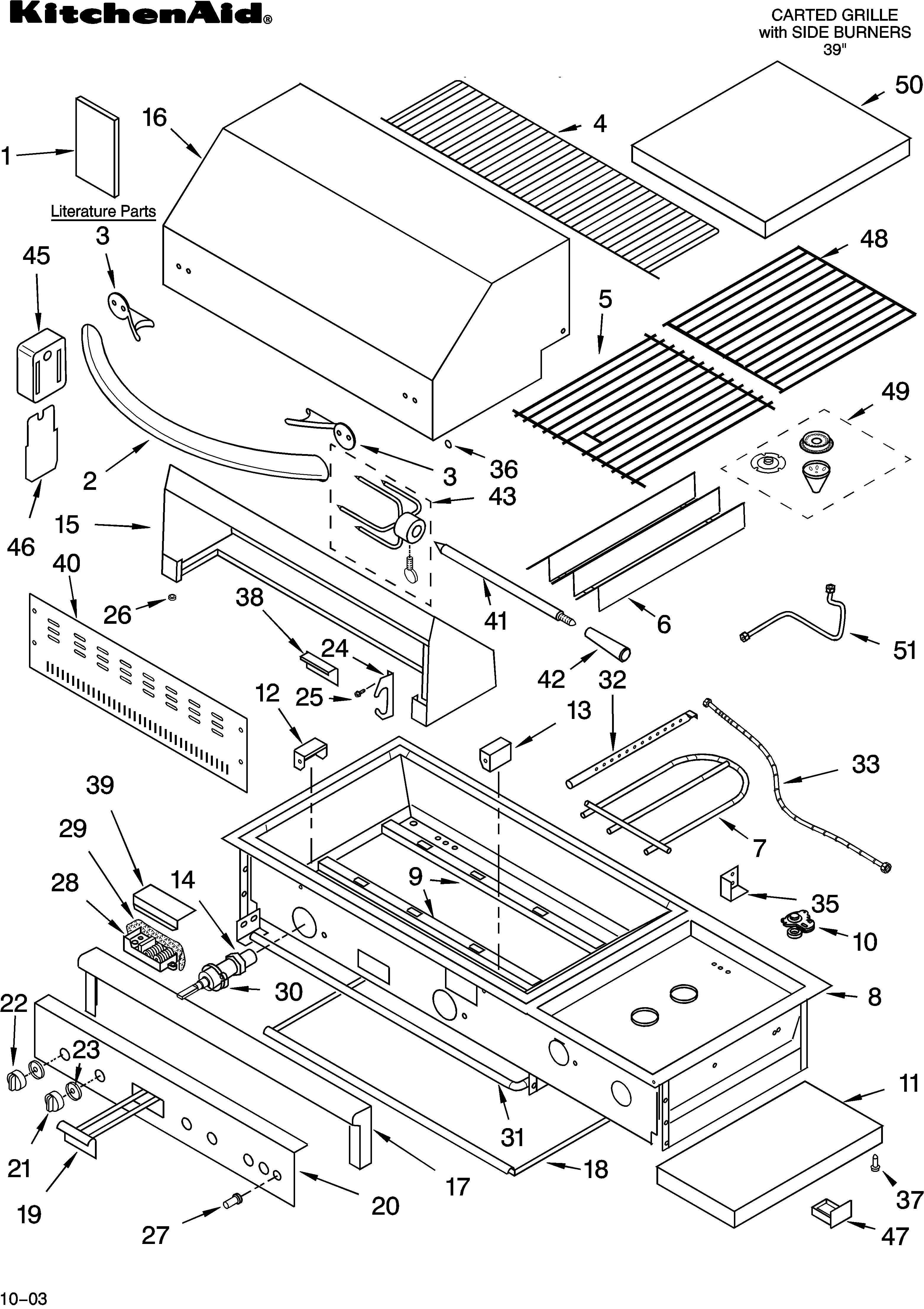

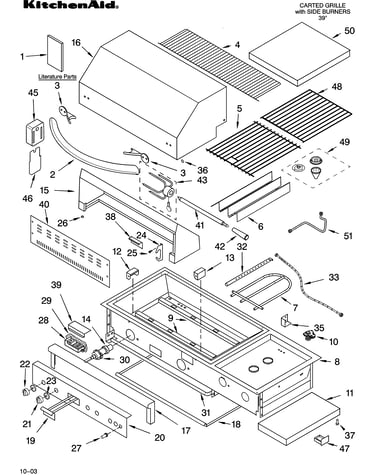

Grille parts diagram

Screw

Part #8190526

Replaced by #WP308685

?
Manufacturer substitution
This part replaces 8190526. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
69% OFF MSRP : $14.00
In Stock
Screw 8190032
#25

Grille parts diagram

Screw

Part #8190032

Replaced by #WPW10068250

?
Manufacturer substitution
This part replaces 8190032. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Clip 8190114
#NI

Grille parts diagram

Clip

Part #8190114

Replaced by #WP2004333

?
Manufacturer substitution
This part replaces 8190114. Substitute parts can look different from the original.
This item is not returnable
$6.18
In Stock
Nut 8190116
#NI

Grille parts diagram

Nut

Part #8190116

Replaced by #WPW10139757

?
Manufacturer substitution
This part replaces 8190116. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Screw 8190118
#NI

Grille parts diagram

Screw

Part #8190118

Replaced by #WP67006715

?
Manufacturer substitution
This part replaces 8190118. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Screw 8190527
#NI

Grille parts diagram

Screw

Part #8190527

Replaced by #WP3400814

?
Manufacturer substitution
This part replaces 8190527. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Washer 8190125
#NI

Grille parts diagram

Washer

Part #8190125

Replaced by #W11708395

?
Manufacturer substitution
This part replaces 8190125. Substitute parts can look different from the original.
This item is not returnable
$4.46
In Stock
Hanger Burner 8190131
#9

Grille parts diagram

Hanger burner

Part #8190131

The manufacturer no longer makes this part, and there's no substitute part

Wok Grate 4396730
#NI

Grille parts diagram

Wok grate

Part #4396730

The manufacturer no longer makes this part, and there's no substitute part

Access Panel 8190105
#NI

Grille parts diagram

Access panel

Part #8190105

The manufacturer no longer makes this part, and there's no substitute part
