Model # 315115040 Official Craftsman 7" sander

Here are the diagrams and repair parts for Official Craftsman 315115040 7" sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Cord 990500-024
#21

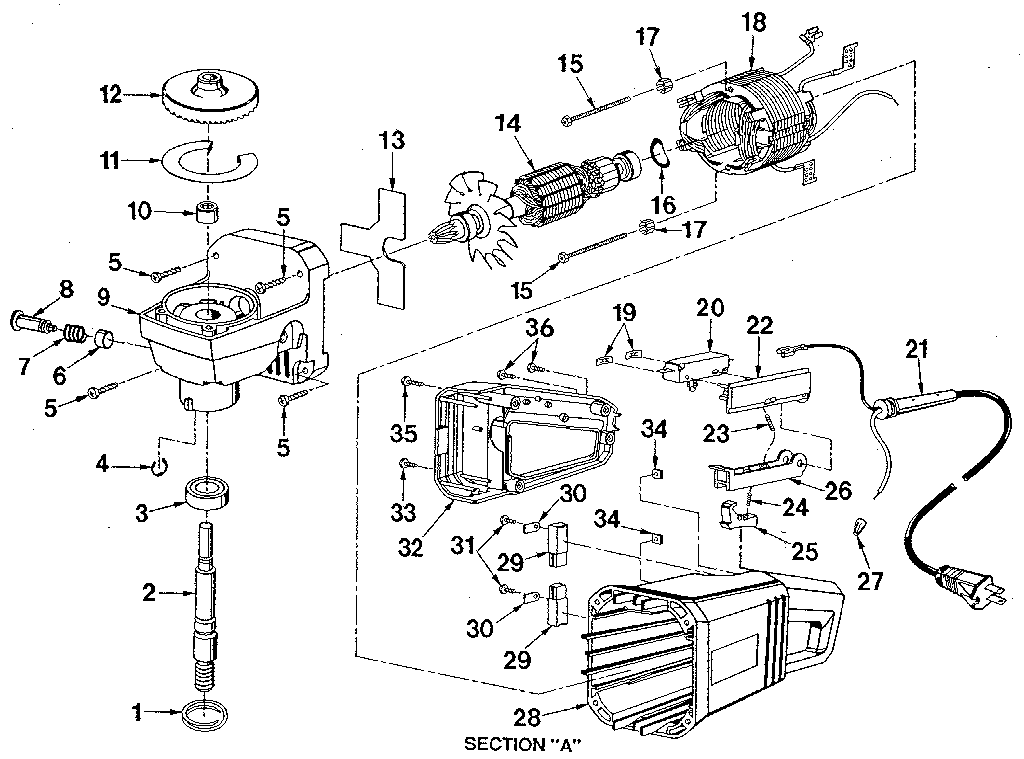

Motor assembly diagram

Cord

Part #990500-024

The manufacturer no longer makes this part, and there's no substitute part

Screw 967439-001
#5

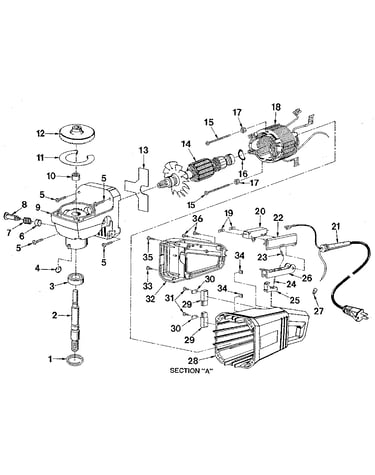

Motor assembly diagram

Screw

Part #967439-001

The manufacturer no longer makes this part, and there's no substitute part

Gr Hsg W/brg 998173-004
#9

Motor assembly diagram

Gr hsg w/brg

Part #998173-004

The manufacturer no longer makes this part, and there's no substitute part

Switch 967373-001
#20

Motor assembly diagram

Switch

Part #967373-001

The manufacturer no longer makes this part, and there's no substitute part

Flange Nut 617294-001
#12

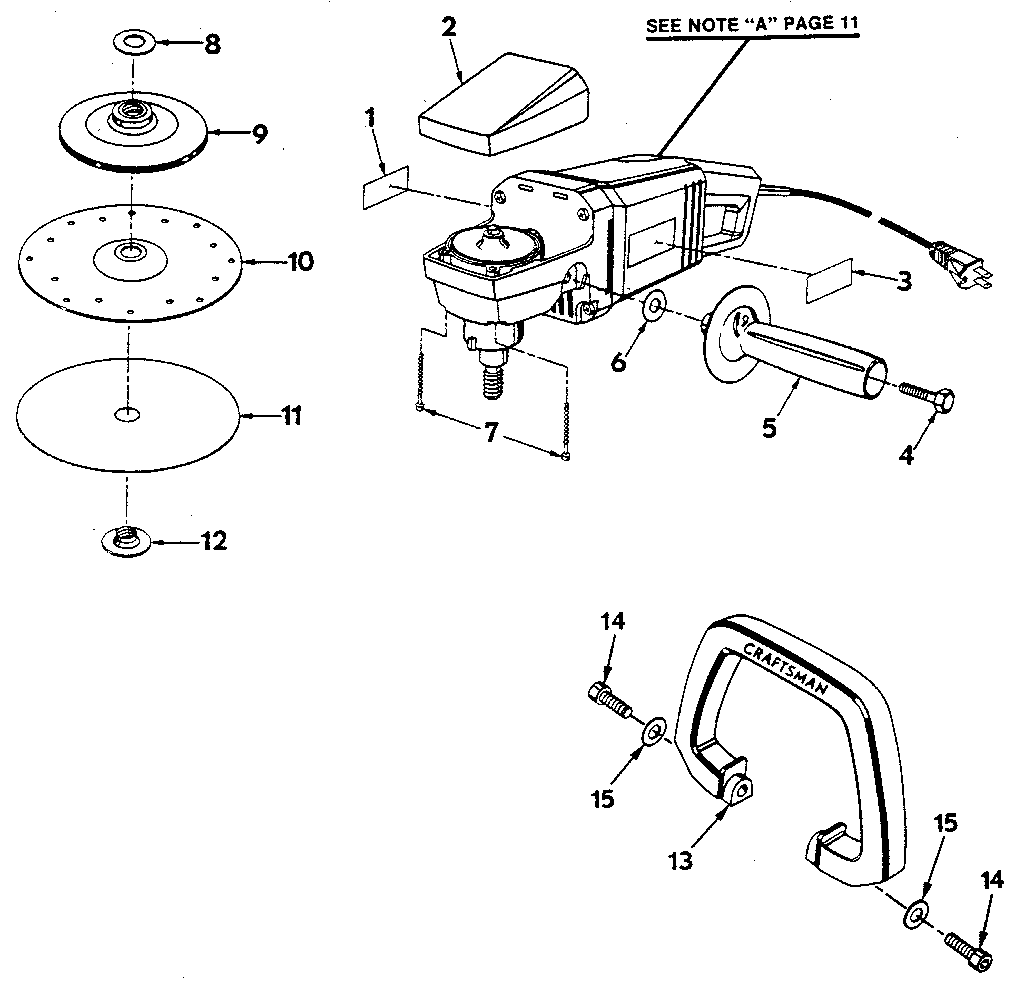

Craftsman sander diagram

Flange nut

Part #617294-001

The manufacturer no longer makes this part, and there's no substitute part

Data Plate 998183-001
#1

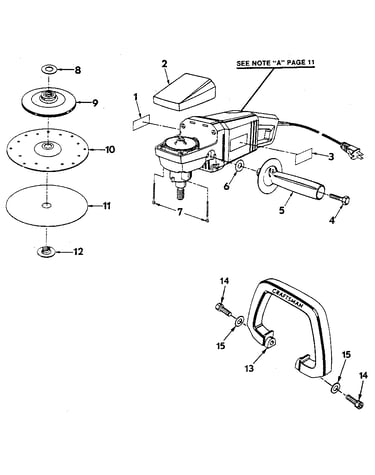

Craftsman sander diagram

Data plate

Part #998183-001

The manufacturer no longer makes this part, and there's no substitute part

Spring 998197-001
#24

Motor assembly diagram

Spring

Part #998197-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 617966-005
#31

Motor assembly diagram

Screw

Part #617966-005

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Motor Brush 998457-002
#29

Motor assembly diagram

Power tool motor brush

Part #998457-002

The manufacturer no longer makes this part, and there's no substitute part

Washer 621721-002
#8

Craftsman sander diagram

Washer

Part #621721-002

The manufacturer no longer makes this part, and there's no substitute part
