Model # 143590420A Official Craftsman starter

Here are the diagrams and repair parts for Official Craftsman 143590420A starter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 13 parts  |

Lawn & Garden Equipment Engine Recoil Starter Rope, 98-in (replaces 1258, 28288, 28358, 28528, 30971, 31285, 31395, 31396, 31696, 590451a, 590456, 590527, 730608, 740032) 590535
#9

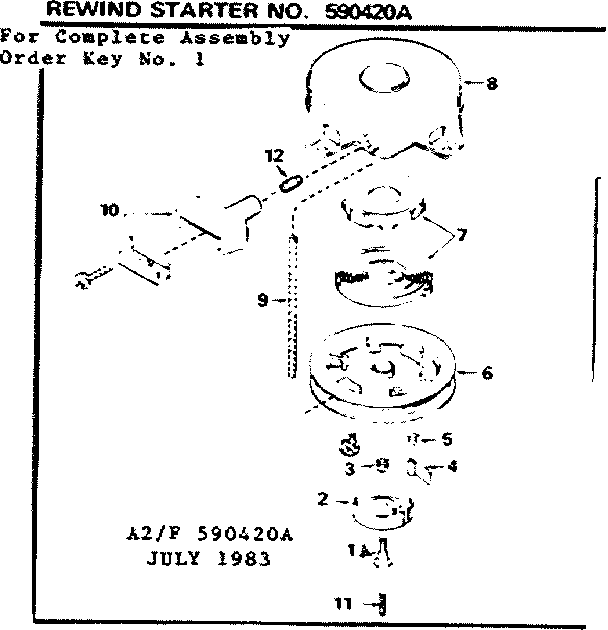

Rewind starter diagram

Lawn & garden equipment engine recoil starter rope, 98-in (replaces 1258, 28288, 28358, 28528, 30971, 31285, 31395, 31396, 31696, 590451a, 590456, 590527, 730608, 740032)

Part #590535

BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Handle 590387
#10

Rewind starter diagram

Handle

Part #590387

This item is not returnable
In Stock
Retainer 590410
#2

Rewind starter diagram

Retainer

Part #590410

In Stock
Brake Spring 590411
#3

Rewind starter diagram

Brake spring

Part #590411

This item is not returnable
In Stock
Pulley 590413A
#6

Rewind starter diagram

Pulley

Part #590413A

In Stock
Lawn & Garden Equipment Engine Recoil Starter Pawl Spring 590412
#5

Rewind starter diagram

Lawn & garden equipment engine recoil starter pawl spring

Part #590412

In Stock
Spring Keeper 590414
#7

Rewind starter diagram

Spring keeper

Part #590414

In Stock
Lawn & Garden Equipment Screw 590409A
#1A

Rewind starter diagram

Lawn & garden equipment screw

Part #590409A

This item is not returnable
In Stock
Lawn & Garden Equipment Engine Recoil Starter Pawl 590148
#4

Rewind starter diagram

Lawn & garden equipment engine recoil starter pawl

Part #590148

This item is not returnable
In Stock
Lawn & Garden Equipment Engine Recoil Starter Assembly (replaces 31-051, 590605) 590420A
#1

Rewind starter diagram

Lawn & garden equipment engine recoil starter assembly (replaces 31-051, 590605)

Part #590420A

$54.75
18% OFF MSRP : $67.00
In Stock
