Kenmore 56566480690 microwave Parts

Here are the diagrams and repair parts for Kenmore 56566480690 microwave, as well as links to manuals and error code tables, if available.

Kenmore 56566480690 microwave
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for56566480690 Microwaves

  • Tstr C1570 for Kenmore 56566480690 - Part 405-035-4809

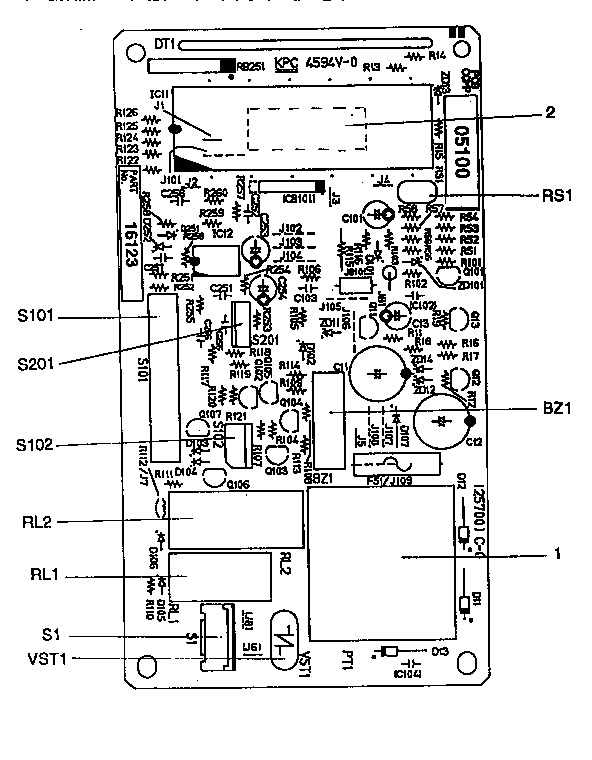

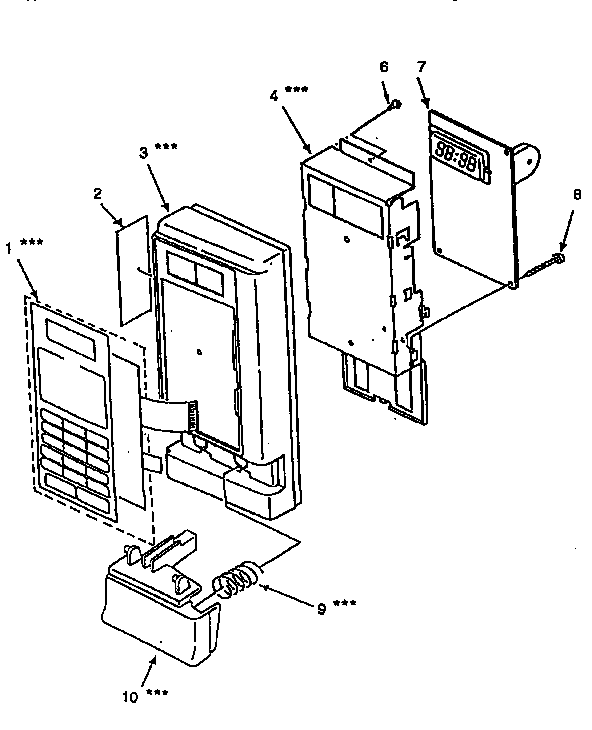

    Power and control circuit board diagram

    Tstr C1570

    Part #405-035-4809

    The manufacturer no longer makes this part, and there's no substitute part

  • Noise Filter for Kenmore 56566480690 - Part 617-132-5744

    Power and control circuit board diagram

    Noise Filter

    Part #617-132-5744

    The manufacturer no longer makes this part, and there's no substitute part

  • Nut W/wash for Kenmore 56566480690 - Part 411-054-1903

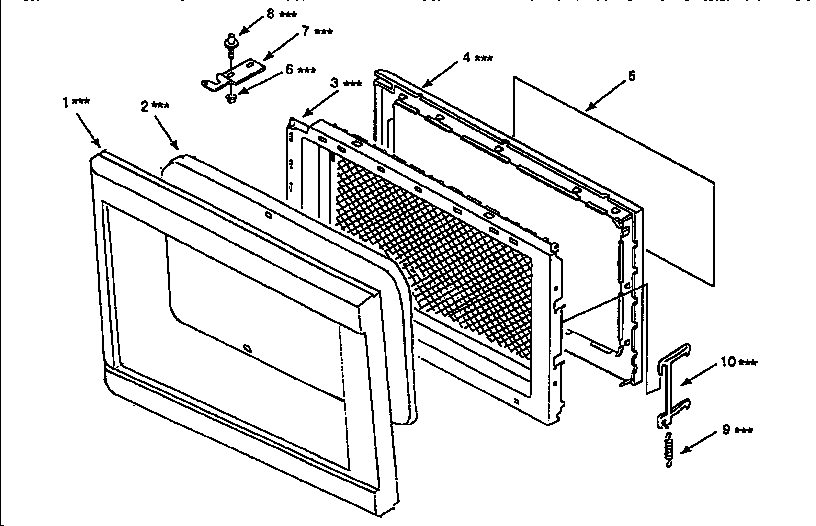

    Door diagram

    Nut W/wash

    Part #411-054-1903

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Kenmore 56566480690 - Part 411-010-5808

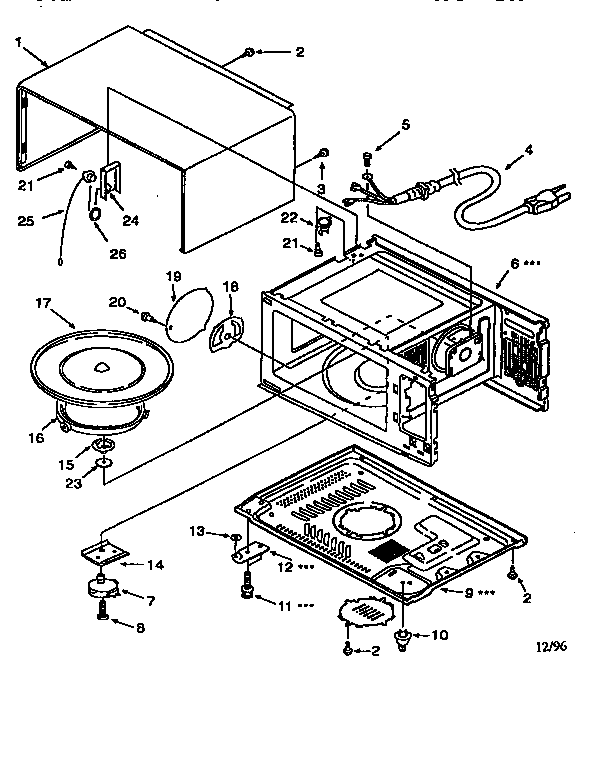

    Cavity diagram

    Screw

    Part #411-010-5808

    The manufacturer no longer makes this part, and there's no substitute part

  • Dielectric Choke for Kenmore 56566480690 - Part 617-144-4643

    Door diagram

    Dielectric Choke

    Part #617-144-4643

    The manufacturer no longer makes this part, and there's no substitute part

  • Microwave Blower Fan for Kenmore 56566480690 - Part 617-177-9974

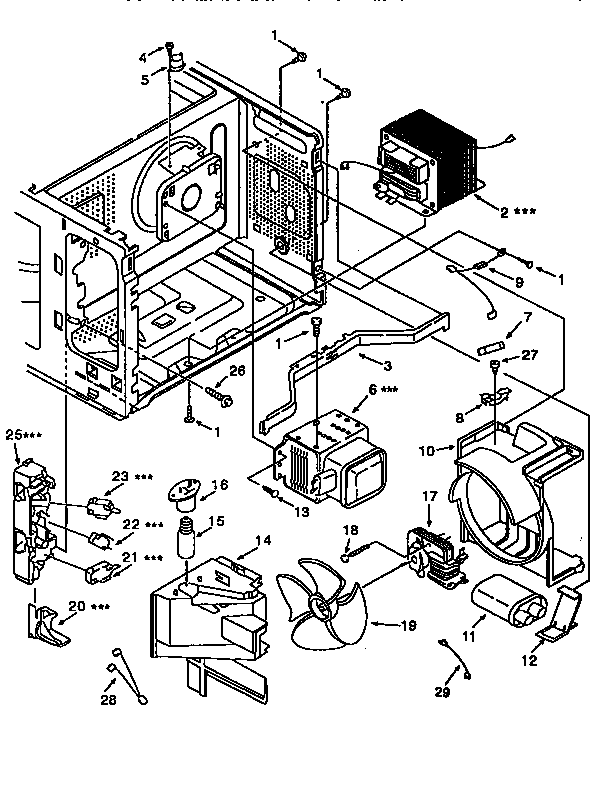

    Switches diagram

    Microwave Blower Fan

    Part #617-177-9974

    The manufacturer no longer makes this part, and there's no substitute part

  • Lead Wire for Kenmore 56566480690 - Part 617-124-2300

    Switches diagram

    Lead Wire

    Part #617-124-2300

    The manufacturer no longer makes this part, and there's no substitute part

  • Resistor for Kenmore 56566480690 - Part 401-013-5202

    Resistor

    Part #401-013-5202

    The manufacturer no longer makes this part, and there's no substitute part

  • Buzzer for Kenmore 56566480690 - Part 420-000-6800

    Power and control circuit board diagram

    Buzzer

    Part #420-000-6800

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Kenmore 56566480690 - Part 411-074-5301

    Switches diagram

    Screw

    Part #411-074-5301

    The manufacturer no longer makes this part, and there's no substitute part
