Craftsman
Electric Line Trimmer

Model #24086811 Craftsman heavy-duty cordless electric grass shear

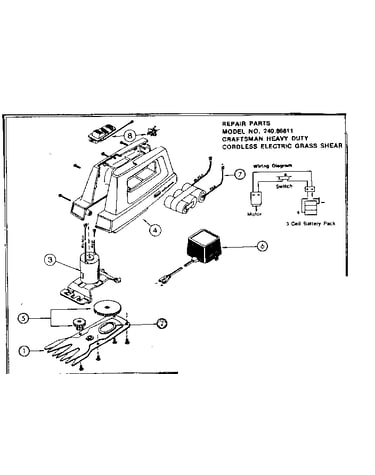

Here are the diagrams and repair parts for Craftsman 24086811 heavy-duty cordless electric grass shear, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 11 parts

    Battery Pack

    #7

    Unit parts Diagram

    Battery pack

    Part #3964

    The manufacturer no longer makes this part, and there's no substitute part

    Owner's Manual

    #NI

    All parts Diagram

    Owner's manual

    Part #4208

    The manufacturer no longer makes this part, and there's no substitute part

    Motor Base

    #3

    Unit parts Diagram

    Motor base

    Part #3901

    The manufacturer no longer makes this part, and there's no substitute part

    Gear Train

    #5

    Unit parts Diagram

    Gear train

    Part #3902

    The manufacturer no longer makes this part, and there's no substitute part

    Charger

    #6

    Unit parts Diagram

    Charger

    Part #3963

    The manufacturer no longer makes this part, and there's no substitute part

    Blade

    #1

    Unit parts Diagram

    Blade

    Part #3923

    The manufacturer no longer makes this part, and there's no substitute part

    Housing Assembly

    #4

    Unit parts Diagram

    Housing assembly

    Part #3920

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #NI

    All parts Diagram

    Screw

    Part #4819

    The manufacturer no longer makes this part, and there's no substitute part

    Switch/term

    #8

    Unit parts Diagram

    Switch/term

    Part #3903

    The manufacturer no longer makes this part, and there's no substitute part

    Blade Insert

    #2

    Unit parts Diagram

    Blade insert

    Part #3919

    The manufacturer no longer makes this part, and there's no substitute part
