Kenmore
Heating & Cooling Combined Unit

Model #867842941 Kenmore 265-v packaged terminal heat pump

Here are the repair parts and diagrams for your Kenmore 867842941 265-v packaged terminal heat pump.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profile

Showing 10 of 59 parts

Relay Defros

#7

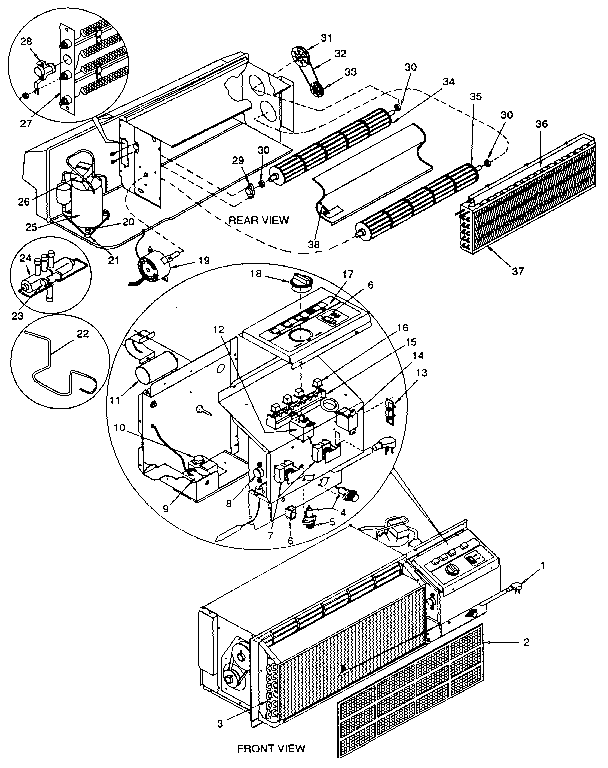

Functional Diagram

Relay defros

Part #1091155

The manufacturer no longer makes this part, and there's no substitute part

Relay Spdt

#14

Functional Diagram

Relay spdt

Part #1058148

The manufacturer no longer makes this part, and there's no substitute part

Grommet Tech

#21

Functional Diagram

Grommet tech

Part #1090019

The manufacturer no longer makes this part, and there's no substitute part

Solnd Coil

#23

Functional Diagram

Solnd coil

Part #1058644

The manufacturer no longer makes this part, and there's no substitute part

Rev Valve

#24

Functional Diagram

Rev valve

Part #1058469

The manufacturer no longer makes this part, and there's no substitute part

Clamp

#11

Non functional Diagram

Clamp

Part #709185

The manufacturer no longer makes this part, and there's no substitute part

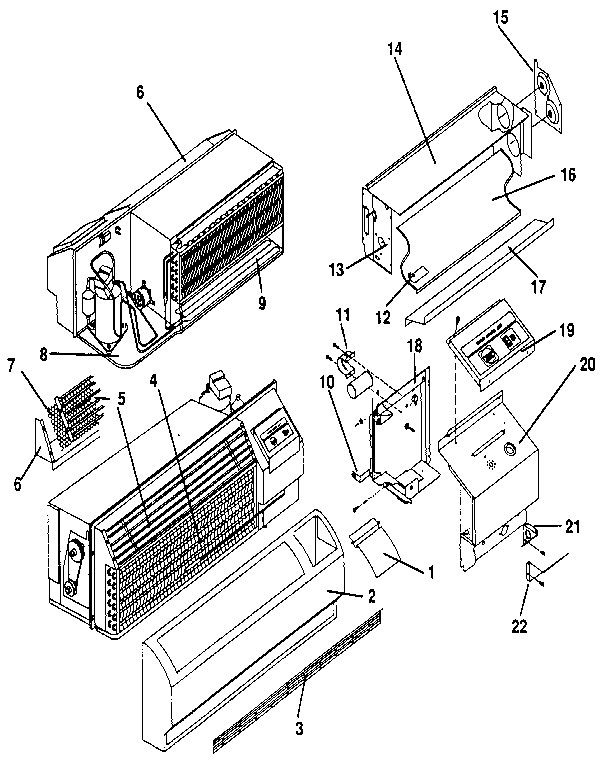

Control Door

#1

Non functional Diagram

Control door

Part #1058430

The manufacturer no longer makes this part, and there's no substitute part

Clip

#4

Non functional Diagram

Clip

Part #1058518

The manufacturer no longer makes this part, and there's no substitute part

Isolator Bea

#30

Functional Diagram

Isolator bea

Part #1058987

The manufacturer no longer makes this part, and there's no substitute part

Cntrl Box As

#20

Non functional Diagram

Cntrl box as

Part #1058894

The manufacturer no longer makes this part, and there's no substitute part
