Amana PGD36C0902D/P1204307C package gas unit technical information

Amana PGD36C0902D/P1204307C package gas unit technical information Parts

Here are the diagrams and repair parts for Amana PGD36C0902D/P1204307C package gas unit technical information, as well as links to manuals and error code tables, if available.

By Schematic
By Part

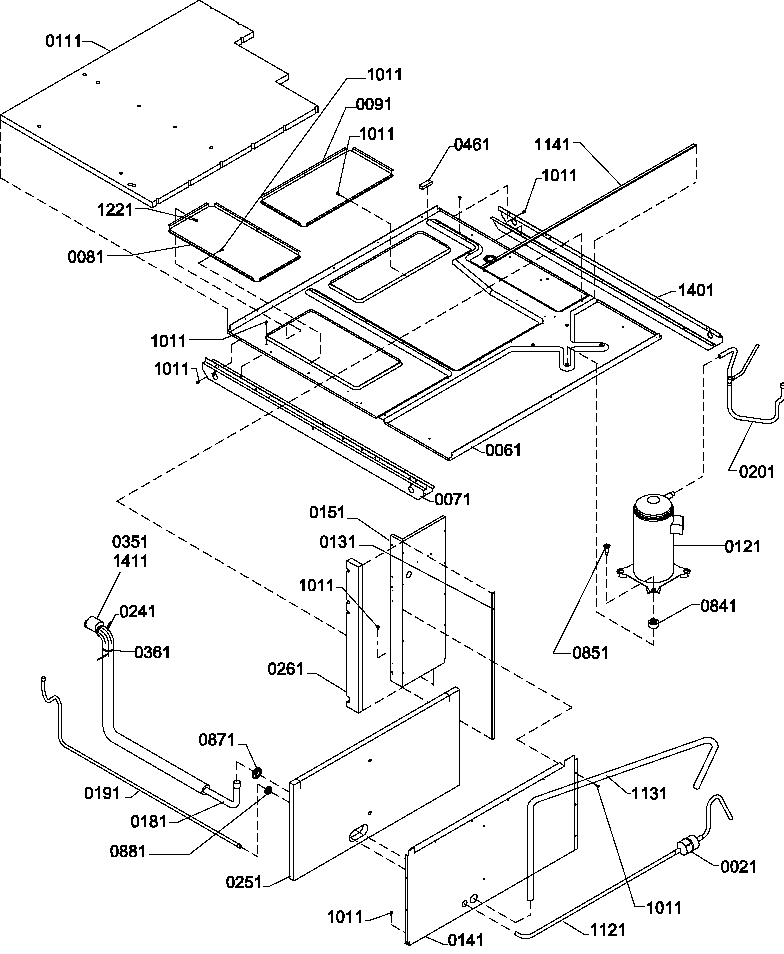

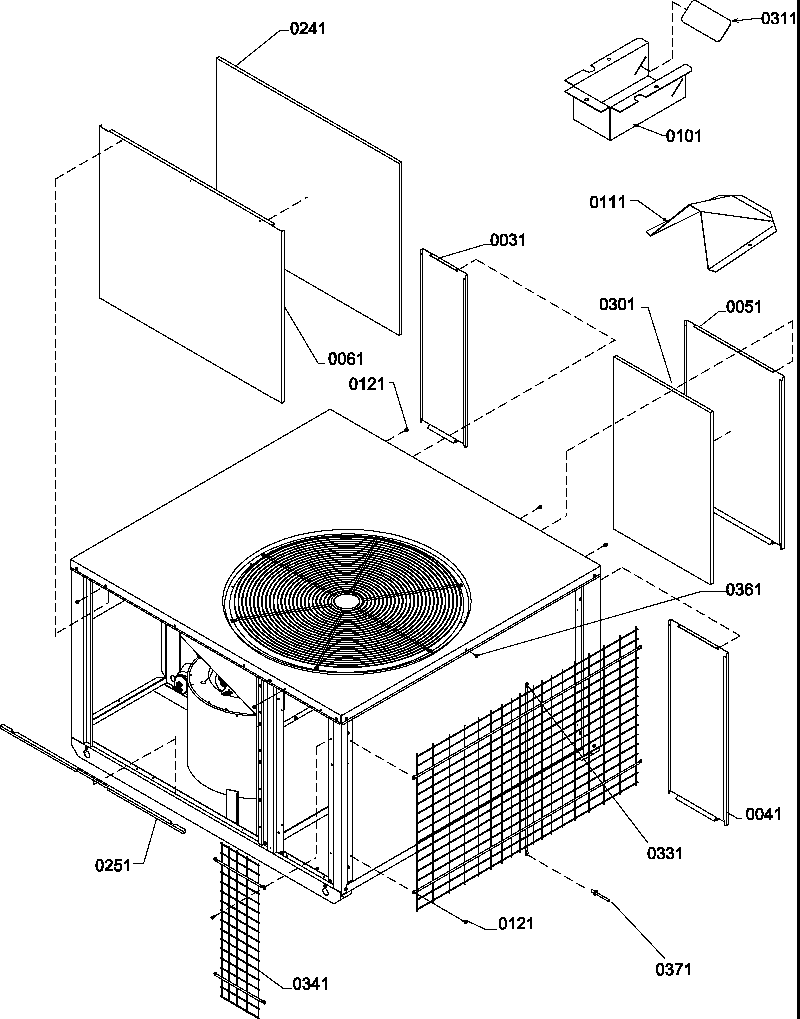

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for PGD36C0902D/P1204307C Package Gas Unit Technical Information

  • Washer Screw for Amana PGD36C0902D/P1204307C - Part WP90767

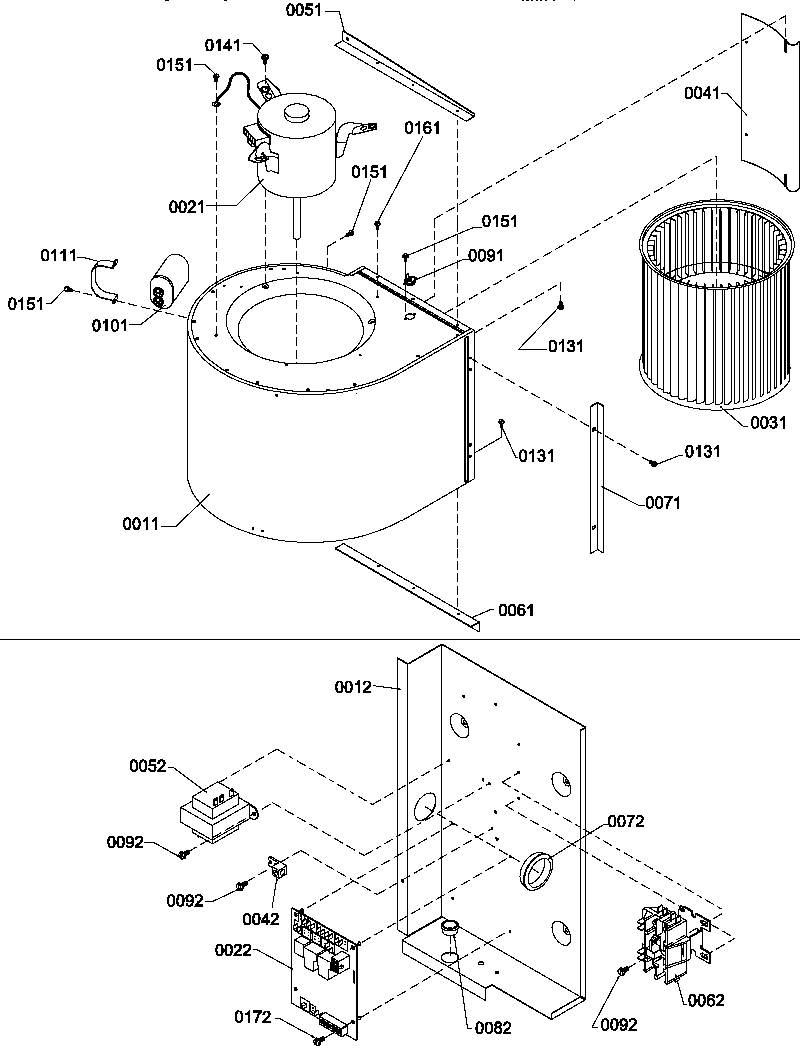

    Blower/control diagram

    Screw

    Part #M0211016

    Replaced by #WP90767

    Info Icon
    Manufacturer substitution
    This part replaces M0211016. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Screw for Amana PGD36C0902D/P1204307C - Part WP90767

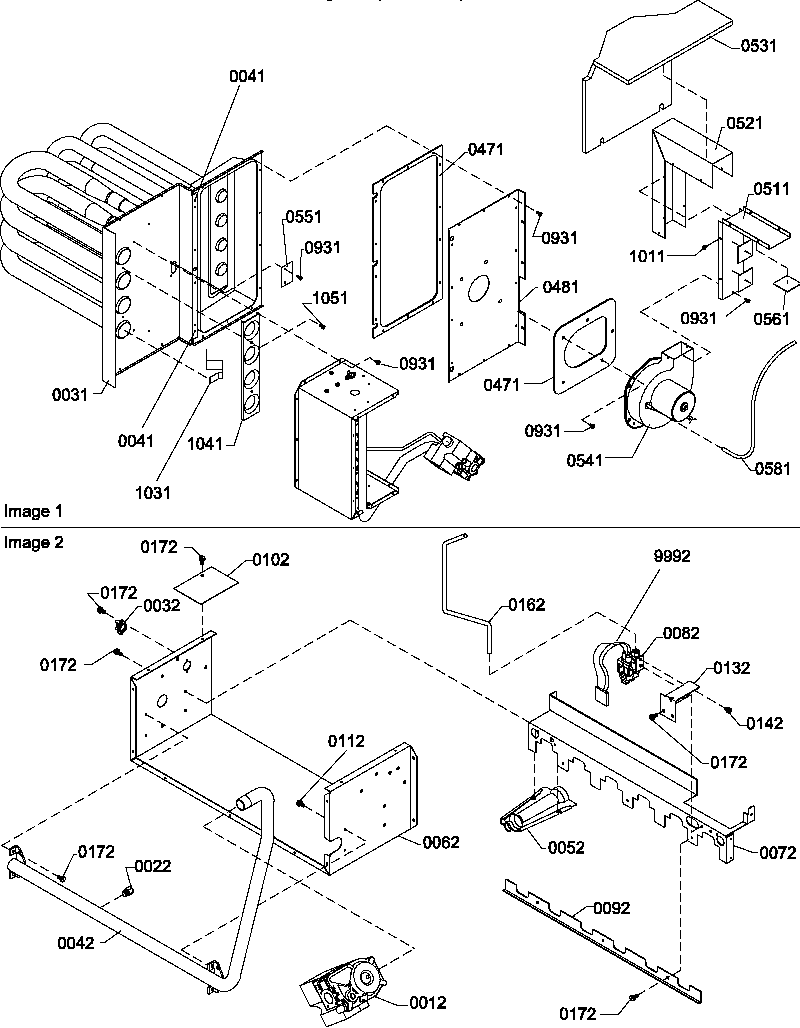

    Part-tube/manifold diagram

    Screw

    Part #M0216529

    Replaced by #WP90767

    Info Icon
    Manufacturer substitution
    This part replaces M0216529. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for Amana PGD36C0902D/P1204307C - Part 67006425

    Blower/control diagram

    Screw

    Part #M0211017

    Replaced by #67006425

    Info Icon
    Manufacturer substitution
    This part replaces M0211017. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.76
    17% OFF Phone Price : $5.76Info Icon
    Minus Item
    Qty
    Plus Item
  • Nut for Amana PGD36C0902D/P1204307C - Part WP488130

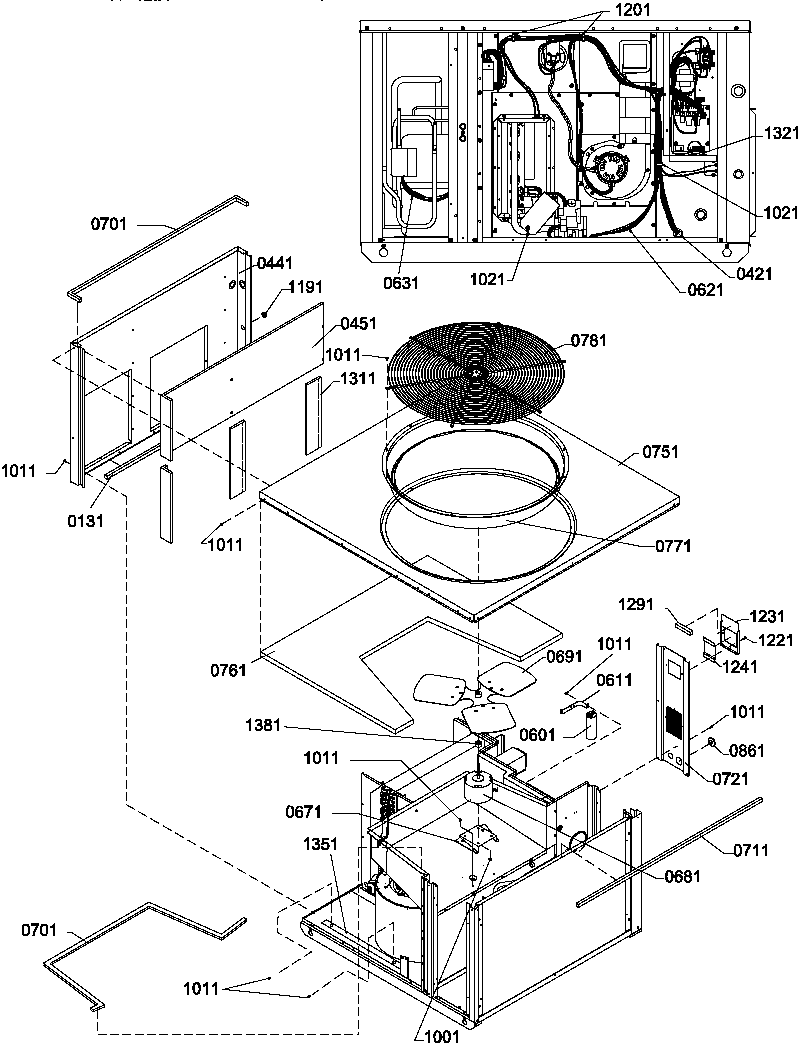

    Chassis/electrical diagram

    Keps Nut

    Part #M0280801

    Replaced by #WP488130

    Info Icon
    Manufacturer substitution
    This part replaces M0280801. Substitute parts can look different from the original.
    In Stock
    $28.95
    Minus Item
    Qty
    Plus Item
  • Appliance Cable Tie for Amana PGD36C0902D/P1204307C - Part WPW10339879

    Tie

    Part #M0321202

    Replaced by #WPW10339879

    Info Icon
    Manufacturer substitution
    This part replaces M0321202. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Orifice for Amana PGD36C0902D/P1204307C - Part 10716003

    Part-tube/manifold diagram

    Orifice

    Part #10716003
    In Stock
    $29.57
    Minus Item
    Qty
    Plus Item
  • Furnace Vent Air Pressure Switch for Amana PGD36C0902D/P1204307C - Part 11112501

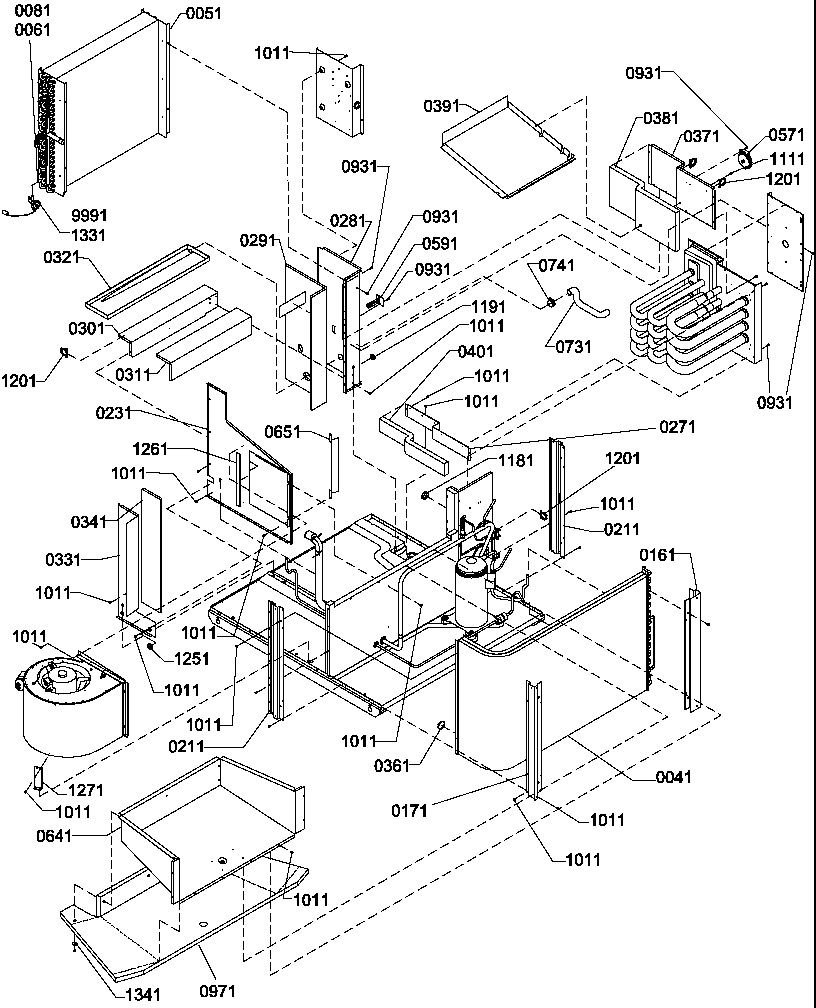

    Chassis diagram

    Furnace Vent Air Pressure Switch

    Part #11112501
    In Stock
    $49.62
    11% OFF Phone Price : $55.62Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for Amana PGD36C0902D/P1204307C - Part WP489474

    Part-tube/manifold diagram

    Screw

    Part #M0211021

    Replaced by #WP489474

    Info Icon
    Manufacturer substitution
    This part replaces M0211021. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.70
    15% OFF Phone Price : $6.70Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for Amana PGD36C0902D/P1204307C - Part WP489464

    Screw

    Part #M0211217

    Replaced by #WP489464

    Info Icon
    Manufacturer substitution
    This part replaces M0211217. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.67
    12% OFF Phone Price : $8.67Info Icon
    Minus Item
    Qty
    Plus Item
  • Gasket for Amana PGD36C0902D/P1204307C - Part 10839712

    Chassis/electrical diagram

    Gasket

    Part #10839712

    Replaced by #10839712

    Info Icon
    Manufacturer substitution
    This part replaces 10839712. Substitute parts can look different from the original.
    In Stock
    $27.79
    Minus Item
    Qty
    Plus Item
