Model # 48624531 Official Craftsman power sprayer

Here are the diagrams and repair parts for Official Craftsman 48624531 power sprayer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for48624531 Power Tools

  • Agri-fab Lawn Tractor Attachment Hitch Pin 43343
    #49

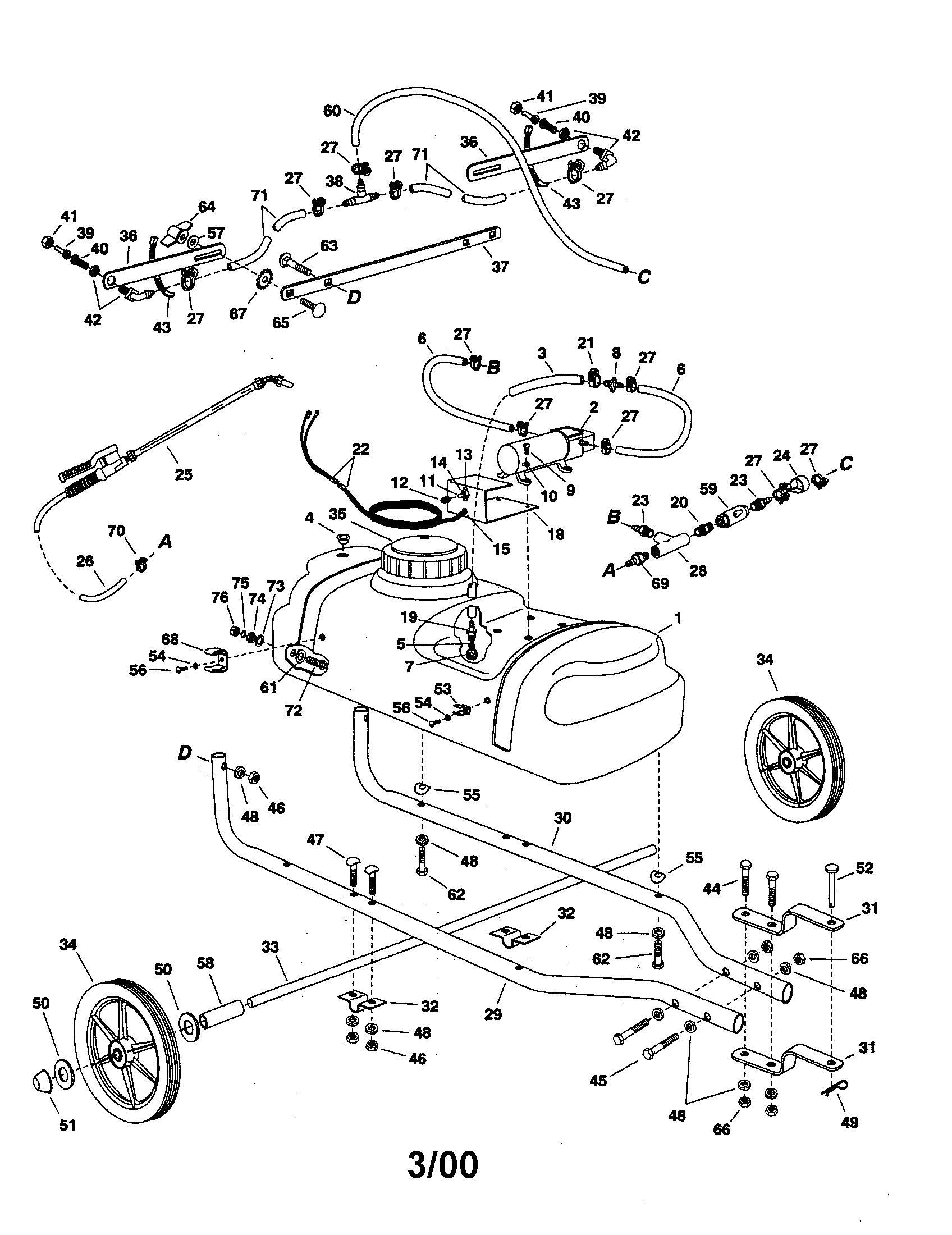

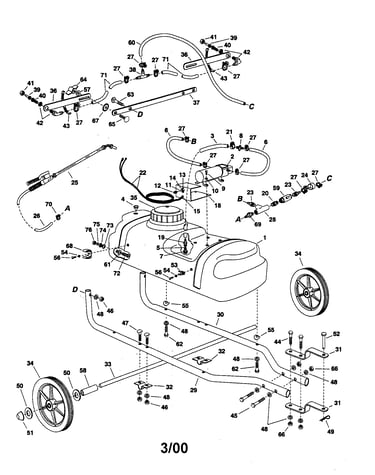

    15 gallon sprayer diagram

    Agri-fab lawn tractor attachment hitch pin

    Part #43343

    BEST SELLER
    This item is not returnable
    In Stock
  • Lawn & Garden Equipment Knob 712-0421
    #64

    15 gallon sprayer diagram

    Lawn & garden equipment knob

    Part #712-0421

    This item is not returnable
    $2.49
    29% OFF Phone Price : $3.49
    In Stock
  • Lawn & Garden Equipment Washer R19171616
    #50

    15 gallon sprayer diagram

    Lawn & garden equipment washer

    Part #R19171616

    Replaced by #596040101

    ?
    Manufacturer substitution
    This part replaces R19171616. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
  • Agri-fab Lawn & Garden Equipment Lock Washer 43086
    #48

    15 gallon sprayer diagram

    Agri-fab lawn & garden equipment lock washer

    Part #43086

    This item is not returnable
    In Stock
  • Agri-fab Lawn & Garden Equipment Washer 44732
    #67

    15 gallon sprayer diagram

    Agri-fab lawn & garden equipment washer

    Part #44732

    This item is not returnable
    In Stock
  • Lawn Tractor Tow Bar Attachment Hitch Bracket 23014
    #31

    15 gallon sprayer diagram

    Lawn tractor tow bar attachment hitch bracket

    Part #23014

    Replaced by #23014BL1

    ?
    Manufacturer substitution
    This part replaces 23014. Substitute parts can look different from the original.
    This item is not returnable
    $15.80
    11% OFF Phone Price : $17.80
    In Stock
  • Agri-fab Lawn Tractor Attachment Bolt 43224
    #44

    15 gallon sprayer diagram

    Agri-fab lawn tractor attachment bolt

    Part #43224

    This item is not returnable
    In Stock
  • On/off Switch 45084
    #11

    15 gallon sprayer diagram

    On/off switch

    Part #45084

    In Stock
  • Lawn Tractor Lawn Sprayer Attachment Nozzle Hose Elbow 47396
    #42

    15 gallon sprayer diagram

    Lawn tractor lawn sprayer attachment nozzle hose elbow

    Part #47396

    This item is not returnable
    $3.19
    24% OFF Phone Price : $4.19
    In Stock
  • Agri-fab Lawn & Garden Equipment Carriage Bolt 44215
    #63

    15 gallon sprayer diagram

    Agri-fab lawn & garden equipment carriage bolt

    Part #44215

    This item is not returnable
    In Stock
