Model # CFD-970 Official Sony cd radio cassette recorder

Here are the diagrams and repair parts for Official Sony CFD-970 cd radio cassette recorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Button 338733501
#4

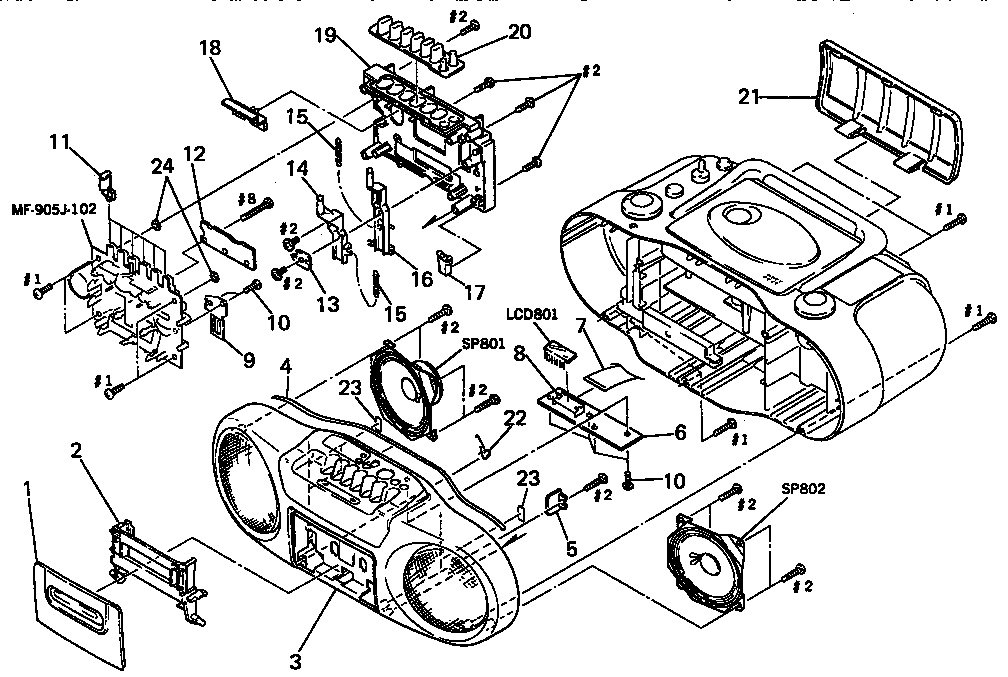

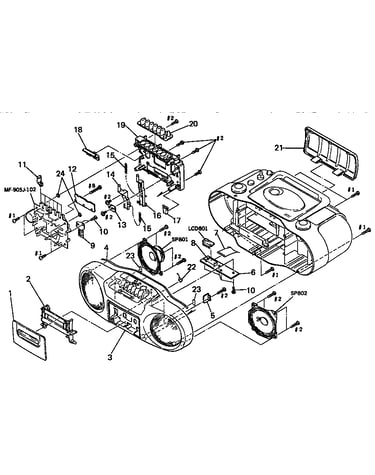

Front cabinet section diagram

Button

Part #338733501

The manufacturer no longer makes this part, and there's no substitute part

Spring 338733301
#8

Front cabinet section diagram

Spring

Part #338733301

The manufacturer no longer makes this part, and there's no substitute part

Lever 338733601
#25

Front cabinet section diagram

Lever

Part #338733601

The manufacturer no longer makes this part, and there's no substitute part

Spacer 355587221
#18

Front cabinet section diagram

Spacer

Part #355587221

The manufacturer no longer makes this part, and there's no substitute part

Lever 338732601
#9

Front cabinet section diagram

Lever

Part #338732601

The manufacturer no longer makes this part, and there's no substitute part

Bracket 338732501
#12

Front cabinet section diagram

Bracket

Part #338732501

The manufacturer no longer makes this part, and there's no substitute part

Lever 338733101
#7

Front cabinet section diagram

Lever

Part #338733101

The manufacturer no longer makes this part, and there's no substitute part

Display 181008811
#1

Front cabinet section diagram

Display

Part #181008811

The manufacturer no longer makes this part, and there's no substitute part

Bracket 338810201
#24

Front cabinet section diagram

Bracket

Part #338810201

The manufacturer no longer makes this part, and there's no substitute part

Cabinet X33668221
#19

Front cabinet section diagram

Cabinet

Part #X33668221

The manufacturer no longer makes this part, and there's no substitute part
