Sharp R-420CK microwave

Sharp R-420CK microwave Parts

Here are the diagrams and repair parts for Sharp R-420CK microwave, as well as links to manuals and error code tables, if available.

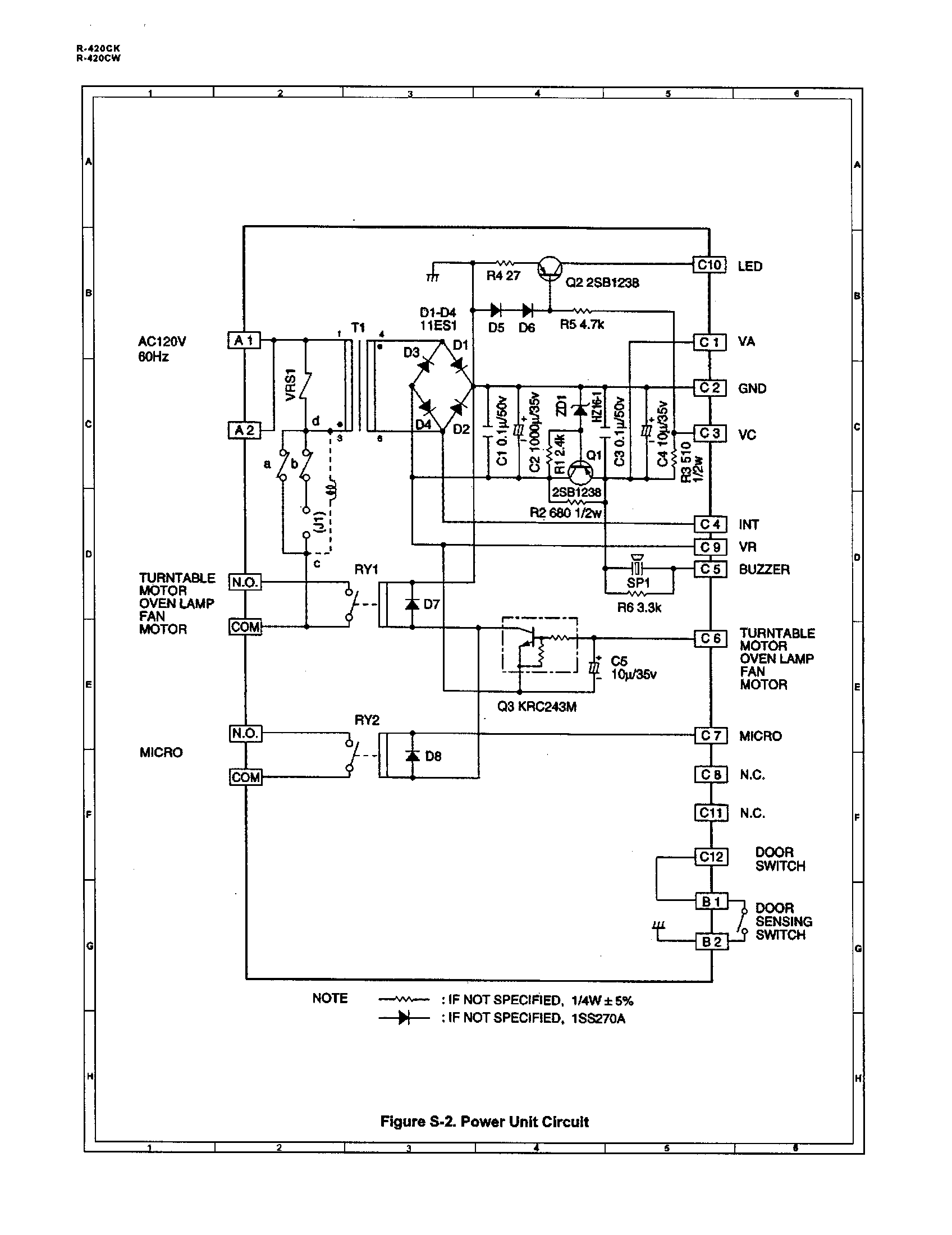

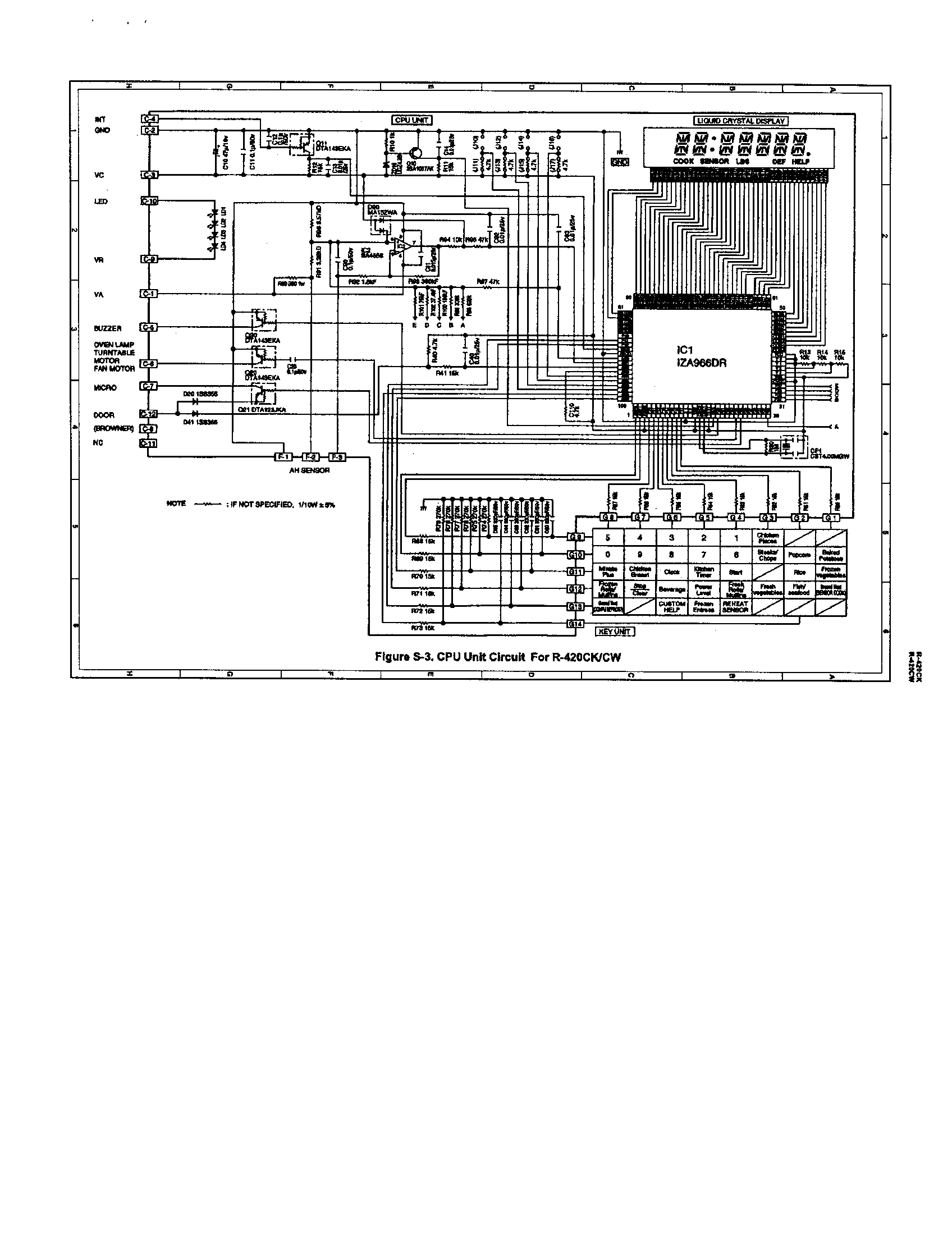

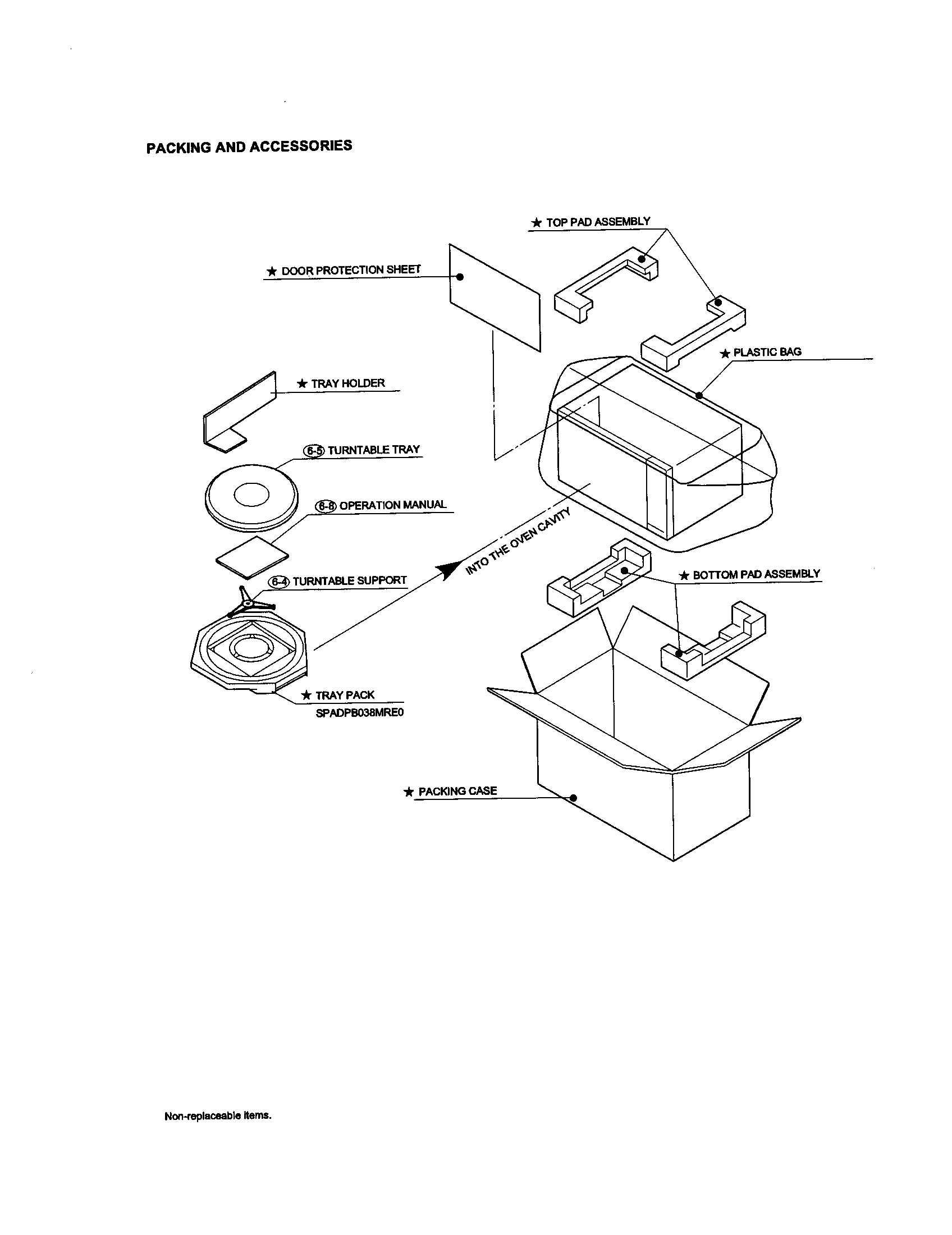

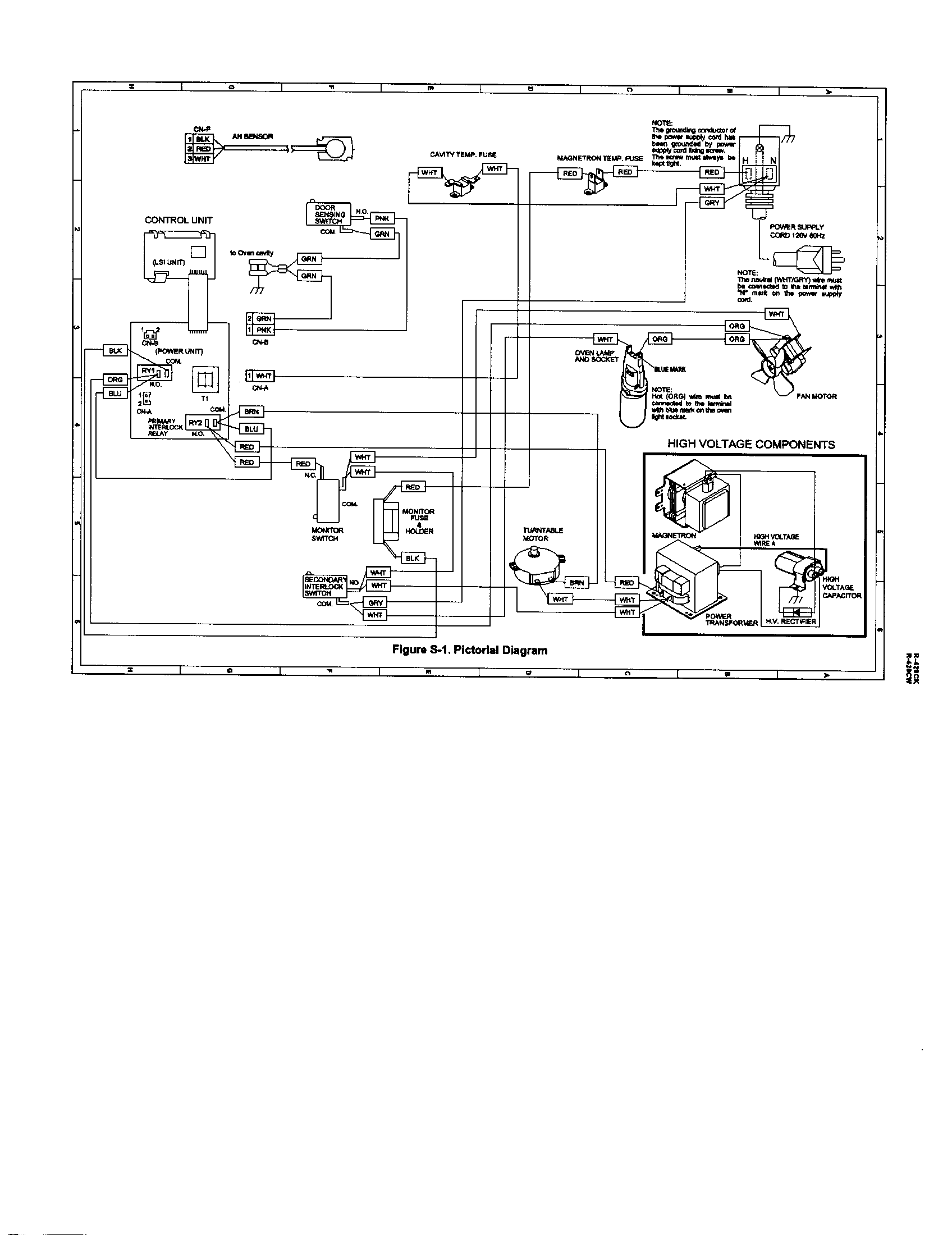

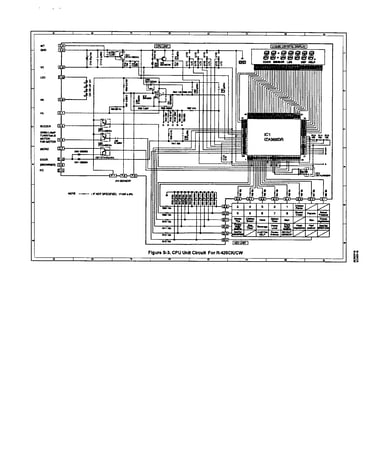

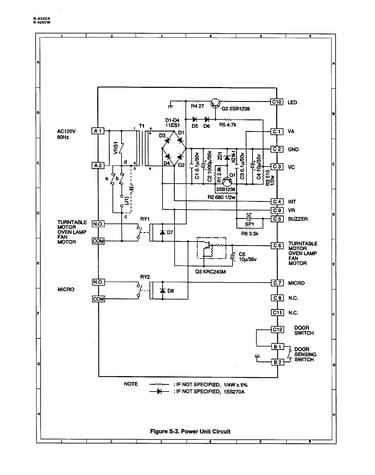

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for R-420CK Microwaves

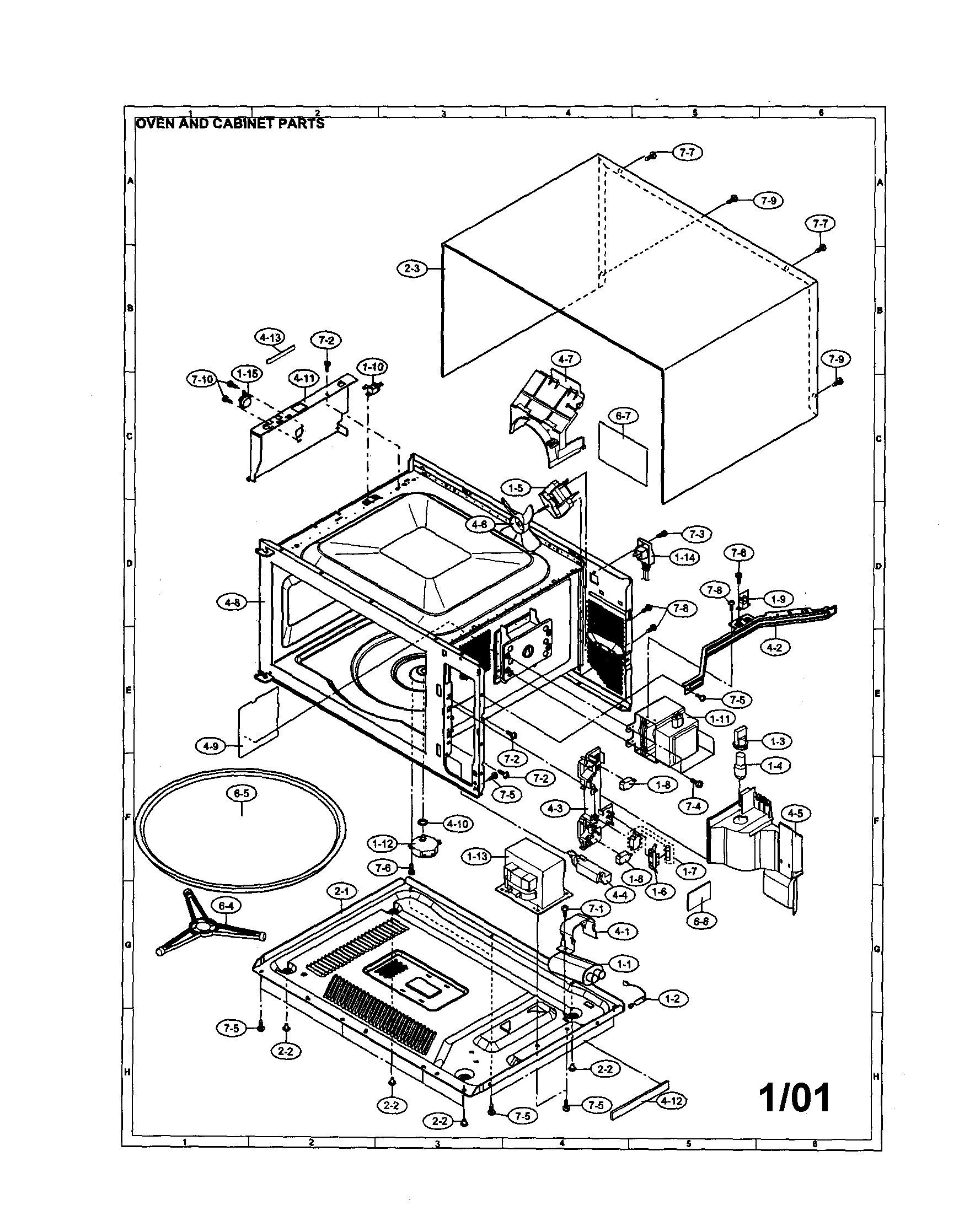

  • Switch for Sharp R-420CK - Part FFS-BA016/KIT

    #1-07

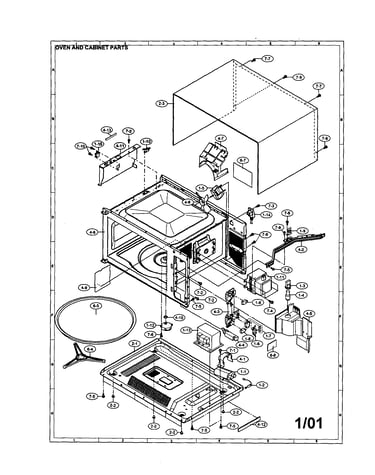

    All parts diagram

    Switch

    Part #FFS-BA016/KIT

    The manufacturer no longer makes this part, and there's no substitute part

  • Diode for Sharp R-420CK - Part FH-DZB008MRY0

    #1-02

    All parts diagram

    Diode

    Part #FH-DZB008MRY0

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor for Sharp R-420CK - Part VRD-B12EF242J

    #NI

    All parts diagram

    Capacitor

    Part #VRD-B12EF242J

    The manufacturer no longer makes this part, and there's no substitute part

  • Temperature Fuse for Sharp R-420CK - Part QFS-TA013WRE0

    #1-09

    All parts diagram

    Temperature Fuse

    Part #QFS-TA013WRE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Resistor for Sharp R-420CK - Part VRD-B12EF472J

    #NI

    All parts diagram

    Resistor

    Part #VRD-B12EF472J

    The manufacturer no longer makes this part, and there's no substitute part

  • Transformer for Sharp R-420CK - Part RTRNPB009MRE0

    #NI

    All parts diagram

    Transformer

    Part #RTRNPB009MRE0

    The manufacturer no longer makes this part, and there's no substitute part

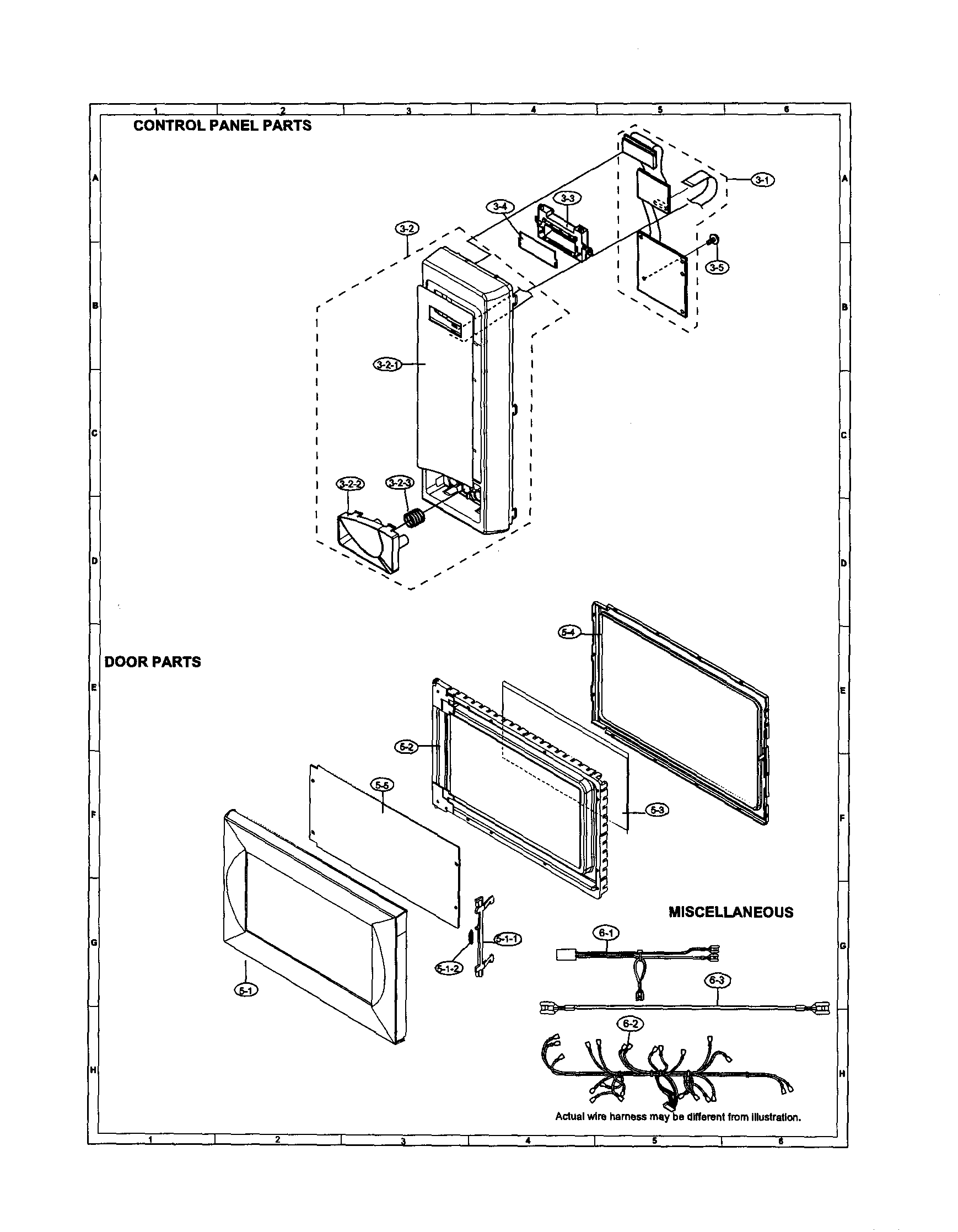

  • Door Panel for Sharp R-420CK - Part FDORFB062MRT0

    #5-02

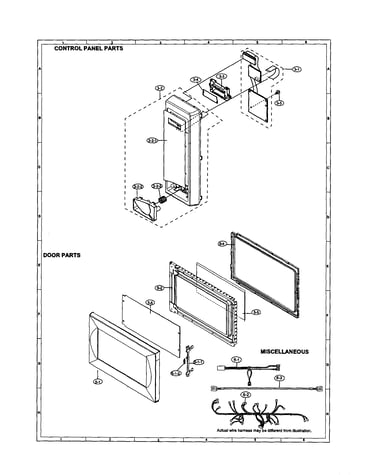

    All parts diagram

    Door Panel

    Part #FDORFB062MRT0

    The manufacturer no longer makes this part, and there's no substitute part

  • Lamp Socket for Sharp R-420CK - Part QSOCLB006MRE0

    #1-03

    All parts diagram

    Lamp Socket

    Part #QSOCLB006MRE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Fuse Holder for Sharp R-420CK - Part QFSHDB003MRE0

    #1-06

    All parts diagram

    Fuse Holder

    Part #QFSHDB003MRE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Connector for Sharp R-420CK - Part QCNCMA446DRE0

    #3-01A

    All parts diagram

    Connector

    Part #QCNCMA446DRE0

    The manufacturer no longer makes this part, and there's no substitute part
