Model # 36958230 Official Sears 1/2-hp outboard motor

Here are the diagrams and repair parts for Official Sears 36958230 1/2-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 204 parts  |

Washer 065-00000-200
#35

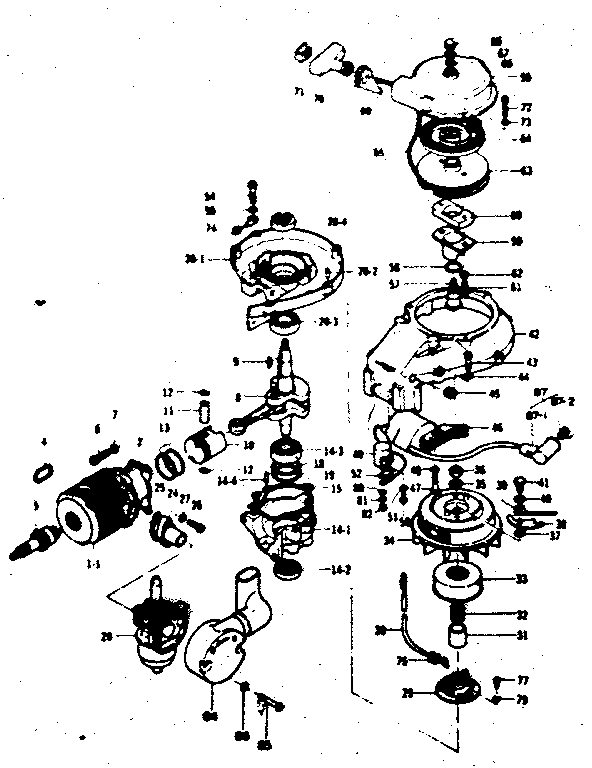

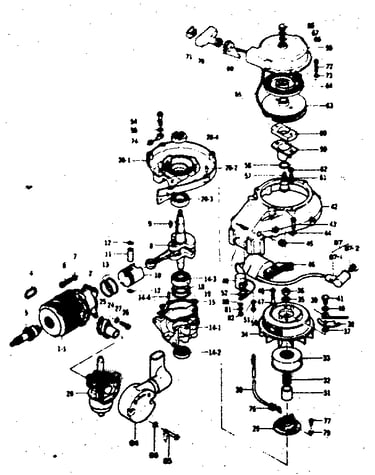

Outboard motor diagram

Washer

Part #065-00000-200

The manufacturer no longer makes this part, and there's no substitute part

Spark Plug 018-00502-200
#5

Outboard motor diagram

Spark plug

Part #018-00502-200

Replaced by #845

?
Manufacturer substitution
This part replaces 018-00502-200. Substitute parts can look different from the original.
This item is not returnable
In Stock
Bearing Assembly 085-35100-900
#22

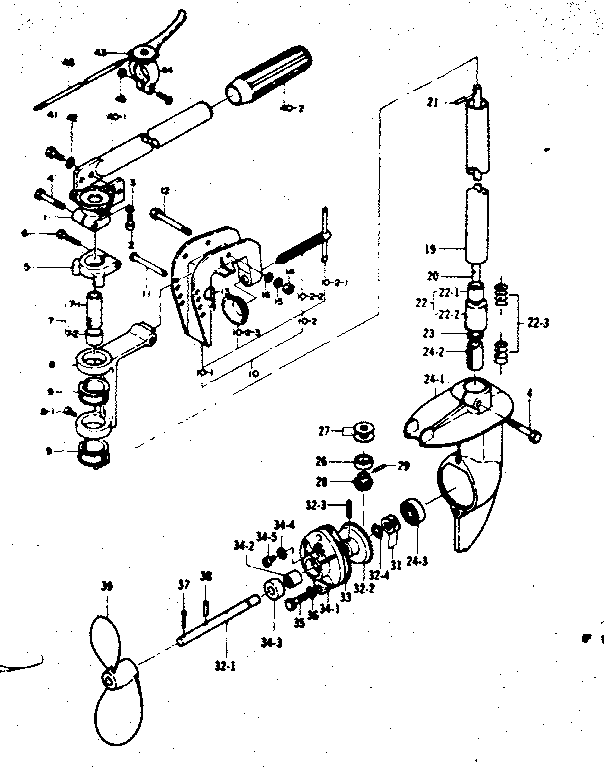

Gearcase and propeller diagram

Bearing assembly

Part #085-35100-900

The manufacturer no longer makes this part, and there's no substitute part

Bracket Comp 105-35100-800
#10

Gearcase and propeller diagram

Bracket comp

Part #105-35100-800

The manufacturer no longer makes this part, and there's no substitute part

Clamp Bracket 116-35100-205
#10A

Gearcase and propeller diagram

Clamp bracket

Part #116-35100-205

The manufacturer no longer makes this part, and there's no substitute part

Crank Case 076-00501-200
#20A

Outboard motor diagram

Crank case

Part #076-00501-200

The manufacturer no longer makes this part, and there's no substitute part

Nut 066-00000-200
#36

Outboard motor diagram

Nut

Part #066-00000-200

The manufacturer no longer makes this part, and there's no substitute part

Adjuster Spring 485-22602-200
#10

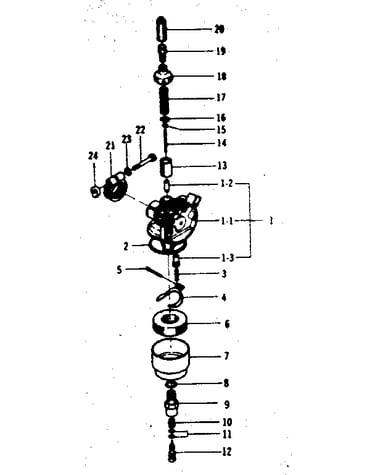

Carburetor diagram

Adjuster spring

Part #485-22602-200

The manufacturer no longer makes this part, and there's no substitute part

6mm Washer 992-01060-001
#3F

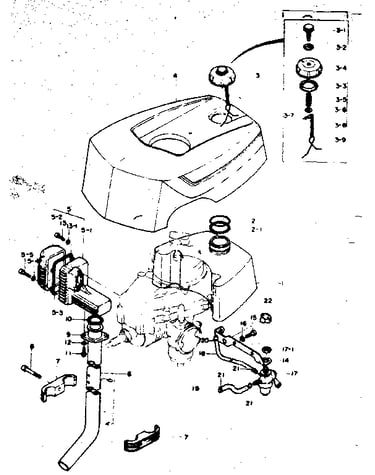

Fuel tank and line diagram

6mm washer

Part #992-01060-001

The manufacturer no longer makes this part, and there's no substitute part

Clip 680-01004-200
#21

Fuel tank and line diagram

Clip

Part #680-01004-200

The manufacturer no longer makes this part, and there's no substitute part
