Craftsman
Die Grinder

Model # 875188930 Official Craftsman 1/4" right angle die grinder

Here are the diagrams and repair parts for Official Craftsman 875188930 1/4" right angle die grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

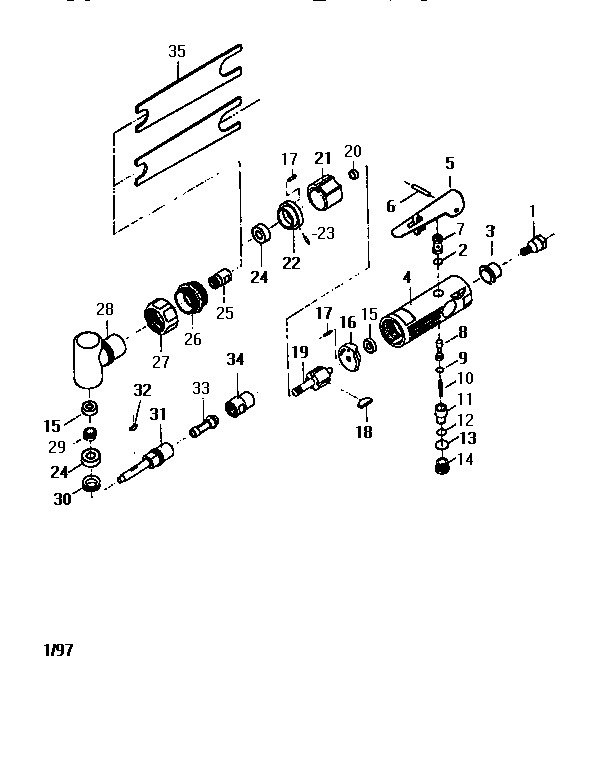

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Lever Pin 965806
#6

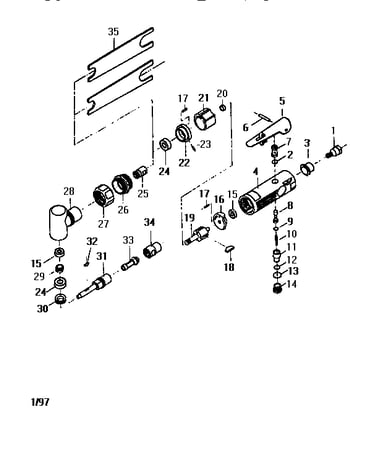

Unit parts diagram

Lever pin

Part #965806

The manufacturer no longer makes this part, and there's no substitute part

End Plate 965816
#16

Unit parts diagram

End plate

Part #965816

The manufacturer no longer makes this part, and there's no substitute part

Housing 965804
#4

Unit parts diagram

Housing

Part #965804

The manufacturer no longer makes this part, and there's no substitute part

Rotor 965819
#19

Unit parts diagram

Rotor

Part #965819

The manufacturer no longer makes this part, and there's no substitute part

O-ring 965812
#12

Unit parts diagram

O-ring

Part #965812

The manufacturer no longer makes this part, and there's no substitute part

Collar 965820
#20

Unit parts diagram

Collar

Part #965820

The manufacturer no longer makes this part, and there's no substitute part

O-ring 965813
#13

Unit parts diagram

O-ring

Part #965813

The manufacturer no longer makes this part, and there's no substitute part

Cap 965932
#27

Unit parts diagram

Cap

Part #965932

The manufacturer no longer makes this part, and there's no substitute part

O-ring 965809
#9

Unit parts diagram

O-ring

Part #965809

The manufacturer no longer makes this part, and there's no substitute part

Bevel Gear 965930
#25

Unit parts diagram

Bevel gear

Part #965930

The manufacturer no longer makes this part, and there's no substitute part
