Model # 59386 Official Craftsman electric fishing motor

Here are the diagrams and repair parts for Official Craftsman 59386 electric fishing motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

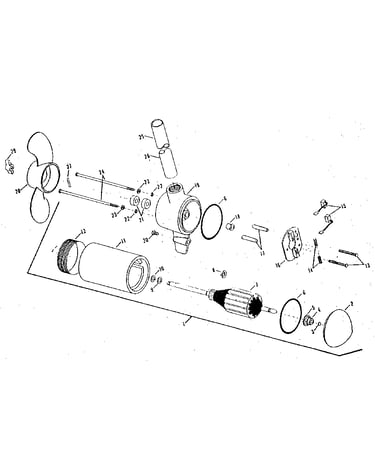

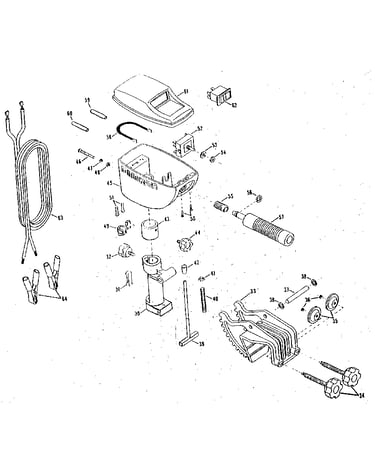

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Washer 405170

#9

All parts diagram

Washer

Part #405170

The manufacturer no longer makes this part, and there's no substitute part

Ctr Sec/mgnt 405254

#11

All parts diagram

Ctr sec/mgnt

Part #405254

The manufacturer no longer makes this part, and there's no substitute part

Clamp Screw 201135

#34

All parts diagram

Clamp screw

Part #201135

The manufacturer no longer makes this part, and there's no substitute part

E-ring 201300

#41

All parts diagram

E-ring

Part #201300

The manufacturer no longer makes this part, and there's no substitute part

F/r Switch 205401

#62

All parts diagram

F/r switch

Part #205401

The manufacturer no longer makes this part, and there's no substitute part

Brush Plate 405400

#16

All parts diagram

Brush plate

Part #405400

The manufacturer no longer makes this part, and there's no substitute part

Cntrlbx Cvr 203021

#61

All parts diagram

Cntrlbx cvr

Part #203021

The manufacturer no longer makes this part, and there's no substitute part

Conn Wire 202030

#58

All parts diagram

Conn wire

Part #202030

The manufacturer no longer makes this part, and there's no substitute part

Cntrlbx Scrw 203340

#46

All parts diagram

Cntrlbx scrw

Part #203340

The manufacturer no longer makes this part, and there's no substitute part

Tilt Knob 201010

#42

All parts diagram

Tilt knob

Part #201010

The manufacturer no longer makes this part, and there's no substitute part
