Model # A3B693DJALW1 Official GE air conditioner
Here are the diagrams and repair parts for Official GE A3B693DJALW1 air conditioner, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
A3B693DJALW1 Air Conditioner
#952A

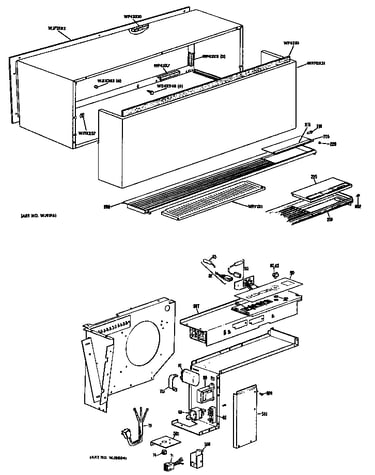

Cabinet diagram
Screw
Part #WZ2X548
This item is not returnable
$2.16
In Stock
#NI
All parts diagram
Clip
Part #WJ3X87
This item is not returnable
$2.16
In Stock
#NI
All parts diagram
Screw
Part #WZ4X120
This item is not returnable
$5.99
In Stock
#NI
All parts diagram
Nut
Part #WZ8X11
This item is not returnable
$2.16
In Stock
#NI
All parts diagram
Screw
Part #WZ5X153
This item is not returnable
$2.49
In Stock
#994
Cabinet diagram
Screw
Part #WZ4X362
This item is not returnable
$4.99
In Stock
#959

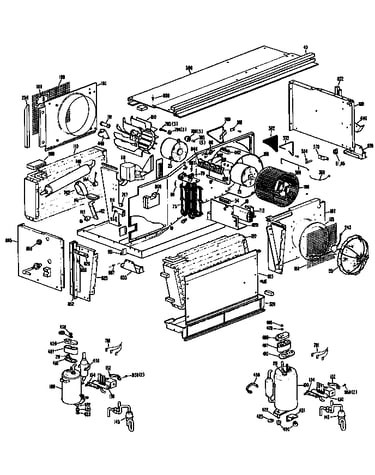

Chassis assembly diagram
Screw
Part #WZ4X288
Replaced by #WZ4X288D
?
Manufacturer substitution
This part replaces WZ4X288. Substitute parts can look different from the original.
$28.49
In Stock
#NI
All parts diagram
Coupling
Part #WJ56X70
The manufacturer no longer makes this part, and there's no substitute part
#140
Chassis assembly diagram
Modulator & tube asm
Part #WP62X01
The manufacturer no longer makes this part, and there's no substitute part
#60
Cabinet diagram
Knob thermostst
Part #WP12X03
The manufacturer no longer makes this part, and there's no substitute part
Repair guides for side-by-side refrigerators
How to replace a foamed-in-place door gasket in a side-by-side refrigerator
The door gasket seals the gap around the door to keep the cold air in and the warm air out. Replace a worn or damaged do…
Repair difficulty
Time required
30 minutes or less
How to replace a refrigerator water valve
Replace the water valve that feeds water to the ice maker and water dispenser if it no longer controls the flow of water…
Repair difficulty
Time required
15 minutes or less
How to replace a defrost sensor in a side-by-side refrigerator
If frost is building up in the freezer of your side-by-side refrigerator, the defrost sensor could be at fault. You can …
Repair difficulty
Time required
45 minutes or less
