Craftsman 315269460 electric drill Parts

Here are the diagrams and repair parts for Craftsman 315269460 electric drill, as well as links to manuals and error code tables, if available.

Craftsman 315269460 electric drill
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for315269460 Power Tools

  • Gear&spind for Craftsman 315269460 - Part 984566-001

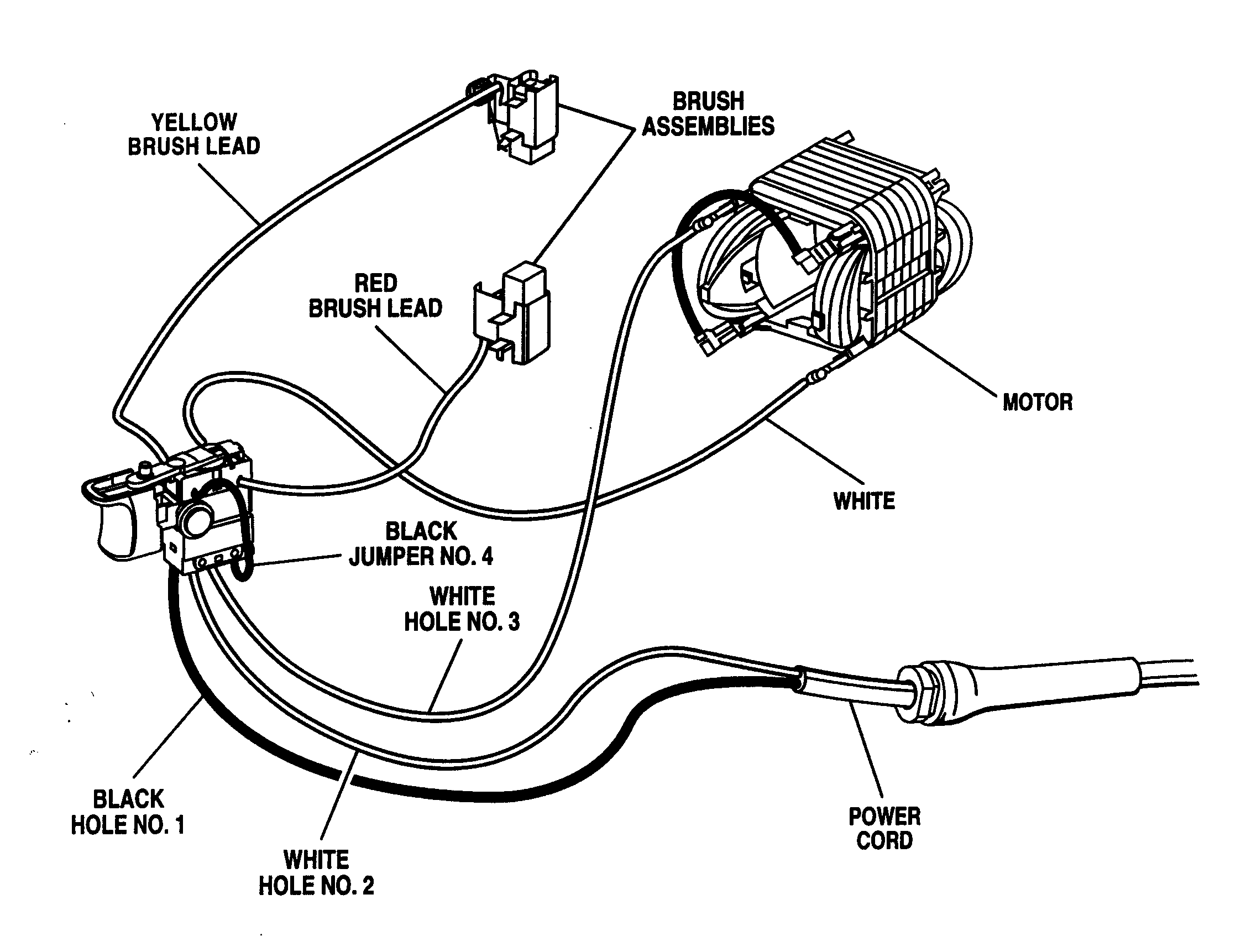

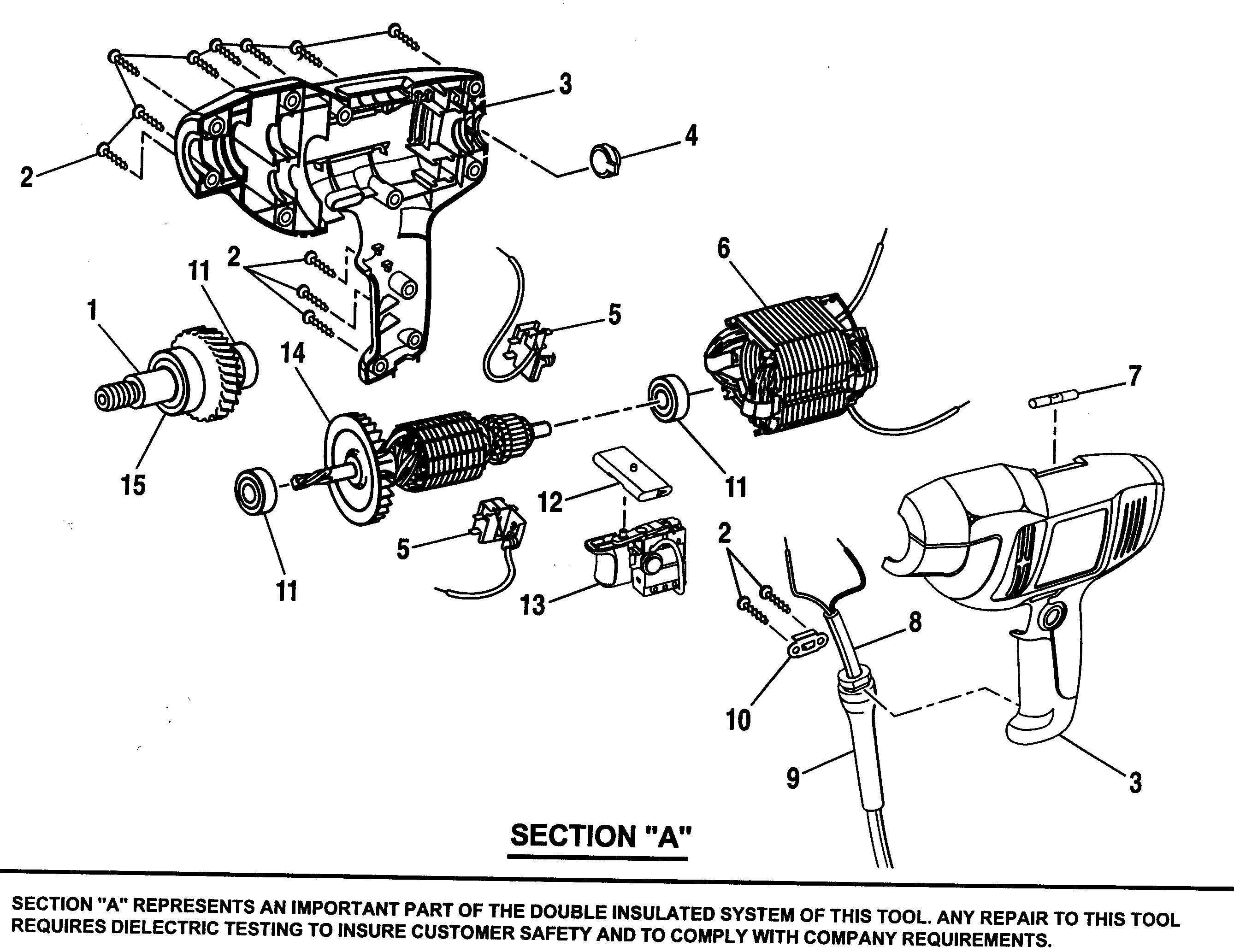

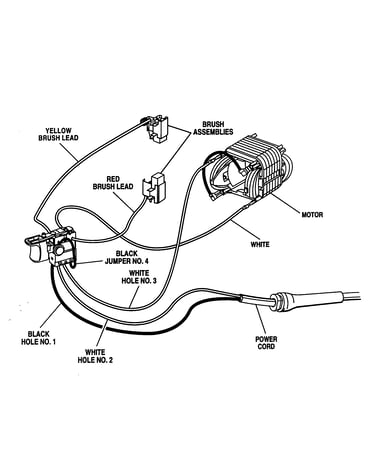

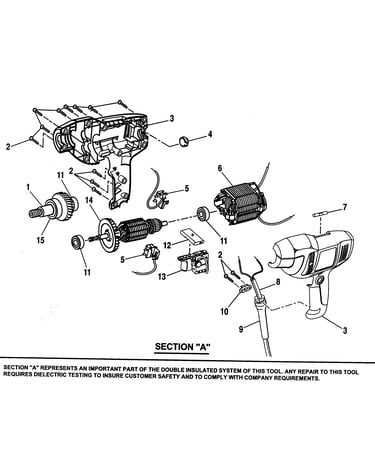

    Motor assy diagram

    Gear&spind

    Part #984566-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Chuck for Craftsman 315269460 - Part 6903304

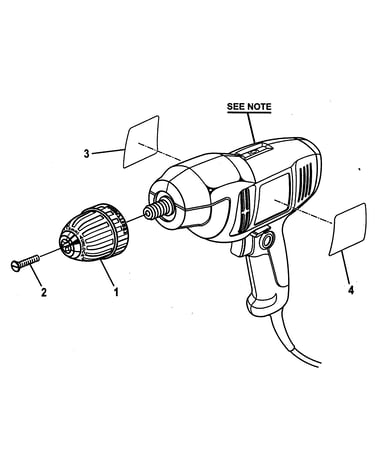

    Drill diagram

    Chuck

    Part #6903304

    The manufacturer no longer makes this part, and there's no substitute part

  • 6201ll for Craftsman 315269460 - Part 6915201

    Motor assy diagram

    6201ll

    Part #6915201

    The manufacturer no longer makes this part, and there's no substitute part

  • Drill Level for Craftsman 315269460 - Part 3000907

    Motor assy diagram

    Drill Level

    Part #3000907

    The manufacturer no longer makes this part, and there's no substitute part

  • Armature for Craftsman 315269460 - Part 984599-001

    Motor assy diagram

    Armature

    Part #984599-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Selector for Craftsman 315269460 - Part 3878702

    Motor assy diagram

    Selector

    Part #3878702

    The manufacturer no longer makes this part, and there's no substitute part

  • Housing Assembly for Craftsman 315269460 - Part 984510-001

    Motor assy diagram

    Housing Assembly

    Part #984510-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Switch Assembly for Craftsman 315269460 - Part 7619702

    Motor assy diagram

    Switch Assembly

    Part #7619702

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw M3.5 X 16mm for Craftsman 315269460 - Part 6620606

    Motor assy diagram

    Screw M3.5 X 16mm

    Part #6620606

    The manufacturer no longer makes this part, and there's no substitute part

  • Brush Assembly for Craftsman 315269460 - Part 984511-001

    Motor assy diagram

    Brush Assembly

    Part #984511-001

    The manufacturer no longer makes this part, and there's no substitute part
