LXI 30491716050 am/fm stereo with 8-track Parts

Here are the diagrams and repair parts for LXI 30491716050 am/fm stereo with 8-track, as well as links to manuals and error code tables, if available.

LXI 30491716050 am/fm stereo with 8-track

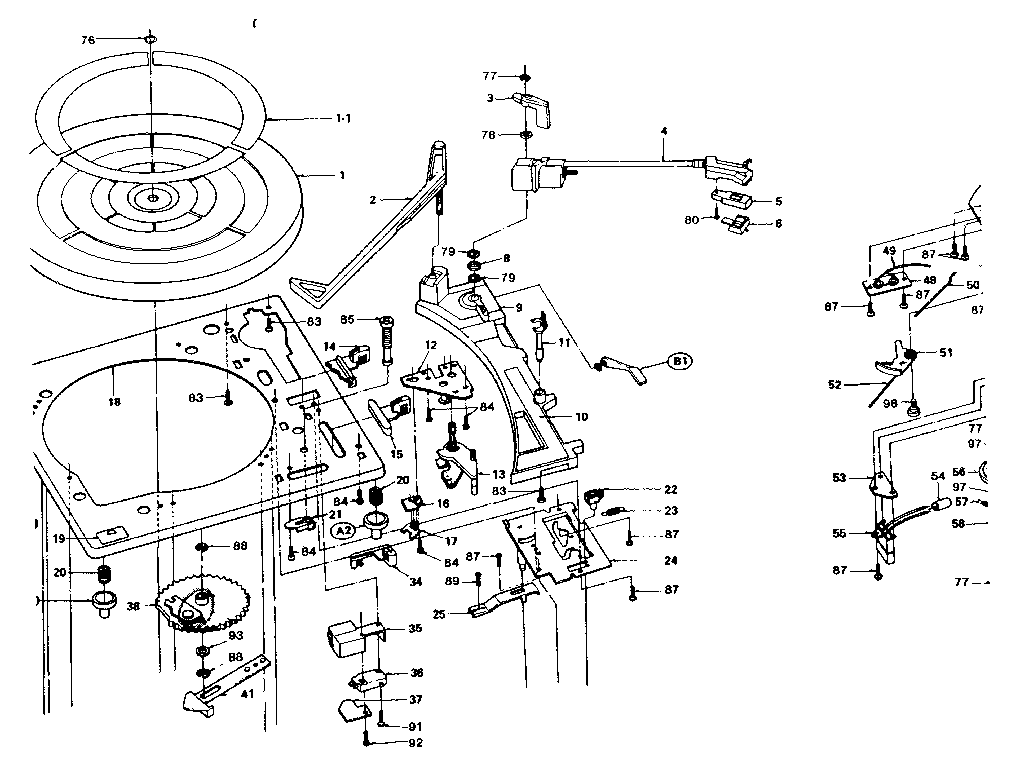

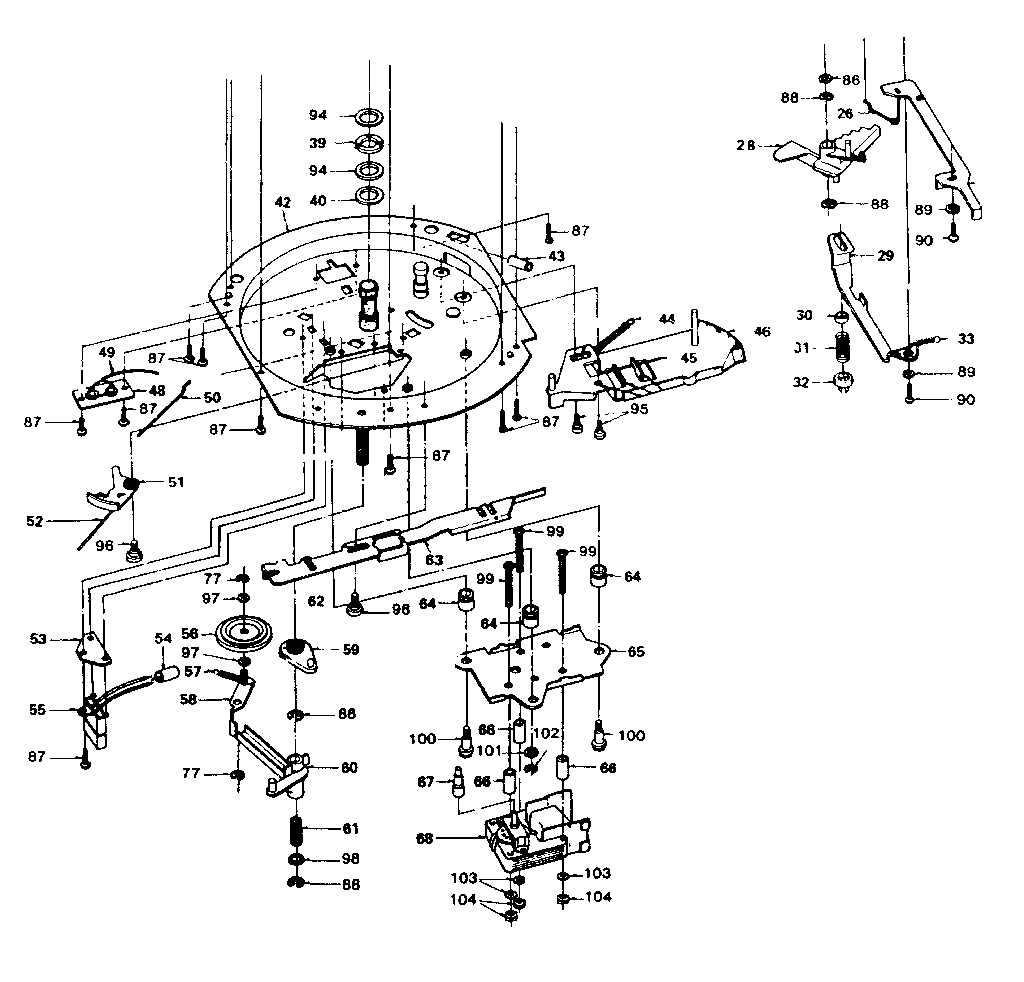

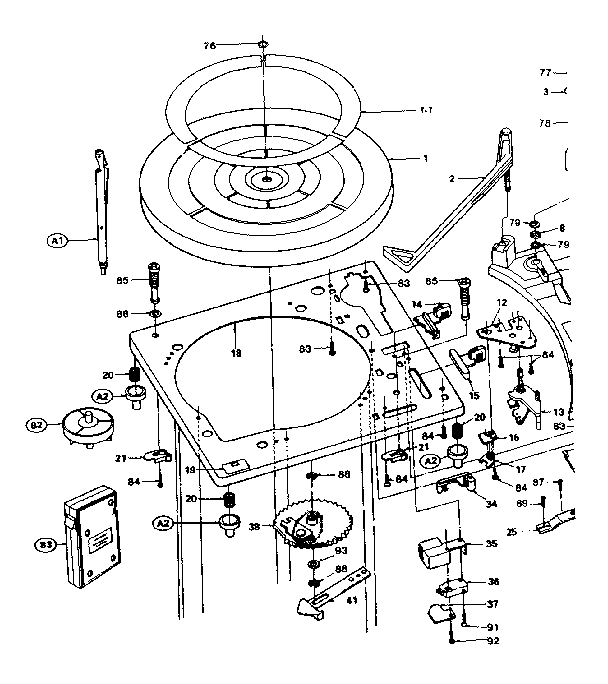

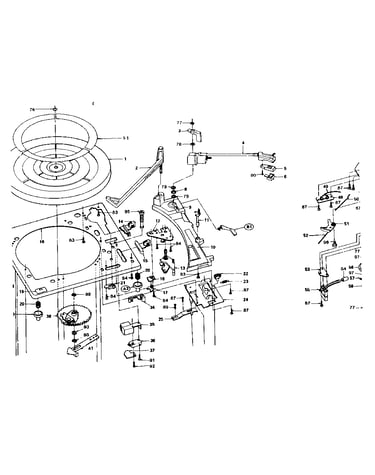

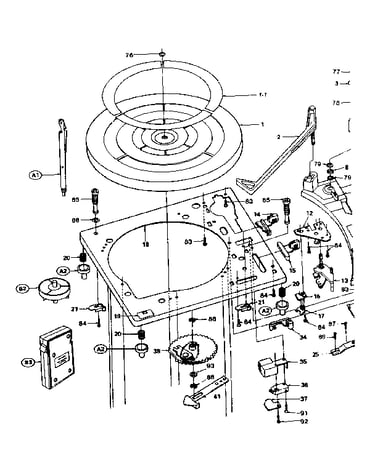

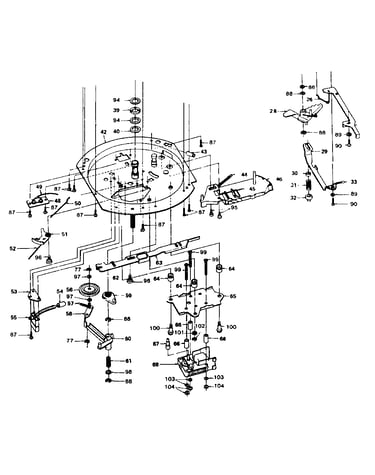

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for30491716050 AM/FM Stereo with 8-Track

  • (a-11) Cabinet (not A Service Part) for LXI 30491716050 - Part N/P

    (a-11) Cabinet (not A Service Part)

    Part #N/P

    The manufacturer no longer makes this part, and there's no substitute part

  • Ball Race for LXI 30491716050 - Part 2017696-38

    #39

    All parts diagram

    Ball Race

    Part #2017696-38

    The manufacturer no longer makes this part, and there's no substitute part

  • Spring for LXI 30491716050 - Part 2017696-44

    #45

    All parts diagram

    Spring

    Part #2017696-44

    The manufacturer no longer makes this part, and there's no substitute part

  • (1-1) Turntable Ring for LXI 30491716050 - Part 2017696-2

    #1A

    All parts diagram

    (1-1) Turntable Ring

    Part #2017696-2

    The manufacturer no longer makes this part, and there's no substitute part

  • (b3) 45 Rpm Multiple Adapter for LXI 30491716050 - Part 2014341-1

    #106E

    All parts diagram

    (b3) 45 Rpm Multiple Adapter

    Part #2014341-1

    The manufacturer no longer makes this part, and there's no substitute part

  • Insulator for LXI 30491716050 - Part 2017696-51

    #53

    All parts diagram

    Insulator

    Part #2017696-51

    The manufacturer no longer makes this part, and there's no substitute part

  • Washer for LXI 30491716050 - Part 2017696-75

    #86

    All parts diagram

    Washer

    Part #2017696-75

    The manufacturer no longer makes this part, and there's no substitute part

  • Select Rod for LXI 30491716050 - Part 2017696-28

    #29

    All parts diagram

    Select Rod

    Part #2017696-28

    The manufacturer no longer makes this part, and there's no substitute part

  • Index Level Ass'y for LXI 30491716050 - Part 2017696-27

    #28

    All parts diagram

    Index Level Ass'y

    Part #2017696-27

    The manufacturer no longer makes this part, and there's no substitute part

  • Operating Plate Ass'y for LXI 30491716050 - Part 2017696-45

    #46

    All parts diagram

    Operating Plate Ass'y

    Part #2017696-45

    The manufacturer no longer makes this part, and there's no substitute part
