Model # 11653512302 Official Kenmore powermate attachment

Here are the diagrams and repair parts for Official Kenmore 11653512302 powermate attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Vacuum Foam Filter 4370713
#8

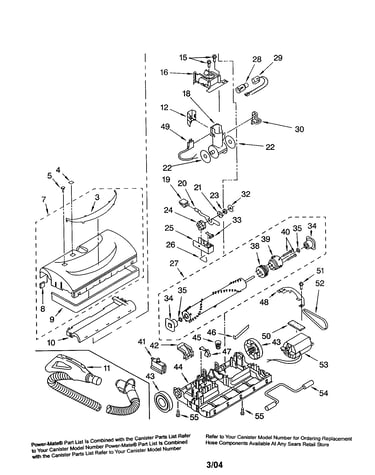

Power-mate diagram

Vacuum foam filter

Part #4370713

Replaced by #4370713

?
Manufacturer substitution
This part replaces 4370713. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$6.69 |
13% OFF Phone Price : $7.69
In Stock
Release 4370578
#42

Power-mate diagram

Release

Part #4370578

Replaced by #KC47AGJ3V06

?
Manufacturer substitution
This part replaces 4370578. Substitute parts can look different from the original.
This item is not returnable
$4.79 |
17% OFF Phone Price : $5.79
In Stock
Vacuum Powermate Wheel 4370724
#43

Power-mate diagram

Vacuum powermate wheel

Part #4370724

The manufacturer no longer makes this part, and there's no substitute part

Catch 722955
#21

Power-mate diagram

Catch

Part #722955

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Axle Lifter 4370726
#47

Power-mate diagram

Vacuum axle lifter

Part #4370726

The manufacturer no longer makes this part, and there's no substitute part

Motor (black) 8175246
#53

Power-mate diagram

Motor (black)

Part #8175246

The manufacturer no longer makes this part, and there's no substitute part

Bulb Socket 8175249
#29

Power-mate diagram

Bulb socket

Part #8175249

The manufacturer no longer makes this part, and there's no substitute part

Block 742015
#25

Power-mate diagram

Block

Part #742015

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar 8175121
#27

Power-mate diagram

Vacuum beater bar

Part #8175121

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Ratchet (white) 742016
#33

Power-mate diagram

Vacuum ratchet (white)

Part #742016

The manufacturer no longer makes this part, and there's no substitute part
