JVC TH-F3J home theater

JVC TH-F3J home theater Parts

Here are the diagrams and repair parts for JVC TH-F3J home theater, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for TH-F3J Home Theater

  • Integrated Circuit for JVC TH-F3J - Part GP1FAV30RK0F

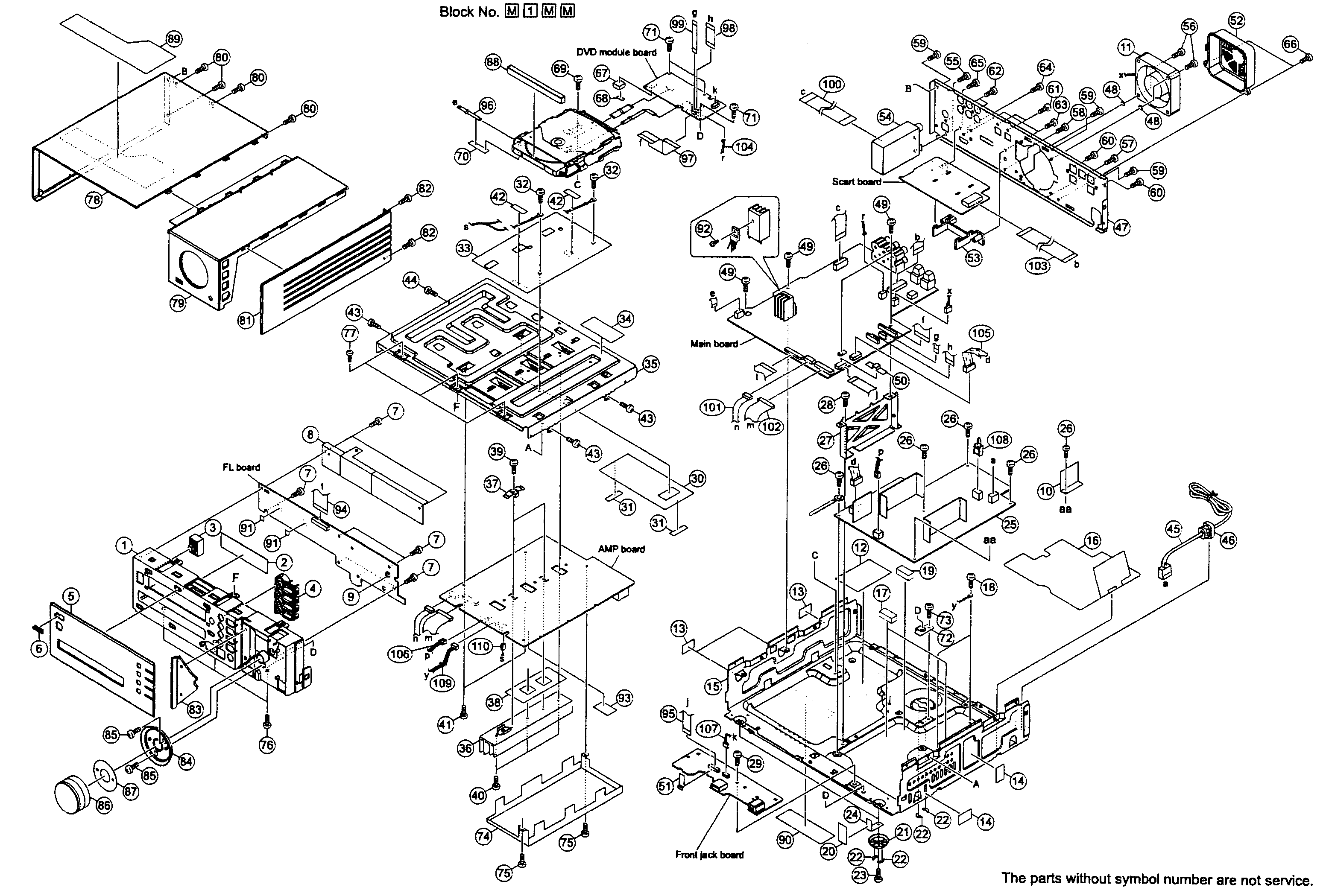

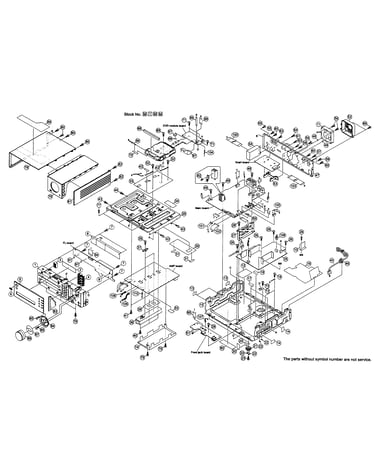

    Cabinet parts diagram

    Integrated Circuit

    Part #GP1FAV30RK0F

    The manufacturer no longer makes this part, and there's no substitute part

  • Gear for JVC TH-F3J - Part LV36558-001A

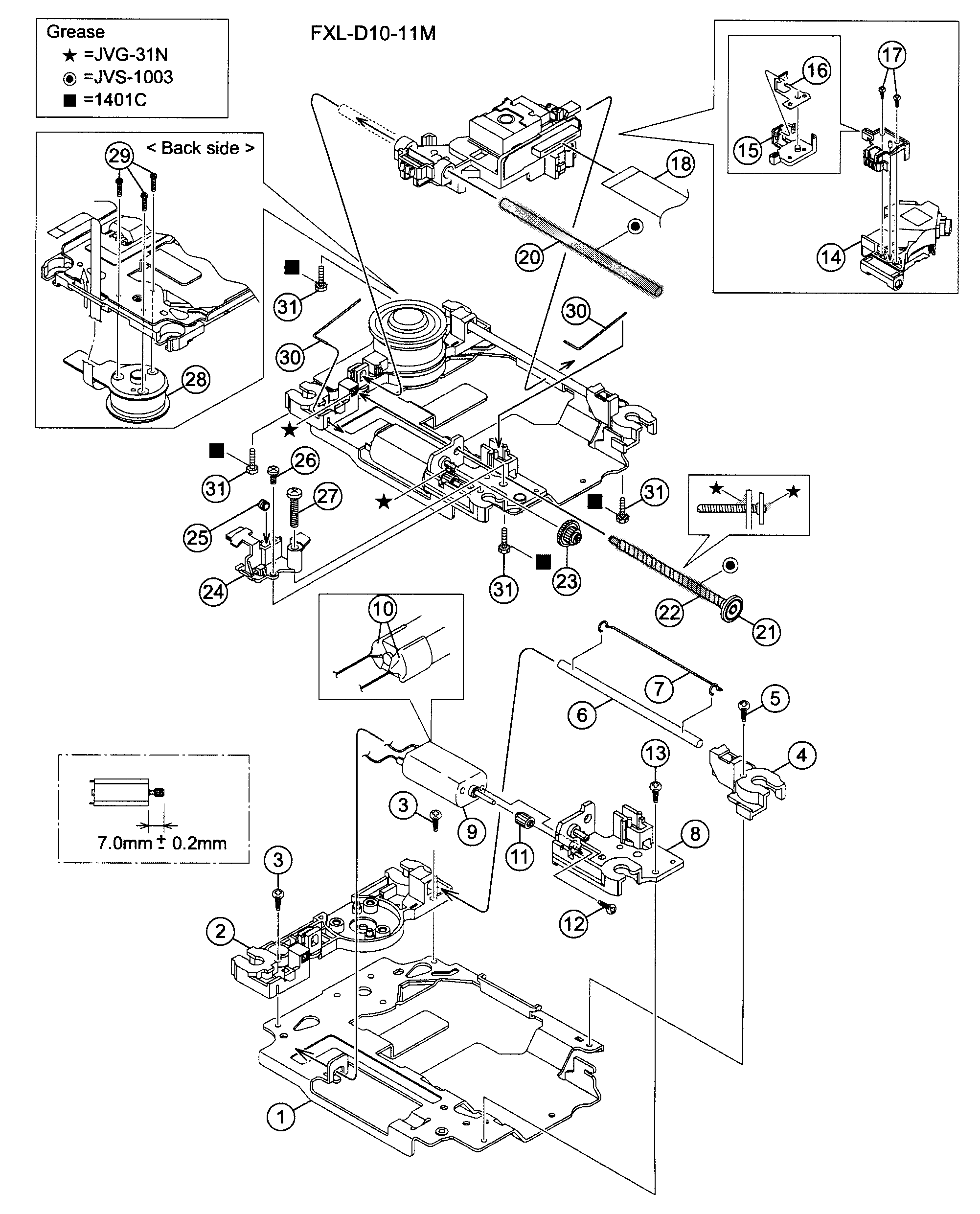

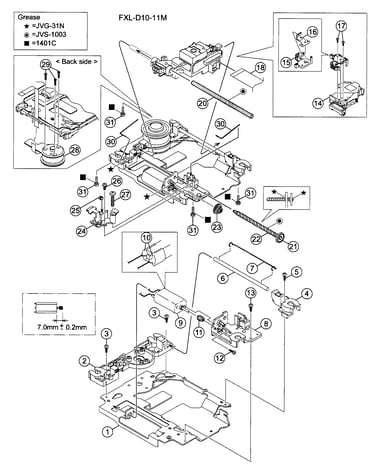

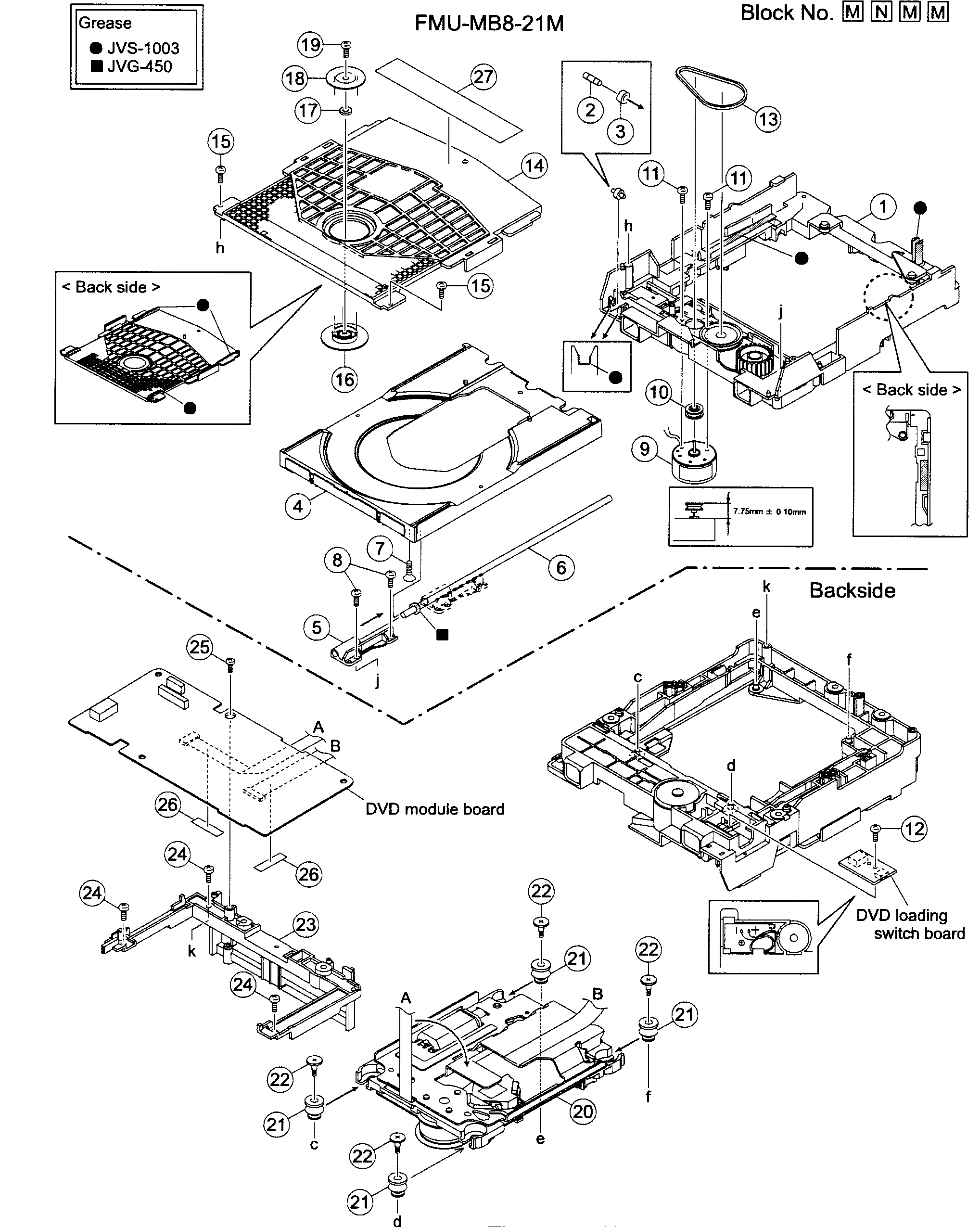

    Dvd assy diagram

    Gear

    Part #LV36558-001A

    The manufacturer no longer makes this part, and there's no substitute part

  • Integrated Circuit for JVC TH-F3J - Part AK5358ET-X

    Cabinet parts diagram

    Integrated Circuit

    Part #AK5358ET-X

    The manufacturer no longer makes this part, and there's no substitute part

  • Jvc Chassis for JVC TH-F3J - Part LV11543-001A

    Cabinet parts diagram

    Jvc Chassis

    Part #LV11543-001A

    The manufacturer no longer makes this part, and there's no substitute part

  • Jvc Thermistor for JVC TH-F3J - Part NAD0025-103X

    Cabinet parts diagram

    Jvc Thermistor

    Part #NAD0025-103X

    The manufacturer no longer makes this part, and there's no substitute part

  • Jvc Led Holder for JVC TH-F3J - Part LV44249-001A

    Cabinet parts diagram

    Jvc Led Holder

    Part #LV44249-001A

    The manufacturer no longer makes this part, and there's no substitute part

  • Jvc Connection Terminal for JVC TH-F3J - Part QGF1016F9-05

    Cabinet parts diagram

    Jvc Connection Terminal

    Part #QGF1016F9-05

    The manufacturer no longer makes this part, and there's no substitute part

  • Jvc Fan Motor for JVC TH-F3J - Part QAR0390-001

    Cabinet parts diagram

    Jvc Fan Motor

    Part #QAR0390-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Integrated Circuit for JVC TH-F3J - Part SN74HCU04ANS-X

    Cabinet parts diagram

    Integrated Circuit

    Part #SN74HCU04ANS-X

    The manufacturer no longer makes this part, and there's no substitute part

  • Jvc Bracket for JVC TH-F3J - Part LV38116-001A

    Cabinet parts diagram

    Jvc Bracket

    Part #LV38116-001A

    The manufacturer no longer makes this part, and there's no substitute part
