Porter Cable
Power Nailer

Model # BN125A Official Porter Cable brad nailer

Here are the diagrams and repair parts for Official Porter Cable BN125A brad nailer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |

Plate Wear 883908
#406

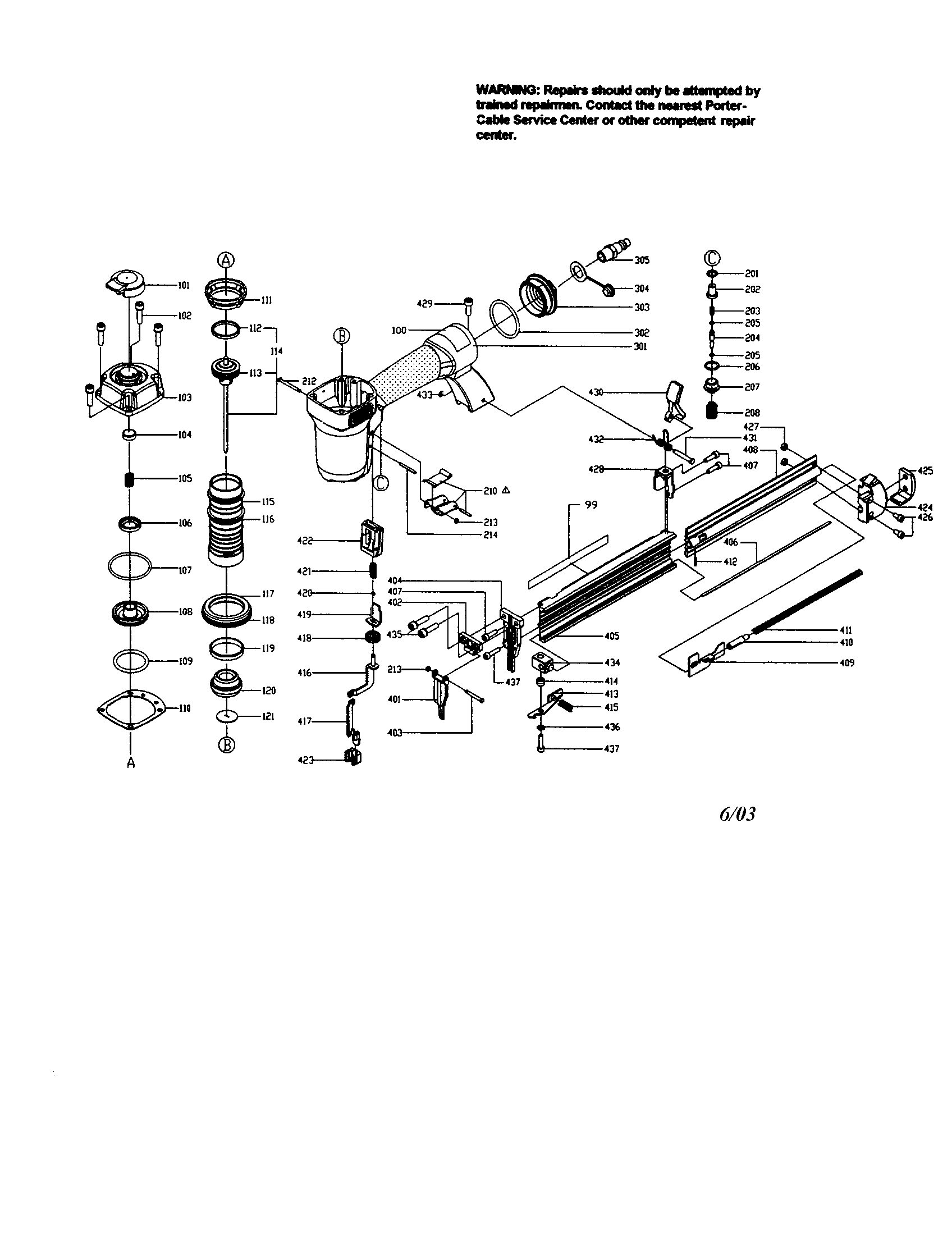

Brad nailer diagram

Plate wear

Part #883908

The manufacturer no longer makes this part, and there's no substitute part

Spring Pin 894780
#412

Brad nailer diagram

Spring pin

Part #894780

The manufacturer no longer makes this part, and there's no substitute part

Magazine Spacer 894754
#414

Brad nailer diagram

Magazine spacer

Part #894754

The manufacturer no longer makes this part, and there's no substitute part

End Plate 894740
#425

Brad nailer diagram

End plate

Part #894740

The manufacturer no longer makes this part, and there's no substitute part

Nailer Roll Pin Retainer 890725
#213

Brad nailer diagram

Nailer roll pin retainer

Part #890725

The manufacturer no longer makes this part, and there's no substitute part

Pin Rolled 883884
#214

Brad nailer diagram

Pin rolled

Part #883884

The manufacturer no longer makes this part, and there's no substitute part

O-ring 894748
#107

Brad nailer diagram

O-ring

Part #894748

The manufacturer no longer makes this part, and there's no substitute part

Spring 894778
#415

Brad nailer diagram

Spring

Part #894778

The manufacturer no longer makes this part, and there's no substitute part

Latch 894716
#413

Brad nailer diagram

Latch

Part #894716

The manufacturer no longer makes this part, and there's no substitute part

Seal Head 891469
#104

Brad nailer diagram

Seal head

Part #891469

The manufacturer no longer makes this part, and there's no substitute part
