KitchenAid KEMS306BBL0 built-in oven with microwave

KitchenAid KEMS306BBL0 built-in oven with microwave Parts

Here are the diagrams and repair parts for KitchenAid KEMS306BBL0 built-in oven with microwave, as well as links to manuals and error code tables, if available.

By Schematic
By Part

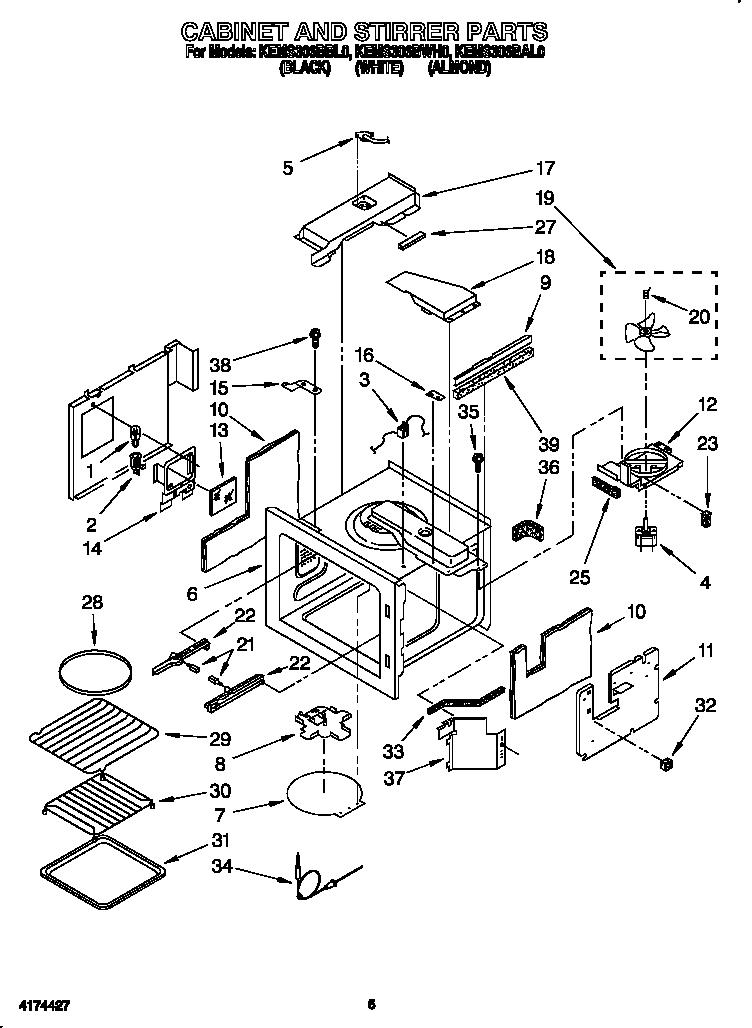

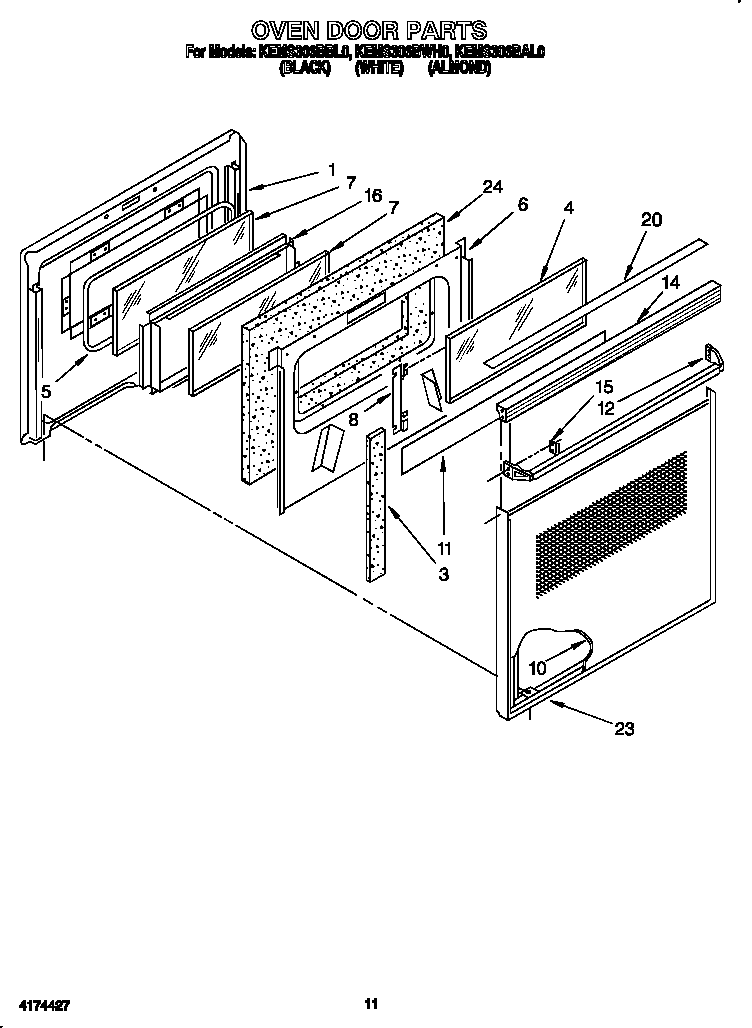

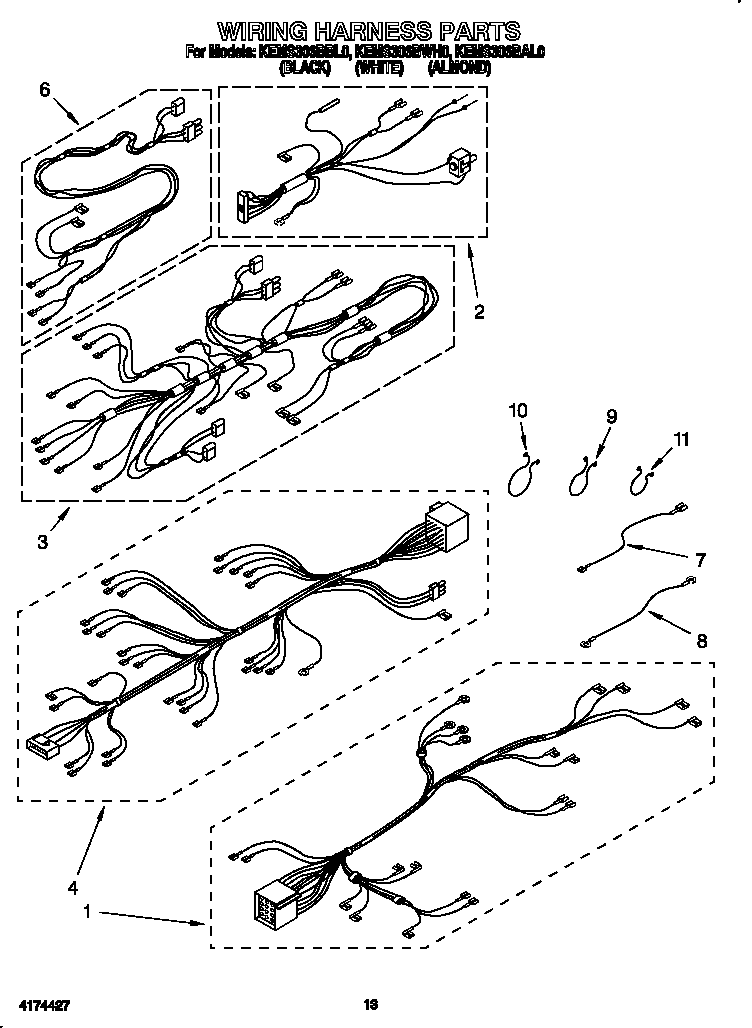

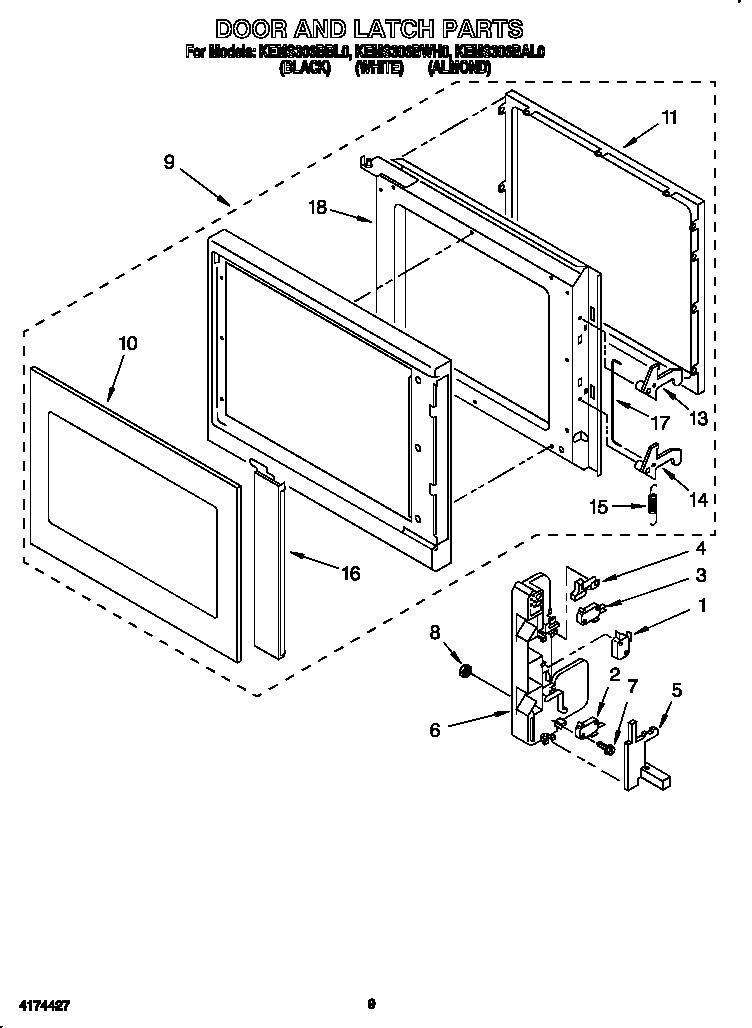

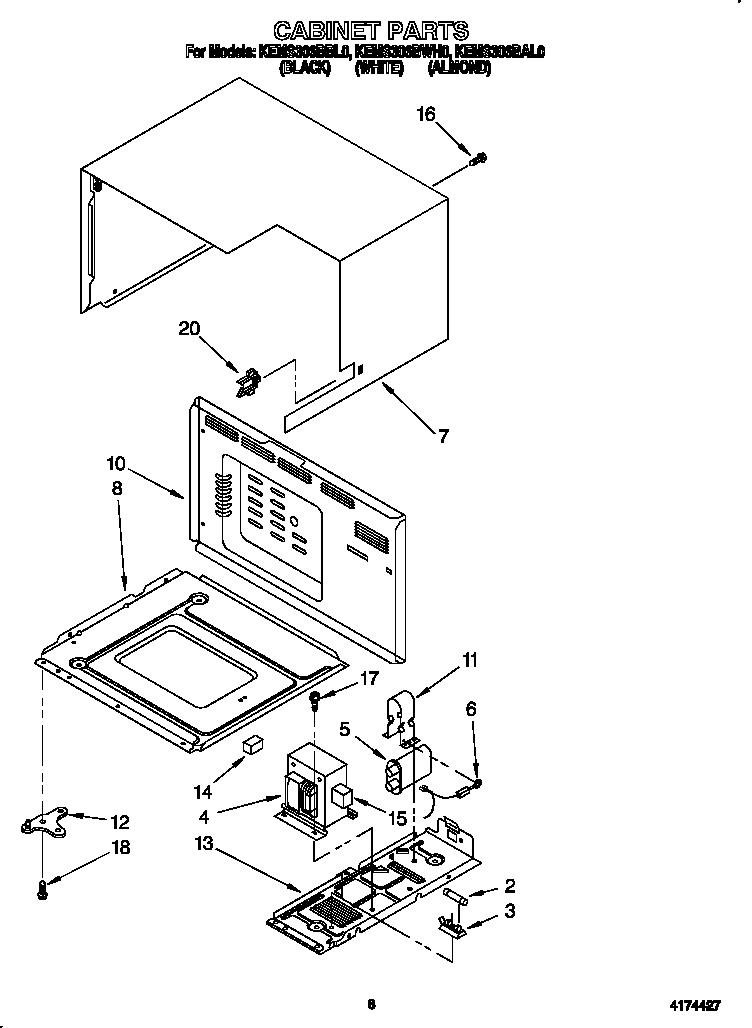

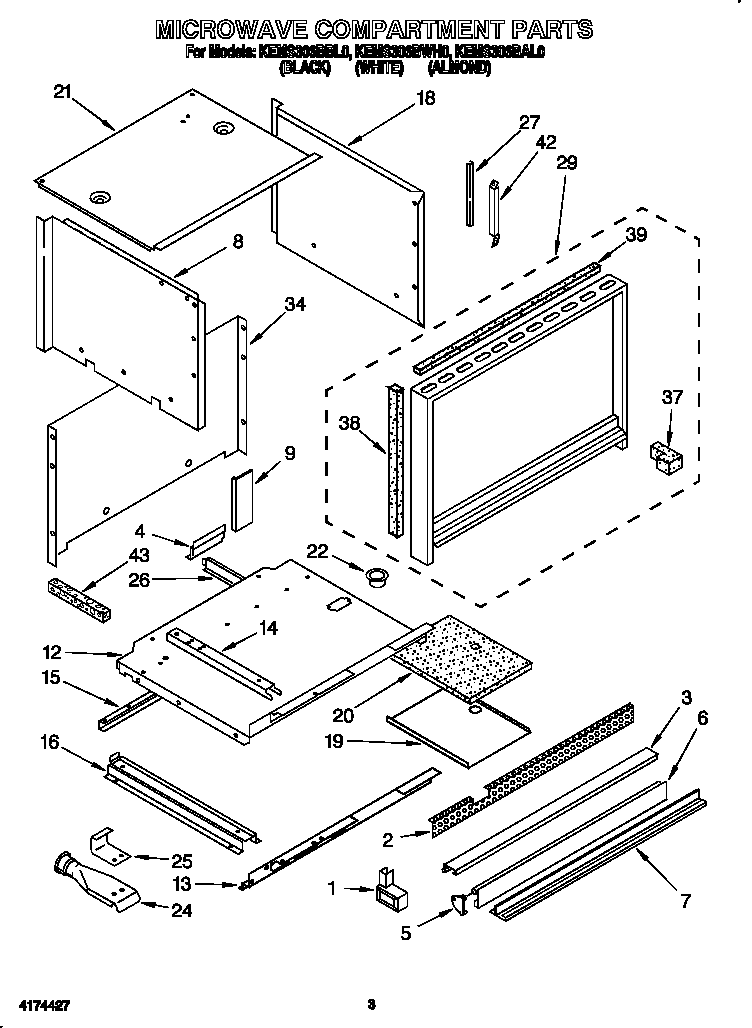

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for KEMS306BBL0 Built-In Oven with Microwave

  • Range Broil Pan for KitchenAid KEMS306BBL0 - Part 4396923

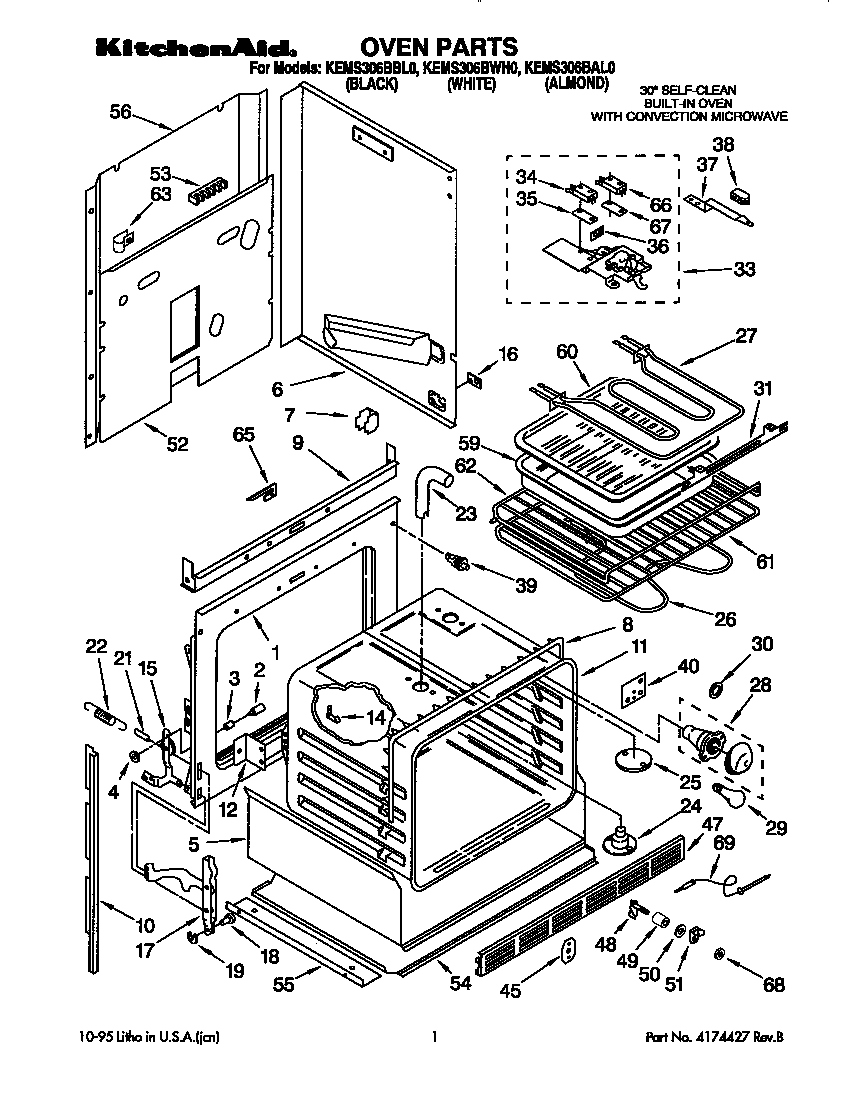

    Oven diagram

    Grid Pan

    Part #3147563

    Replaced by #4396923

    Info Icon
    Manufacturer substitution
    This part replaces 3147563. Substitute parts can look different from the original.
    In Stock
    $45.56
    12% OFF Phone Price : $51.56Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Spray Paint (white) for KitchenAid KEMS306BBL0 - Part 350930

    #NI

    All parts diagram

    Spray W

    Part #350930

    Replaced by #350930

    Info Icon
    Manufacturer substitution
    This part replaces 350930. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $26.00
    19% OFF Phone Price : $32.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Light Assembly for KitchenAid KEMS306BBL0 - Part W11594027

    Oven diagram

    Light Socket

    Part #3150505

    Replaced by #W11594027

    Info Icon
    Manufacturer substitution
    This part replaces 3150505. Substitute parts can look different from the original.
    In Stock
    $73.85
    8% OFF Phone Price : $79.85Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Spray Paint (white Primer) for KitchenAid KEMS306BBL0 - Part 350942

    #NI

    All parts diagram

    Spray Th

    Part #350942

    Replaced by #350942

    Info Icon
    Manufacturer substitution
    This part replaces 350942. Substitute parts can look different from the original.
    In Stock
    $110.16
    Minus Item
    Qty
    Plus Item
  • Range Oven Selector Switch for KitchenAid KEMS306BBL0 - Part WP4314961

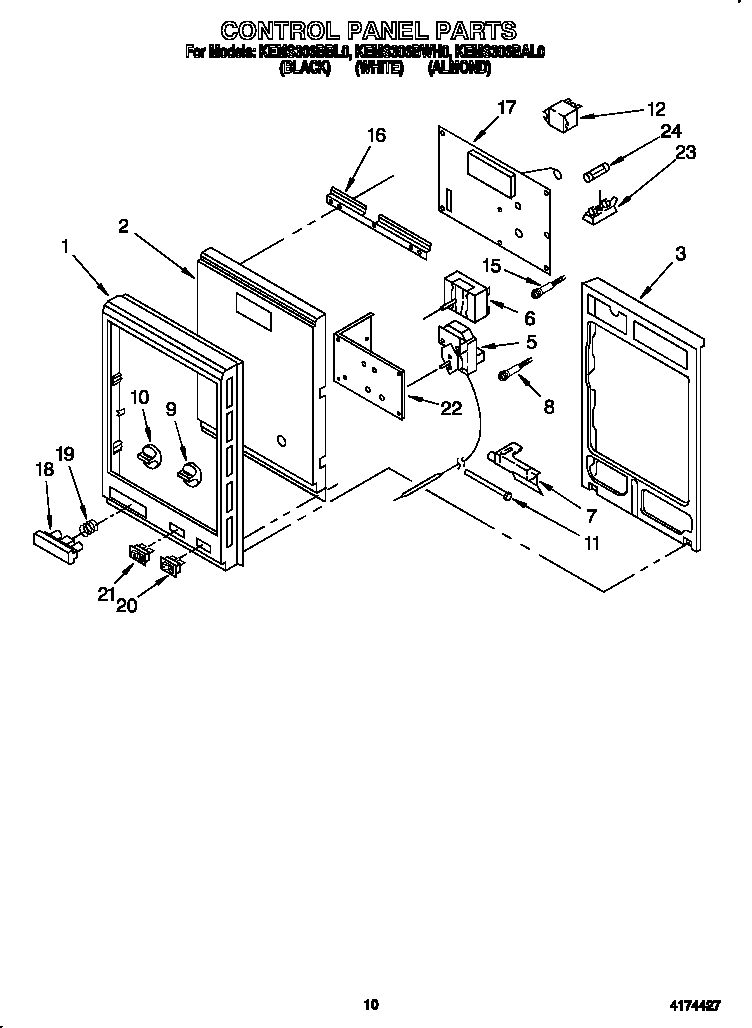

    Control panel diagram

    Light Switch (almond)

    Part #3182375

    Replaced by #WP4314961

    Info Icon
    Manufacturer substitution
    This part replaces 3182375. Substitute parts can look different from the original.
    In Stock
    $45.02
    12% OFF Phone Price : $51.02Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Terminal Block for KitchenAid KEMS306BBL0 - Part WP8203546

    Oven diagram

    Terminal Block

    Part #258076

    Replaced by #WP8203546

    Info Icon
    Manufacturer substitution
    This part replaces 258076. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $20.93
    22% OFF Phone Price : $26.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Fuse Holder for KitchenAid KEMS306BBL0 - Part 4454949

    Control panel diagram

    Fuse Block

    Part #314121

    Replaced by #4454949

    Info Icon
    Manufacturer substitution
    This part replaces 314121. Substitute parts can look different from the original.
    In Stock
    $42.99
    12% OFF Phone Price : $48.99Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Fuse for KitchenAid KEMS306BBL0 - Part WPW10017410

    Control panel diagram

    Fuse

    Part #309796

    Replaced by #WPW10017410

    Info Icon
    Manufacturer substitution
    This part replaces 309796. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $13.19
    13% OFF Phone Price : $15.19Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Primary Interlock Switch for KitchenAid KEMS306BBL0 - Part 4392027

    Magnetron and air flow diagram

    Switch

    Part #4312823

    Replaced by #4392027

    Info Icon
    Manufacturer substitution
    This part replaces 4312823. Substitute parts can look different from the original.
    In Stock
    $84.43
    7% OFF Phone Price : $90.43Info Icon
    Minus Item
    Qty
    Plus Item
  • Kirkland Appliance Touch-up Paint, 0.6-oz (golden Harvest) for KitchenAid KEMS306BBL0 - Part 72110

    #NI

    All parts diagram

    Touchup Ng

    Part #72110

    Replaced by #72110

    Info Icon
    Manufacturer substitution
    This part replaces 72110. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $16.24
    11% OFF Phone Price : $18.24Info Icon
    Minus Item
    Qty
    Plus Item

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Appliance Touch-up Paint, 6-oz (citrine White) 261900

Appliance Touch-up Paint, 6-oz (citrine White)

Part #261900
In Stock
$34.36
15% OFF Phone Price : $40.36Info Icon
Minus Item
Qty
Plus Item
Appliance Touch-up Paint 72017

Appliance Touch-up Paint

Part #72017
This item is not returnable
In Stock
$31.61
Minus Item
Qty
Plus Item
