Mitsubishi PU-30G6.US air conditioner heat pump Parts

Here are the diagrams and repair parts for Mitsubishi PU-30G6.US air conditioner heat pump, as well as links to manuals and error code tables, if available.

Mitsubishi PU-30G6.US air conditioner heat pump
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for PU-30G6.US Air Conditioner Heat Pump

  • Cmprsr Prtct for Mitsubishi PU-30G6.US - Part T7W973281

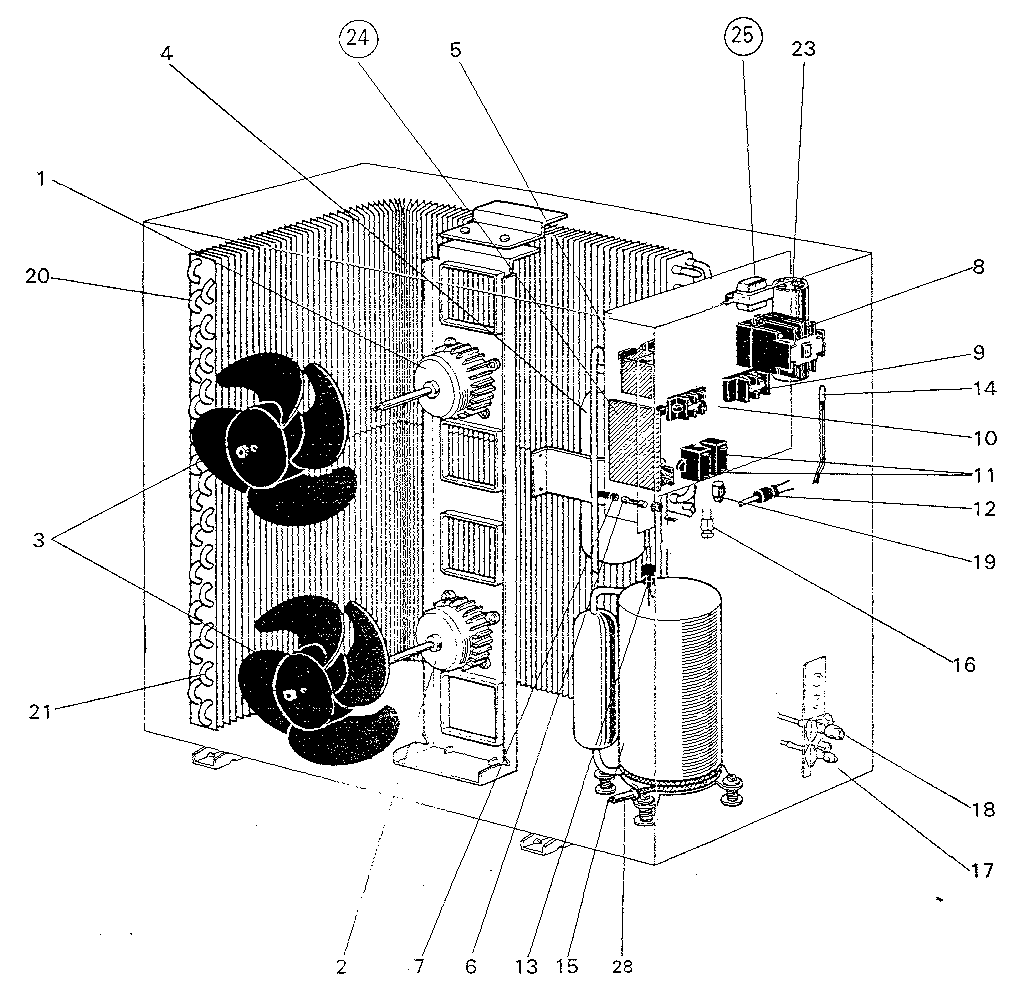

    Functional diagram

    Cmprsr Prtct

    Part #T7W973281

    The manufacturer no longer makes this part, and there's no substitute part

  • Fan Motor for Mitsubishi PU-30G6.US - Part T7W869763

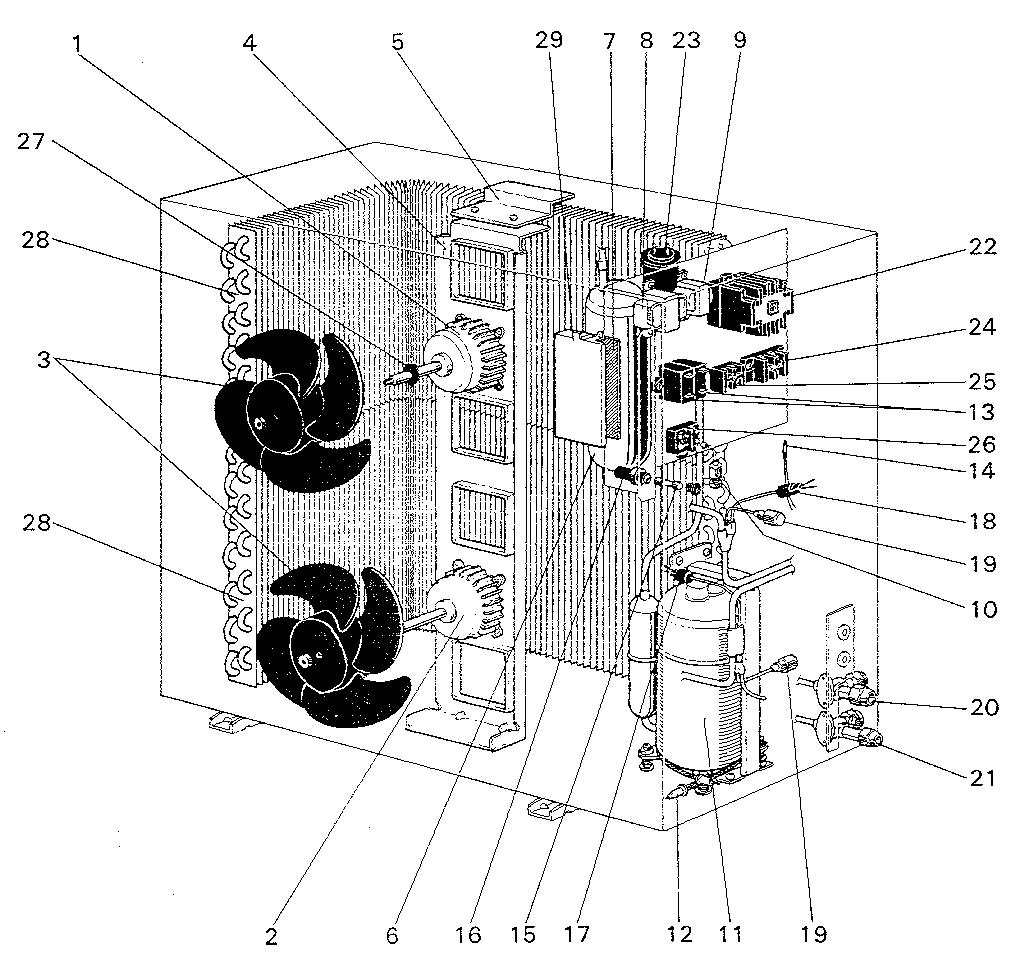

    Functional diagram

    Fan Motor

    Part #T7W869763

    The manufacturer no longer makes this part, and there's no substitute part

  • C Run Comp for Mitsubishi PU-30G6.US - Part T7W973723

    Functional diagram

    C Run Comp

    Part #T7W973723

    The manufacturer no longer makes this part, and there's no substitute part

  • Compressor for Mitsubishi PU-30G6.US - Part T97511362

    Compressor

    Part #T97511362

    The manufacturer no longer makes this part, and there's no substitute part

  • Trmnl Blk for Mitsubishi PU-30G6.US - Part R01998246

    Trmnl Blk

    Part #R01998246

    The manufacturer no longer makes this part, and there's no substitute part

  • Fan Motor for Mitsubishi PU-30G6.US - Part T7W868763

    Functional diagram

    Fan Motor

    Part #T7W868763

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor for Mitsubishi PU-30G6.US - Part T7W867723

    Functional diagram

    Capacitor

    Part #T7W867723

    The manufacturer no longer makes this part, and there's no substitute part

  • Base Assmy for Mitsubishi PU-30G6.US - Part R01745686

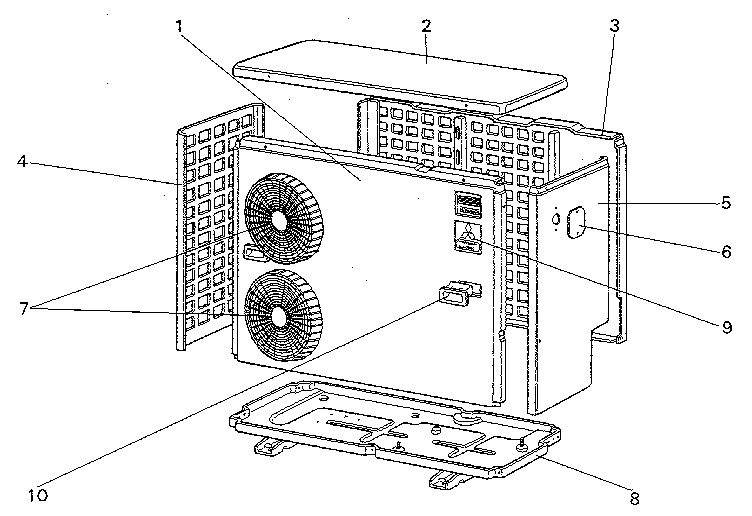

    Structural diagram

    Base Assmy

    Part #R01745686

    The manufacturer no longer makes this part, and there's no substitute part

  • Contactor for Mitsubishi PU-30G6.US - Part T7W867708

    Contactor

    Part #T7W867708

    The manufacturer no longer makes this part, and there's no substitute part

  • Trmnl Blk for Mitsubishi PU-30G6.US - Part R01556246

    Trmnl Blk

    Part #R01556246

    The manufacturer no longer makes this part, and there's no substitute part
