Carrier
Central Air Conditioner

Model # 38TXA024 SERIES330 Official Carrier condensing unit

Here are the diagrams and repair parts for Official Carrier 38TXA024-SERIES330 condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

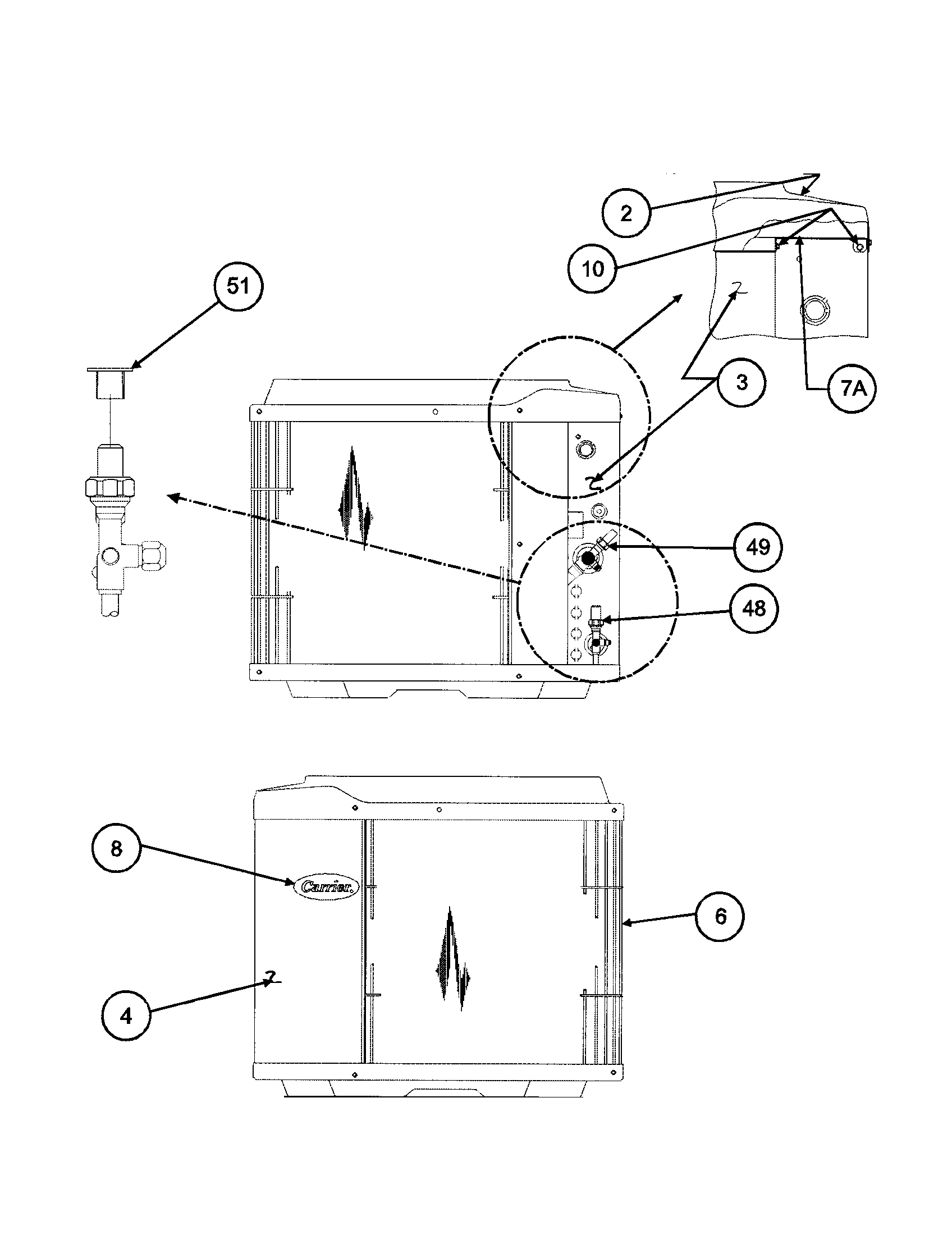

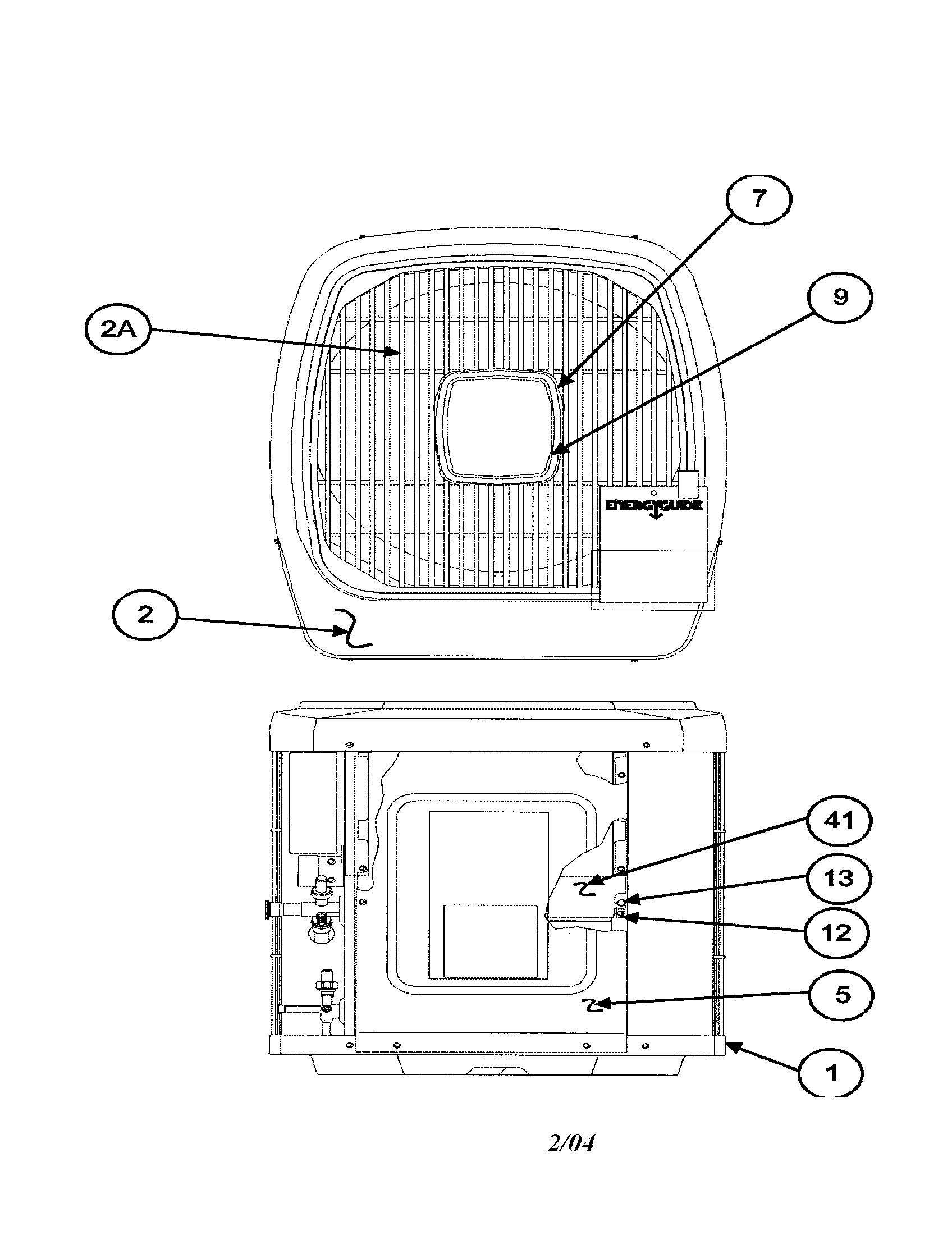

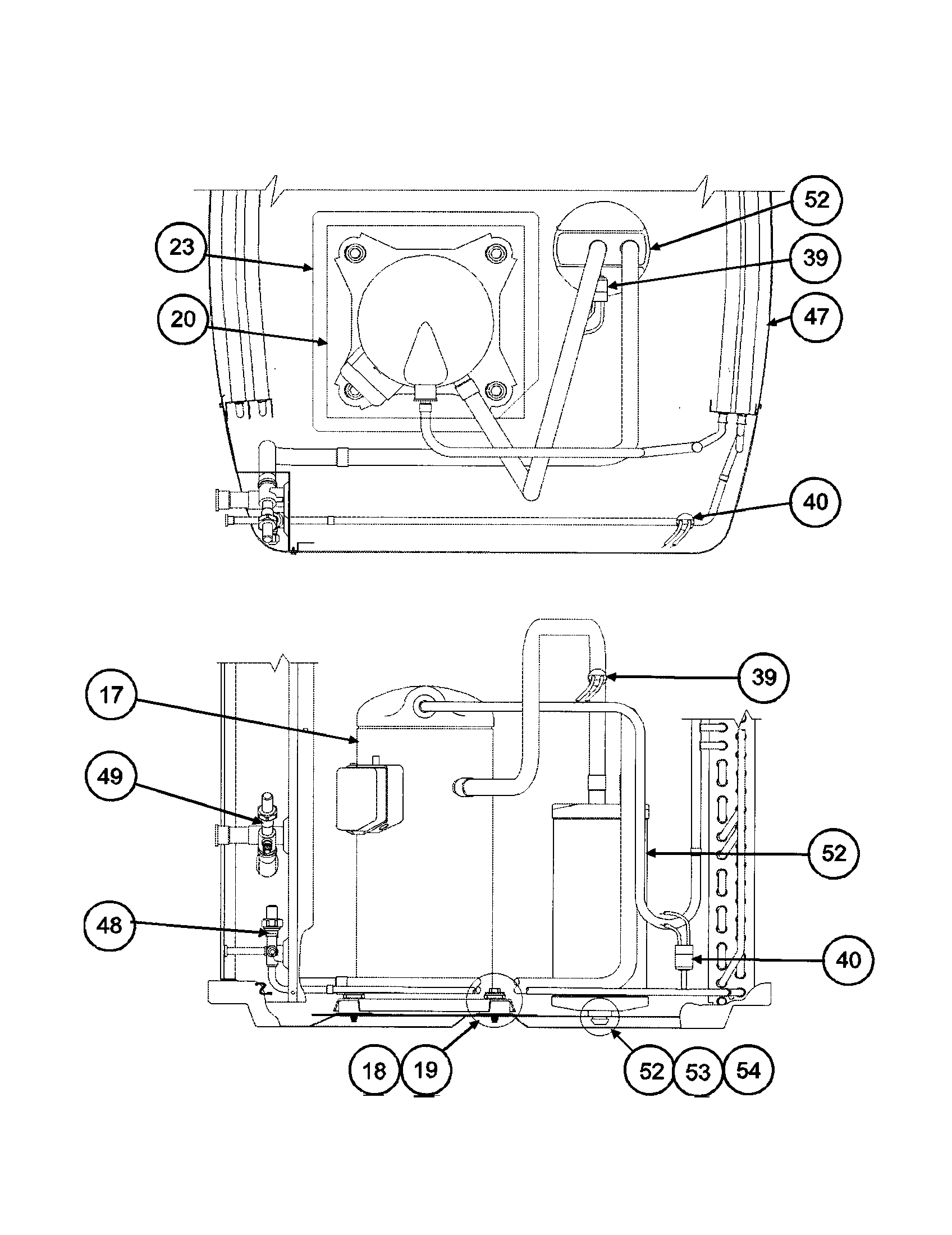

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |

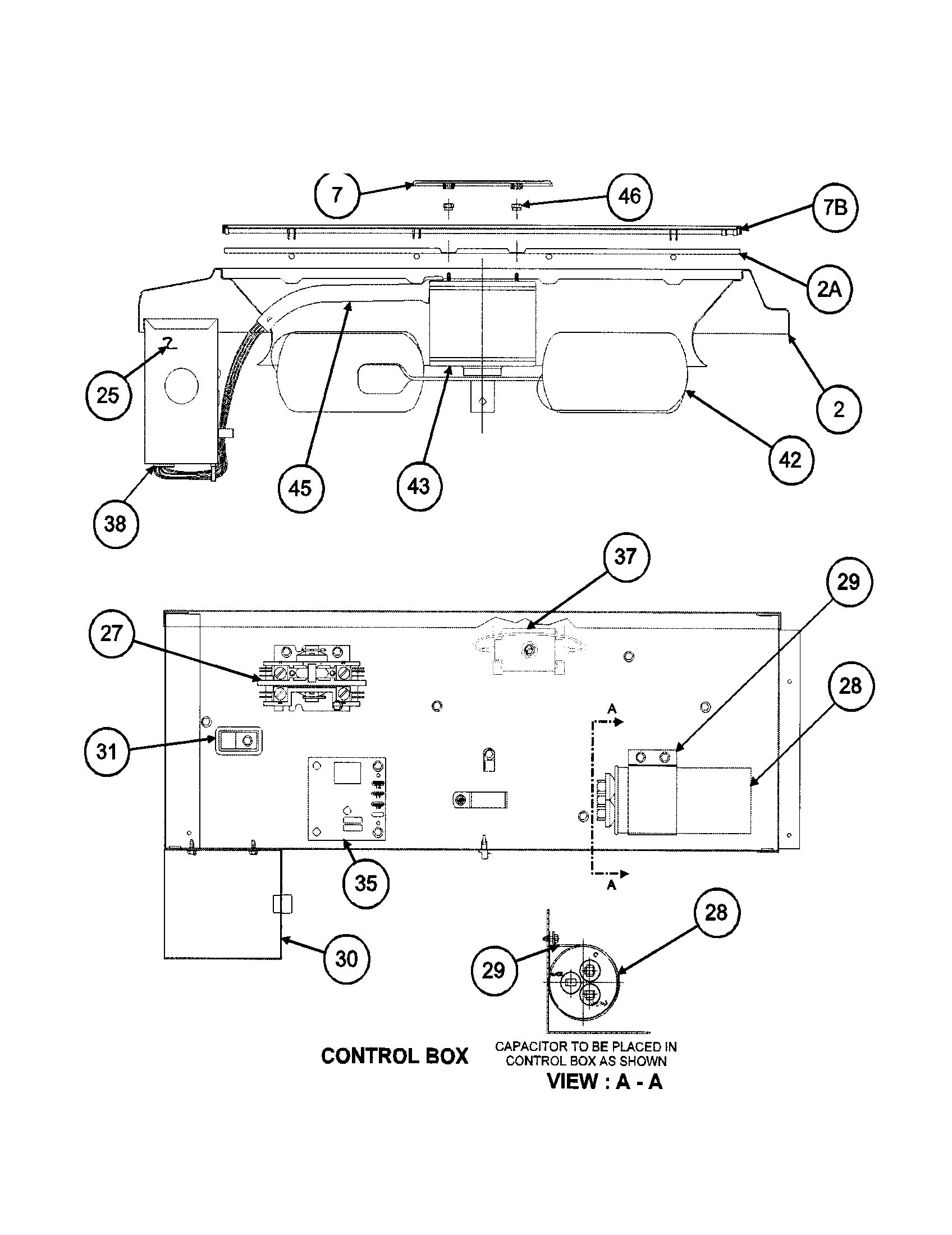

Contactor HN51KB024

#27

All parts diagram

Contactor

Part #HN51KB024

The manufacturer no longer makes this part, and there's no substitute part

Relay HN67ZZ001

#73A

All parts diagram

Relay

Part #HN67ZZ001

$110.84
In Stock
Central Air Conditioner Compressor Grommet KA75UG100

#16

All parts diagram

Central air conditioner compressor grommet

Part #KA75UG100

This item is not returnable
$25.62 |
16% OFF Phone Price : $30.62
In Stock
Propeller LA01RA027

#42

All parts diagram

Propeller

Part #LA01RA027

$108.40
In Stock
Central Air Conditioner Start Capacitor (replaces Hc95de088, P281-8805) P281-8806

#68B

All parts diagram

Central air conditioner start capacitor (replaces hc95de088, p281-8805)

Part #P281-8806

$36.73
In Stock
Compressor 324091-405

#21

All parts diagram

Compressor

Part #324091-405

Replaced by #P298-001

?
Manufacturer substitution
This part replaces 324091-405. Substitute parts can look different from the original.
$45.89
In Stock
Central Air Conditioner Condenser Fan Motor HC35GE237

#43

All parts diagram

Central air conditioner condenser fan motor

Part #HC35GE237

$369.36 |
$10.00 OFF Phone Price : $379.36
In Stock
Grommet KA56TR057

#19

All parts diagram

Grommet

Part #KA56TR057

This item is not returnable
$4.89
In Stock
Valve EA36YD121

#62A

All parts diagram

Valve

Part #EA36YD121

$346.72
In Stock
Switch HK02ZA365

#89C

All parts diagram

Switch

Part #HK02ZA365

$453.57
In Stock
