Model # 143236122 Official Craftsman 4-cycle engine
Here are the diagrams and repair parts for Official Craftsman 143236122 4-cycle engine, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
143236122 4-Cycle Engine
#12
Carburetor diagram
Needle seat
Part #631021
Replaced by #631021B
?
Manufacturer substitution
This part replaces 631021. Substitute parts can look different from the original.
This item is not returnable
$9.79 |
9% OFF Phone Price : $10.79
Back Order
#21
Carburetor diagram
Gasket
Part #27110
Replaced by #27110A
?
Manufacturer substitution
This part replaces 27110. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
#9
Rewind starter diagram
Starter rope
Part #590456
Replaced by #590535
?
Manufacturer substitution
This part replaces 590456. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
#134

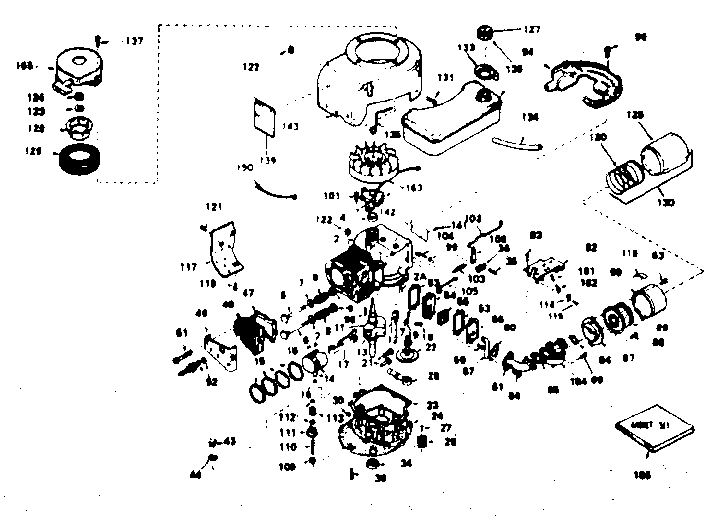

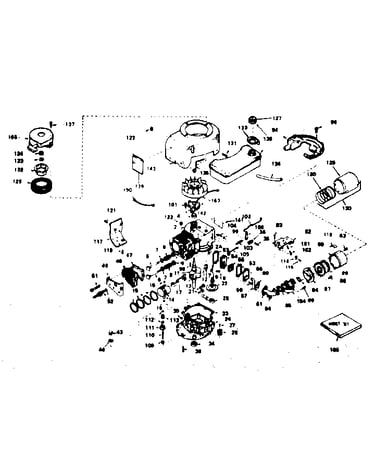

Basic engine diagram
Fuel line
Part #29774
The manufacturer no longer makes this part, and there's no substitute part
#14
Carburetor diagram
Carburetor float
Part #631023
Replaced by #632019A
?
Manufacturer substitution
This part replaces 631023. Substitute parts can look different from the original.
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
#15
Carburetor diagram
Troybilt carburetor float
Part #631024
This item is not returnable
$2.16
In Stock
#13
Magneto diagram
Lauson lawn & garden equipment engine ignition coil (replaces 29632, 30546, 30560)
Part #30560A
$47.09 |
11% OFF Phone Price : $53.09
In Stock
#88
Basic engine diagram
Screw
Part #28820
The manufacturer no longer makes this part, and there's no substitute part
#18
Carburetor diagram
Carburetor lawn & garden equipment engine gasket
Part #27554
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
#13
Carburetor diagram
Lawn & garden equipment engine carburetor float pin
Part #631022
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
