Model # KBPU182VSS00 Official KitchenAid built-in power side burner

Here are the diagrams and repair parts for Official KitchenAid KBPU182VSS00 built-in power side burner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Transformer W10285872
#28

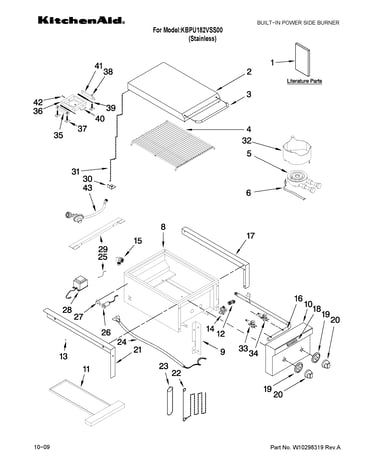

Side burner parts diagram

Transformer

Part #W10285872

$141.87
In Stock
Knob W10285660
#20

Side burner parts diagram

Knob

Part #W10285660

$74.02
In Stock
Outlet W10247122
#26

Side burner parts diagram

Outlet

Part #W10247122

$14.39
In Stock
Regulator W10247100
#43

Side burner parts diagram

Regulator

Part #W10247100

$198.87
In Stock
Regulator W10246989
#14

Side burner parts diagram

Regulator

Part #W10246989

Replaced by #WPW10132702

?
Manufacturer substitution
This part replaces W10246989. Substitute parts can look different from the original.
$125.09 |
11% OFF MSRP : $140.00
In Stock
Knob W10128756
#19

Side burner parts diagram

Knob

Part #W10128756

Replaced by #WPW10128756

?
Manufacturer substitution
This part replaces W10128756. Substitute parts can look different from the original.
$38.47
In Stock
Bracket W10247142
#41

Side burner parts diagram

Bracket

Part #W10247142

The manufacturer no longer makes this part, and there's no substitute part

Rod W10285882
#22

Side burner parts diagram

Rod

Part #W10285882

The manufacturer no longer makes this part, and there's no substitute part

Bracket W10247137
#35

Side burner parts diagram

Bracket

Part #W10247137

The manufacturer no longer makes this part, and there's no substitute part

Chain W10285667
#31

Side burner parts diagram

Chain

Part #W10285667

The manufacturer no longer makes this part, and there's no substitute part
