Model # WOC75EC0HW00 Official Whirlpool wall oven with microwave

Here are the diagrams and repair parts for Official Whirlpool WOC75EC0HW00 wall oven with microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

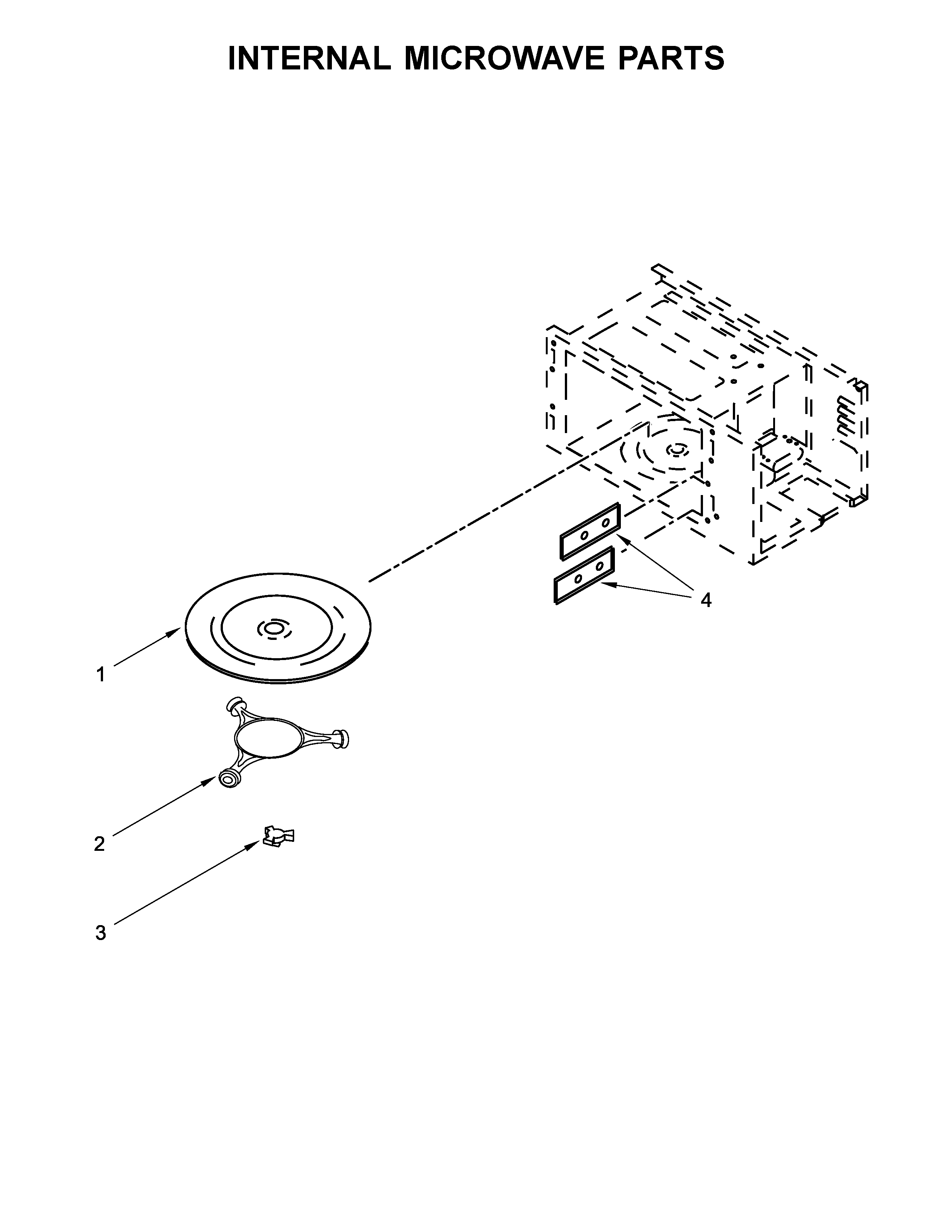

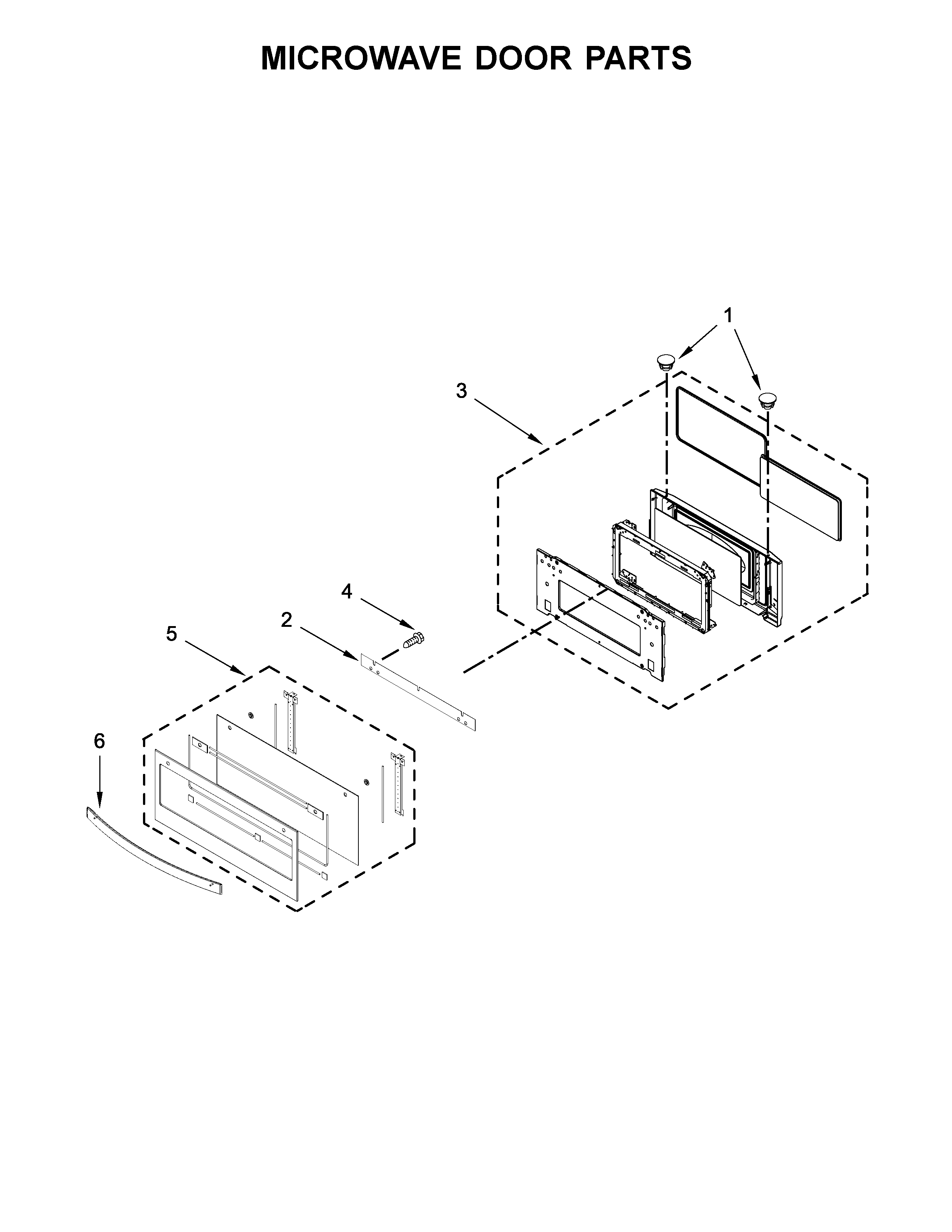

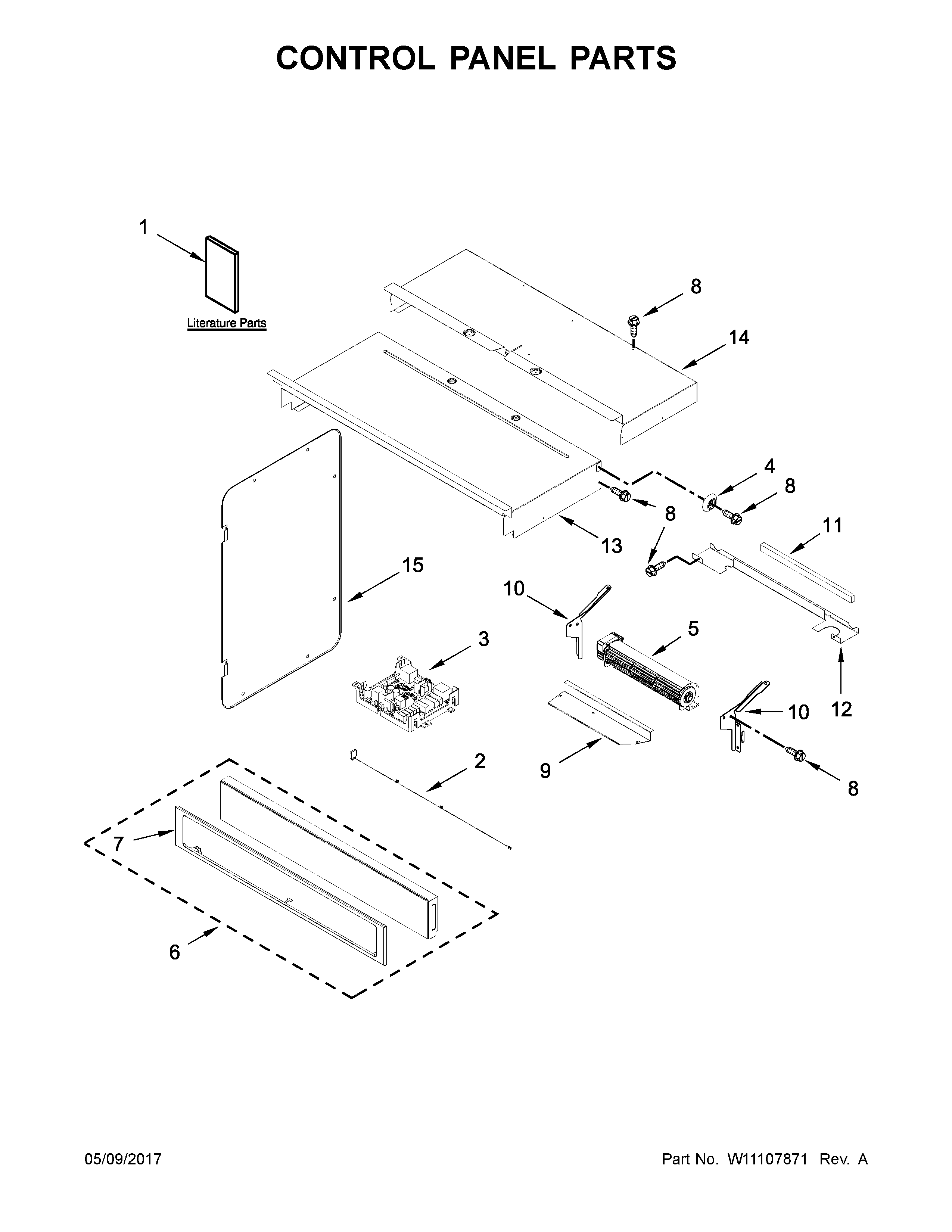

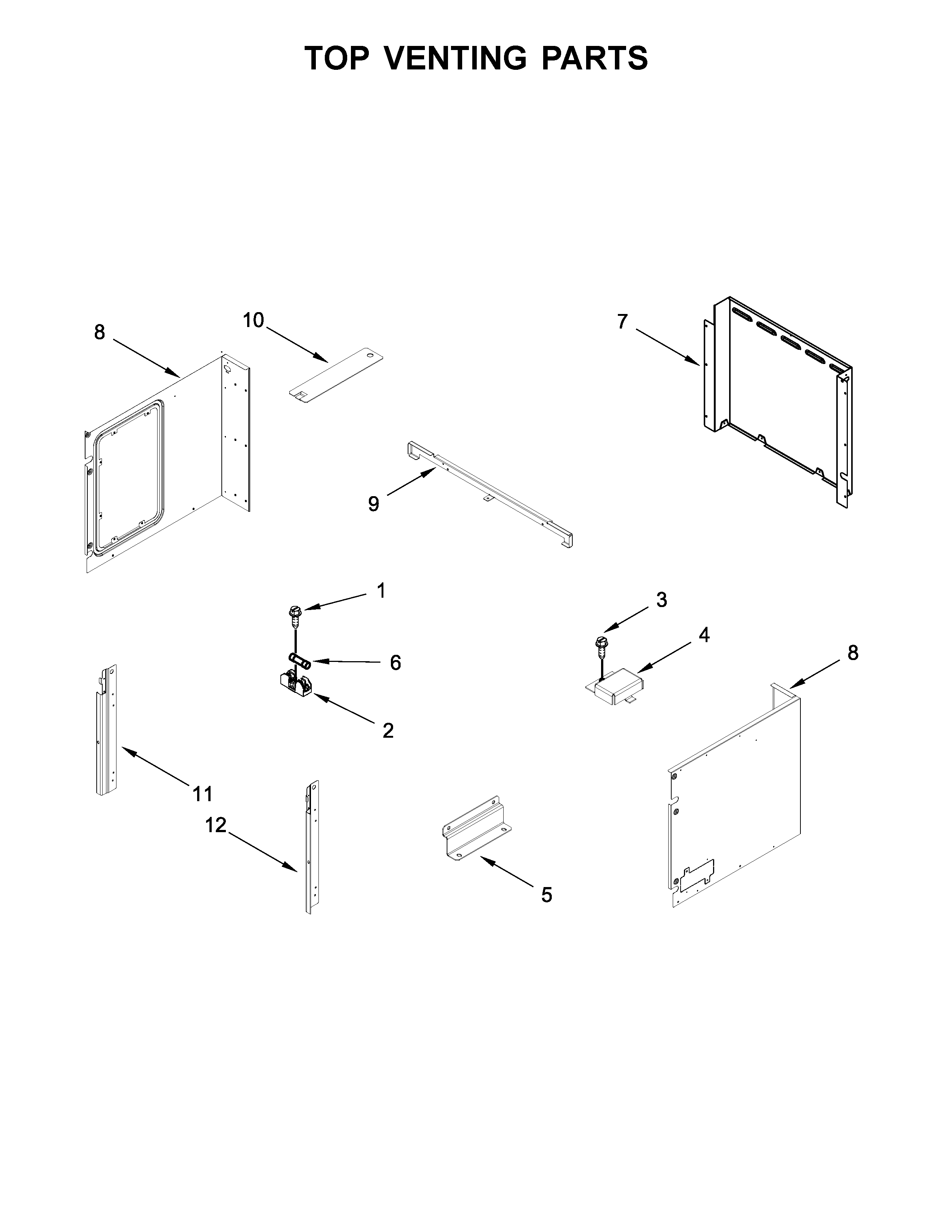

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 186 parts  |
Microwave Door Switch W10330566
#15

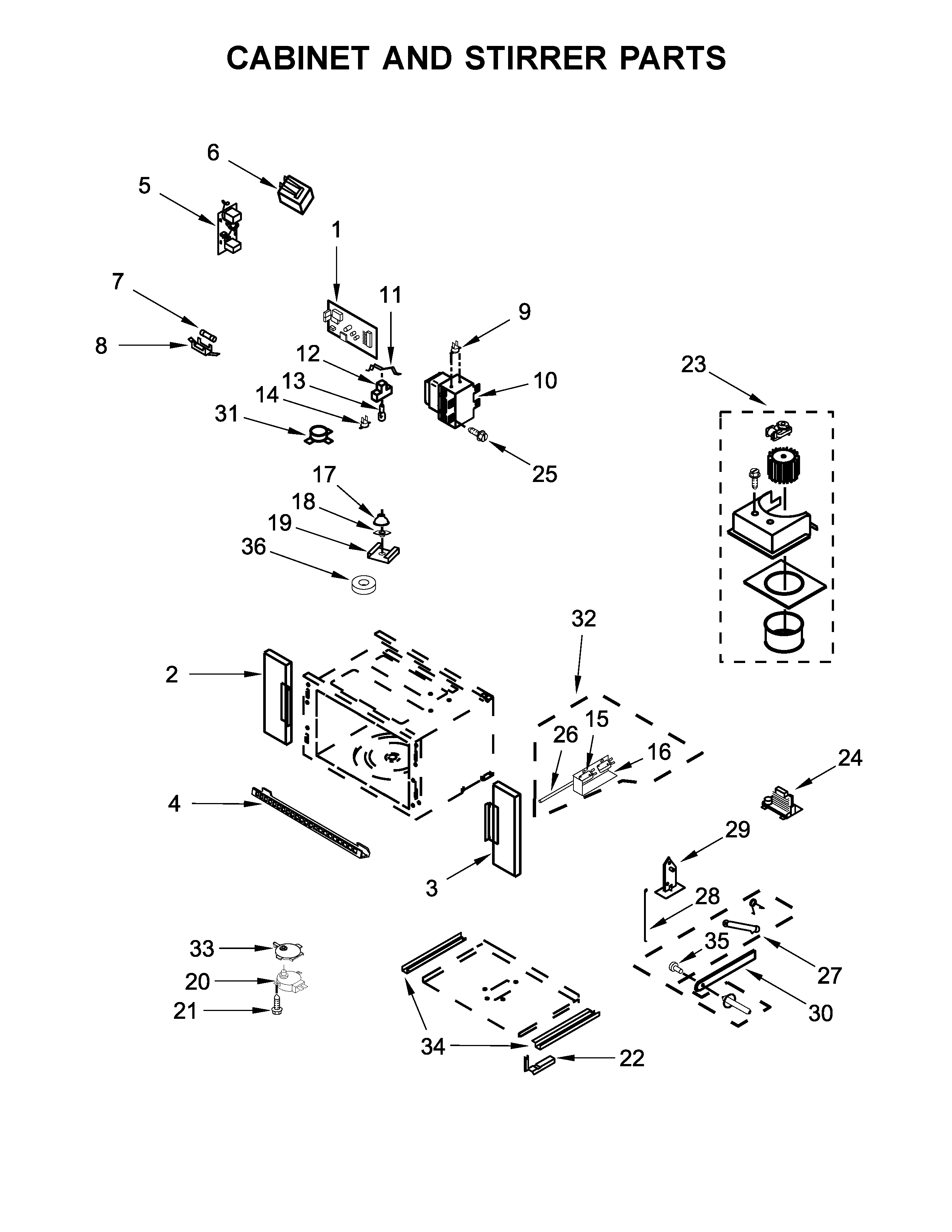

Cabinet and stirrer parts diagram

Microwave door switch

Part #W10330566

Replaced by #W10211972

?
Manufacturer substitution
This part replaces W10330566. Substitute parts can look different from the original.
BEST SELLER
$25.98 |
53% OFF MSRP : $55.00
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Spray W 350930
#NI

Optional parts (not included) diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Range Bake Element W10546517
#7

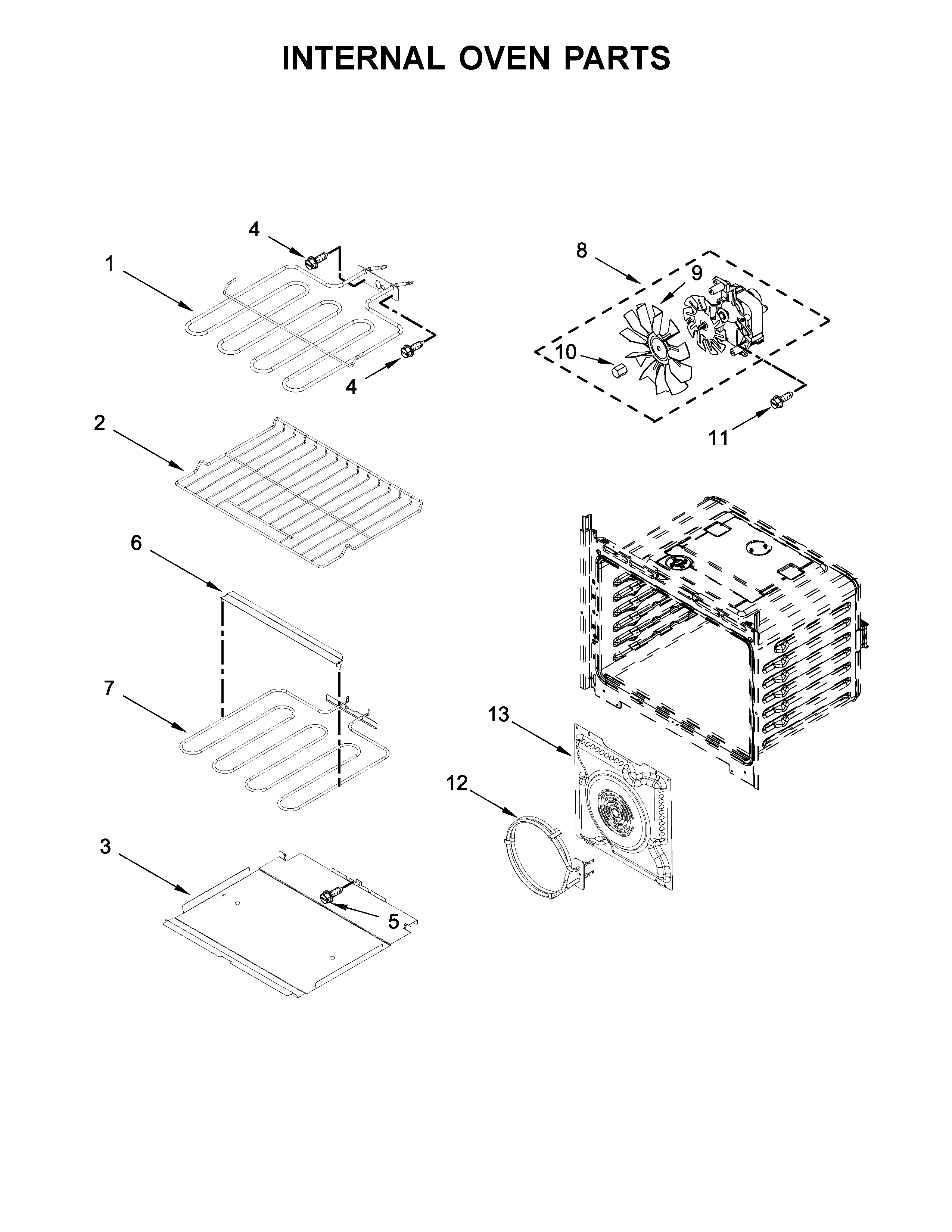

Internal oven parts diagram

Range bake element

Part #W10546517

Replaced by #W11545804

?
Manufacturer substitution
This part replaces W10546517. Substitute parts can look different from the original.
BEST SELLER
$60.68 |
8% OFF Phone Price : $65.68
In Stock
Lamp G4 Halo W10795595
#13

Cabinet and stirrer parts diagram

Lamp g4 halo

Part #W10795595

Replaced by #W10886919

?
Manufacturer substitution
This part replaces W10795595. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$22.89 |
18% OFF Phone Price : $27.89
In Stock
Light Lens W10412722
#26

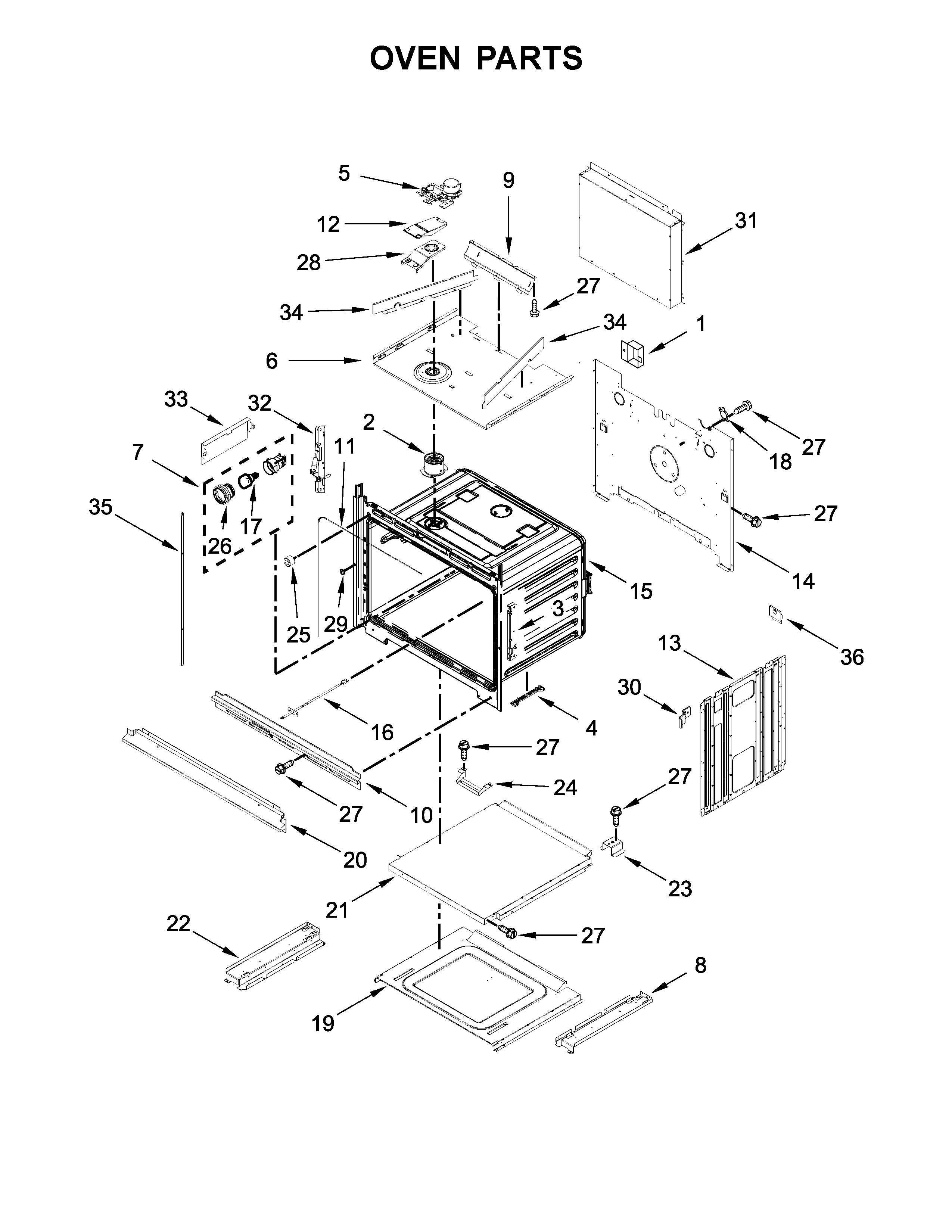

Oven parts diagram

Light lens

Part #W10412722

Replaced by #WPW10412722

?
Manufacturer substitution
This part replaces W10412722. Substitute parts can look different from the original.
This item is not returnable
$13.22 |
13% OFF Phone Price : $15.22
In Stock
Range Screw (replaces 98008545) WP98008545
#13

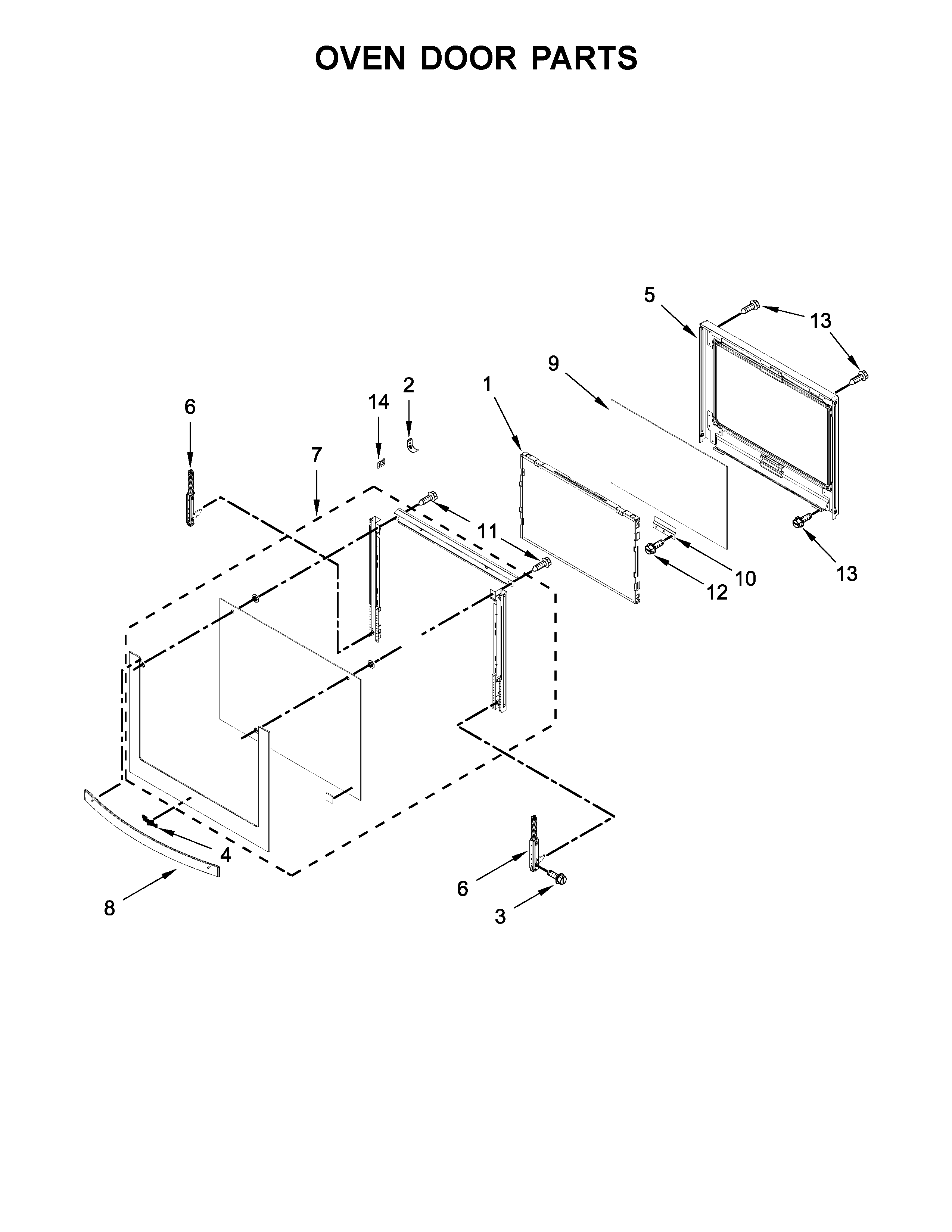

Oven door parts diagram

Range screw (replaces 98008545)

Part #WP98008545

This item is not returnable
$4.59 |
58% OFF MSRP : $11.00
In Stock
Wall Oven Light Bulb W10412711
#17

Oven parts diagram

Wall oven light bulb

Part #W10412711

Replaced by #WPW10412711

?
Manufacturer substitution
This part replaces W10412711. Substitute parts can look different from the original.
$20.60 |
20% OFF Phone Price : $25.60
In Stock
Assembly, Door Handle (stainless) W10875206
Assembly, door handle (stainless)

Part #W10875206

Replaced by #W11110499

?
Manufacturer substitution
This part replaces W10875206. Substitute parts can look different from the original.
$84.43 |
6% OFF Phone Price : $89.43
In Stock
8-32 X .860 W10480830
8-32 x .860

Part #W10480830

Replaced by #W10831019

?
Manufacturer substitution
This part replaces W10480830. Substitute parts can look different from the original.
This item is not returnable
$4.76 |
17% OFF Phone Price : $5.76
In Stock
