Mitsubishi MUZ-GA24NA-U1 split-system air conditioner heat pump

Mitsubishi MUZ-GA24NA-U1 split-system air conditioner heat pump Parts

Here are the diagrams and repair parts for Mitsubishi MUZ-GA24NA-U1 split-system air conditioner heat pump, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for MUZ-GA24NA-U1 Split-System Air Conditioner Heat Pump

  • Valve Coil for Mitsubishi MUZ-GA24NA-U1 - Part E12851493

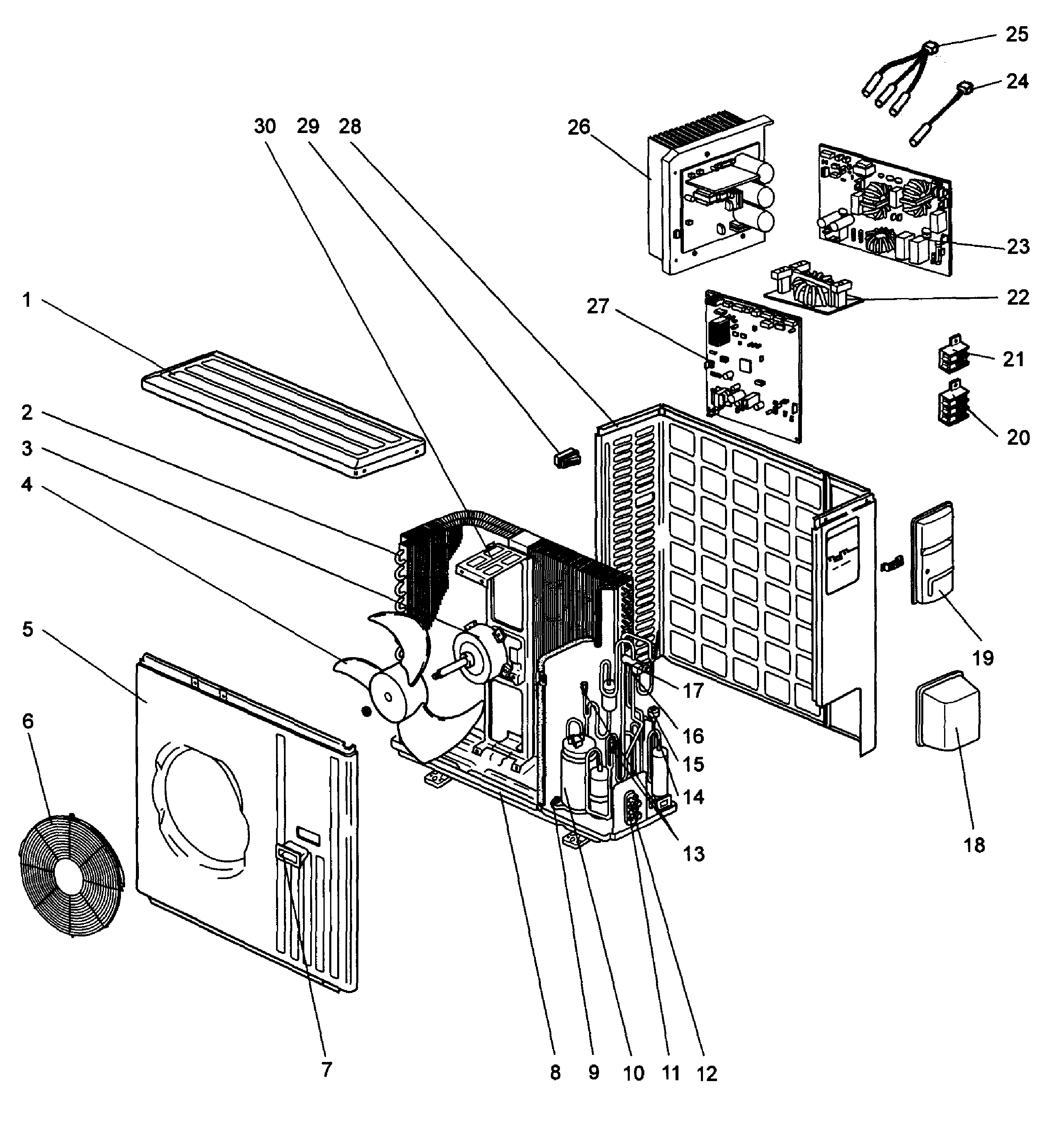

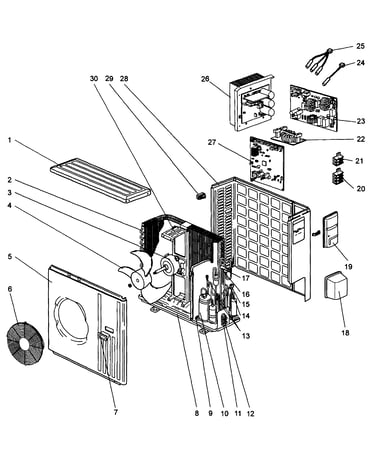

    Cabinet assy diagram

    Valve Coil

    Part #E12851493

    The manufacturer no longer makes this part, and there's no substitute part

  • Thermistor for Mitsubishi MUZ-GA24NA-U1 - Part E12851308

    Cabinet assy diagram

    Thermistor

    Part #E12851308

    The manufacturer no longer makes this part, and there's no substitute part

  • Terminal for Mitsubishi MUZ-GA24NA-U1 - Part E12A53374

    Cabinet assy diagram

    Terminal

    Part #E12A53374

    The manufacturer no longer makes this part, and there's no substitute part

  • Propeller for Mitsubishi MUZ-GA24NA-U1 - Part E12851501

    Cabinet assy diagram

    Propeller

    Part #E12851501

    The manufacturer no longer makes this part, and there's no substitute part

  • Outdoor He for Mitsubishi MUZ-GA24NA-U1 - Part E12E34630

    Cabinet assy diagram

    Outdoor He

    Part #E12E34630

    The manufacturer no longer makes this part, and there's no substitute part

  • Service Po for Mitsubishi MUZ-GA24NA-U1 - Part E12A49641

    Cabinet assy diagram

    Service Po

    Part #E12A49641

    The manufacturer no longer makes this part, and there's no substitute part

  • Compressor for Mitsubishi MUZ-GA24NA-U1 - Part E12E34900

    Cabinet assy diagram

    Compressor

    Part #E12E34900

    The manufacturer no longer makes this part, and there's no substitute part

  • Motor Support for Mitsubishi MUZ-GA24NA-U1 - Part E12851515

    Cabinet assy diagram

    Motor Support

    Part #E12851515

    The manufacturer no longer makes this part, and there's no substitute part

  • Pcb Noise for Mitsubishi MUZ-GA24NA-U1 - Part E12A58444

    Cabinet assy diagram

    Pcb Noise

    Part #E12A58444

    The manufacturer no longer makes this part, and there's no substitute part

  • Cabinet for Mitsubishi MUZ-GA24NA-U1 - Part E12819232

    Cabinet assy diagram

    Cabinet

    Part #E12819232

    The manufacturer no longer makes this part, and there's no substitute part
