Dacor
Warming Drawer

Model # MW27 Official Dacor warming drawer

Here are the diagrams and repair parts for Official Dacor MW27 warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

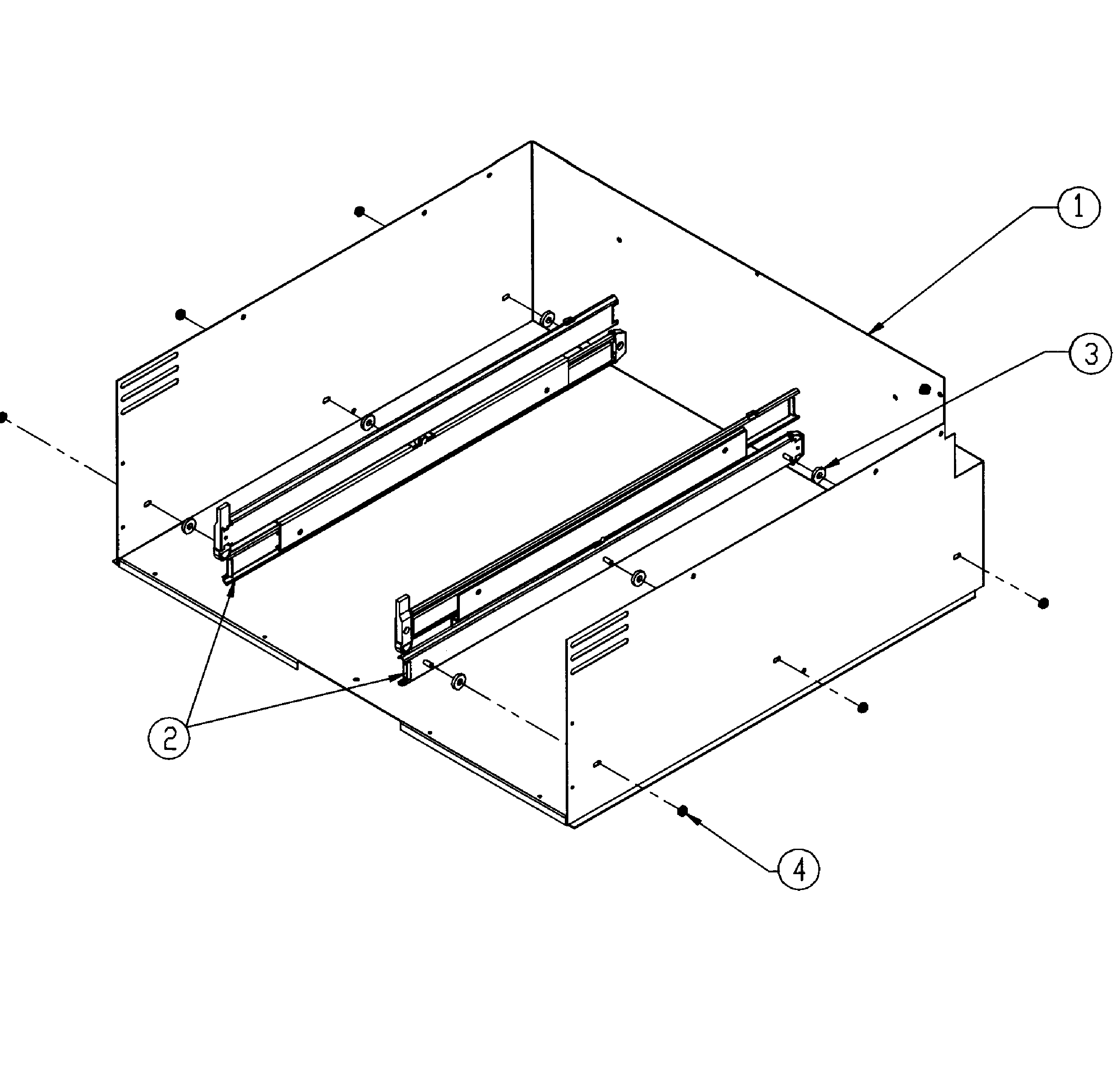

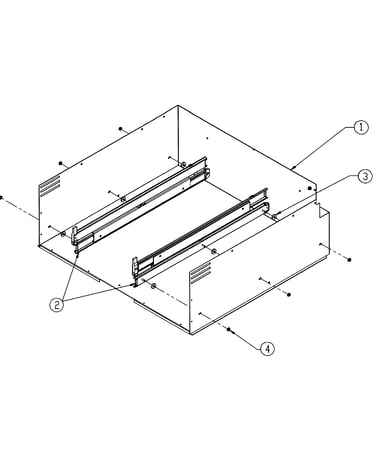

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |

Appliance Screw, #8 X 3/8-in 83263
#11

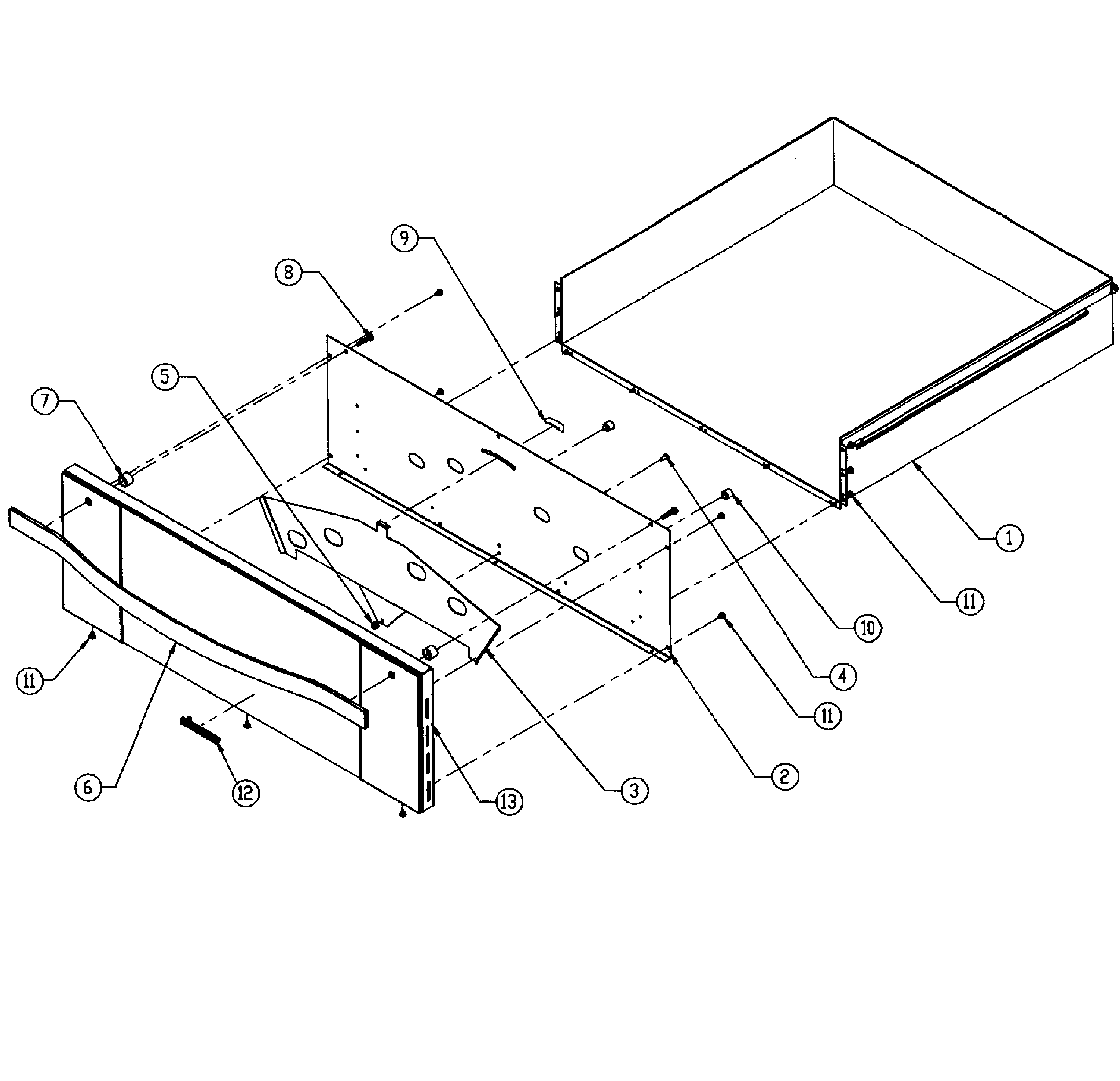

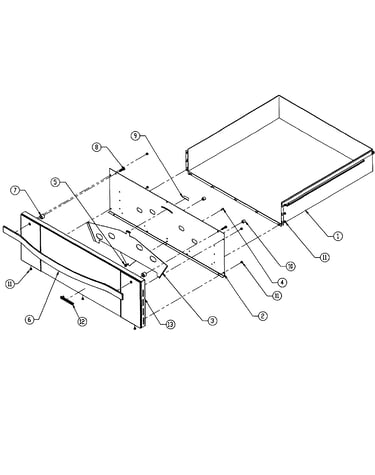

Drawer assy diagram

Appliance screw, #8 x 3/8-in

Part #83263

This item is not returnable
In Stock
Screw 83402
#13

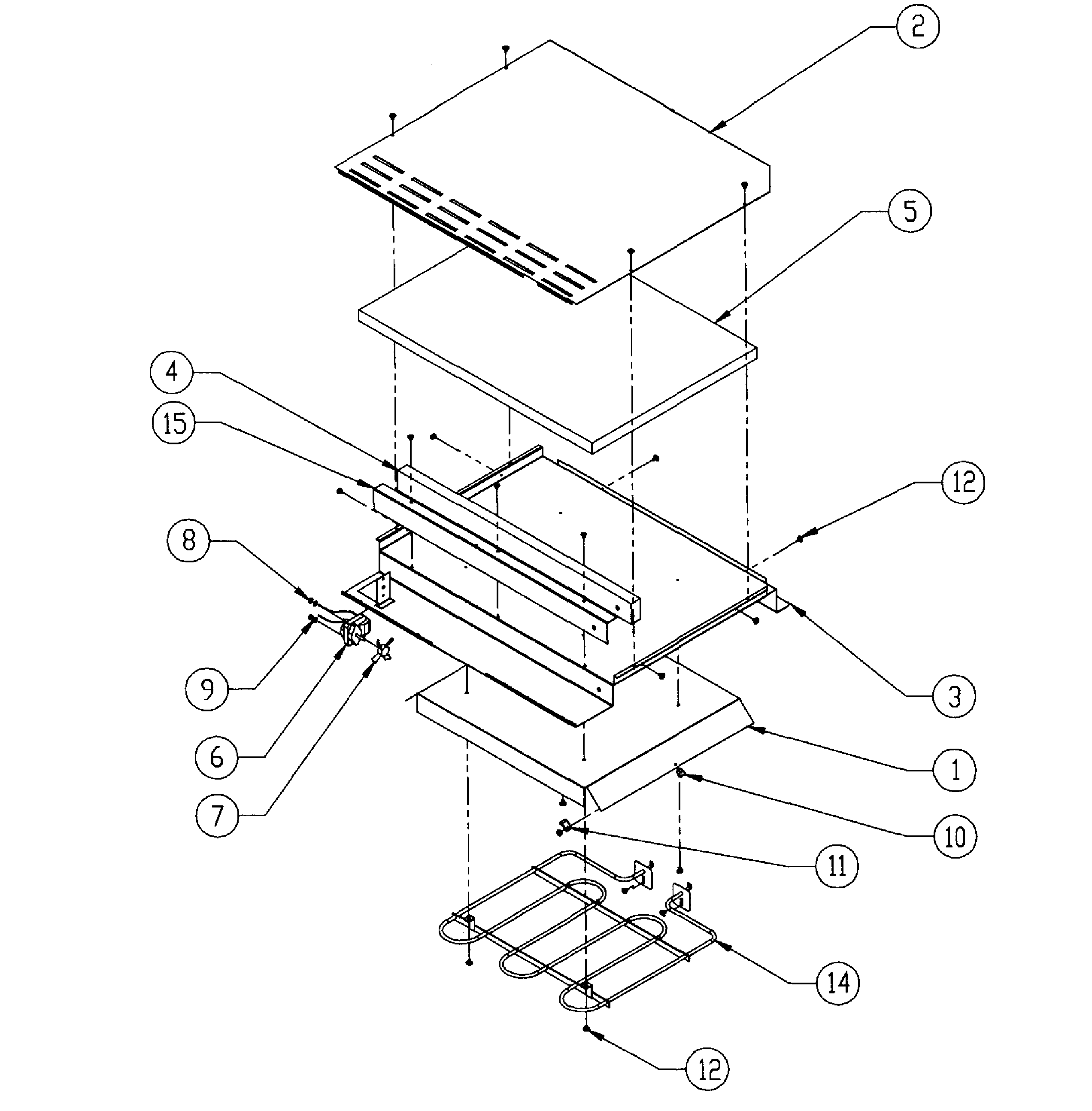

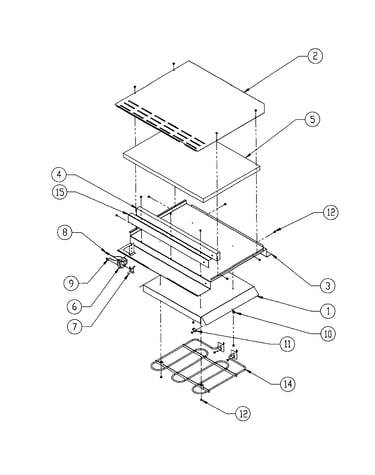

Top can assy diagram

Screw

Part #83402

This item is not returnable
In Stock
Bumper 83578
#10

Drawer assy diagram

Bumper

Part #83578

This item is not returnable
In Stock
Warming Drawer Seal Retainer 26681
#7

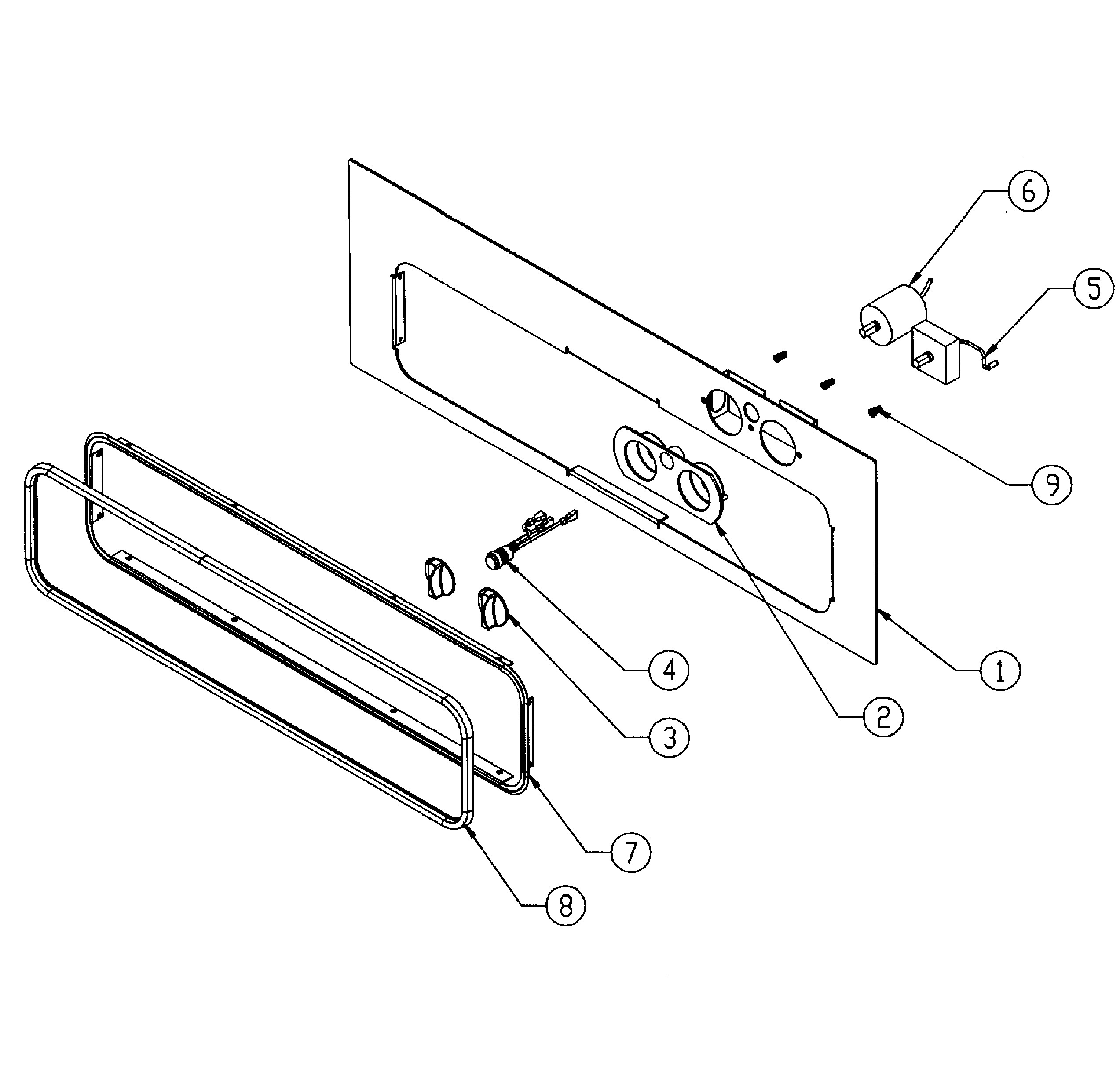

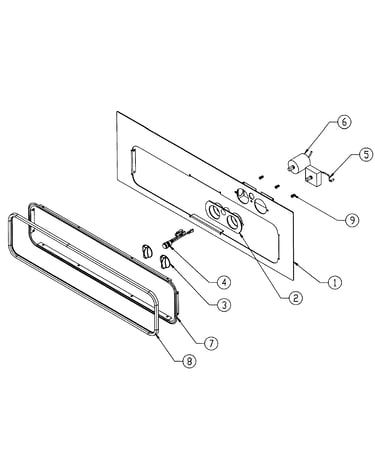

Front frame diagram

Warming drawer seal retainer

Part #26681

In Stock
Warming Drawer Thermostat 62734
#5

Front frame diagram

Warming drawer thermostat

Part #62734

The manufacturer no longer makes this part, and there's no substitute part

Frame 27216B
#1

Front frame diagram

Frame

Part #27216B

In Stock
Clip J Sty 83436
#10

Top can assy diagram

Clip j sty

Part #83436

This item is not returnable
In Stock
Motor W/o 92324
#6

Top can assy diagram

Motor w/o

Part #92324

In Stock
Screw 83692
#8

Drawer assy diagram

Screw

Part #83692

This item is not returnable
In Stock
Warming Drawer Timer 72889
#6

Front frame diagram

Warming drawer timer

Part #72889

The manufacturer no longer makes this part, and there's no substitute part
