Coffee Maker

Model # E24CM75GSSA Official Electrolux coffee maker

Here are the diagrams and repair parts for Official Electrolux E24CM75GSSA coffee maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

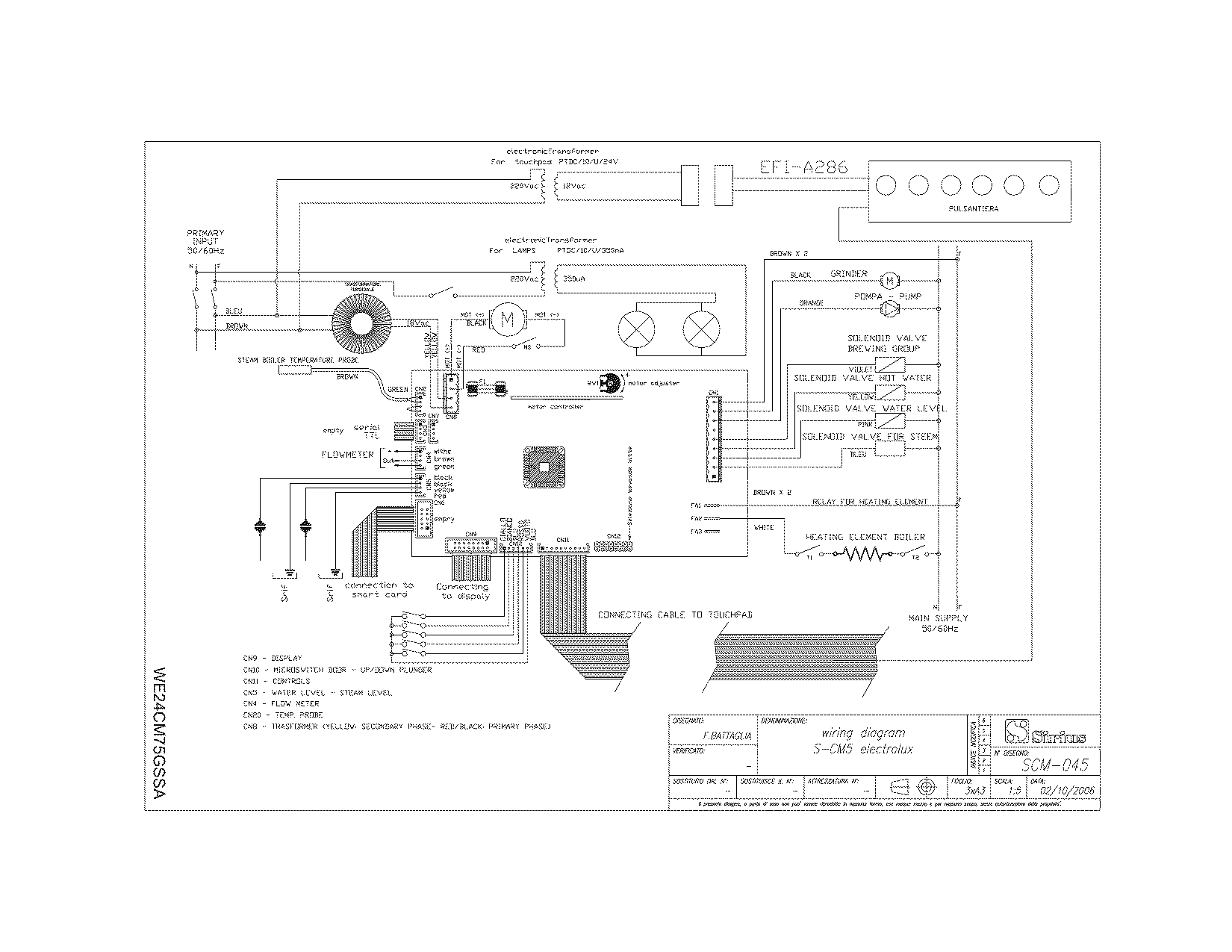

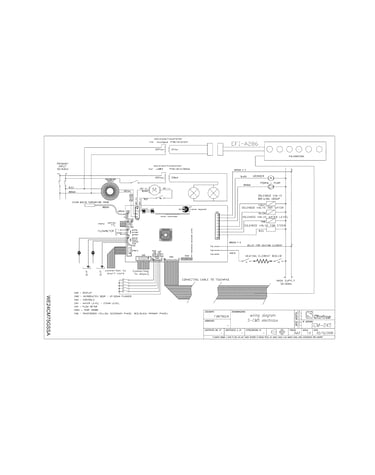

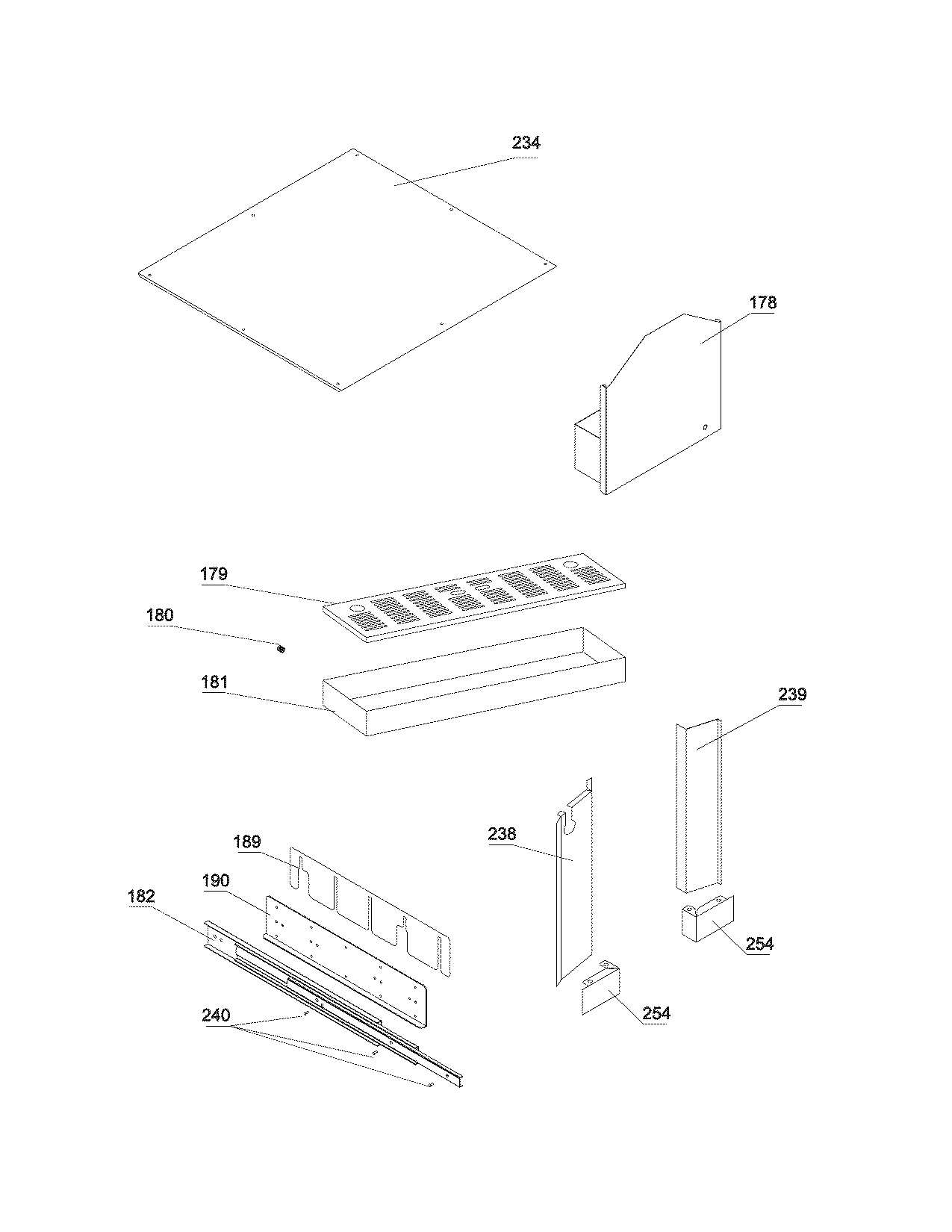

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 154 parts  |
Door,coffee 75304466103
#86

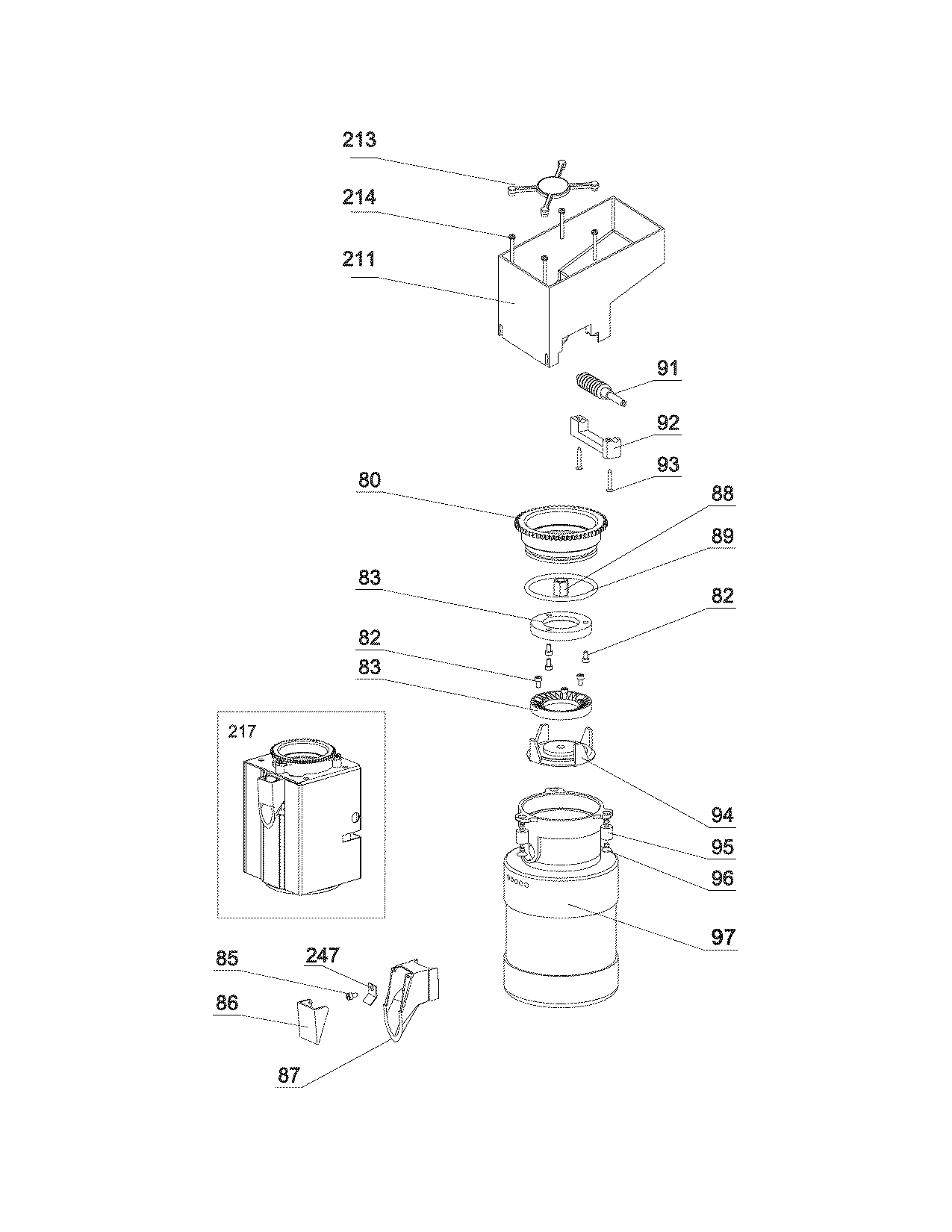

Grinder assembly diagram

Door,coffee

Part #75304466103

$11.11
In Stock
Solenoid Valve 75304466073
#55

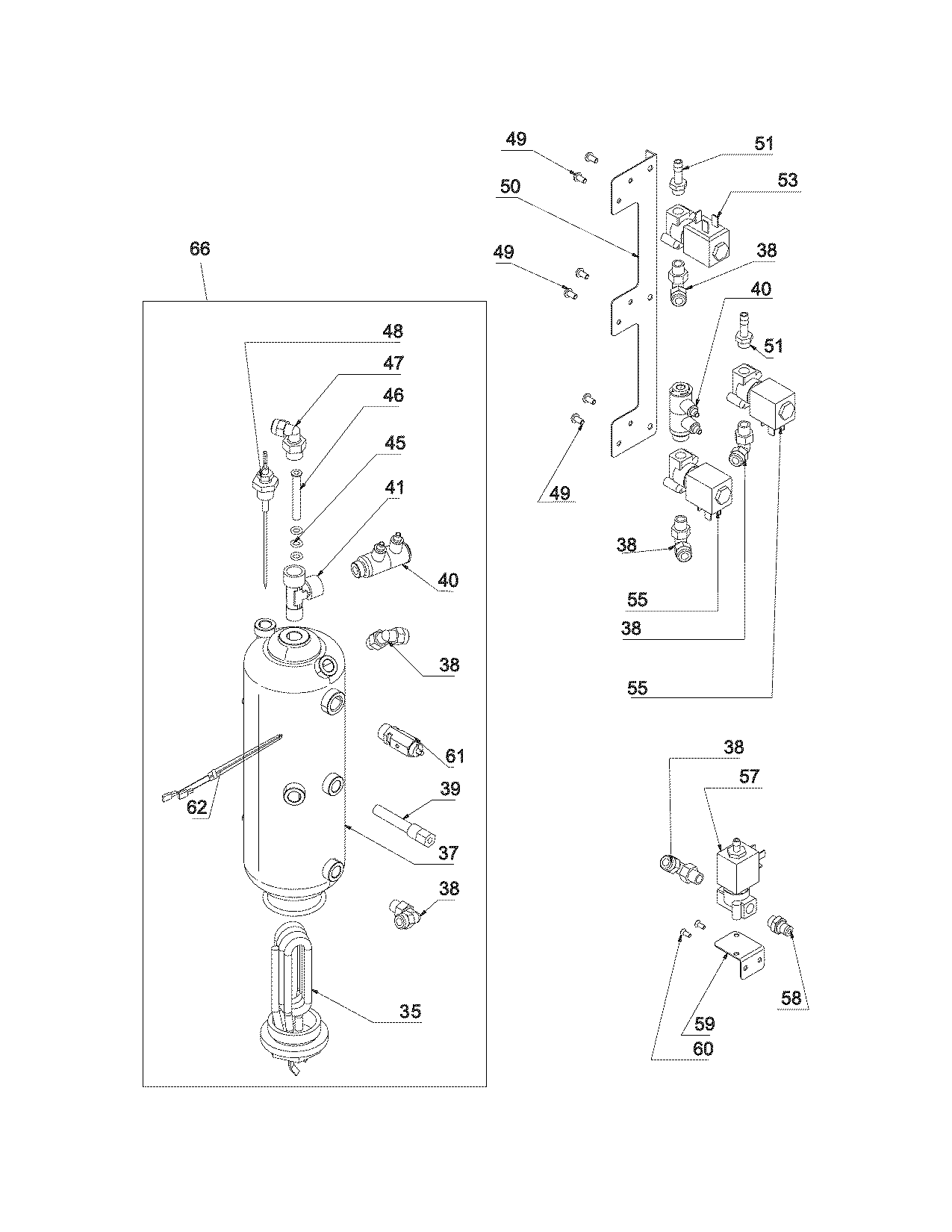

Boiler assembly diagram

Solenoid valve

Part #75304466073

$125.91
In Stock
Cover,chute, 75304466048
#14

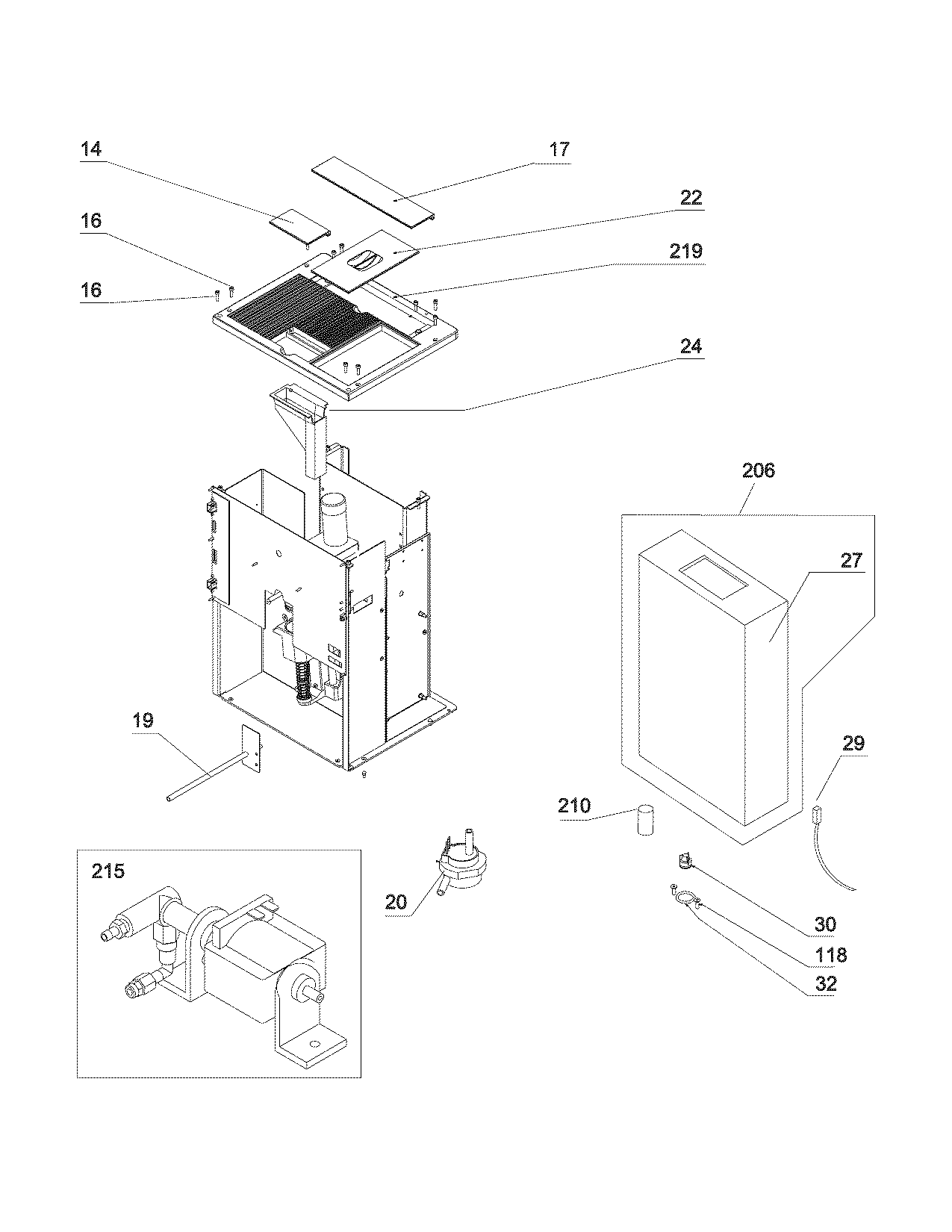

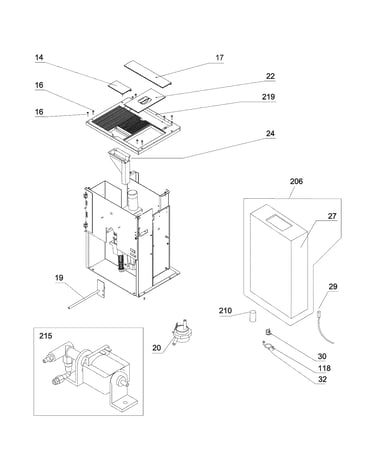

Water system-pump diagram

Cover,chute,

Part #75304466048

$17.62
In Stock
Screw 75304466322
Screw

Part #75304466322

This item is not returnable
$2.16
In Stock
Ribbon Cable 75304466041
#3

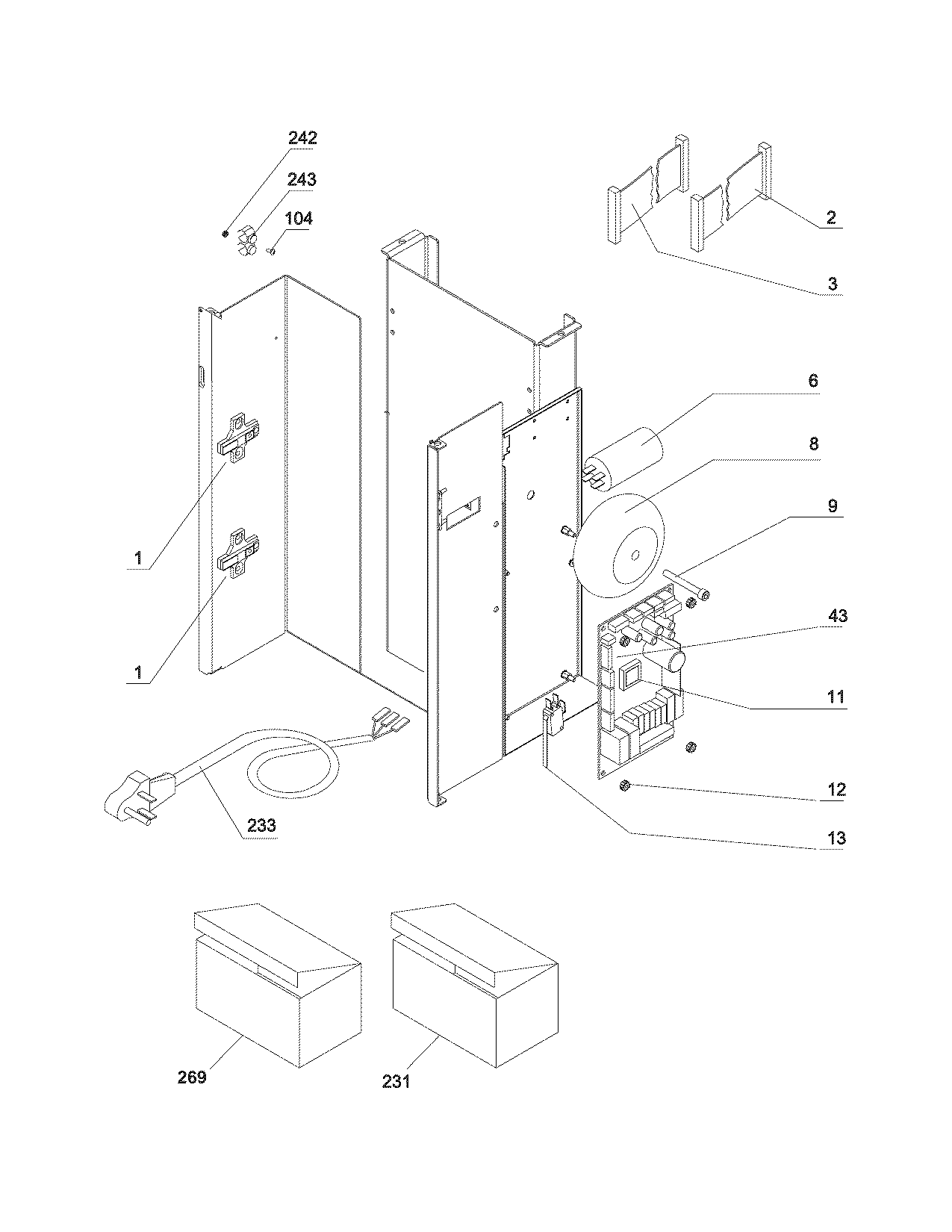

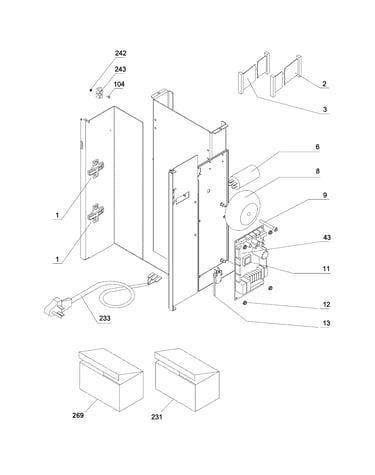

Electrical components diagram

Ribbon cable

Part #75304466041

$97.15
In Stock
Pipe Elbow 75304466407
#176

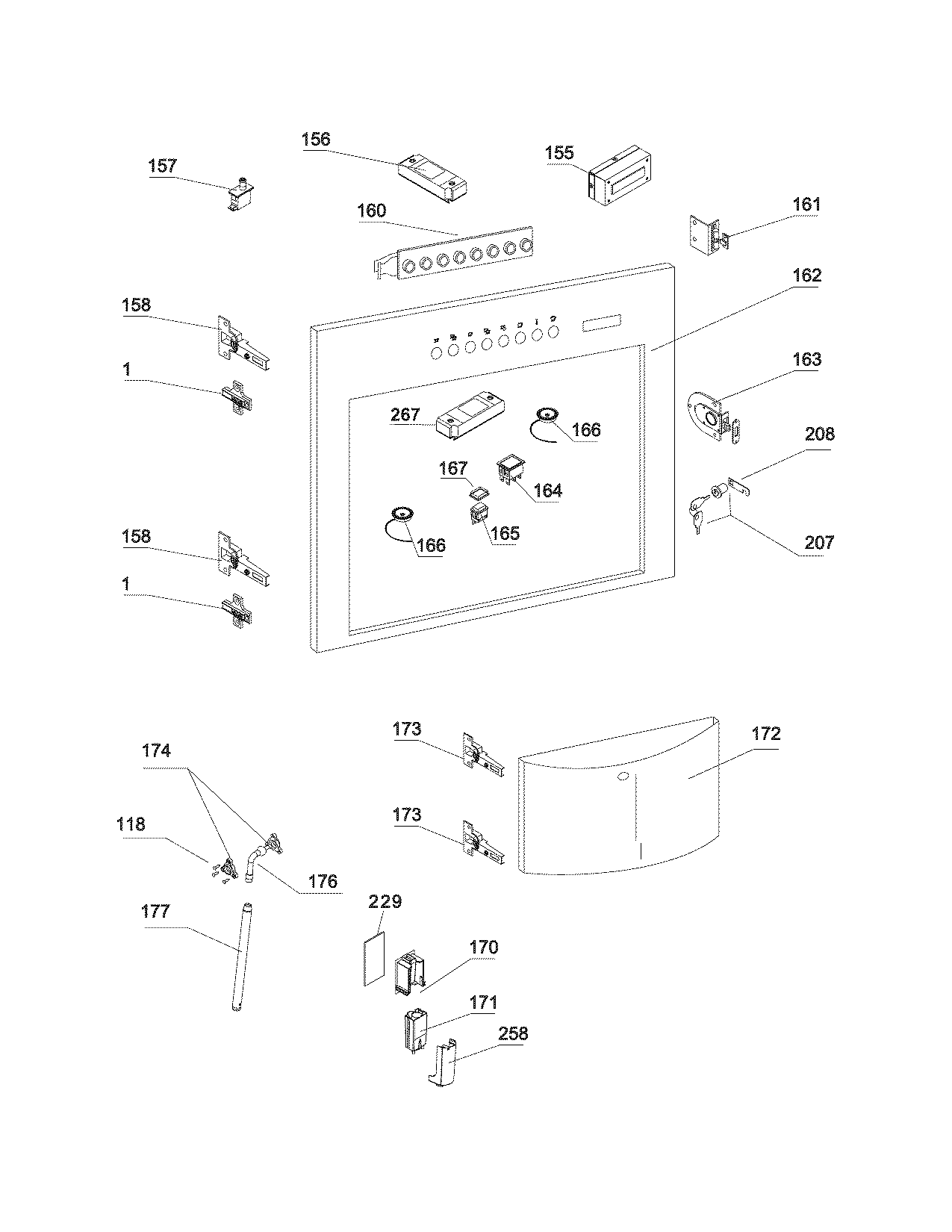

Door/control assembly diagram

Pipe elbow

Part #75304466407

$100.61
In Stock
Bracket,valv 75304466070
#50

Boiler assembly diagram

Bracket,valv

Part #75304466070

$14.94
In Stock
Screw,retain 75304466109
#93

Grinder assembly diagram

Screw,retain

Part #75304466109

This item is not returnable
$2.16
In Stock
Sleeve,jack 75304466120
#107

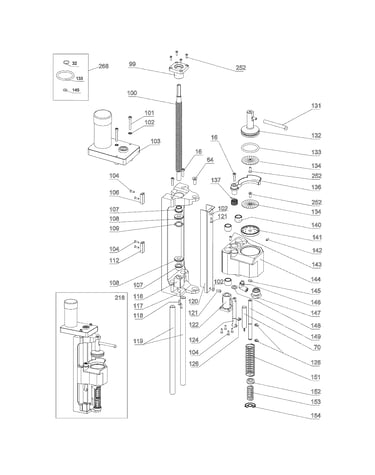

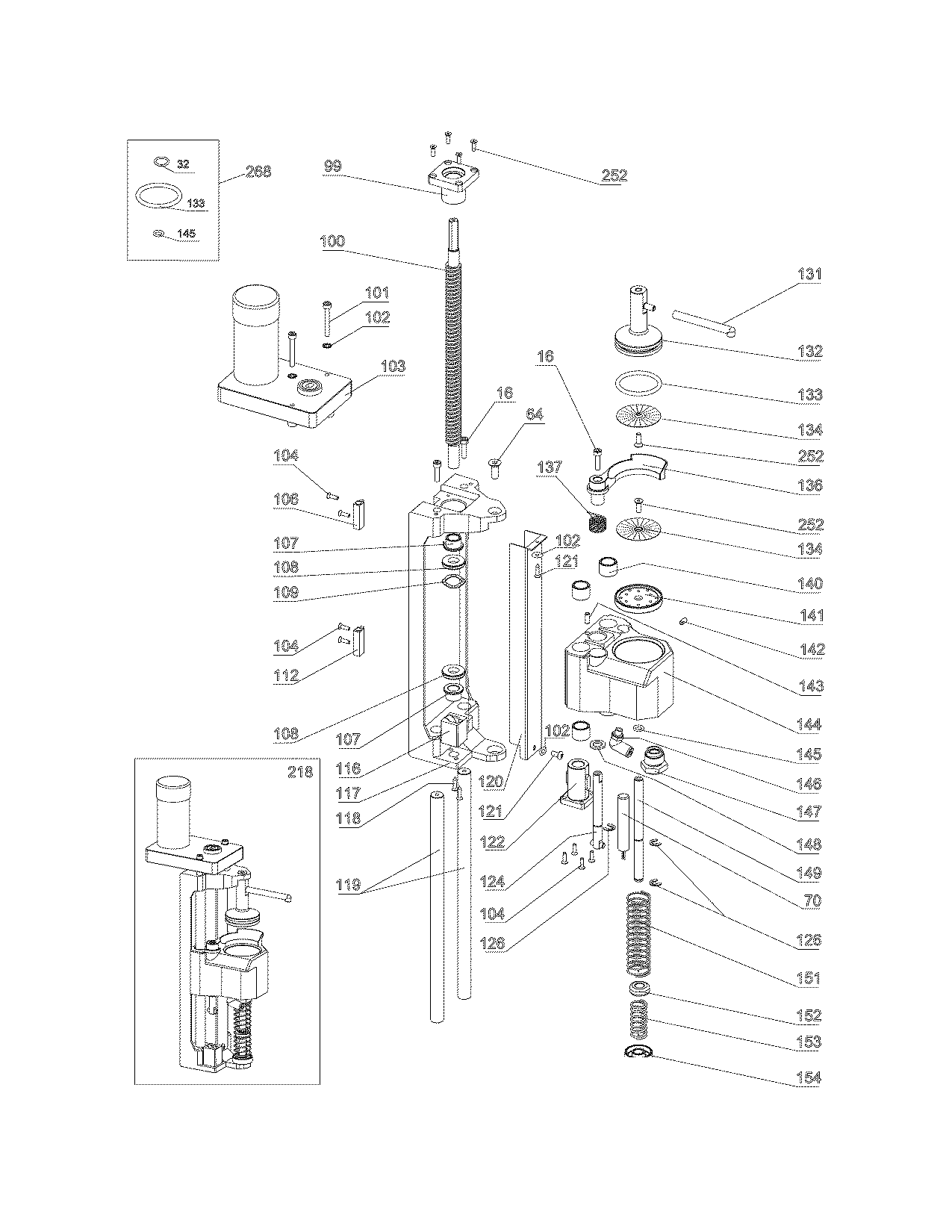

Brewing assembly diagram

Sleeve,jack

Part #75304466120

$19.27
In Stock
Jack Screw,b 75304466115
#100

Brewing assembly diagram

Jack screw,b

Part #75304466115

$137.99
In Stock
