Model # 48624312 Official Craftsman tine dethatcher

Here are the diagrams and repair parts for Official Craftsman 48624312 tine dethatcher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |

Lawn Tractor Attachment Cotter Pin, 3/32-in 43055
#21

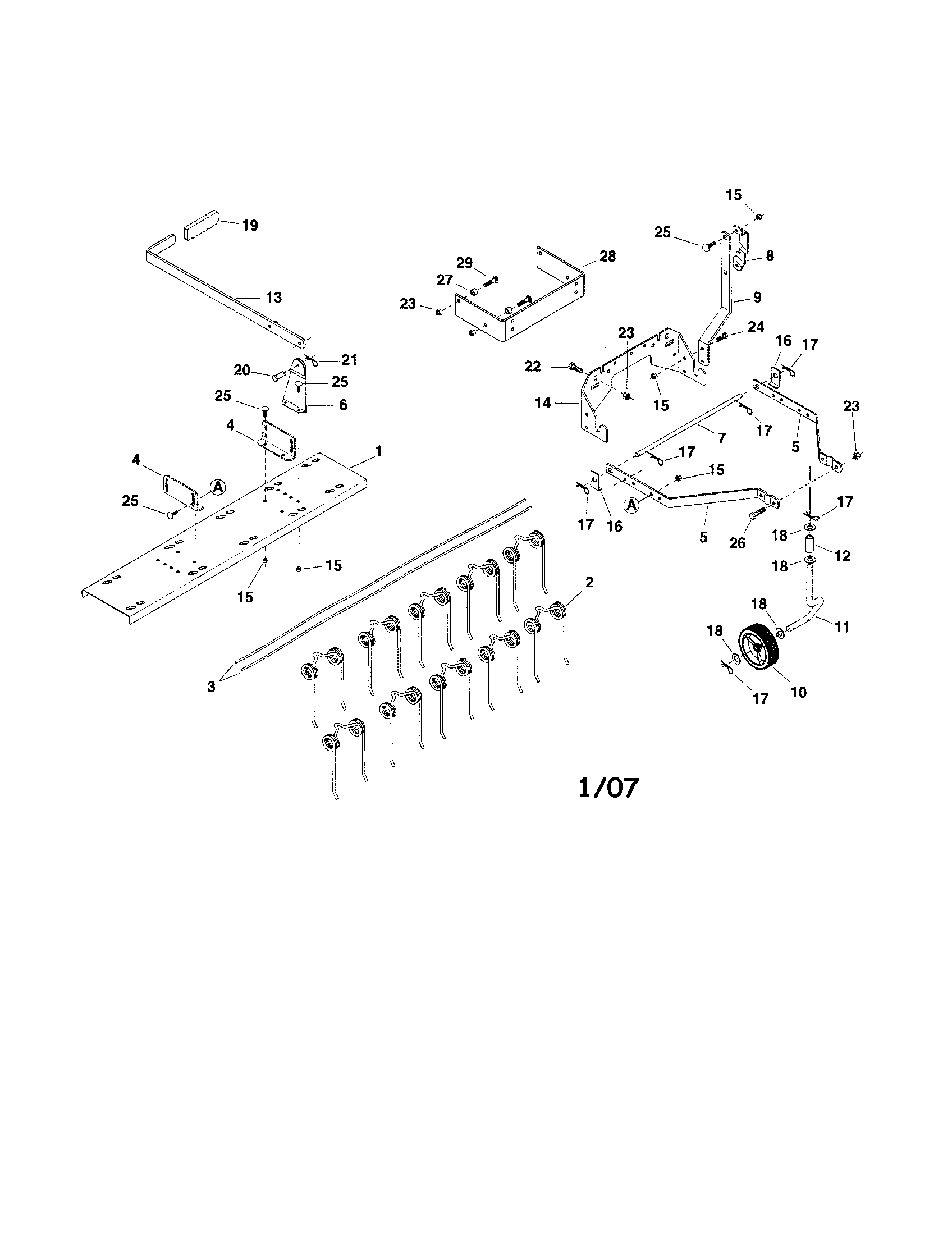

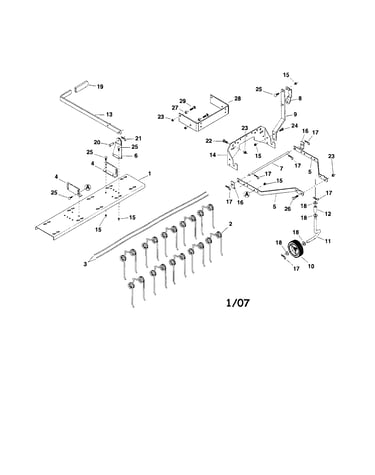

40" tine dethatcher diagram

Lawn tractor attachment cotter pin, 3/32-in

Part #43055

BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Dethatcher Attachment Spring Tine (replaces Af-43783) 43783
#2

40" tine dethatcher diagram

Lawn tractor dethatcher attachment spring tine (replaces af-43783)

Part #43783

BEST SELLER
This item is not returnable
$7.49
12% OFF Phone Price : $8.49
In Stock
Lawn Tractor Attachment Hitch Pin (replaces Af-43343) 43343
#17

40" tine dethatcher diagram

Lawn tractor attachment hitch pin (replaces af-43343)

Part #43343

BEST SELLER
This item is not returnable
In Stock
Lawn Tractor Attachment Screw, 3/8-16 X 1-in 43001
#22

40" tine dethatcher diagram

Lawn tractor attachment screw, 3/8-16 x 1-in

Part #43001

This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Lawn Sweeper Hopper Height Handle Grip 43943
#19

40" tine dethatcher diagram

Lawn sweeper hopper height handle grip

Part #43943

This item is not returnable
$3.51
22% OFF Phone Price : $4.51
In Stock
Lawn Tractor Dump Cart Nut HA21362
#23

40" tine dethatcher diagram

Lawn tractor dump cart nut

Part #HA21362

This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Dethatcher Attachment Spring Alignment Wire 47633
#3

40" tine dethatcher diagram

Lawn tractor dethatcher attachment spring alignment wire

Part #47633

Replaced by #47654

?
Manufacturer substitution
This part replaces 47633. Substitute parts can look different from the original.
This item is not returnable
In Stock
Lawn Tractor Attachment Bolt, 5/16-18 X 1-in 43063
#24

40" tine dethatcher diagram

Lawn tractor attachment bolt, 5/16-18 x 1-in

Part #43063

This item is not returnable
In Stock
Lawn Tractor Dethatcher Attachment Handle Lock Bracket 23673
#8

40" tine dethatcher diagram

Lawn tractor dethatcher attachment handle lock bracket

Part #23673

This item is not returnable
In Stock
Lawn Tractor Dethatcher Attachment Hitch Bracket 26168
#14

40" tine dethatcher diagram

Lawn tractor dethatcher attachment hitch bracket

Part #26168

Replaced by #26168BL1

?
Manufacturer substitution
This part replaces 26168. Substitute parts can look different from the original.
In Stock
