Model # 11319706 Official Craftsman 1/3-hp capacitor start electric motor

Here are the diagrams and repair parts for Official Craftsman 11319706 1/3-hp capacitor start electric motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Power Tool Washer 30767
#12

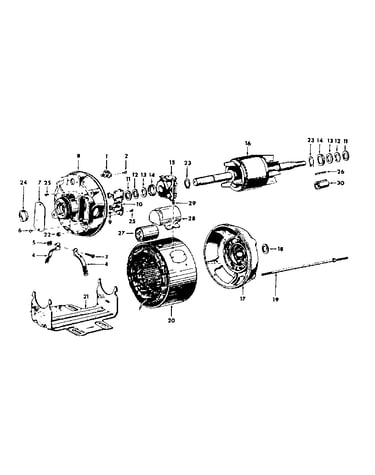

Unit diagram

Power tool washer

Part #30767

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 30783
#23

Unit diagram

Retaining ring

Part #30783

The manufacturer no longer makes this part, and there's no substitute part

Term Cover 37096
#7

Unit diagram

Term cover

Part #37096

The manufacturer no longer makes this part, and there's no substitute part

Parts List 37130

#NI

All parts diagram

Parts list

Part #37130

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut S-1274
#22

Unit diagram

Hex nut

Part #S-1274

The manufacturer no longer makes this part, and there's no substitute part

Stator Assembly 37129
#20

Unit diagram

Stator assembly

Part #37129

The manufacturer no longer makes this part, and there's no substitute part

Bearing Cap 30784
#24

Unit diagram

Bearing cap

Part #30784

The manufacturer no longer makes this part, and there's no substitute part

Bushing 30790
#30

Unit diagram

Bushing

Part #30790

The manufacturer no longer makes this part, and there's no substitute part

End Shield 37116
#17

Unit diagram

End shield

Part #37116

The manufacturer no longer makes this part, and there's no substitute part

Screw S-1412
#29

Unit diagram

Screw

Part #S-1412

The manufacturer no longer makes this part, and there's no substitute part
