Model # 2539750695A Official Kenmore air conditioner
Here are the diagrams and repair parts for Official Kenmore 2539750695A air conditioner, as well as links to manuals and error code tables, if available.
By Schematic
By Part

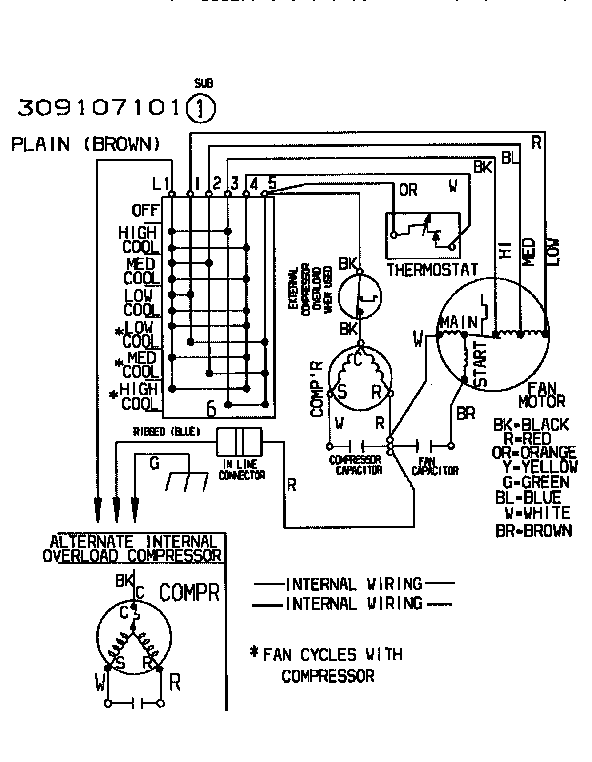

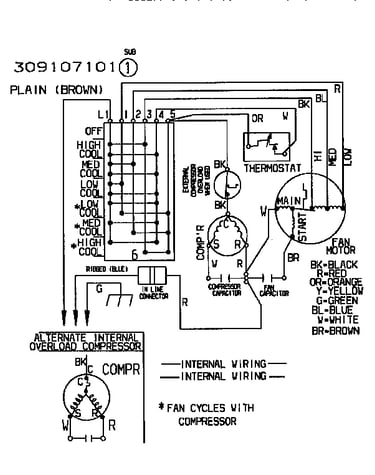

SELECT DIAGRAM
Browse Parts for
2539750695A Air Conditioner
#17

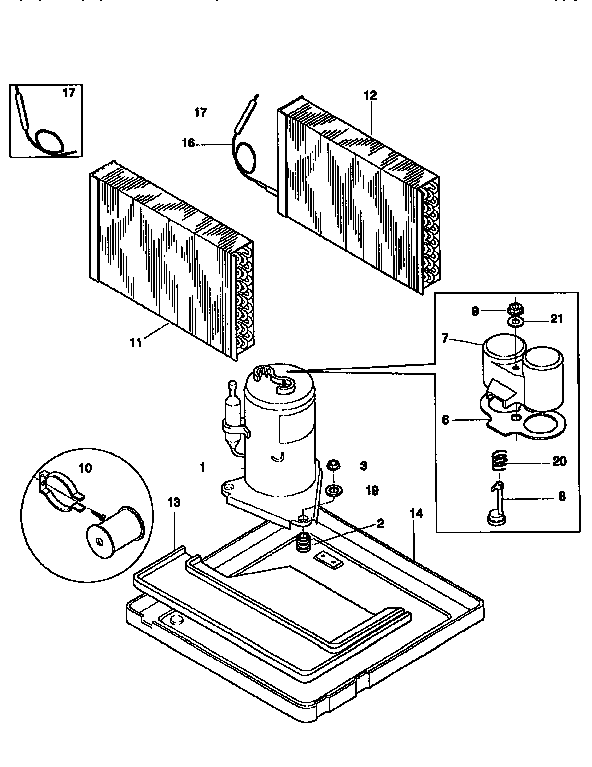

Compressor diagram
Westinghouse room air conditioner filter dryer
Part #5300265301
$265.61
In Stock
#2

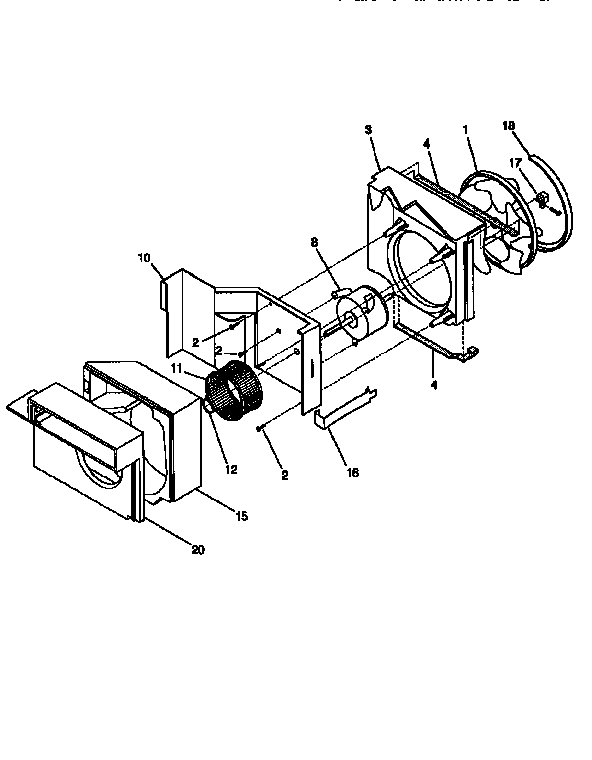

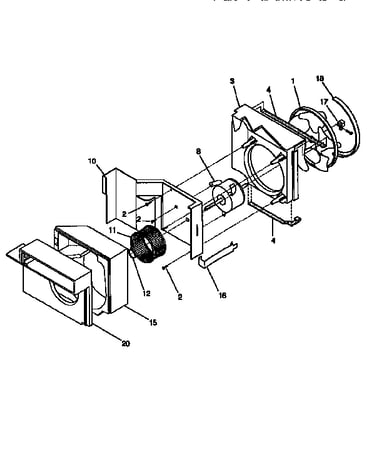

Air handling diagram
Screw
Part #3202975
Replaced by #131202300
?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$15.00 |
12% OFF Phone Price : $17.00
In Stock
#9
Compressor diagram
Cover nut
Part #5303301734
This item is not returnable
$3.34
In Stock
#26

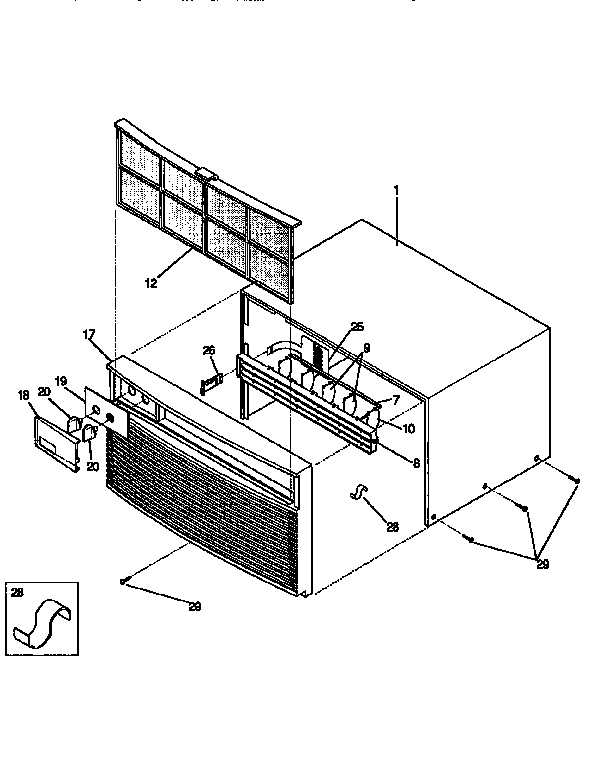

Wrapper diagram
Handle vent
Part #309100509
This item is not returnable
$2.16
In Stock
#19

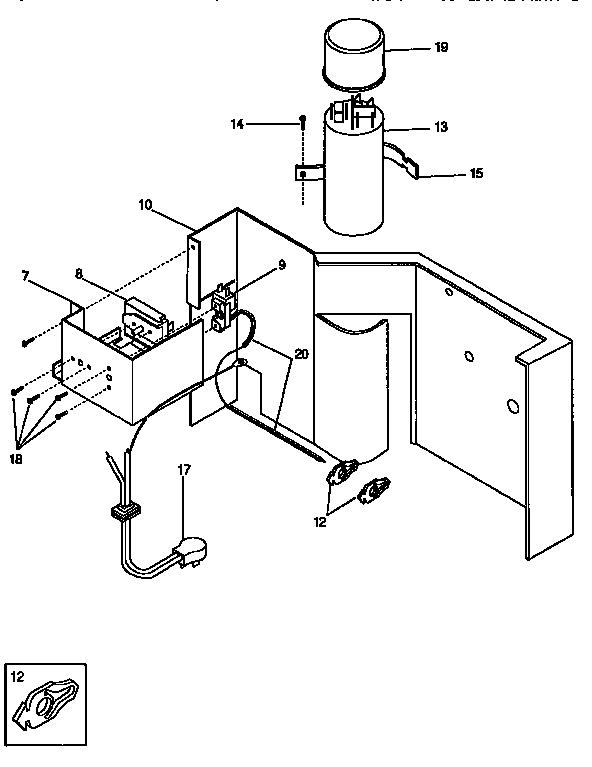

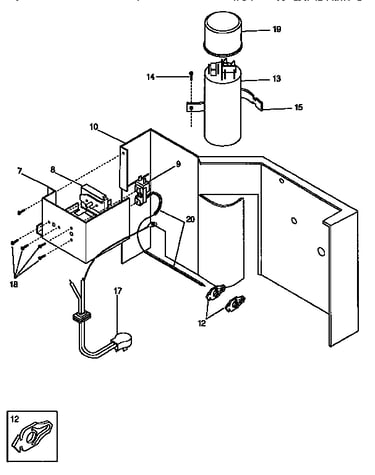

Control panel diagram
Cover capacitor
Part #5303302855
$30.84
In Stock
#1

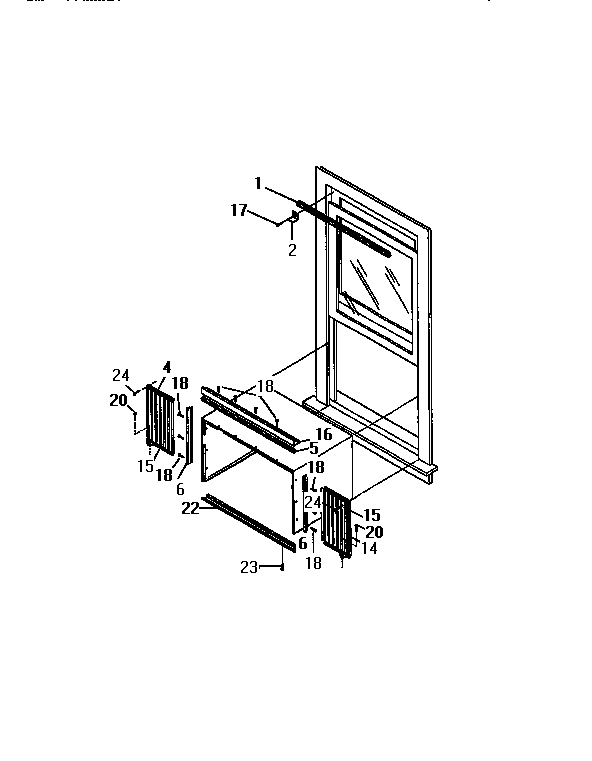

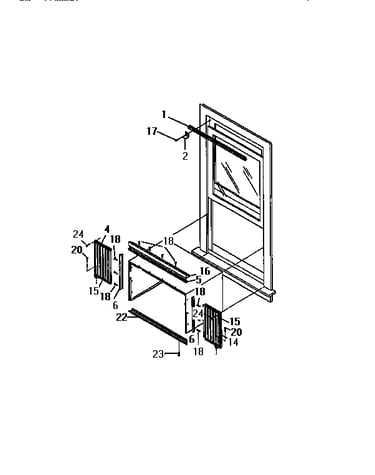

Window mounting kit diagram
Gasket
Part #3002603
Replaced by #5304407729
?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
$22.98
In Stock
#1
Wrapper diagram
Wrapper
Part #5303302856
Replaced by #5304417321
?
Manufacturer substitution
This part replaces 5303302856. Substitute parts can look different from the original.
$44.51
In Stock
Screw
Part #5303303691
Replaced by #134178901
?
Manufacturer substitution
This part replaces 5303303691. Substitute parts can look different from the original.
$41.66
In Stock
Bulkhead
Part #309602401
Replaced by #309602404
?
Manufacturer substitution
This part replaces 309602401. Substitute parts can look different from the original.
$29.16
In Stock
#13
Control panel diagram
Capacitor
Part #5303303125
The manufacturer no longer makes this part, and there's no substitute part
