Model #NT6K00 DISPLAYPHONE Nortel display phone

Here are the diagrams and repair parts for Nortel NT6K00-DISPLAYPHONE display phone, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 23 parts

    JACK 6 CONDT

    #14

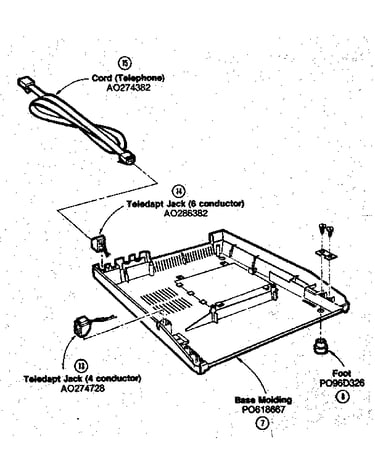

    Base molding Diagram

    Jack 6 condt

    Part #AO286382

    The manufacturer no longer makes this part, and there's no substitute part

    HAND SET

    #23

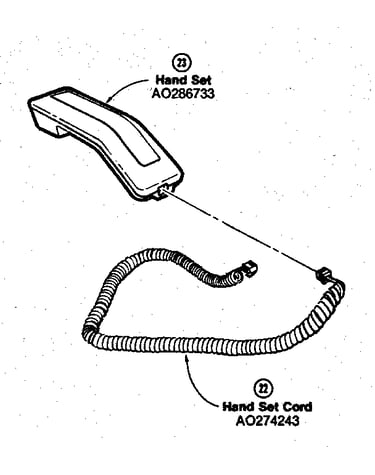

    Hand set and cord Diagram

    Hand set

    Part #AO286733

    The manufacturer no longer makes this part, and there's no substitute part

    COVER W/PAD

    #3

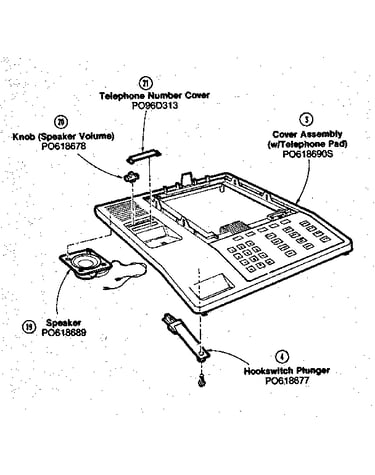

    Cover assemby with telephone pad Diagram

    Cover w/pad

    Part #PO618690S

    The manufacturer no longer makes this part, and there's no substitute part

    Cover

    #21

    Cover assemby with telephone pad Diagram

    Cover

    Part #PO96D313

    The manufacturer no longer makes this part, and there's no substitute part

    Cord

    #15

    Base molding Diagram

    Cord

    Part #AO274382

    The manufacturer no longer makes this part, and there's no substitute part

    CONTRLER BD

    #6

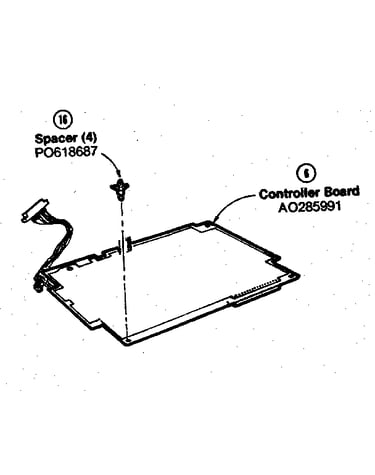

    Controller board Diagram

    Contrler bd

    Part #AO285991

    The manufacturer no longer makes this part, and there's no substitute part

    CRT COVER

    #1

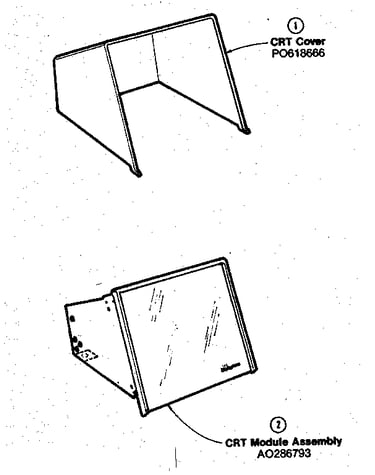

    Module assembly Diagram

    Crt cover

    Part #PO618666

    The manufacturer no longer makes this part, and there's no substitute part

    BASE MOLDING

    #7

    Base molding Diagram

    Base molding

    Part #PO618667

    The manufacturer no longer makes this part, and there's no substitute part

    LED

    #10

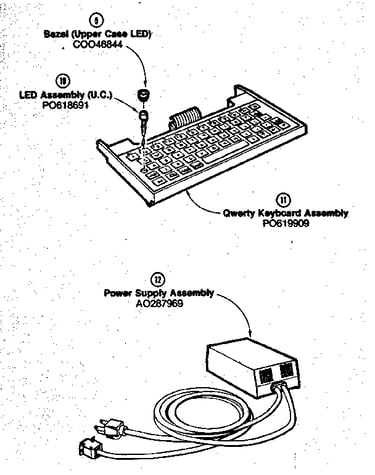

    Keyboard and power supply Diagram

    Led

    Part #PO618691

    The manufacturer no longer makes this part, and there's no substitute part

    INTERFACE BD

    #5

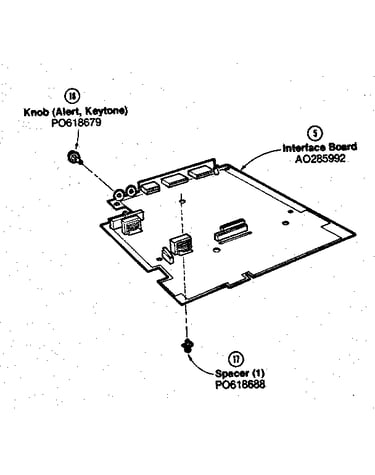

    Interface board Diagram

    Interface bd

    Part #AO285992

    The manufacturer no longer makes this part, and there's no substitute part
