Model # 21758720 Official Craftsman 10.5-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 21758720 10.5-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

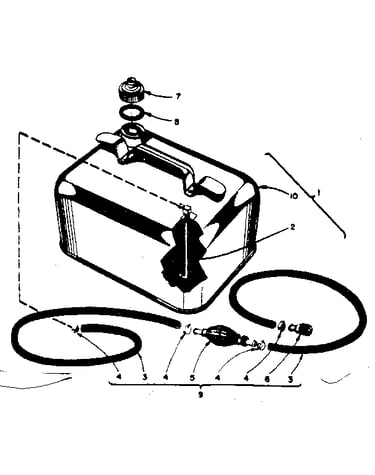

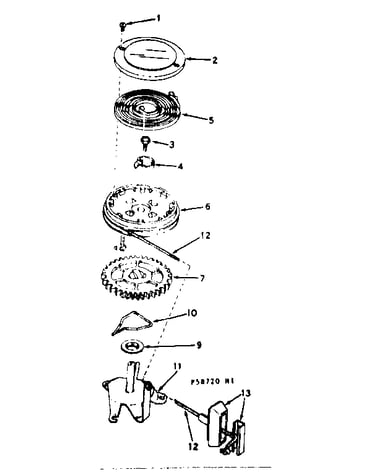

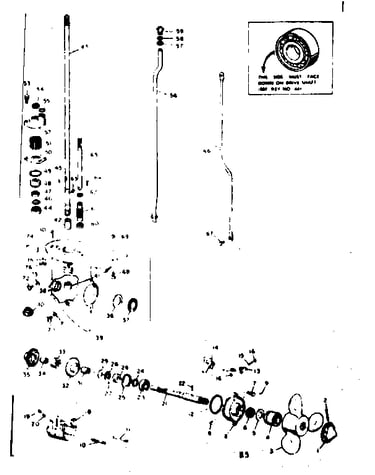

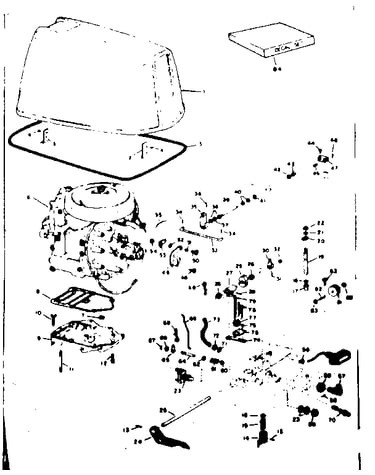

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 354 parts |

#14

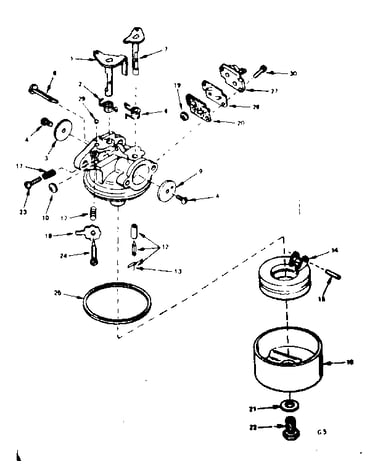

Carburetor assembly no. 631748 diagram

Float

Part #631023

The manufacturer no longer makes this part, and there's no substitute part

#50

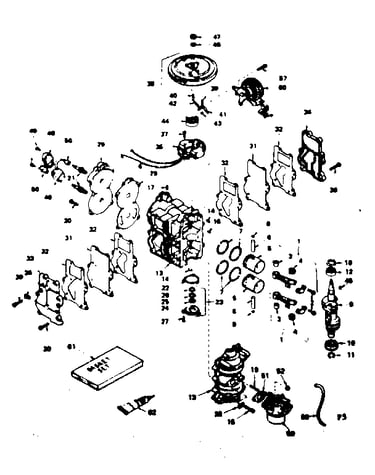

Engine assembly no. 380 diagram

Cover

Part #610118

The manufacturer no longer makes this part, and there's no substitute part

#29

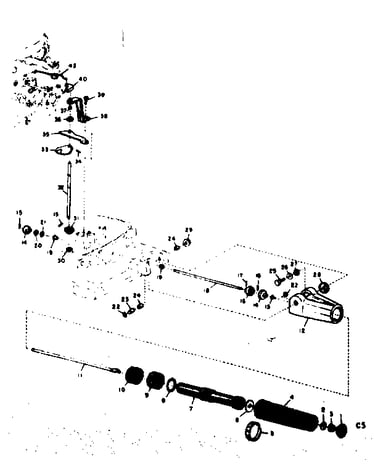

Twist grip assembly diagram

Lock nut

Part #2632

The manufacturer no longer makes this part, and there's no substitute part

#12

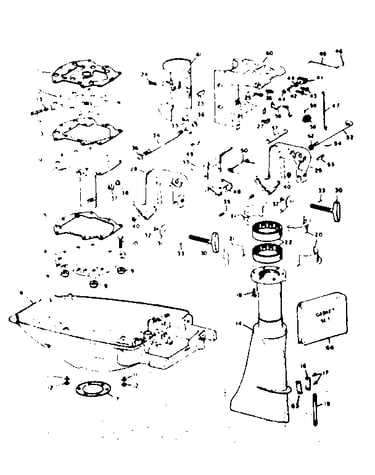

Column assembly diagram

Nut

Part #2625

The manufacturer no longer makes this part, and there's no substitute part

#13

Carburetor assembly no. 631748 diagram

Clip

Part #631022

The manufacturer no longer makes this part, and there's no substitute part

#51

Engine assembly no. 380 diagram

Gasket

Part #510217

The manufacturer no longer makes this part, and there's no substitute part

#17

Carburetor assembly no. 631748 diagram

Spring

Part #630766

The manufacturer no longer makes this part, and there's no substitute part

#21

Carburetor assembly no. 631748 diagram

Gasket

Part #631334

The manufacturer no longer makes this part, and there's no substitute part

#27

Engine assembly no. 380 diagram

Screw

Part #650576

The manufacturer no longer makes this part, and there's no substitute part

Carburetor assembly no. 631748 diagram

Screw

Part #650506

The manufacturer no longer makes this part, and there's no substitute part
