Model # 155850272 Official Kenmore vented gas heater

Here are the diagrams and repair parts for Official Kenmore 155850272 vented gas heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Thermocouple K13730
#22

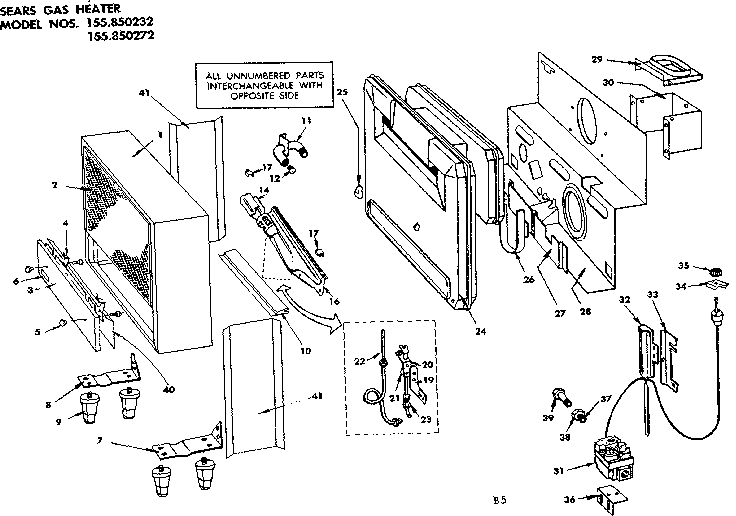

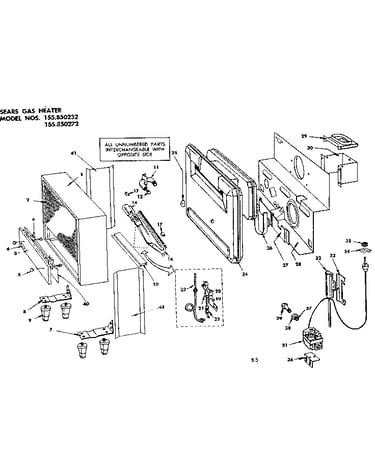

Replacement parts diagram

Thermocouple

Part #K13730

The manufacturer no longer makes this part, and there's no substitute part

Natural Valve K15709
#31A

Replacement parts diagram

Natural valve

Part #K15709

The manufacturer no longer makes this part, and there's no substitute part

U Speednut K1850

#NI

All parts diagram

U speednut

Part #K1850

The manufacturer no longer makes this part, and there's no substitute part

Space Heater Blower Wheel K10900
#12

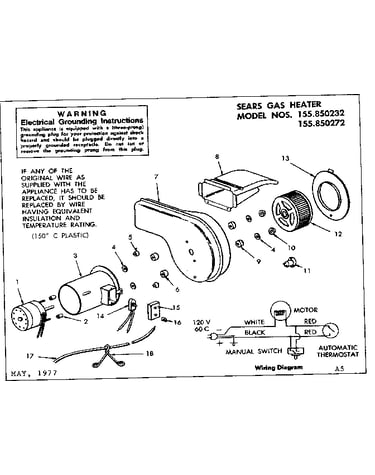

Optional forced air blower diagram

Space heater blower wheel

Part #K10900

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector STD375006

#NI

All parts diagram

Twist-on wire connector

Part #STD375006

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector (orange) STD375005

#NI

All parts diagram

Twist-on wire connector (orange)

Part #STD375005

The manufacturer no longer makes this part, and there's no substitute part

Warranty F642-15476A

#NI

All parts diagram

Warranty

Part #F642-15476A

The manufacturer no longer makes this part, and there's no substitute part

Natural Gas Pilot K13726
#20

Replacement parts diagram

Natural gas pilot

Part #K13726

The manufacturer no longer makes this part, and there's no substitute part

Cord K9541
#17

Optional forced air blower diagram

Cord

Part #K9541

The manufacturer no longer makes this part, and there's no substitute part

Inlet Ring T15874
#13

Optional forced air blower diagram

Inlet ring

Part #T15874

The manufacturer no longer makes this part, and there's no substitute part
