Model # A05LE2E3 Official Frigidaire room air conditioner - lf34088030

Here are the diagrams and repair parts for Official Frigidaire A05LE2E3 room air conditioner - lf34088030, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Screw 8014098
#3

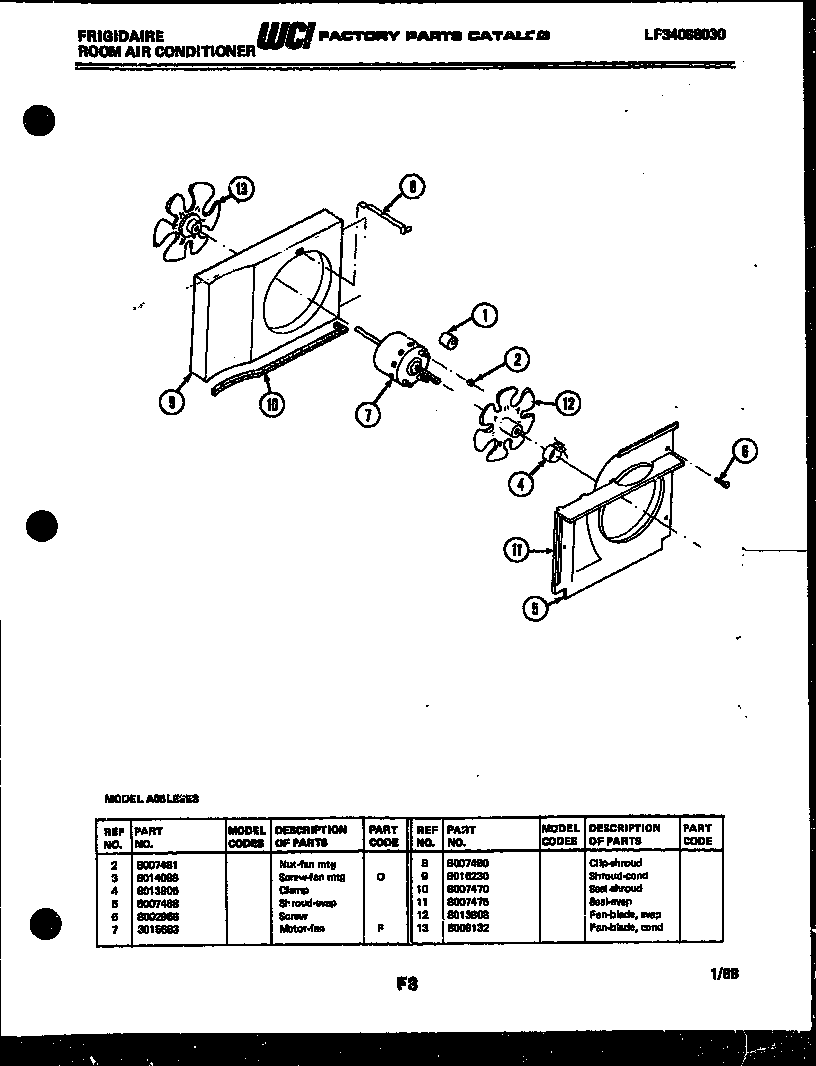

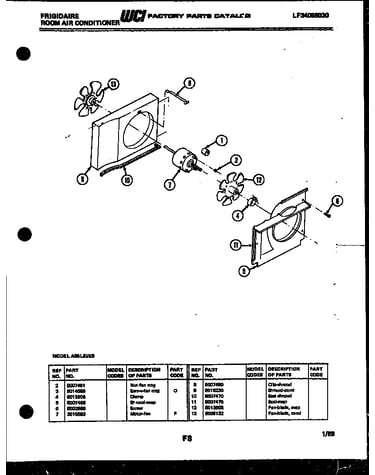

Air handling parts diagram

Screw

Part #8014098

The manufacturer no longer makes this part, and there's no substitute part

Seal 8007482
#12

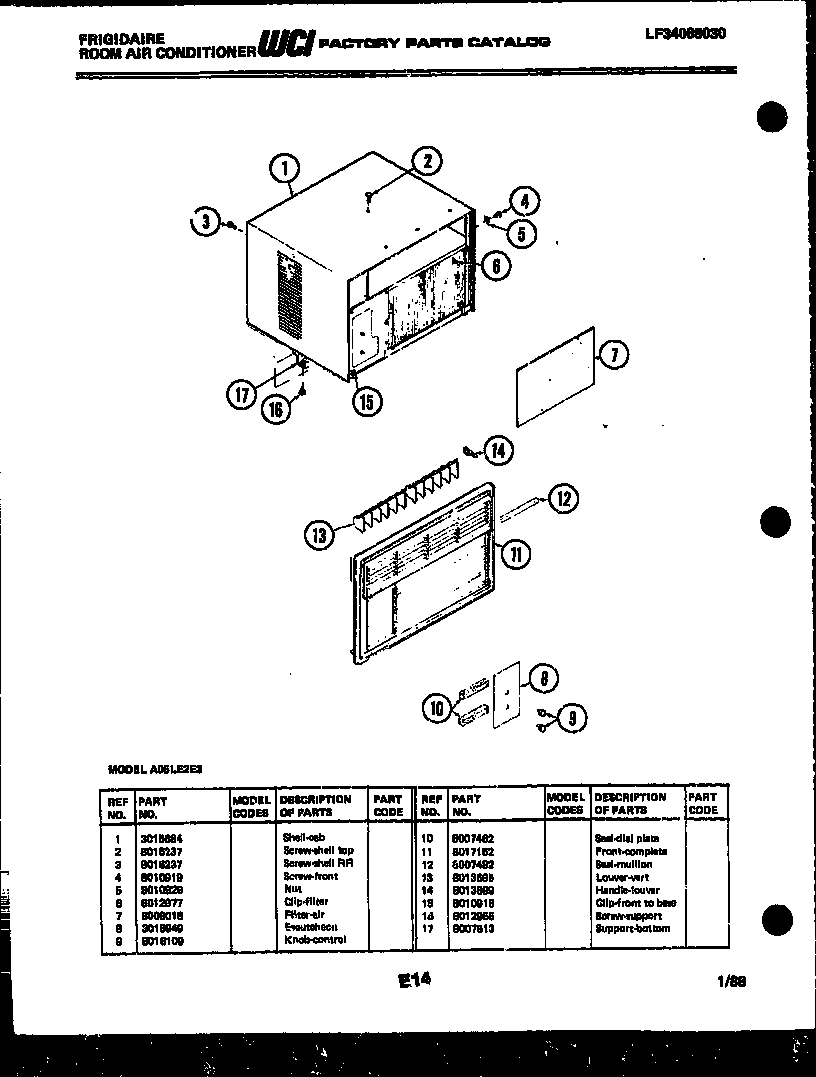

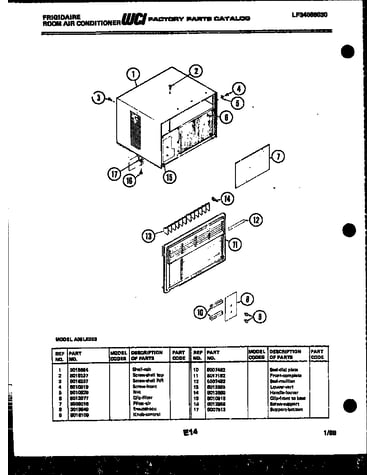

Cabinet parts diagram

Seal

Part #8007482

The manufacturer no longer makes this part, and there's no substitute part

Clamp 8013805
#4

Air handling parts diagram

Clamp

Part #8013805

The manufacturer no longer makes this part, and there's no substitute part

Screw 8012954
#13

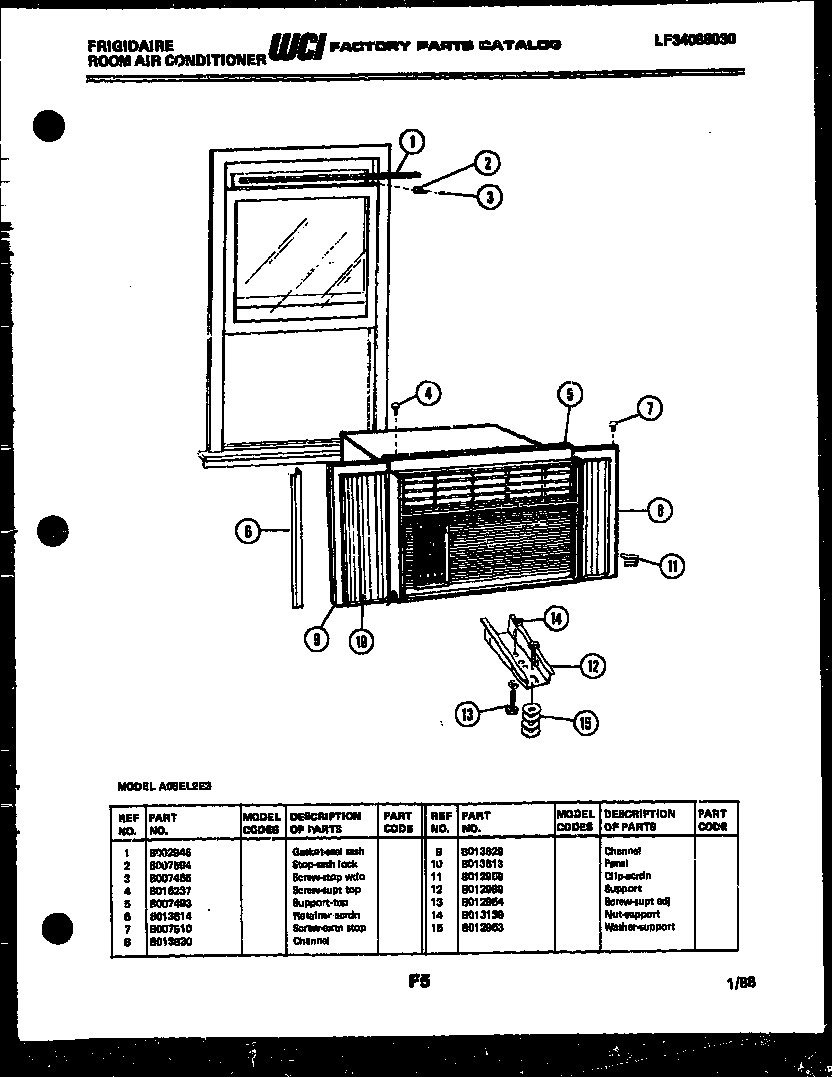

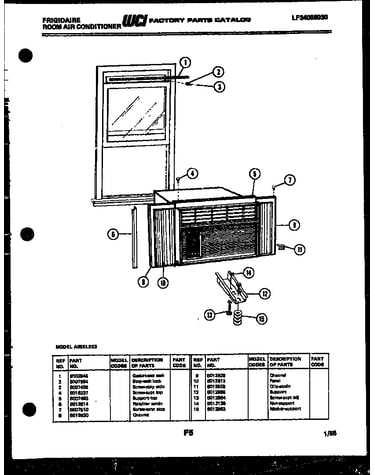

Window mounting parts diagram

Screw

Part #8012954

The manufacturer no longer makes this part, and there's no substitute part

Control 8017150
#6

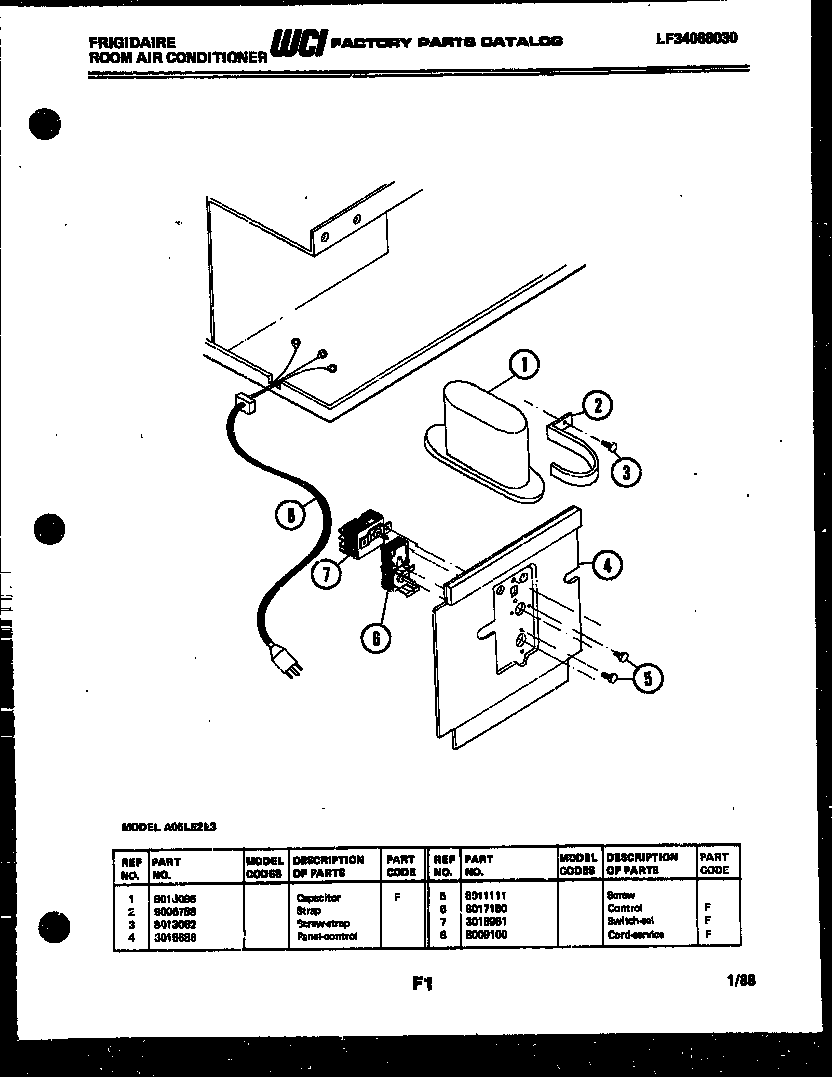

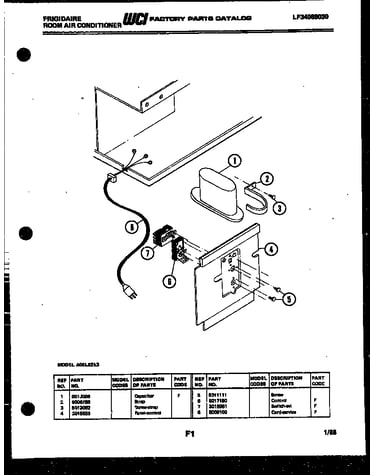

Electrical parts diagram

Control

Part #8017150

The manufacturer no longer makes this part, and there's no substitute part

Evaporator Tray 8017202
#9

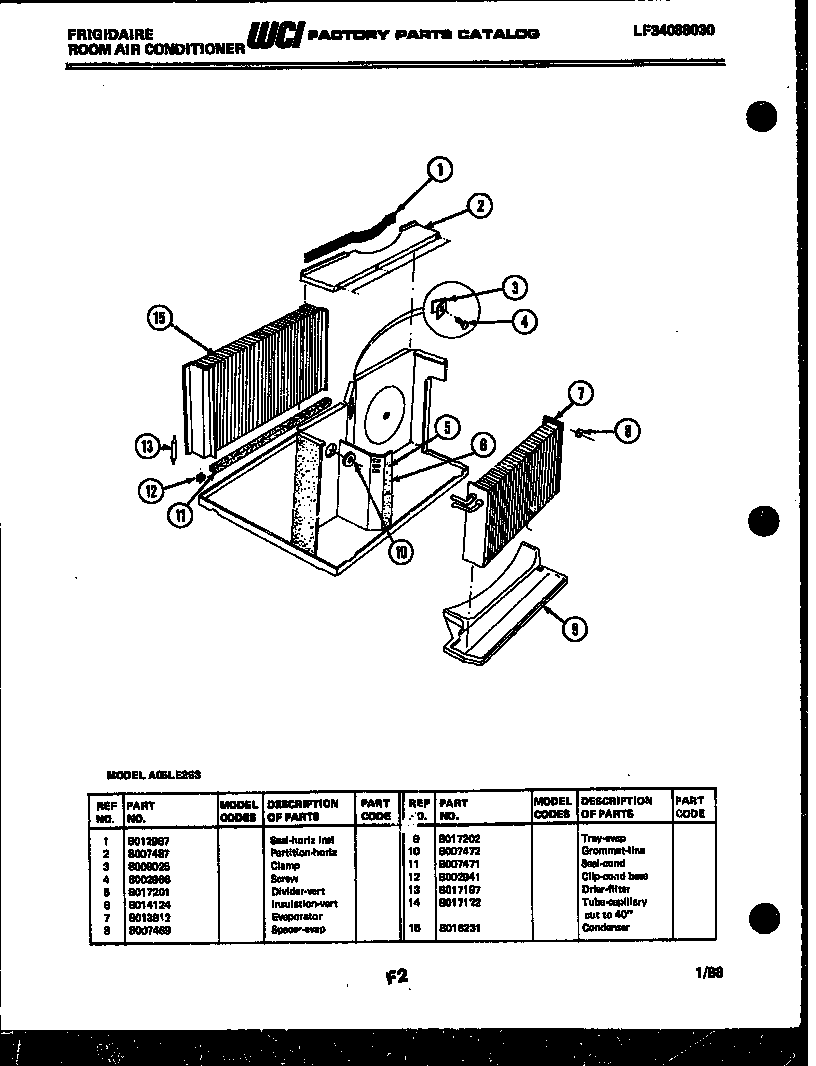

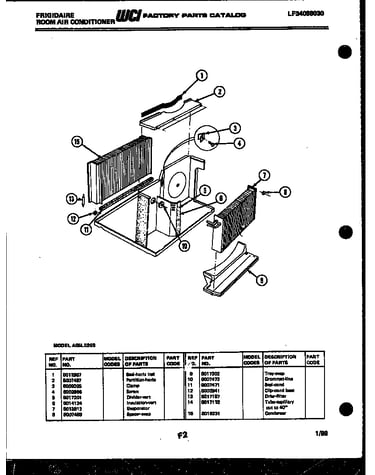

Unit parts diagram

Evaporator tray

Part #8017202

The manufacturer no longer makes this part, and there's no substitute part

Cord, Elec. Serv. 8009100
#8

Electrical parts diagram

Cord, elec. serv.

Part #8009100

The manufacturer no longer makes this part, and there's no substitute part

Clamp 8006788
#2

Electrical parts diagram

Clamp

Part #8006788

The manufacturer no longer makes this part, and there's no substitute part

Knob 8016109
#9

Cabinet parts diagram

Knob

Part #8016109

The manufacturer no longer makes this part, and there's no substitute part

Capillary Tube Cut To 40" (non-illustrated) 8017122
#14

Unit parts diagram

Capillary tube cut to 40" (non-illustrated)

Part #8017122

The manufacturer no longer makes this part, and there's no substitute part
