Kenmore 76981243 air conditioner Parts

Here are the diagrams and repair parts for Kenmore 76981243 air conditioner, as well as links to manuals and error code tables, if available.

Kenmore 76981243 air conditioner
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 76981243 Air Conditioner

  • Motor Run Capacitor for Kenmore 76981243 - Part 12931

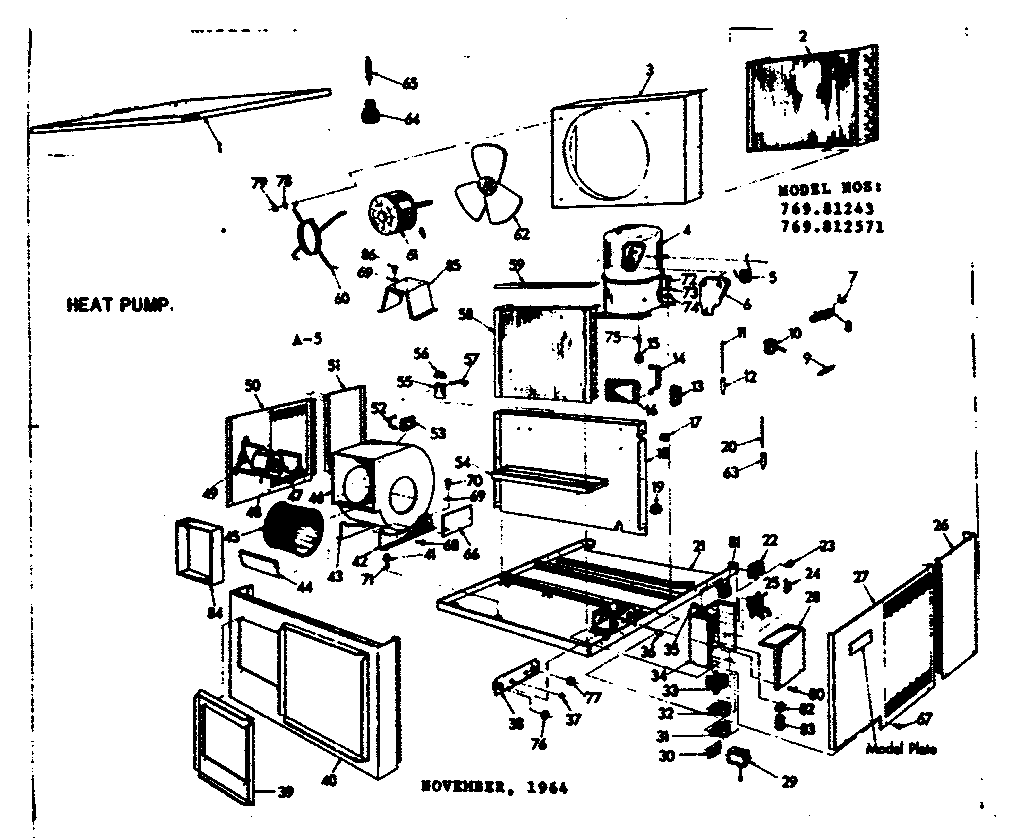

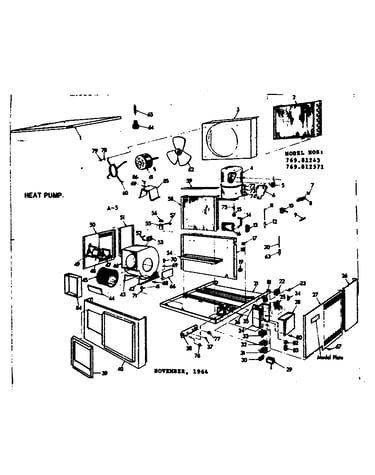

    Heat pump diagram

    Capacitor

    Part #8552-14

    Replaced by #12931

    Info Icon
    Manufacturer substitution
    This part replaces 8552-14. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.39
    14% OFF Phone Price : $7.39Info Icon
    Minus Item
    Qty
    Plus Item
  • Fan Relay for Kenmore 76981243 - Part 8201-103

    Heat pump diagram

    Fan Relay

    Part #8201-103

    The manufacturer no longer makes this part, and there's no substitute part

  • Central Air Conditioner 3-pole Contactor, 24-volt, 50-amp for Kenmore 76981243 - Part 90-170

    Heat pump diagram

    Contactor

    Part #8401-219

    Replaced by #90-170

    Info Icon
    Manufacturer substitution
    This part replaces 8401-219. Substitute parts can look different from the original.
    In Stock
    $55.03
    10% OFF Phone Price : $61.03Info Icon
    Minus Item
    Qty
    Plus Item
  • Rev Valve for Kenmore 76981243 - Part 61-101684-93

    Heat pump diagram

    Valve

    Part #5651-33

    Replaced by #61-101684-93

    Info Icon
    Manufacturer substitution
    This part replaces 5651-33. Substitute parts can look different from the original.
    In Stock
    $655.49
    Minus Item
    Qty
    Plus Item
  • Relay for Kenmore 76981243 - Part 42-25105-02

    Heat pump diagram

    Relay

    Part #8201-128

    Replaced by #42-25105-02

    Info Icon
    Manufacturer substitution
    This part replaces 8201-128. Substitute parts can look different from the original.
    In Stock
    $225.13
    Minus Item
    Qty
    Plus Item
  • Transformer for Kenmore 76981243 - Part 8406-7

    Heat pump diagram

    Transformer

    Part #8406-7

    The manufacturer no longer makes this part, and there's no substitute part

  • Furnace Blower Fan Motor for Kenmore 76981243 - Part 45461

    Heat pump diagram

    Motor

    Part #8101-159

    Replaced by #45461

    Info Icon
    Manufacturer substitution
    This part replaces 8101-159. Substitute parts can look different from the original.
    In Stock
    $301.96
    Minus Item
    Qty
    Plus Item
  • Central Air Conditioner 3-pole Contactor, 24-volt, 50-amp for Kenmore 76981243 - Part 90-170

    Heat pump diagram

    Contactor

    Part #8401-208

    Replaced by #90-170

    Info Icon
    Manufacturer substitution
    This part replaces 8401-208. Substitute parts can look different from the original.
    In Stock
    $55.03
    10% OFF Phone Price : $61.03Info Icon
    Minus Item
    Qty
    Plus Item
  • Motor Run Capacitor for Kenmore 76981243 - Part 12908

    Heat pump diagram

    Capacitor

    Part #8552-18

    Replaced by #12908

    Info Icon
    Manufacturer substitution
    This part replaces 8552-18. Substitute parts can look different from the original.
    In Stock
    $98.90
    11% OFF Phone Price : $110.90Info Icon
    Minus Item
    Qty
    Plus Item
  • Flat Washer for Kenmore 76981243 - Part STD551025

    Heat pump diagram

    Flat Washer

    Part #120392

    Replaced by #STD551025

    Info Icon
    Manufacturer substitution
    This part replaces 120392. Substitute parts can look different from the original.
    In Stock
    $36.61
    Minus Item
    Qty
    Plus Item
