GE
Garbage Disposal

Model # GFC1000G02 Official GE garbage disposal

Here are the diagrams and repair parts for Official GE GFC1000G02 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Mounting Plate WC2X354
#14

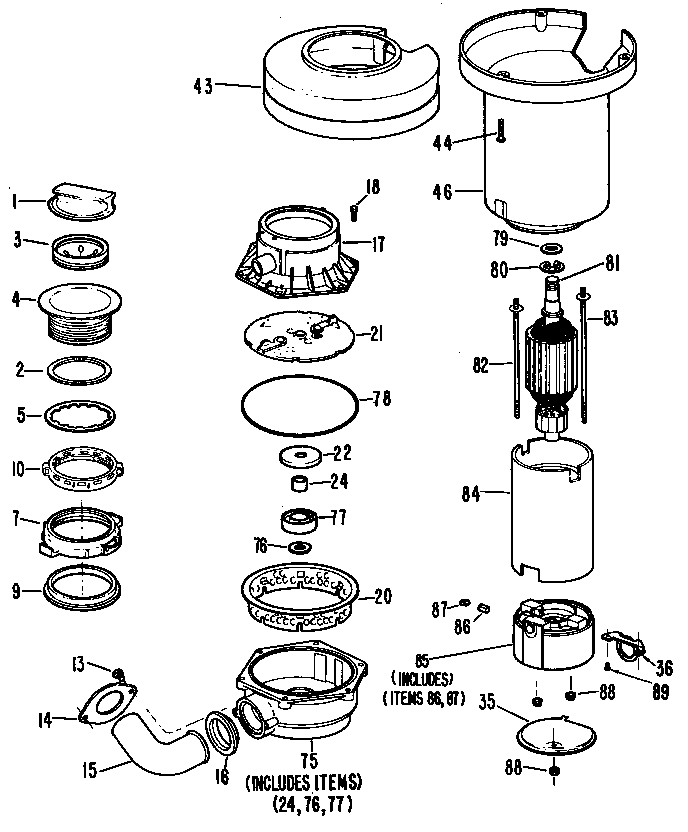

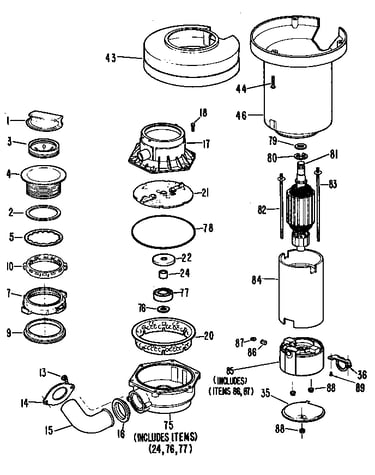

Disposer diagram

Mounting plate

Part #WC2X354

This item is not returnable
$5.49
In Stock
Support Ring WC5X103
#10

Disposer diagram

Support ring

Part #WC5X103

Replaced by #WC05X10002

?
Manufacturer substitution
This part replaces WC5X103. Substitute parts can look different from the original.
This item is not returnable
$11.37 |
15% OFF Phone Price : $13.37
In Stock
Mounting Ring WC5X104
#7

Disposer diagram

Mounting ring

Part #WC5X104

Replaced by #WC15X20161

?
Manufacturer substitution
This part replaces WC5X104. Substitute parts can look different from the original.
$50.75 |
9% OFF Phone Price : $55.75
In Stock
Unknown WC1X252
#79

Disposer diagram

Unknown

Part #WC1X252

The manufacturer no longer makes this part, and there's no substitute part

Housing Drain Asm WC24X199
#75

Disposer diagram

Housing drain asm

Part #WC24X199

The manufacturer no longer makes this part, and there's no substitute part

Shell Upper WC24X202
#43

Disposer diagram

Shell upper

Part #WC24X202

The manufacturer no longer makes this part, and there's no substitute part

Hopper Screw WC1X212
#18

Disposer diagram

Hopper screw

Part #WC1X212

The manufacturer no longer makes this part, and there's no substitute part

Gasket Hopper WC3X115
#78

Disposer diagram

Gasket hopper

Part #WC3X115

The manufacturer no longer makes this part, and there's no substitute part

Slinger WC4X34
#22

Disposer diagram

Slinger

Part #WC4X34

The manufacturer no longer makes this part, and there's no substitute part

Shell Motor Asm WC24X201
#84

Disposer diagram

Shell motor asm

Part #WC24X201

The manufacturer no longer makes this part, and there's no substitute part
