Craftsman
Chipper/Shredder

Model # 247797850 Official Craftsman chipper/shredder

Here are the diagrams and repair parts for Official Craftsman 247797850 chipper/shredder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |

Tap Screw 710-0601
#48

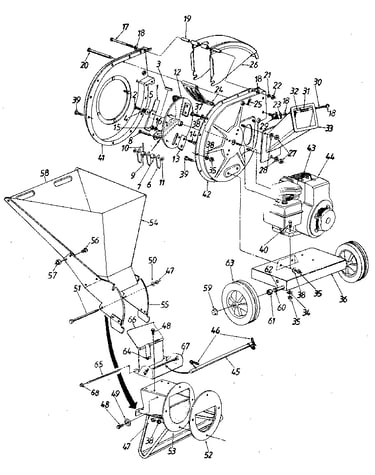

Replacement parts diagram

Tap screw

Part #710-0601

Replaced by #710-1260A

?
Manufacturer substitution
This part replaces 710-0601. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.93
20% OFF Phone Price : $4.93
In Stock
Blade 781-0490
#13

Replacement parts diagram

Blade

Part #781-0490

Replaced by #981-0490

?
Manufacturer substitution
This part replaces 781-0490. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$33.08
13% OFF Phone Price : $38.08
In Stock
Lawn & Garden Equipment Bell Washer (replaces 936-0242) 736-0242
#28

Replacement parts diagram

Lawn & garden equipment bell washer (replaces 936-0242)

Part #736-0242

BEST SELLER
$6.58
13% OFF Phone Price : $7.58
In Stock
Lawn & Garden Equipment Screw 710-1054
#14

Replacement parts diagram

Lawn & garden equipment screw

Part #710-1054

Replaced by #710-1054

?
Manufacturer substitution
This part replaces 710-1054. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Screen 781-0457
#24

Replacement parts diagram

Screen

Part #781-0457

Replaced by #781-0457-0637

?
Manufacturer substitution
This part replaces 781-0457. Substitute parts can look different from the original.
BEST SELLER
$52.74
9% OFF Phone Price : $57.74
In Stock
Clevis Pin 711-0833A
#8

Replacement parts diagram

Clevis pin

Part #711-0833A

Replaced by #711-0833B

?
Manufacturer substitution
This part replaces 711-0833A. Substitute parts can look different from the original.
This item is not returnable
$2.59
28% OFF Phone Price : $3.59
In Stock
Bag 764-0199A

#NI

All parts diagram

Bag

Part #764-0199A

Replaced by #664P04022A

?
Manufacturer substitution
This part replaces 764-0199A. Substitute parts can look different from the original.
$96.09
9% OFF Phone Price : $106.09
In Stock
Lawn & Garden Equipment Push Cap (replaces 1917798, 926-0214) 726-0214
#59

Replacement parts diagram

Lawn & garden equipment push cap (replaces 1917798, 926-0214)

Part #726-0214

This item is not returnable
$15.99
11% OFF Phone Price : $17.99
In Stock
Lawn Tractor Hex Bolt 710-3008
#39

Replacement parts diagram

Lawn tractor hex bolt

Part #710-3008

This item is not returnable
$4.08
26% OFF MSRP : $5.50
In Stock
Lawn & Garden Equipment Cotter Pin 714-3010
#23

Replacement parts diagram

Lawn & garden equipment cotter pin

Part #714-3010

This item is not returnable
In Stock
