Model # S2011 Official Hoover stick vacuum electric broom

Here are the diagrams and repair parts for Official Hoover S2011 stick vacuum electric broom, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

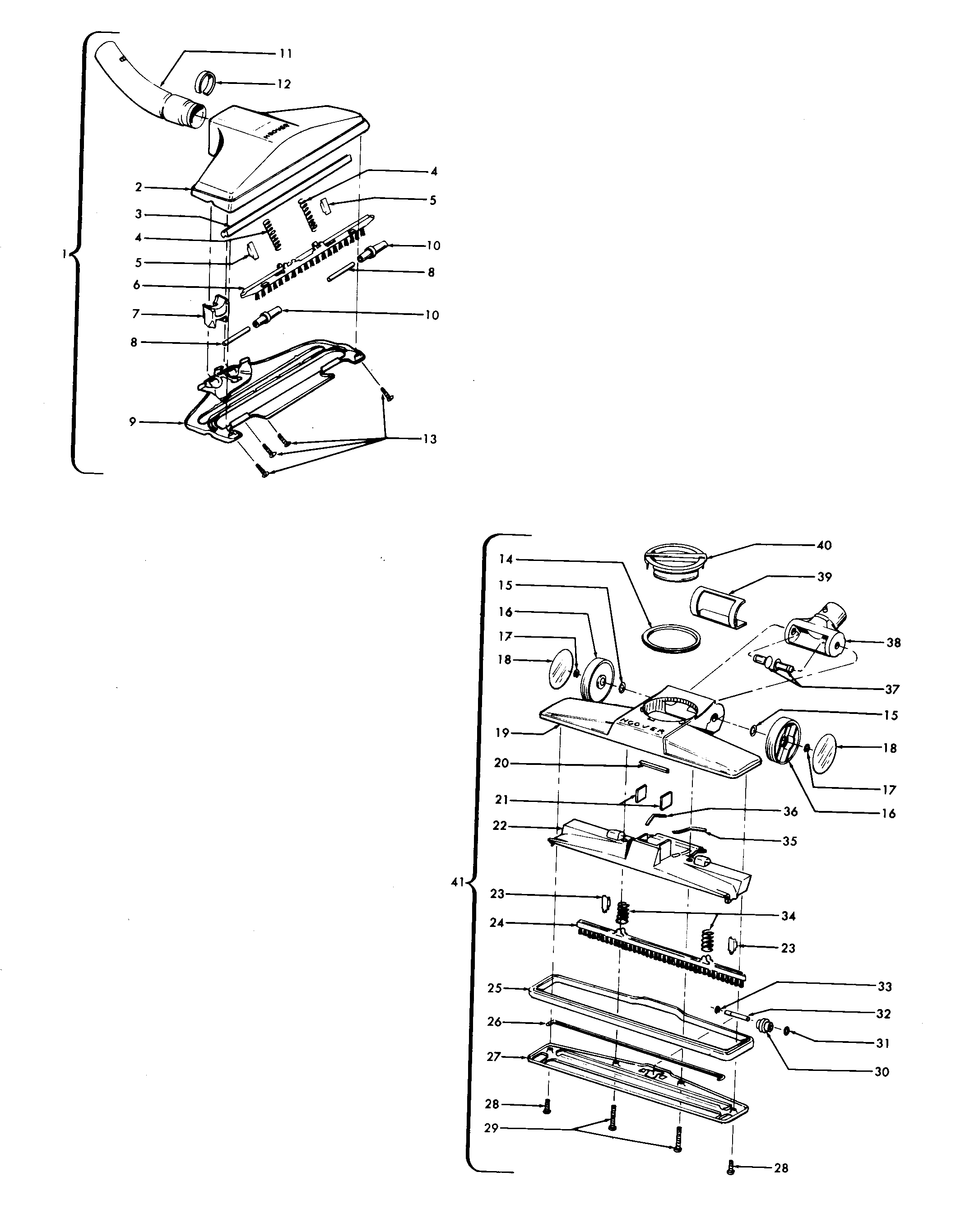

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Nuts

ALL PARTS

Showing 10 of 47 parts |

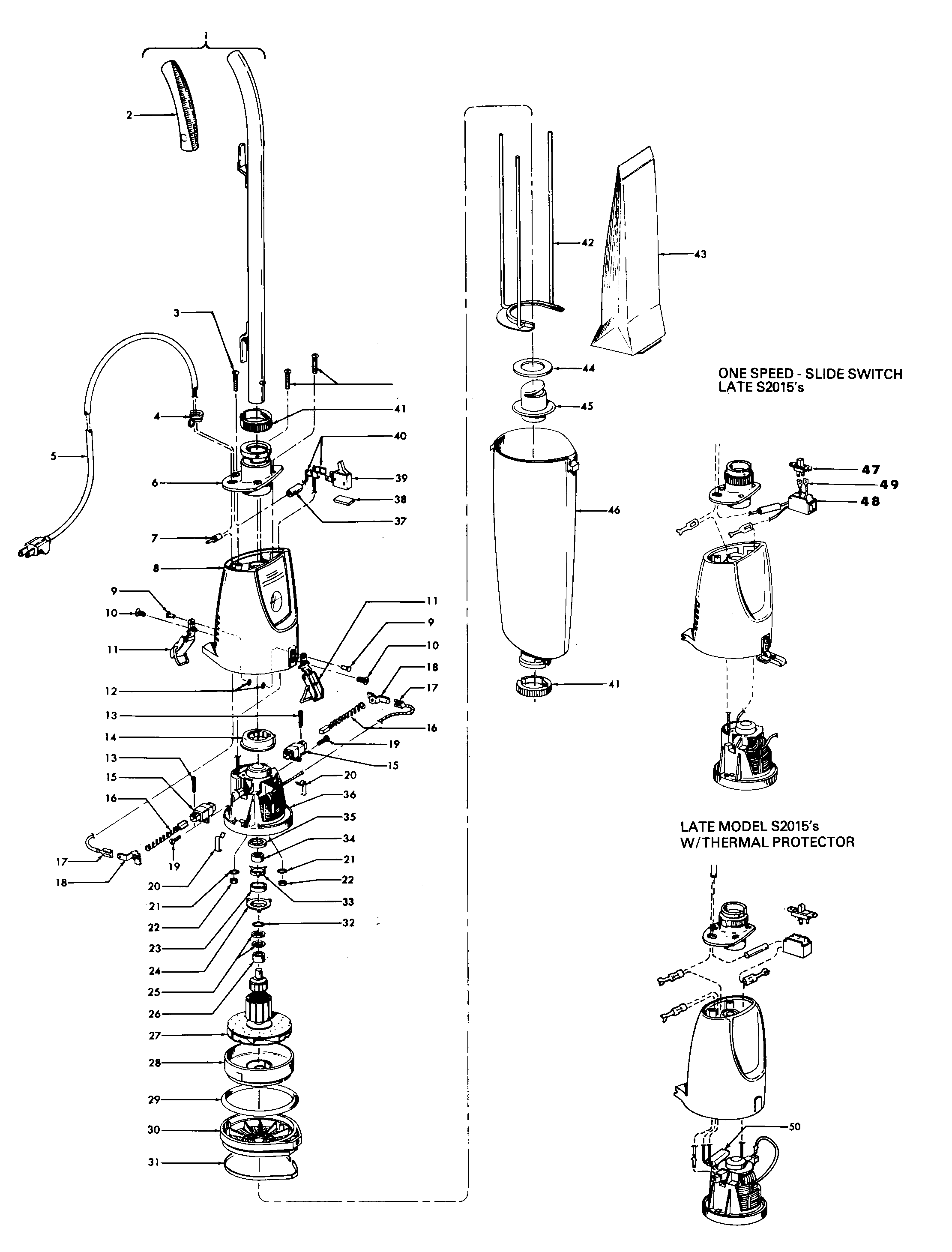

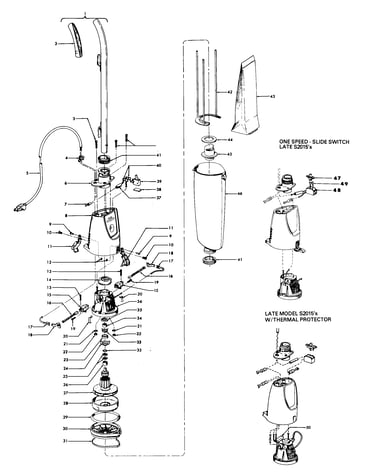

Motor assembly, bag & motorhousing diagram

Twist-on wire connector

Part #048969--

The manufacturer no longer makes this part, and there's no substitute part

#48

Motor assembly, bag & motorhousing diagram

Shield

Part #37922002

The manufacturer no longer makes this part, and there's no substitute part

#49

Motor assembly, bag & motorhousing diagram

Terminal

Part #27666702

The manufacturer no longer makes this part, and there's no substitute part

#31

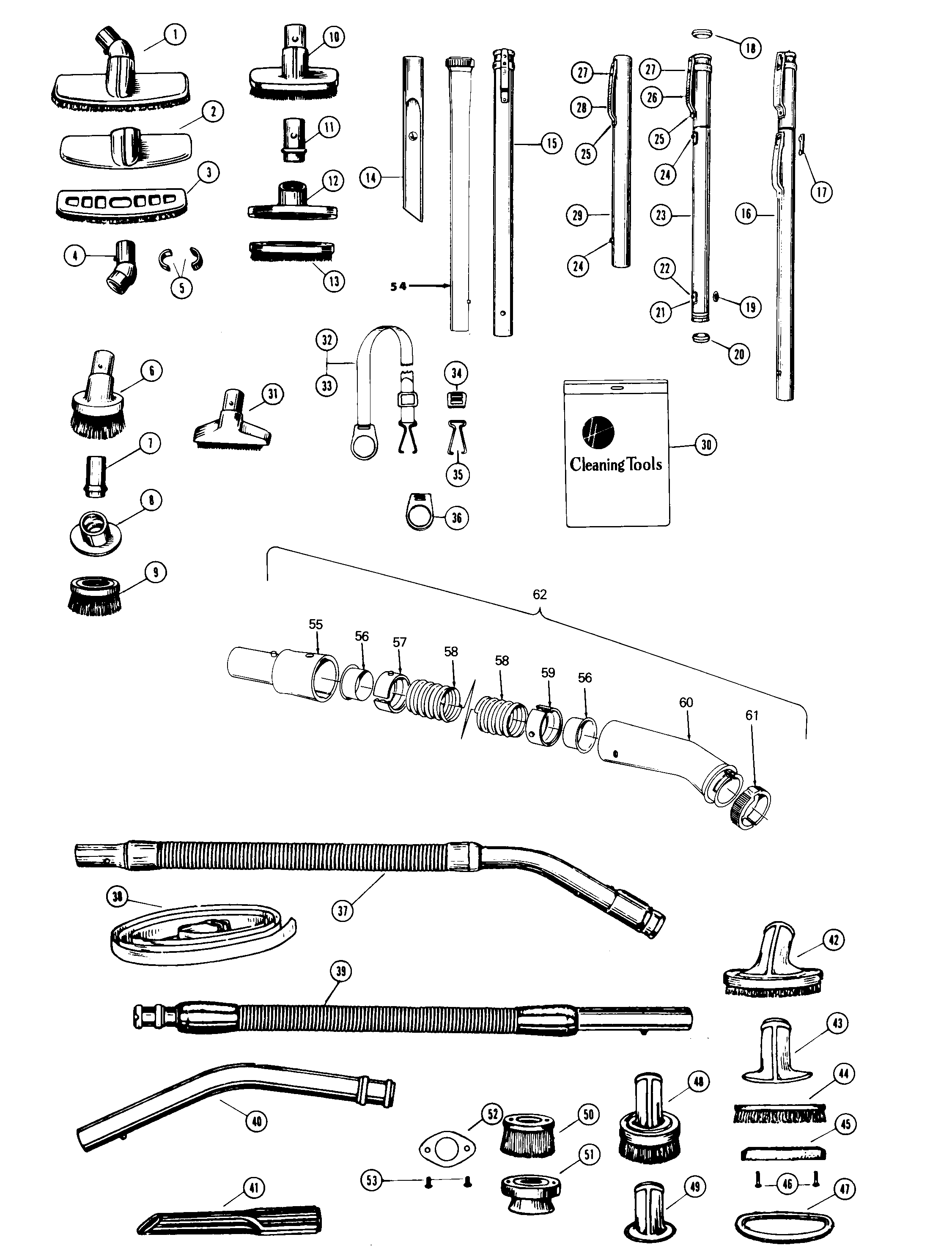

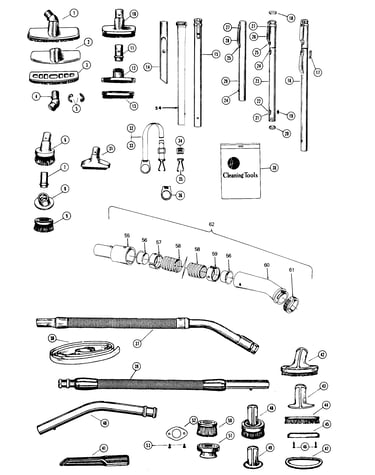

Hose, cleaningtools diagram

Vacuum upholstery nozzle

Part #43414057

The manufacturer no longer makes this part, and there's no substitute part

#56

Hose, cleaningtools diagram

Sleeve hose

Part #32156010

The manufacturer no longer makes this part, and there's no substitute part

#5A

Hose, cleaningtools diagram

Split ring

Part #33712007

The manufacturer no longer makes this part, and there's no substitute part

#15

Hose, cleaningtools diagram

Extension tube

Part #43453027

The manufacturer no longer makes this part, and there's no substitute part

#6A

Hose, cleaningtools diagram

Vacuum dust brush

Part #43414064

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Floor Brush Attachment Swivel 38644020

#4A

Hose, cleaningtools diagram

Vacuum floor brush attachment swivel

Part #38644020

The manufacturer no longer makes this part, and there's no substitute part

Vacuum hose grip lock ring

Part #36153009

The manufacturer no longer makes this part, and there's no substitute part
