GE JE510BW03 microwave Parts

Here are the diagrams and repair parts for GE JE510BW03 microwave, as well as links to manuals and error code tables, if available.

GE JE510BW03 microwave
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forJE510BW03 Microwaves

  • High-voltage Capacitor for GE JE510BW03 - Part WB27X10157

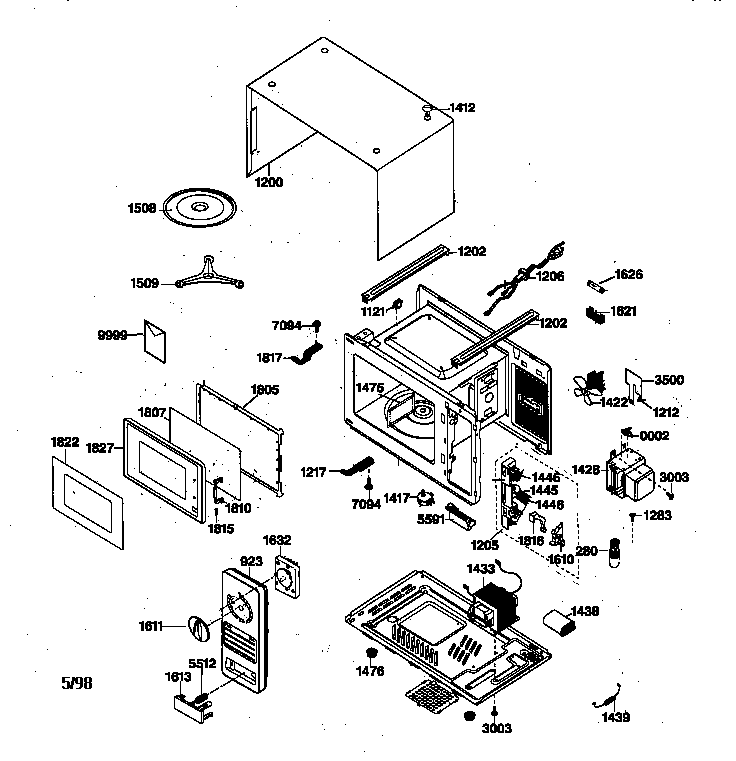

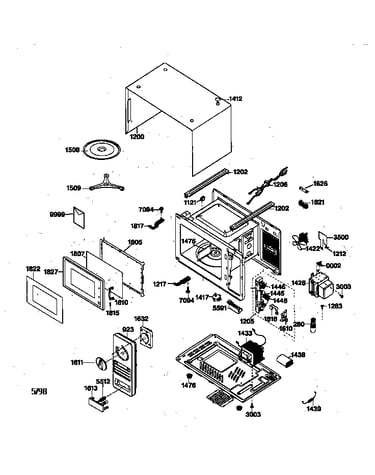

    Microwave parts diagram

    High-voltage Capacitor

    Part #WB27X10157
    In Stock
    $119.46
    Minus Item
    Qty
    Plus Item
  • Microwave High-voltage Diode for GE JE510BW03 - Part WB27X1160

    Microwave parts diagram

    Microwave High-voltage Diode

    Part #WB27X1160
    In Stock
    $101.05
    11% OFF Phone Price : $113.05Info Icon
    Minus Item
    Qty
    Plus Item
  • Magnetron for GE JE510BW03 - Part WB27X10158

    Microwave parts diagram

    Magnetron

    Part #WB27X10158

    The manufacturer no longer makes this part, and there's no substitute part

  • Outer Case for GE JE510BW03 - Part WB56X2187

    Microwave parts diagram

    Outer Case

    Part #WB56X2187
    In Stock
    $111.66
    Minus Item
    Qty
    Plus Item
  • Je 510 520 B for GE JE510BW03 - Part 49-8739

    Microwave parts diagram

    Je 510 520 B

    Part #49-8739
    In Stock
    $17.99
    Minus Item
    Qty
    Plus Item
  • Low Hinge for GE JE510BW03 - Part WB14X205

    Microwave parts diagram

    Lower Hinge

    Part #WB14X0205

    Replaced by #WB14X205

    Info Icon
    Manufacturer substitution
    This part replaces WB14X0205. Substitute parts can look different from the original.
    In Stock
    $31.50
    Minus Item
    Qty
    Plus Item
  • Switch for GE JE510BW03 - Part WB6X508

    Microwave parts diagram

    Lever Switch

    Part #WB06X0508

    Replaced by #WB6X508

    Info Icon
    Manufacturer substitution
    This part replaces WB06X0508. Substitute parts can look different from the original.
    In Stock
    $27.59
    Minus Item
    Qty
    Plus Item
  • Button Plug for GE JE510BW03 - Part WB2X9440

    Microwave parts diagram

    Button Plug

    Part #WB06X0501

    Replaced by #WB2X9440

    Info Icon
    Manufacturer substitution
    This part replaces WB06X0501. Substitute parts can look different from the original.
    In Stock
    $37.38
    Minus Item
    Qty
    Plus Item
  • Push Button for GE JE510BW03 - Part WB03X10153

    Microwave parts diagram

    Start Button

    Part #WB03X0881

    Replaced by #WB03X10153

    Info Icon
    Manufacturer substitution
    This part replaces WB03X0881. Substitute parts can look different from the original.
    In Stock
    $32.63
    Minus Item
    Qty
    Plus Item
  • Bracket A for GE JE510BW03 - Part WB6X509

    Microwave parts diagram

    Bracket

    Part #WB06X0509

    Replaced by #WB6X509

    Info Icon
    Manufacturer substitution
    This part replaces WB06X0509. Substitute parts can look different from the original.
    In Stock
    $31.50
    Minus Item
    Qty
    Plus Item
