Model # GCCG3648AB Official Frigidaire frigidaire/gas cooktop

Here are the diagrams and repair parts for Official Frigidaire GCCG3648AB frigidaire/gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

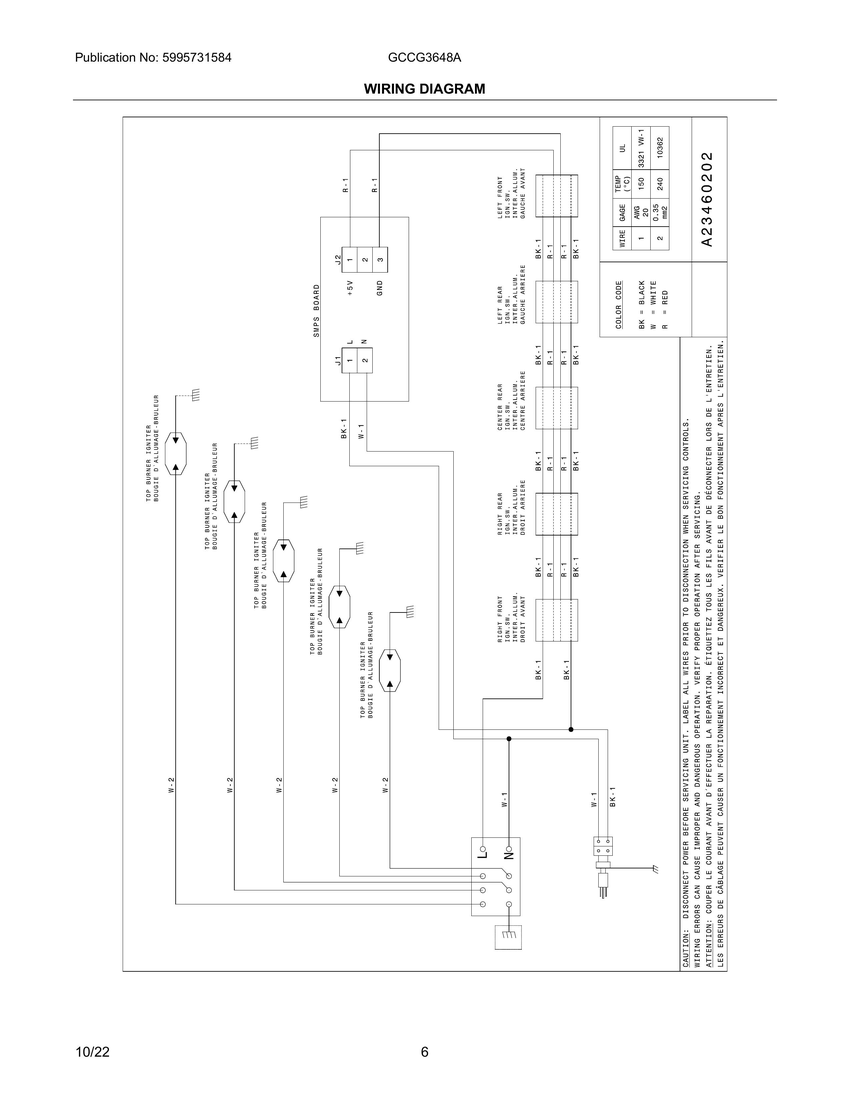

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Cap,burner ,small 5304533595
#22A

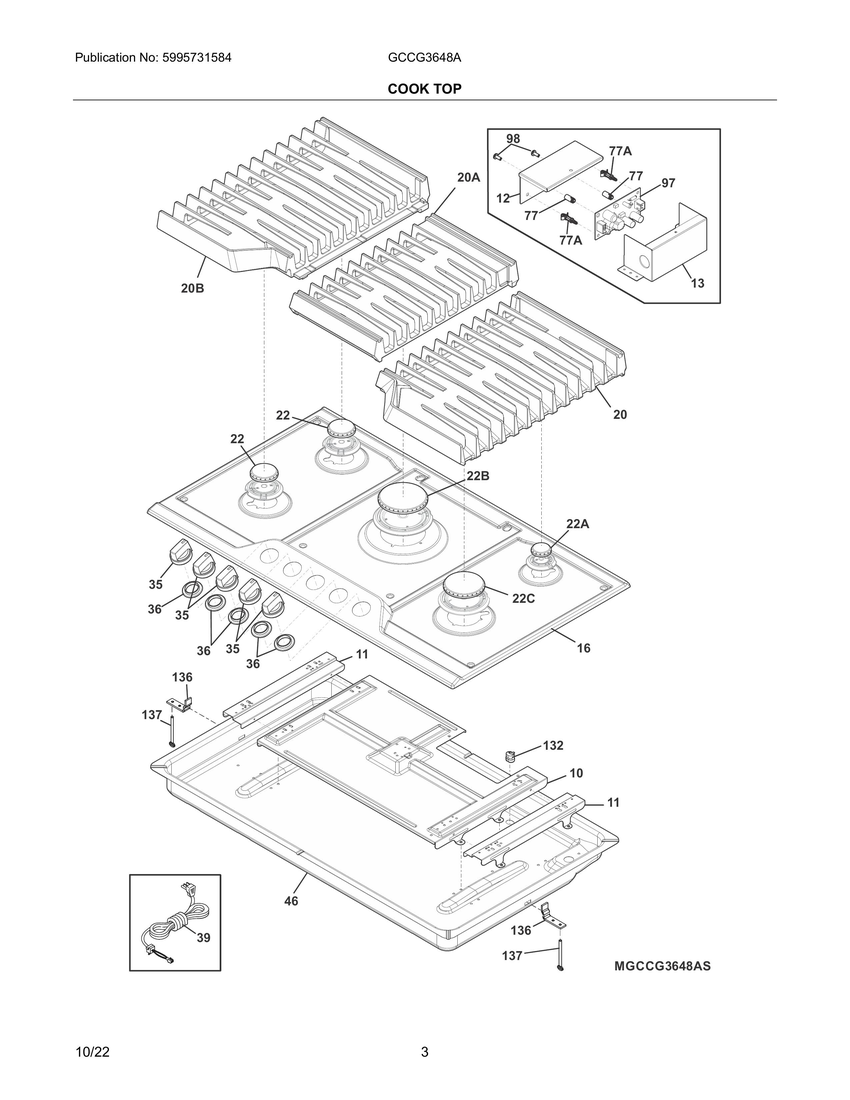

Cook top|mgccg3648as.svg diagram

Cap,burner ,small

Part #5304533595

$22.77
In Stock
Crown,burner ,small 5304533592
#10C

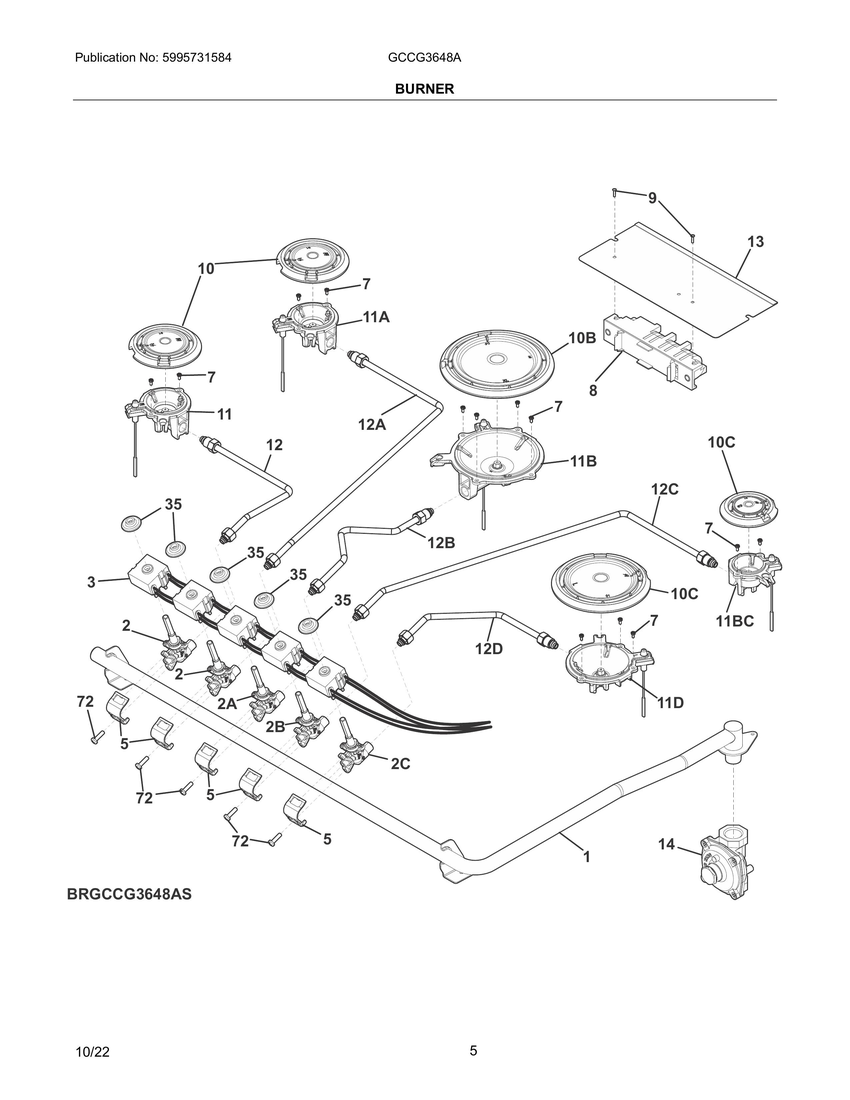

Burner|brgccg3648as.svg diagram

Crown,burner ,small

Part #5304533592

$23.80
In Stock
Maintop,assembly ,black 5304533647
#16

Cook top|mgccg3648as.svg diagram

Maintop,assembly ,black

Part #5304533647

$147.56
In Stock
Cooktop Screw 305452400
#137

Cook top|mgccg3648as.svg diagram

Cooktop screw

Part #305452400

This item is not returnable
$11.89
In Stock
Crown,burner ,medium 5304533593
#10

Burner|brgccg3648as.svg diagram

Crown,burner ,medium

Part #5304533593

$22.73
In Stock
Valve,top Burner ,1500 Btu 5304533607
#2C

Burner|brgccg3648as.svg diagram

Valve,top burner ,1500 btu

Part #5304533607

$28.80
In Stock
Crown,burner ,xtra Large 5304533594
#10B

Burner|brgccg3648as.svg diagram

Crown,burner ,xtra large

Part #5304533594

$44.40
In Stock
Cap,burner ,medium 5304533596
#22

Cook top|mgccg3648as.svg diagram

Cap,burner ,medium

Part #5304533596

$26.23
In Stock
Screw 305452800
Screw

Part #305452800

$9.09
In Stock
Ignitor/orifice Assembly,18k ,rh Front ,assembly 5304533611
#11B

Burner|brgccg3648as.svg diagram

Ignitor/orifice assembly,18k ,rh front ,assembly

Part #5304533611

$37.58
In Stock
